Types of C-Arm X-Ray Machines: Mobile C-Arm, Mini C-Arm, FPD C-Arm, Fixed C-Arm and More

C-arm X-ray systems can be grouped according to size, detector technology, mobility, imaging capability, and clinical application.

Common types include:

mobile C-arm
mini C-arm
full-size C-arm
portable C-arm
digital C-arm
FPD C-arm
image intensifier C-arm
fixed C-arm
high-frequency C-arm
compact C-arm
surgical C-arm

The right type depends mainly on the procedure, anatomical area, operating-room space, required imaging performance, and budget.

For example, a mini C-arm is generally associated with extremity procedures, while a full-size mobile C-arm can support a broader range of surgical applications.

An FPD C-arm uses a flat panel detector, while an image intensifier C-arm uses an image intensifier.

UMY Medical currently offers several mobile C-arm configurations, including FPD and high-frequency systems, for applications such as orthopedics, urology, gynecology, angiography, and medical imaging. (umymedical.com)

1. Mobile C-Arm

A mobile C-arm is designed to move between operating rooms or procedure areas.

It usually includes:

mobile base
C-shaped gantry
X-ray tube
image receptor
generator
monitor
control system

The main advantage is flexibility.

Instead of permanently installing a fluoroscopy system in one room, the hospital can move the equipment to the location where imaging is needed.

Common Uses

Mobile C-arms are commonly considered for:

orthopedic surgery
trauma surgery
spine procedures
urology
pain management
general surgery
operating-room imaging

Who Usually Needs a Mobile C-Arm?

Typical buyers include:

hospitals
surgical centers
orthopedic departments
trauma centers
specialty clinics

The specific configuration should be selected according to the procedures.

2. Mini C-Arm

A mini C-arm is a compact C-arm primarily designed for extremity imaging.

It is particularly associated with:

hand surgery
wrist surgery
foot surgery
ankle surgery
small-bone procedures
outpatient orthopedic procedures

The smaller footprint can make positioning easier around the surgical site.

Why Choose a Mini C-Arm?

A mini C-arm may be appropriate when:

most procedures involve extremities
operating-room space is limited
high system mobility is useful
the hospital does not need full-body coverage

A facility focused mainly on hand and foot surgery may not need a full-size mobile C-arm.

3. Full-Size Mobile C-Arm

A full-size C-arm is designed for a wider range of procedures and anatomical regions.

It can potentially be used for:

orthopedic surgery
trauma
spine surgery
urology
general surgery
other image-guided procedures

Compared with a mini C-arm, a full-size system generally provides a larger working envelope and broader application range.

Full-Size C-Arm Advantages

Depending on the model, buyers may benefit from:

broader field of view
greater positioning flexibility
larger detector options
wider procedure coverage

The trade-off can be:

larger footprint
greater weight
higher investment

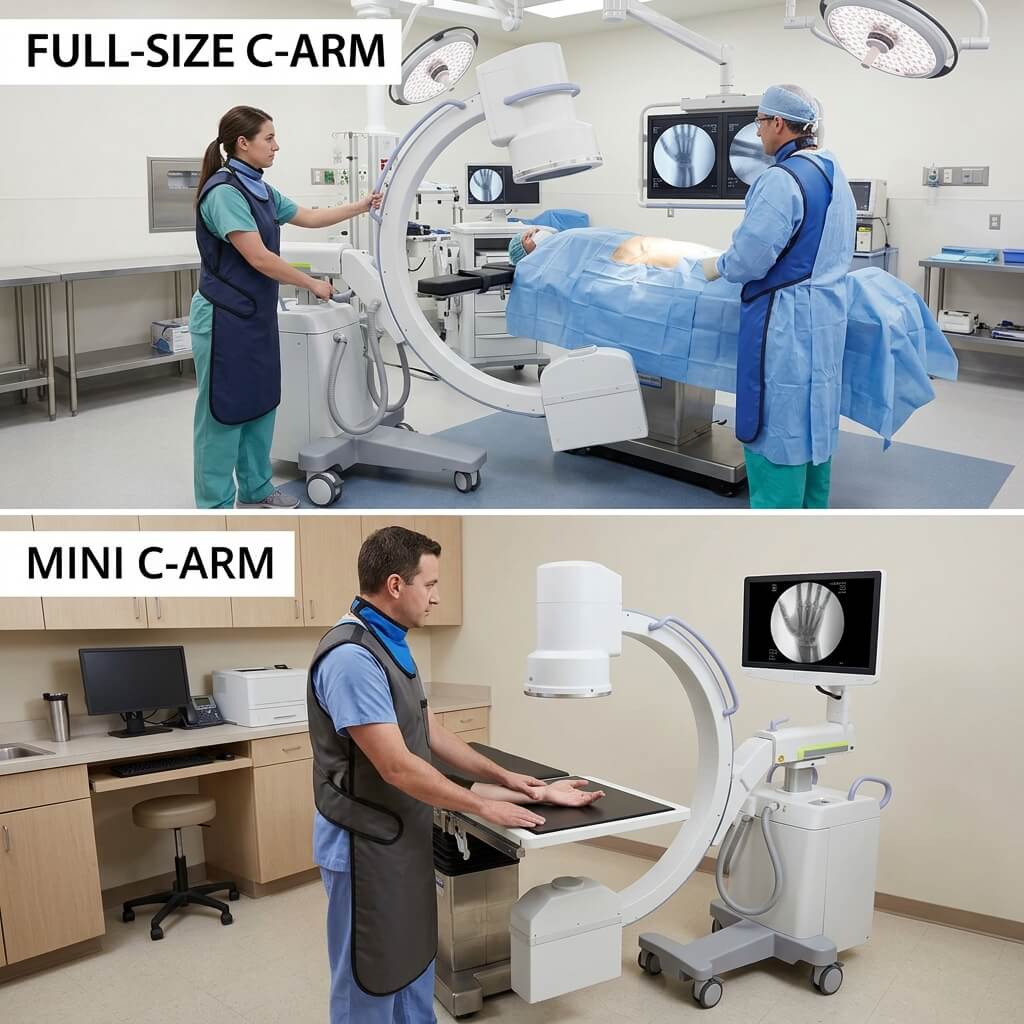

4. Mini C-Arm vs Full-Size C-Arm

This is one of the most useful comparisons for buyers.

Feature	Mini C-Arm	Full-Size C-Arm
Main use	Extremities	Broader surgical use
Size	Compact	Larger
Mobility	High	High
Operating-room footprint	Smaller	Larger
Typical applications	Hand, wrist, foot, ankle	Orthopedics, trauma, spine, urology
Field of view	More limited	Broader
Portability	High	Moderate to high
Best for	Specialty orthopedic use	Multi-purpose surgical imaging

Which One Should You Choose?

Choose a mini C-arm when the majority of procedures involve extremities.

Choose a full-size mobile C-arm when the hospital needs broader procedural coverage.

5. Portable C-Arm

The term portable C-arm is often used to emphasize ease of movement and transport.

However, “portable” does not have one universal technical definition.

When comparing portable systems, look at:

overall weight
dimensions
wheelbase
steering
cable management
monitor design
setup time
C-arm movement

A portable C-arm should be evaluated based on how easily it can actually be used within the target environment.

6. Digital C-Arm

A digital C-arm uses digital image acquisition and computer-based processing.

Compared with older analog workflows, digital systems can offer features such as:

digital image display
image storage
image processing
image review
digital export
DICOM functionality on supported models

Potential applications include:

orthopedic surgery
trauma
urology
general surgery
pain management

The word “digital” alone does not define image quality.

Buyers should also compare:

detector technology
resolution
image processing
frame rate
noise
workflow

7. FPD C-Arm

An FPD C-arm uses a flat panel detector.

FPD stands for Flat Panel Detector.

Instead of an image intensifier, the detector uses a flat digital imaging panel.

Potential Characteristics

FPD systems can provide:

flat detector geometry
digital image acquisition
compact detector design
digital image processing

Important specifications can include:

detector size
pixel pitch
active area
spatial resolution
DQE
dynamic range

Not every FPD C-arm has the same image performance, so comparisons should always use the actual manufacturer specifications.

8. Image Intensifier C-Arm

An image intensifier C-arm uses an image intensifier for X-ray image conversion.

Image intensifiers have been widely used in fluoroscopy systems.

When considering an image intensifier C-arm, buyers may review:

field of view
image quality
distortion
detector design
maintenance
system age
replacement availability

For existing hospitals, an image-intensifier system may still be appropriate depending on application, budget, and service requirements.

9. FPD C-Arm vs Image Intensifier C-Arm

This is a major technology comparison.

Feature	FPD C-Arm	Image Intensifier C-Arm
Detector	Flat panel detector	Image intensifier
Physical shape	Flat panel	Intensifier housing
Digital architecture	Native digital detector	Different image conversion architecture
Image distortion characteristics	Different from II systems	May exhibit image-intensifier distortion
Common modern configuration	Yes	Established technology
Procurement focus	Detector performance, software, workflow	Intensifier condition, image quality, maintenance

A buyer should compare the complete system rather than assuming one technology is automatically better.

10. FPD C-Arm vs Conventional C-Arm

“Conventional C-arm” can refer to older image-intensifier-based systems.

A newer FPD C-arm may offer a more modern detector architecture.

However, the comparison should include:

detector
image quality
field of view
dose management
software
storage
DICOM
service
price

For a hospital replacement project, the complete lifecycle cost can be more important than the detector technology alone.

11. High-Frequency C-Arm

A high-frequency C-arm uses a high-frequency generator design for X-ray production.

High-frequency generators are widely used in modern diagnostic and fluoroscopic X-ray equipment.

Depending on the system, advantages can include:

stable high-frequency power conversion
compact generator design
controlled X-ray output

When comparing high-frequency C-arms, the generator should be evaluated together with:

X-ray tube
detector
fluoroscopy mode
exposure control
image processing

A high-frequency generator is one part of the imaging system, not a standalone measure of overall performance.

12. Compact C-Arm

A compact C-arm is designed around a smaller physical footprint.

This can be useful when:

the operating room is small
the procedure area is crowded
mobility is important
only a limited imaging field is required

A compact system may be particularly useful for:

orthopedic procedures
extremity surgery
pain procedures
smaller procedure rooms

However, buyers should check whether the smaller design still provides the required movement range and field of view.

13. Surgical C-Arm

The term surgical C-arm generally refers to a C-arm used for intraoperative imaging.

Common surgical applications include:

orthopedic surgery
trauma
spine
urology
general surgery

A surgical C-arm should be evaluated around the procedure.

Important areas include:

imaging quality
detector size
movement
operating-room footprint
fluoroscopy modes
monitor
workflow

14. C-Arm for Orthopedic Surgery

Orthopedic departments may choose either:

mini C-arm

or:

full-size mobile C-arm

depending on their procedures.

Mini C-Arm

Often suitable for:

hands
wrists
feet
ankles
extremity procedures

Full-Size C-Arm

Often more appropriate when the department also performs:

trauma surgery
larger orthopedic procedures
spine procedures
implant fixation

The clinical workload should determine the system type.

15. C-Arm for Trauma

Trauma departments often need flexible imaging.

A full-size mobile C-arm can support procedures involving:

fracture reduction
fixation
implant positioning
intraoperative imaging

Important selection factors include:

mobility
detector coverage
image quality
movement
setup speed
operating-room compatibility

16. C-Arm for Spine Procedures

Spine procedures can require different imaging projections.

A full-size mobile C-arm may therefore be preferred over a mini C-arm.

Buyers should consider:

C-arm travel
orbital movement
detector field of view
image quality
operating-table compatibility

The exact requirements depend on the procedure.

17. C-Arm for Urology

For urology, a C-arm can provide image guidance during selected procedures.

Relevant features may include:

fluoroscopy
positioning flexibility
image display
detector coverage
workflow

A full-size mobile C-arm is generally more suitable for broader urological applications than an extremity-focused mini C-arm.

18. C-Arm for Pain Management

Pain-management procedures can involve image-guided injections and other interventions.

A compact mobile C-arm can be useful where:

room size is limited
mobility is important
the procedure mainly targets specific anatomical regions

Selection should focus on the actual clinical workflow.

19. Fixed C-Arm

A fixed C-arm or fixed fluoroscopy system is installed in a dedicated procedure room rather than moved between rooms.

It can be suitable for facilities with:

high procedure volume
dedicated interventional rooms
specialized imaging requirements

The main difference from a mobile C-arm is the installation concept.

Mobile

Flexible location

Fixed

Dedicated location

The correct option depends on workload and facility design.

20. Mobile vs Fixed C-Arm

Feature	Mobile C-Arm	Fixed C-Arm
Installation	Mobile	Permanent
Room flexibility	High	Low
Shared use	Possible	Usually dedicated
Setup	Mobile positioning	Dedicated room
Space requirement	Storage + procedure space	Dedicated installation
Typical use	Surgery and multiple rooms	High-volume dedicated imaging

For hospitals with multiple operating rooms, mobile systems can provide greater flexibility.

For high-volume specialized procedures, a dedicated system may be more appropriate.

21. Portable vs Mobile C-Arm

The terms are sometimes used interchangeably, but procurement teams should focus on actual specifications.

Ask:

How much does the system weigh?
Can it pass through standard doors?
What is the wheelbase?
How easy is steering?
How quickly can it be positioned?
How much storage space is required?

The actual dimensions matter more than the label.

22. Digital C-Arm vs Traditional C-Arm

A modern digital C-arm can provide digital acquisition and image-processing capabilities.

Potential differences include:

image storage
processing
connectivity
detector technology
workstation

However, the word “digital” does not automatically describe every aspect of image quality.

Compare the actual technical specifications.

23. Single-Monitor vs Dual-Monitor C-Arm

Some C-arms use one monitor, while others provide dual-monitor configurations.

Single Monitor

Can provide:

simpler design
smaller footprint
basic image viewing

Dual Monitor

Can allow the operator to display different information simultaneously, depending on system design.

For example:

live image
reference image

or:

current image
previous image

The appropriate configuration depends on the procedure and workflow.

24. C-Arm with FPD vs Image Intensifier: What Should Hospitals Consider?

When comparing detector technologies, consider:


resolution
noise
contrast
field of view

Physical Design

detector size
system geometry
operating-room clearance

Workflow

image processing
storage
monitor
connectivity

Maintenance

detector replacement
service
spare parts

Budget

purchase price
installation
maintenance
lifecycle cost

The correct choice should be based on the hospital’s requirements.

25. Which C-Arm Type Is Best for Orthopedics?

For extremity-focused orthopedic procedures:

Mini C-arm

can be a practical option.

For broader orthopedic and trauma work:

Full-size mobile C-arm

may provide more flexibility.

For hospitals performing both types of procedures, the choice may depend on workload and whether a single system needs to serve multiple departments.

26. Which C-Arm Type Is Best for a Small Operating Room?

A compact or mini C-arm may be easier to position in a limited space.

However, room size should not be the only consideration.

Check:

C-arm dimensions
movement range
detector size
table compatibility
monitor location
clearance around staff

A small C-arm that does not provide sufficient imaging coverage may create limitations later.

27. Which C-Arm Type Is Best for a Hospital?

A hospital should first identify its procedures.

Primarily Extremity Orthopedics

Consider:

Mini C-arm

General Orthopedics and Trauma

Consider:

Full-size mobile C-arm

Multiple Departments

Consider:

Versatile mobile C-arm

Dedicated High-Volume Procedure Room

Consider:

Fixed or advanced specialized fluoroscopy system

The best configuration is based on clinical use, not simply equipment category.

28. Which C-Arm Type Is Best for a Clinic?

A clinic may prioritize:

compact size
simple operation
manageable price
mobility
easy service

For an orthopedic clinic focused on extremities, a mini C-arm can be useful.

For a broader surgical clinic, a mobile full-size C-arm may be more appropriate.

29. Which C-Arm Type Is Best for Veterinary Use?

Veterinary imaging can require flexible positioning.

Depending on animal size and procedures, buyers may consider:

compact C-arm
mini C-arm
mobile C-arm

Important considerations include:

detector size
portability
durability
cleaning
battery
image quality

The correct choice depends on the type and size of animals being examined.

30. C-Arm Type Selection by Application

Application	Common Choice
Hand surgery	Mini C-arm
Wrist surgery	Mini C-arm
Foot surgery	Mini C-arm
Ankle surgery	Mini C-arm
General orthopedics	Full-size mobile C-arm
Trauma surgery	Full-size mobile C-arm
Spine surgery	Full-size mobile C-arm
Urology	Full-size mobile C-arm
Pain management	Compact/mobile C-arm
Multi-room hospital use	Mobile C-arm
High-volume dedicated room	Fixed/advanced system
Veterinary extremity imaging	Mini/compact C-arm

These are general selection guidelines. Clinical and regulatory requirements should determine the final configuration.

31. How to Compare C-Arm Types Before Buying

A simple five-step approach can help.

Step 1: Identify the Procedures

List the procedures the machine must support.

Step 2: Define the Anatomical Area

Determine whether you need:

extremity imaging
full-body imaging
spine imaging
pelvic imaging
other applications

Step 3: Determine the Required Mobility

Ask whether the C-arm needs to:

move between rooms
stay in one room
move around different operating tables

Step 4: Select Detector Technology

Compare:

FPD
image intensifier

Step 5: Check Physical Requirements

Confirm:

C-arm dimensions
movement
operating-room clearance
monitor
storage

This provides a much better basis for equipment selection.

32. How UMY Medical Fits Different C-Arm Requirements

UMY Medical Equipment Co., Ltd. currently provides several C-arm configurations rather than focusing on only one C-arm format.

Its current product category includes:

5 kW mobile C-arm
FPD C-arm
high-frequency mobile C-arm
portable high-frequency C-arm
digital C-arm systems

The listed applications include orthopedics, urology, gynecology, angiography, and medical imaging, depending on the model. (umymedical.com)

This range allows a buyer to start from the procedure and operating environment and then select an appropriate system configuration.

UMY Medical also states that it serves more than 1,100 healthcare entities in 168+ countries and regions, supported by more than 30 medical subsidiaries and 18 production bases. The company describes its wider portfolio as covering medical imaging, laboratory, surgical, dental, and other healthcare equipment. (umymedical.com)

For an international hospital or distributor, this broader product coverage may be useful when a C-arm is part of a larger medical-equipment project.

33. C-Arm Type Comparison for Procurement

Before choosing a system, create a comparison like this:

Factor	Mini C-Arm	Mobile C-Arm	FPD C-Arm	Fixed C-Arm
Extremity use	Excellent fit	Suitable	Suitable	Possible
General surgery	Limited	Suitable	Suitable	Suitable
Mobility	High	High	High	Low
Detector	Digital/specialized	FPD/II	FPD	FPD/other
Room flexibility	High	High	High	Low
Multi-room use	Possible	Suitable	Suitable	Limited
Initial investment	Varies	Varies	Varies	Usually higher project scope
Main factor	Extremity procedures	Mobility	Detector/image workflow	Dedicated room

Actual capabilities vary by model.

34. A Simple C-Arm Selection Decision Tree

Use this process:

Do you mainly perform extremity procedures?

Yes → Consider a mini C-arm.

No → Continue.

Do you need to move the system between rooms?

Yes → Consider a mobile C-arm.

No → Consider a fixed system where appropriate.

Do you prefer a flat panel detector?

Yes → Consider an FPD C-arm.

Do you need a broader surgical application range?

Yes → Consider a full-size mobile C-arm.

Is the operating room small?

Yes → Prioritize compact dimensions and maneuverability.

This is a starting point, not a substitute for a full technical evaluation.

Frequently Asked Questions

What are the main types of C-arms?

The main categories include mobile C-arms, mini C-arms, full-size C-arms, portable C-arms, digital C-arms, FPD C-arms, image-intensifier C-arms, fixed systems, compact C-arms, and high-frequency C-arms.

What is a mobile C-arm?

A mobile C-arm is an X-ray fluoroscopy system designed to be moved between procedure rooms or clinical locations.

What is a mini C-arm?

A mini C-arm is a compact system mainly designed for extremity and orthopedic procedures.

What is a full-size C-arm?

A full-size C-arm is designed for a broader range of surgical applications, including orthopedics, trauma, spine, urology, and other procedures.

What is an FPD C-arm?

An FPD C-arm uses a flat panel detector as its X-ray image receptor.

What is an image intensifier C-arm?

It is a C-arm that uses an image intensifier as its image receptor.

What is a digital C-arm?

A digital C-arm uses digital image acquisition and processing.

What is a portable C-arm?

A portable C-arm is designed to be moved relatively easily between locations. Actual portability depends on system weight and dimensions.

What is a high-frequency C-arm?

A high-frequency C-arm uses a high-frequency generator design for X-ray production.

What is a compact C-arm?

A compact C-arm is designed with a smaller physical footprint for applications where space and maneuverability are important.

What is the difference between a mini C-arm and a mobile C-arm?

A mini C-arm is generally optimized for extremity imaging, while a full-size mobile C-arm supports a wider range of surgical procedures.

What is the difference between FPD and image intensifier C-arms?

They use different image-receptor technologies. FPD systems use flat panel detectors, while image-intensifier systems use image intensifiers.

Is an FPD C-arm better than an image intensifier C-arm?

Neither should automatically be considered better. Compare image performance, workflow, maintenance, application, and total cost.

Which C-arm is best for orthopedic surgery?

A mini C-arm is often considered for extremity procedures, while a full-size mobile C-arm is more appropriate when the orthopedic department handles broader procedures.

Which C-arm is best for hand surgery?

A mini C-arm can be suitable for many hand and extremity procedures, subject to clinical and system requirements.

Which C-arm is best for spine surgery?

A full-size mobile C-arm is generally more suitable for procedures requiring broader imaging coverage and positioning.

Which C-arm is best for urology?

A full-size mobile C-arm is commonly considered for urological procedures requiring fluoroscopic guidance.

Which C-arm is best for a small operating room?

A compact or mini C-arm may be easier to maneuver, but the detector coverage and movement range must still meet the procedure requirements.

Which C-arm is best for a hospital?

The answer depends on the hospital’s procedure mix, workload, operating-room layout, and imaging requirements.

Which C-arm is best for a clinic?

The choice depends on whether the clinic mainly performs extremity procedures or needs broader surgical imaging.

Can a C-arm be used in multiple operating rooms?

A mobile C-arm can potentially be shared between compatible operating rooms, depending on hospital workflow.

Can a mini C-arm replace a full-size C-arm?

Usually not for every application. Mini C-arms are generally focused on extremities and may not provide the coverage required for broader procedures.

Can a full-size C-arm be used for hand surgery?

Yes, depending on the system, although a mini C-arm may offer a more compact solution for extremity-focused workflows.

What should I compare when buying a C-arm?

Compare application, detector type, detector size, generator, movement, imaging modes, image quality, software, operating-room footprint, connectivity, service, and total cost.

How do I choose between mobile and fixed C-arm?

Choose based on whether the equipment needs to be shared between rooms, the procedure volume, available space, and facility design.

How do I choose between FPD and image intensifier?

Compare image performance, field of view, physical design, workflow, maintenance, service, and budget.

Does a larger C-arm always provide better imaging?

No. Larger systems may provide broader coverage, but the appropriate system depends on the procedure and required imaging field.

Does higher generator power mean a better C-arm?

Not automatically. Generator power is only one part of overall system performance.

Is a portable C-arm the same as a mobile C-arm?

The terms can overlap, but buyers should compare actual dimensions, weight, mobility, and setup requirements.

What information should I give a C-arm supplier?

Provide the intended procedures, anatomical areas, preferred C-arm type, detector preference, operating-room conditions, required imaging modes, quantity, and target market requirements.

C-Arm Type Selection Checklist

Before purchasing, confirm:

Application

□ Orthopedic

□ Trauma

□ Spine

□ Urology

□ Pain management

□ General surgery

□ Veterinary

System Type

□ Mini C-arm

□ Mobile C-arm

□ Full-size C-arm

□ Compact C-arm

□ Fixed C-arm

Detector

□ FPD

□ Image intensifier

□ Detector size

□ Required field of view

Imaging

□ Fluoroscopy

□ Pulsed fluoroscopy

□ Radiography

□ Image processing

Physical

□ Operating-room footprint

□ C-arm movement

□ Wheelbase

□ Monitor

□ Storage

Digital

□ DICOM

□ PACS

□ Image storage

□ Data export

Commercial

□ Budget

□ Warranty

□ Spare parts

□ Installation

□ Training

□ Technical support

Conclusion

C-arms are available in several configurations, and each type is designed around different clinical and operational needs.

Mini C-arms are commonly associated with extremity procedures.

Full-size mobile C-arms provide broader surgical coverage.

FPD C-arms use flat panel detectors for digital image acquisition.

Image-intensifier C-arms use established image-intensifier technology.

Compact and portable C-arms focus on mobility and space efficiency.

Fixed systems are designed for dedicated procedure rooms.

The right choice depends on the combination of:

procedure → anatomy → detector → mobility → operating-room space → imaging requirements → workflow

For orthopedic clinics focused on hands and feet, a mini C-arm may be appropriate.

For hospitals handling trauma, spine, urology, and general surgical procedures, a full-size mobile C-arm may provide greater flexibility.

For facilities looking for a modern digital detector configuration, an FPD C-arm may be worth evaluating against an image-intensifier system.

UMY Medical Equipment Co., Ltd. currently provides multiple mobile C-arm configurations, including FPD and high-frequency systems, serving different surgical and medical imaging applications. (umymedical.com)

For buyers and distributors, the most effective approach is to define the required clinical applications first and then compare C-arm types according to detector technology, imaging capability, mobility, space, workflow, service, and total cost.

Choose the C-arm type around the procedure—not simply around the product name.
