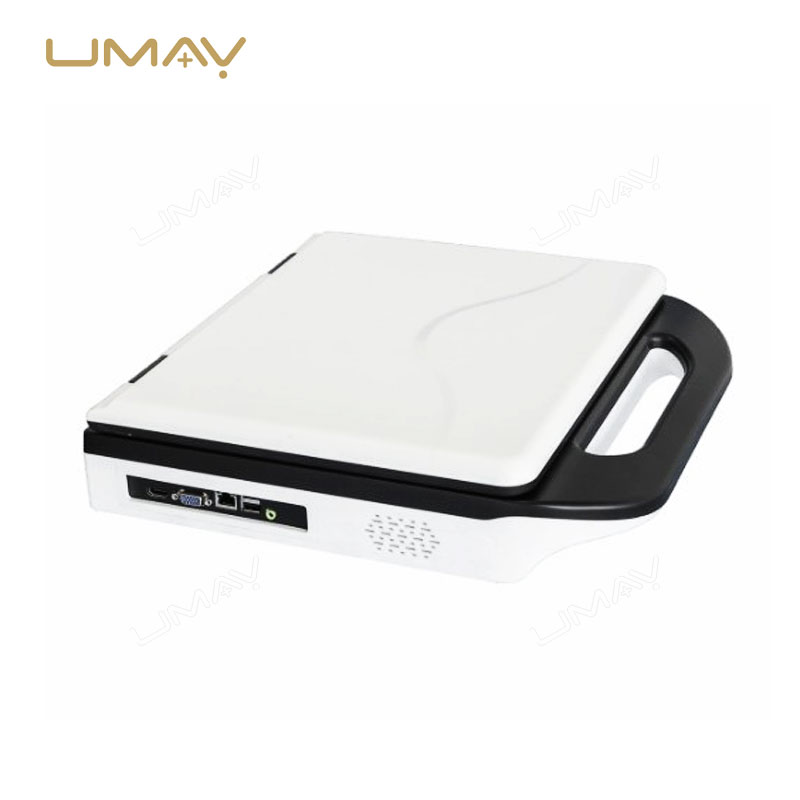

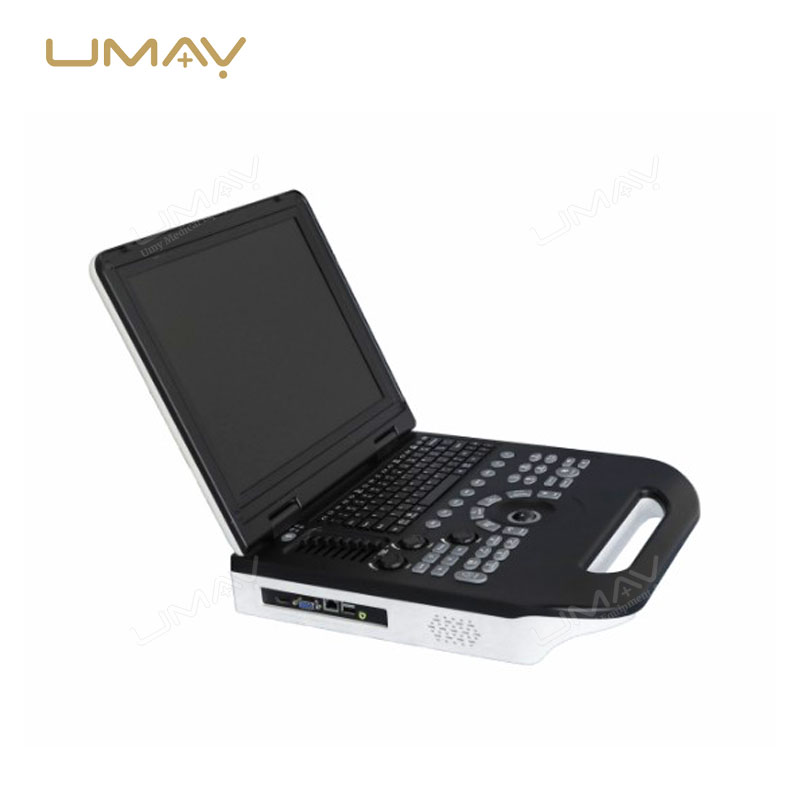

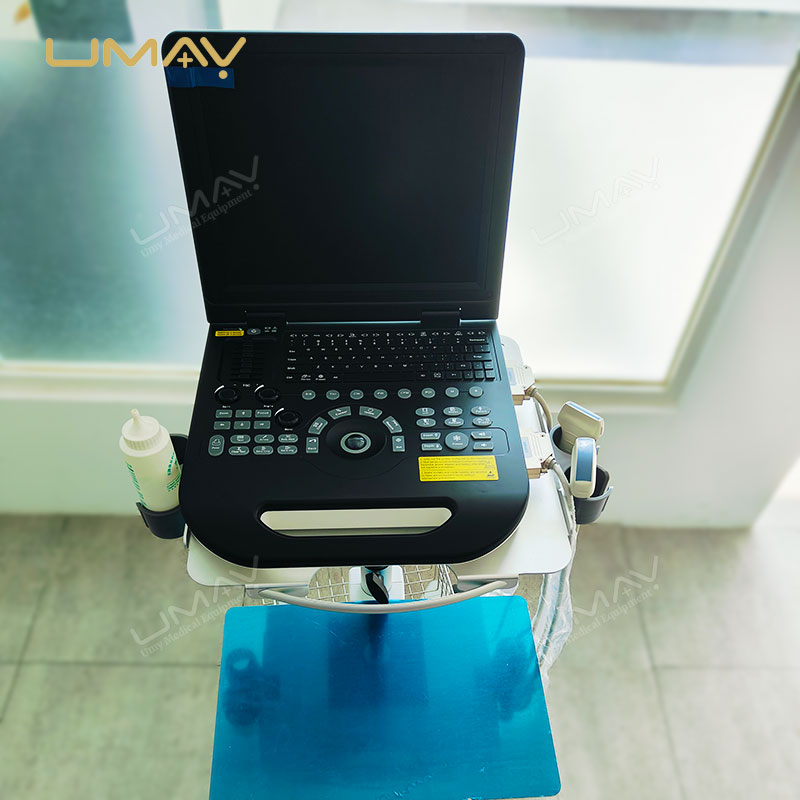

High-Quality Portable 3D Color Doppler Ultrasound Machine for Hospitals at Factory Price
Quick Info.
- SKU NO.: UMY-US-084
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton
- Origin: China
- Material: Metal, Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 2600 Sets/Year
This color Doppler ultrasound diagnostic system is designed for precise imaging across obstetric, cardiac, vascular, and abdominal applications. Equipped with a 15 inch LCD display, it delivers detailed visualization with 256 gray levels and an adjustable dynamic range of 80 to 280 dB. The system supports multiple imaging modes including B, M, CFM, PDI, PW, and Tissue Harmonic Imaging, with optional 3D capabilities for enhanced anatomical assessment. With a dual probe interface and a 128 GB solid state disk, it ensures smooth operation and reliable data storage. The built in HDMI, VGA, USB, and DICOM interfaces streamline connectivity for clinical networks. Its optional 4.5 hour battery supports mobile use in emergency or bedside diagnostics. For related imaging equipment, see the 4D Color Doppler Ultrasonic Diagnostic System for Medical Imaging.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Application Scene | Abdomen, gynecology, obstetrics, pediatrics, urology, heart, superficial organs, blood vessels |
| Image Mode and Display | |

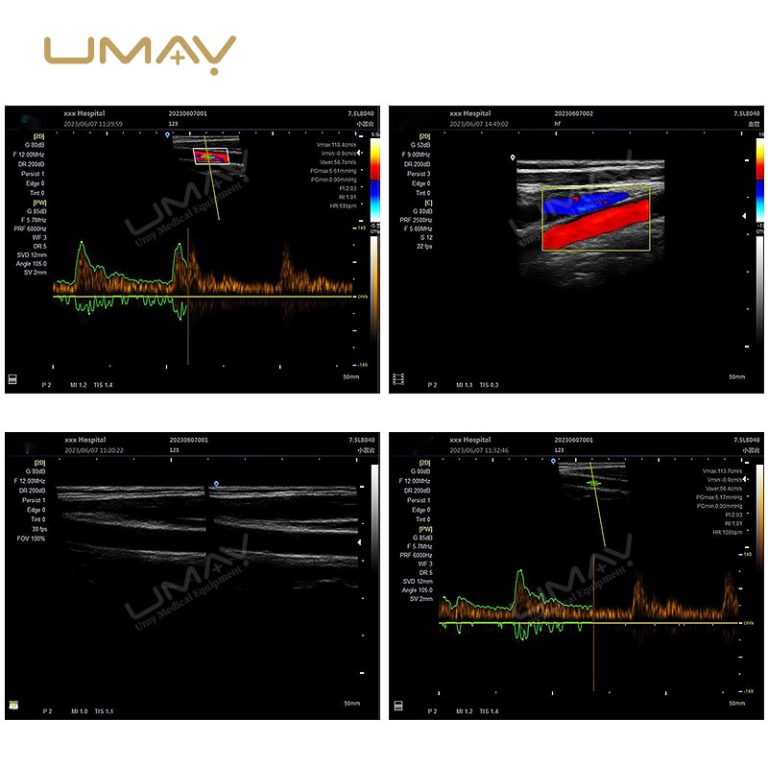

| Image Modes | B, B+B, 4B, B+M, CFM, B+CFM, PDI, PDI+B, PW, B-tilt, 3D (Optional) |
| Scanning Modes | Electron convex array, high-frequency linear array, cavity, micro convex, rectum |

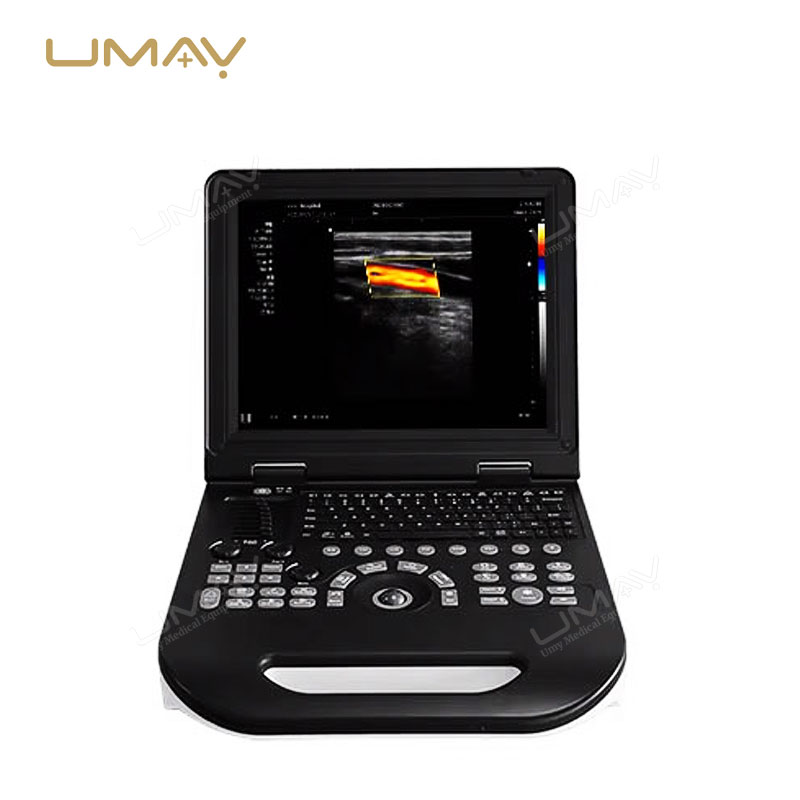

| Display | 15-inch LCD screen |
| Gray Level | 256 levels |
| Display Depth | ≥280mm |
| Probe and Frequency | |

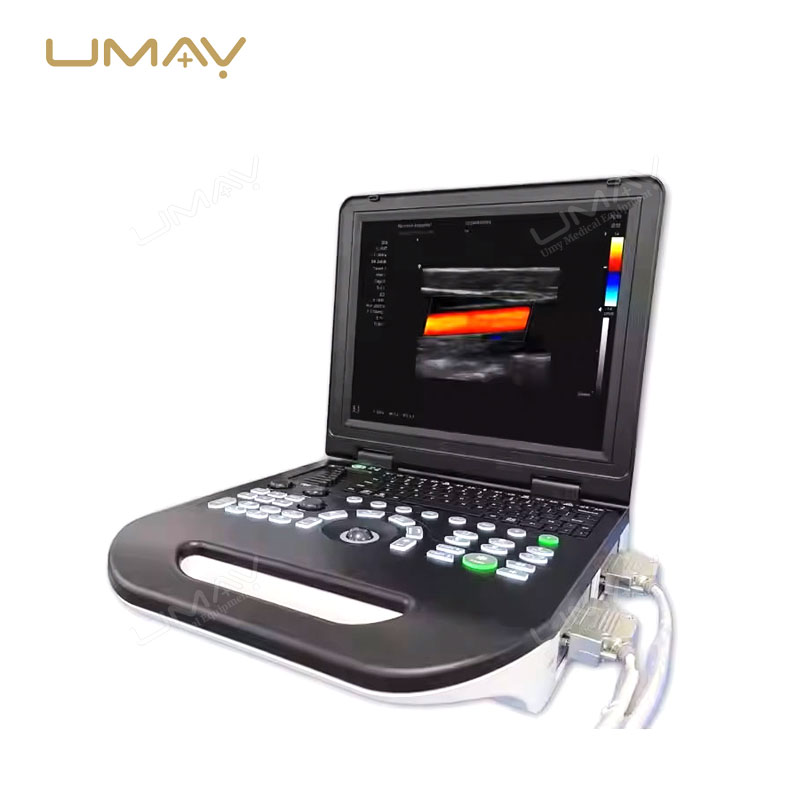

| Probe Ports | 2 automatic probe identification ports |
| Frequency Range | 2.0–12.0 MHz |
| Dynamic Range | 80–280 dB adjustable |
| Measurement and Calculation | |
| Scanning Depth | 2–280mm |
| Measurement Modes | B, M, PW, THI |
| Supported Measurements | Distance, circumference, area, volume, angle, heart rate, etc. |
| Departments | Obstetrics, cardiology, urology, general clinical |
| Preset Exam Types | Built-in optimized presets for different exams |
| Image Processing | |

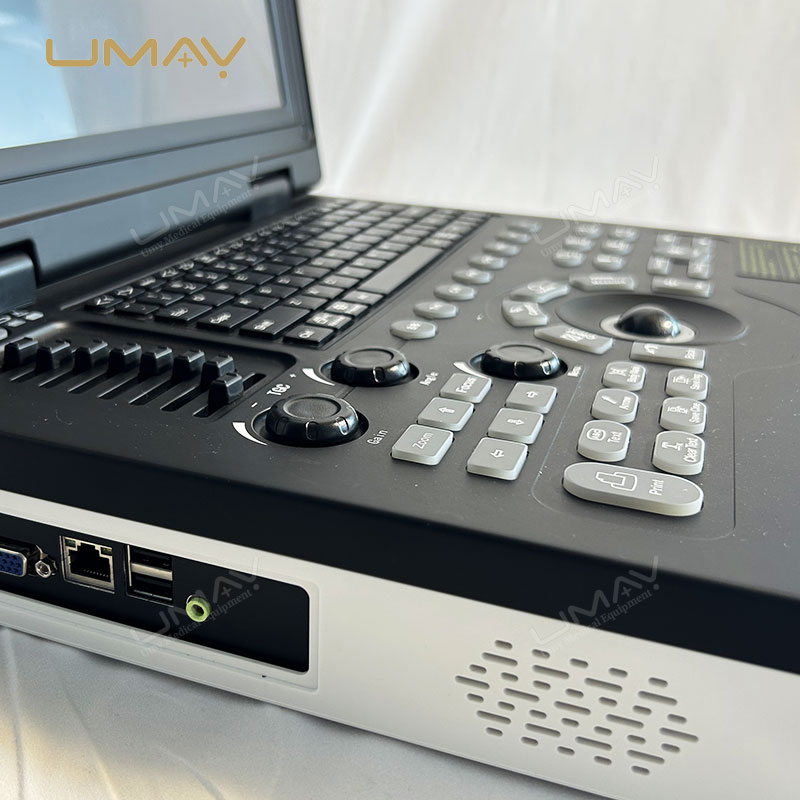

| Gain Adjustment | 8 segments TGC; B/M/D/C gain independently adjustable |
| Pseudo-Color Modes | 16 coding options |
| Optimization Levels | 5 levels: edge enhancement, frame average, gamma, contrast, brightness, etc. |
| Auto Optimization | Yes, with preset image check types |
| Storage and Reporting | |
| Image Storage | Image, video, and movie playback |
| Storage Capacity | ≥128GB SSD |
| Data Management | Medical record storage, patient data, DVD/USB support |
| Report System | Automatic generation with full-screen Chinese/English text |
| Connectivity and Interface | |

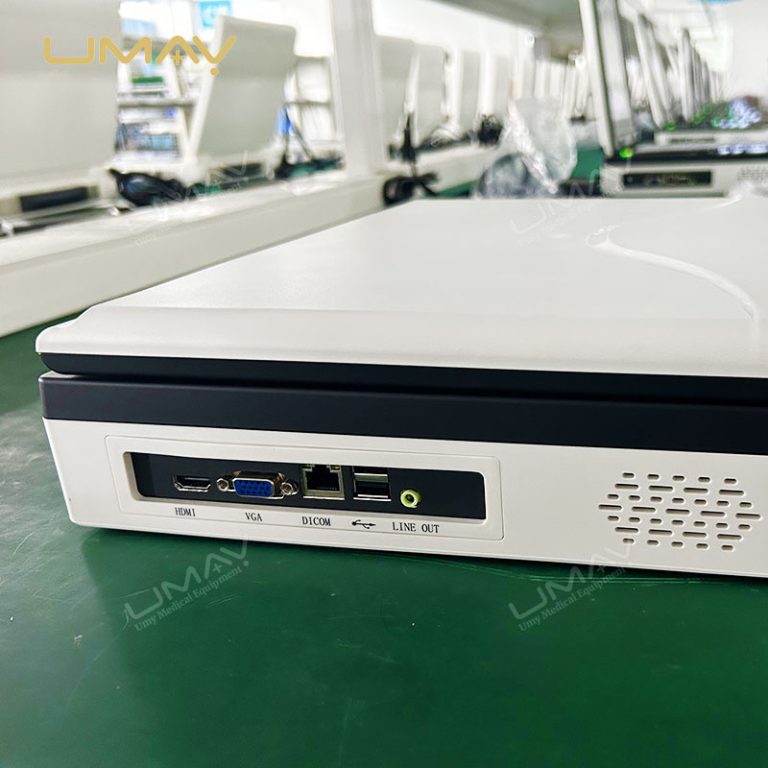

| Interfaces | HDMI, VGA, USB, DICOM |
| Input Voltage | 100–240V, 50/60Hz |
| DC Adapter | 19V, 6A |
| Battery Life | ≥1.5 hours (4.5 hours optional) |
| Physical Specifications | |
| Dimensions | 370mm × 382mm × 90mm (L × W × H) |
| Weight | ≤6.5kg |
| Sound Output | Mechanical index, thermal index, sound power adjustable |
