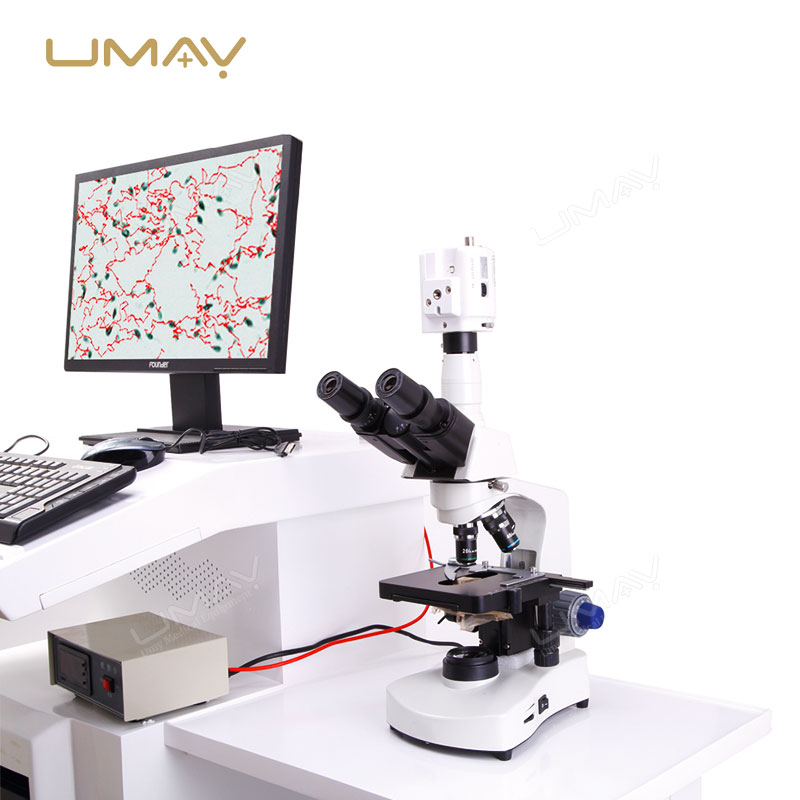

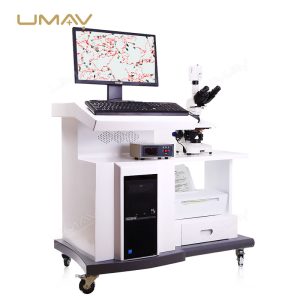

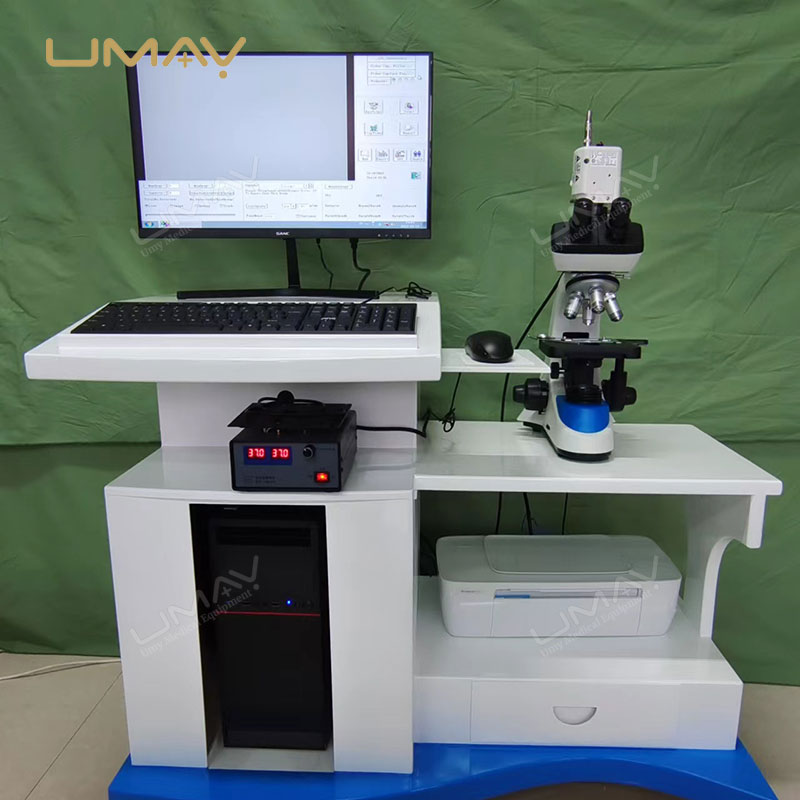

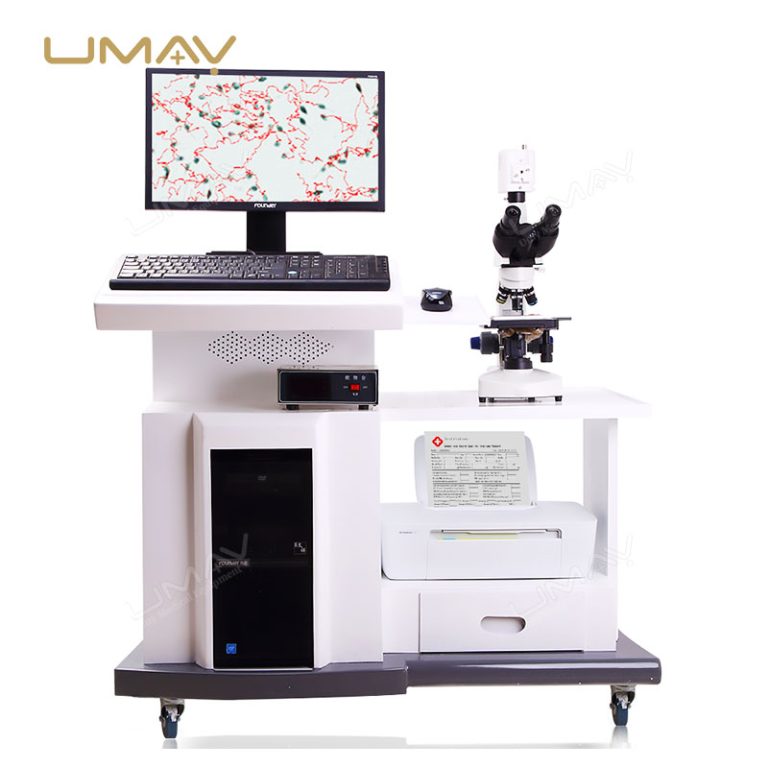

Veterinary Animal Sperm Analysis System Trolley for Fertility Evaluation
Quick Info.
- SKU NO.: UMY-VEBT-004
- Device Classification: Class â…¡
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton or Wooden Cases
- Origin: Guangzhou City, Guangdong, China
- Material: Metal, Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 2700 Sets/Year
Power Source:Â Electric
Warranty: 1 year
After-sale Service: Online service and delivering spare parts
Transport Package: Carton or Wooden Cases
Material: Metal, Plastic
Origin: Guangzhou City, Guangdong, China
Instrument Classification:Â Class â…¡
Quality System Standard: ISO13485
This veterinary animal sperm analysis system is developed for comprehensive fertility evaluation using image based semen analysis.
It delivers intuitive visualization with data rich analysis covering curvilinear motion, linear motion, and average sperm movement paths.
The system supports detailed sperm velocity classification and identifies abnormal sperm count, appearance, and motility patterns.
High speed image capture enables multi frame acquisition with precise particle resolution for accurate diagnostics.
Flexible acquisition time and large sample capacity support both routine testing and advanced reproductive studies.
It is commonly used in veterinary hospitals, breeding centers, and animal reproduction laboratories.
For expanded diagnostic workflows, it can be combined with Veterinary Mini Endoscope Camera Endoscopy System for Small Animals to support additional reproductive examinations.
This solution enhances diagnostic confidence and supports effective animal breeding management.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Product Type | Veterinary Portable Semen Analyzer |
| Motility Analysis | |
| Key Parameters | VAP average path velocity; VCL curvilinear velocity; VSL straight line velocity; ALH head lateral displacement; BCF beat cross frequency; LIN linearity VSL/VCL; STR straightness; WOB wobble index |
| Analysis Capability | Single sperm trajectory tracking with automatic motility and kinetic parameter analysis |
| Concentration Analysis | |
| Detection Standard | Automatic sperm concentration analysis based on WHO standard |
| Concentration Metrics | Sperm concentration per milliliter and overall density |
| Movement Classification | Static sperm Type D; forward motile sperm Type A and B; total motile sperm Type A B and C |
| Morphology Analysis | |
| Analysis Mode | Monochromatic morphology analysis for sperm head and tail abnormalities |
| Measured Parameters | Head size area perimeter length width; midpiece size; central embedding distances and angles; normal tail assessment |
| Software System | |
| Operating System | Windows XP with Chinese and English interface |
| Image and Data Processing | High resolution image capture with automatic static and dynamic semen analysis |
| Data Management | Visual analysis statistics query modification storage and test report printing |
| Standard Configuration | |
| Main Unit | Main unit with 19 inch LCD display |

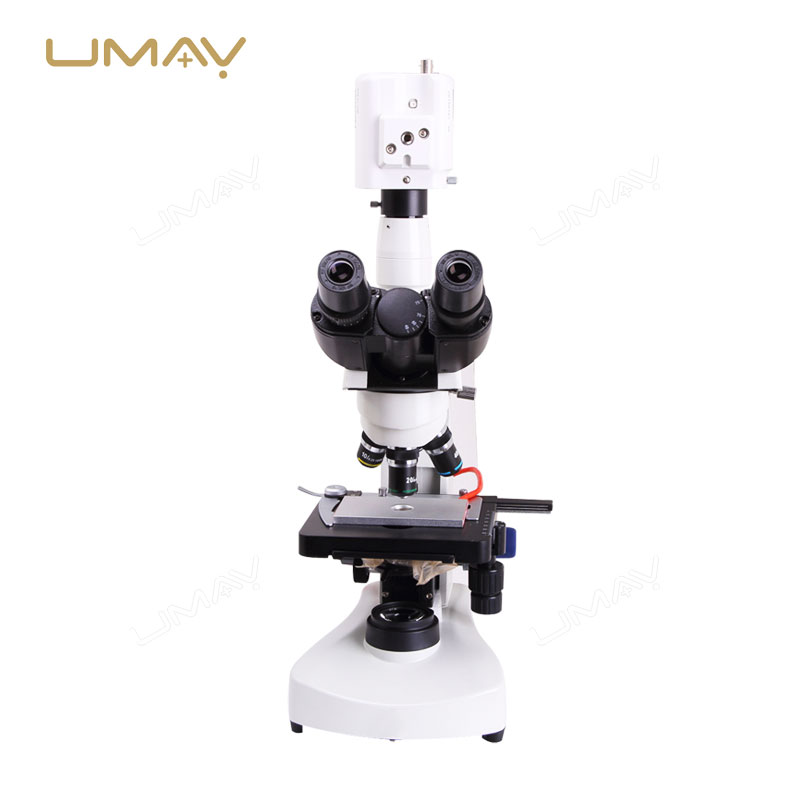

| Optical System | JVC camera from Japan and binocular microscope |
| Accessories | Counting plate sperm thermostat microscope slides |
| System Components | Microscope analysis software video acquisition card |
| Documentation | User manual |
Feature list for UMY-VEBT-004
– Multi path sperm motion analysis
– Velocity classification and abnormality detection
– High resolution image capture and storage
– Clear printed and digital diagnostic reporting
Application
Designed for veterinary clinics, animal breeding farms, research institutes, and livestock reproduction centers. It supports fertility assessment, breeding evaluation, and reproductive research across multiple animal species.
Q1: Is the system compatible with standard laboratory microscopes or does it require a dedicated imaging platform?
A1: The system is designed around its own image-based analysis platform, so compatibility with external microscopes should be confirmed with the supplier before integration.
Q2: How is the trolley structure designed to support stable operation during extended semen analysis sessions?
A2: The trolley configuration keeps all components securely positioned during operation, reducing vibration and supporting consistent image capture across prolonged testing sessions.
Q3: What other veterinary diagnostic analyzers does UMY offer to support broader reproductive and laboratory testing workflows?
A3: Facilities can explore the vet AI multifunctional morphology analyzer for urine, blood, and feces microscopic analysis to expand diagnostic capabilities alongside semen testing.
