AI, Cloud PACS & Tele-Ultrasound: How Next-Gen Software Powers Handheld Scanners

The Software-Defined Ultrasound Revolution

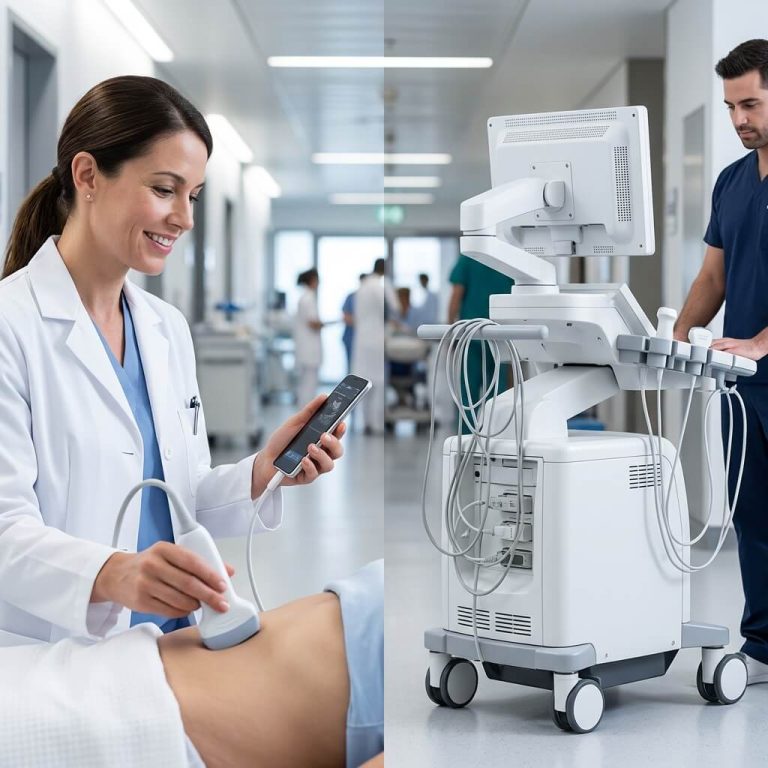

Historically, the capabilities of an ultrasound machine depended almost entirely on the physical size of its internal hardware. Processing high-frequency acoustic signals required massive beamforming circuit boards and dedicated graphic processing units housed in large rolling consoles.

Today, advances in micro-electronics and mobile processing power have ushered in the era of software-defined ultrasound.

                   SOFTWARE-DEFINED ULTRASOUND WORKFLOW
  +---------------------------------------------------------------------------+
  | HANDHELD PROBE SENSOR --> Raw Acoustic Signal Acquisition                 |
  | MOBILE APP ENGINE     --> Hardware Beamforming & GPU Image Rendering      |
  | AI DIAGNOSTIC LAYER   --> Auto-Measurements, Tissue Recognition, Needle   |
  | CLOUD / PACS NETWORK  --> Encrypted DICOM Export & Tele-Ultrasound Stream |
  +---------------------------------------------------------------------------+

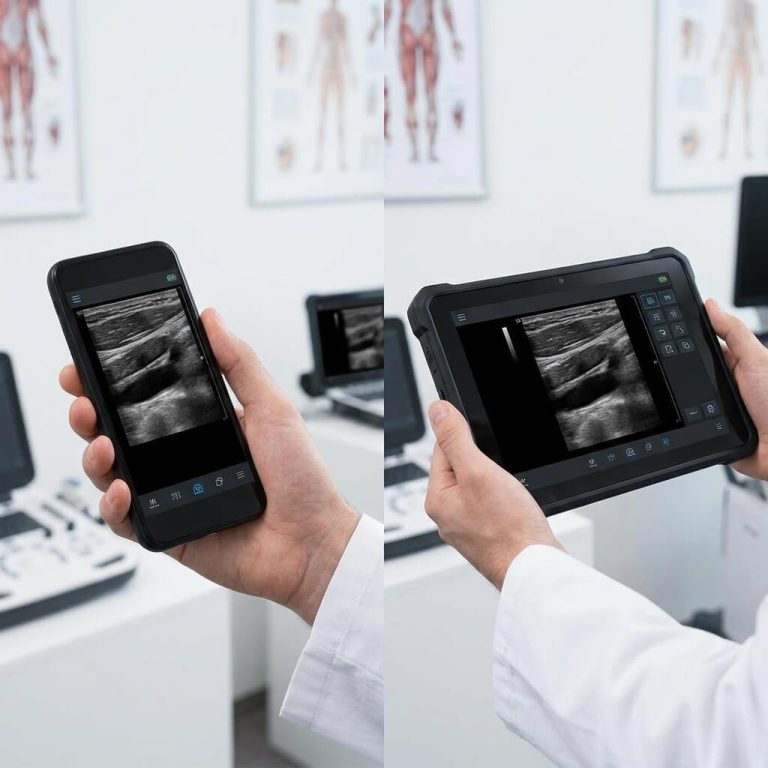

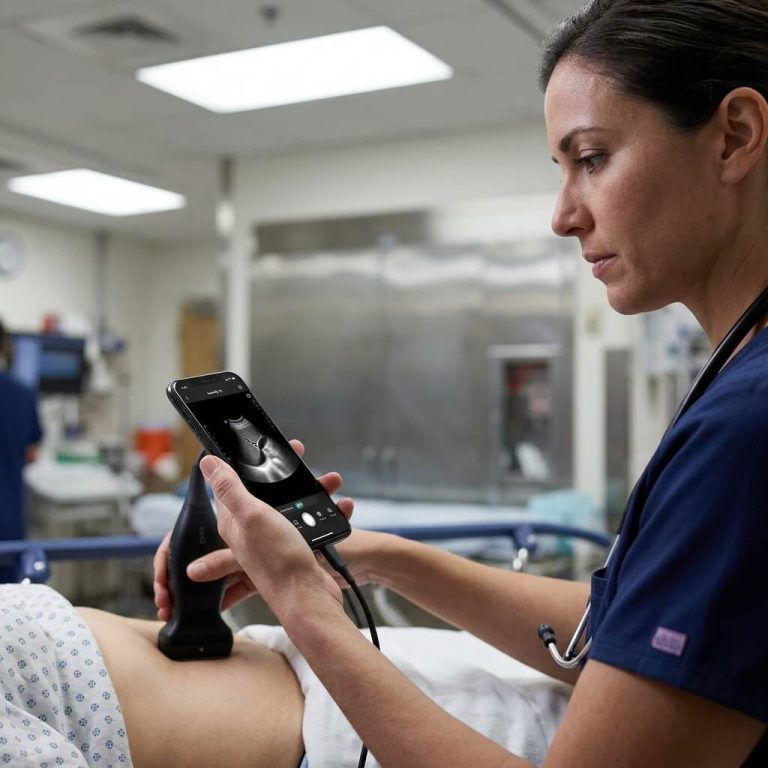

Modern handheld ultrasound transducers function as intelligent digital acoustic sensors. The raw signals are processed directly through powerful mobile applications running on standard smartphones, tablets, or dedicated display devices. This architecture allows handheld systems to continually upgrade their diagnostic capabilities, AI algorithms, and cloud workflows through simple mobile software updates.

2. AI-Assisted Diagnostics & Automated Measurements

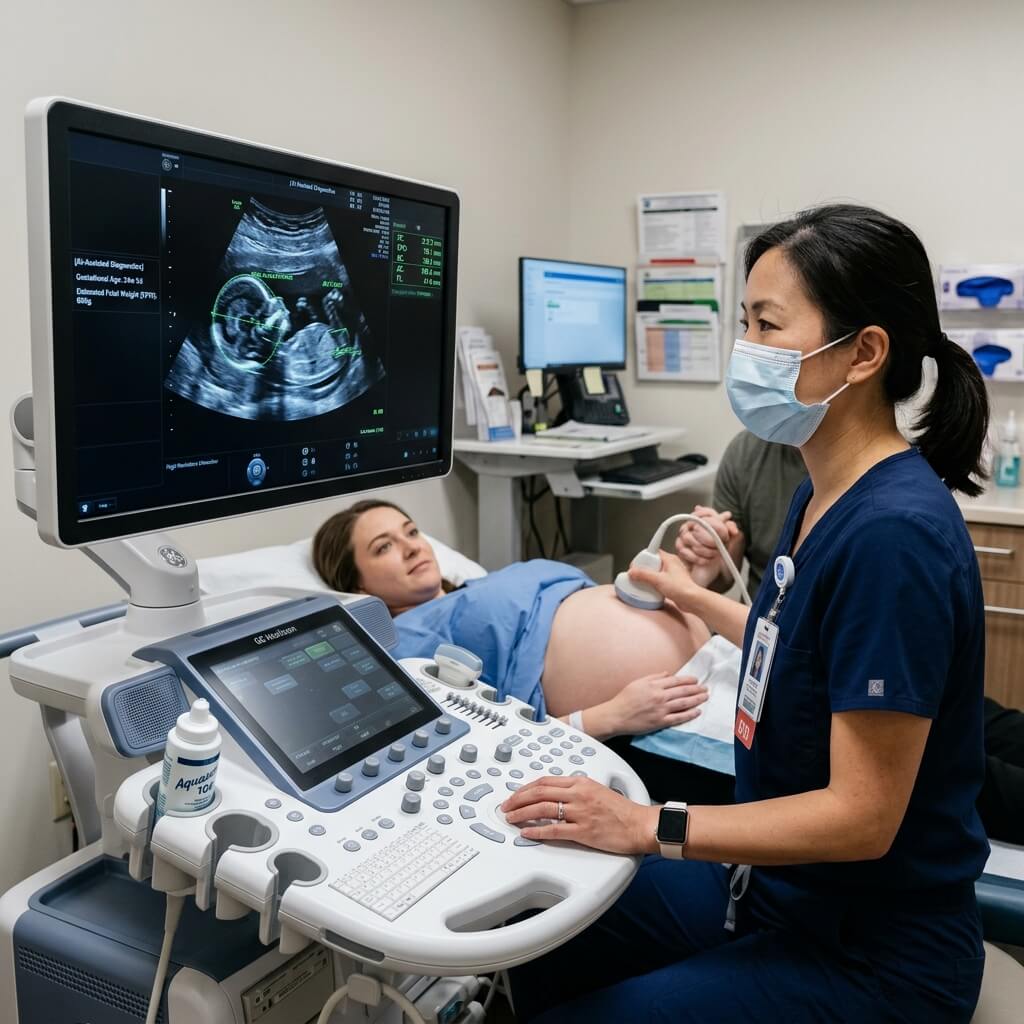

For non-radiologists, such as emergency physicians, nurses, paramedics, and general practitioners, acquiring and interpreting ultrasound images can present a learning curve. Artificial intelligence algorithms built into modern handheld apps help bridge this gap by automating complex clinical calculations and enhancing image clarity.

                    AI DIAGNOSTIC ASSISTANCE SUITE
+-------------------------------------------------------------------------+
| AUTO EJECTION FRACTION --> AI contours left ventricle during cardiac cycle|
| AUTO BLADDER VOLUME   --> 3D volume calculation from 2D cross-sections  |
| NEEDLE VISUALIZATION  --> Beam steering highlights needle angle & tip   |
| AUTO ORGAN DETECTION  --> Automatic depth, gain, and focus adjustments  |
+-------------------------------------------------------------------------+

Auto Ejection Fraction (Auto-EF)

Calculating cardiac ejection fraction traditionally requires manual tracing of the left ventricular end-diocardium in both systole and diastole. AI-powered cardiac software automatically detects the myocardial borders across the cardiac cycle, calculating stroke volume and ejection fraction in seconds with high clinical accuracy.

Automated Bladder Volume Measurement

Evaluating urinary retention or post-void residual (PVR) volume typically requires manual calipers across transverse and sagittal planes. AI bladder tools automatically identify the bladder wall, map its 3D contours, and calculate fluid volume with a single freeze-frame tap.

AI Needle Visualization & Beam Steering

During ultrasound-guided vascular access, nerve blocks, or needle biopsies, steep needle insertion angles can cause the metal needle shank to disappear on standard 2D grayscale imaging. AI needle enhancement software uses specialized acoustic beam steering to highlight the needle trajectory and tip, dramatically increasing first-pass procedure success rates.

Auto-Gain & Preset Optimization

Advanced software continuously analyzes real-time acoustic attenuation, automatically adjusting gain curve profiles, dynamic range, and focus depth to maintain optimal contrast resolution across varying patient body types.

3. Cloud PACS Integration, DICOM Workflows & Cybersecurity

To be effective in a modern hospital setting, a handheld ultrasound scanner must integrate seamlessly into the institution’s existing digital health infrastructure.

                    HOSPITAL DATA INTEGRATION FLOW
+-------------------------------------------------------------------------+
| Handheld Scanner  --> Encrypted 5G/WiFi Connection                      |
| Mobile Diagnostic App --> DICOM Modality Worklist (MWL) Patient Search   |
| Hospital PACS / EMR --> Encrypted DICOM Store (AES-256)                 |
| Cloud Storage Gateway --> Off-Site Archiving & Remote Billing Audits    |
+-------------------------------------------------------------------------+

Native DICOM 3.0 Compatibility

Professional pocket ultrasound systems communicate using universal medical imaging protocols:

• DICOM Storage: Transmits 2D still frames, video cine loops, and measurement data directly to local hospital PACS servers.

• DICOM Modality Worklist (MWL): Allows clinicians to query hospital registration schedules directly from the mobile app, preventing patient data entry errors.

• DICOM Structured Reporting (SR): Automatically packages calculated diagnostic metrics (such as fetal biometry, vascular flow velocities, and cardiac dimensions) into standardized reporting templates for seamless EHR integration.

Enterprise Cybersecurity & Data Privacy

Because mobile handheld scanners store and transmit patient health information (PHI) over wireless networks, strict data protection protocols are mandatory:

• Data Encryption: Ensures AES-256 bit encryption for data at rest on the mobile display device and TLS 1.3 encryption for data in transit across wireless networks.

• HIPAA & GDPR Compliance: Incorporates secure user authentication, auto-logout timers, role-based access control (RBAC), and anonymized image sharing modes for medical education.

4. Tele-Ultrasound & Real-Time Remote Guidance

Tele-ultrasound technology turns pocket ultrasound probes into connected telemedicine hubs, enabling instant collaboration between frontline healthcare workers and remote medical specialists.

                  REAL-TIME TELE-ULTRASOUND SYSTEM
+-------------------------------------------------------------------------+
| FIELD OPERATOR (Remote Site)       REMOTE SPECIALIST (Central Hospital) |
| - Handheld Probe                   - Real-time Diagnostic Screen        |
| - Live Ultrasound Video Stream --->- Interactive On-Screen Pointer      |
| - Mobile Camera (Probe Position)   - Audio / Video Guidance             |
+-------------------------------------------------------------------------+

How Tele-Ultrasound Works

During a remote consultation, the mobile application streams two concurrent video feeds over cellular (4G/5G) or satellite connections:

1. Live Ultrasound Diagnostic Feed: High-frame-rate diagnostic video stream showing the active ultrasound scan.

2. External Camera Feed: Real-time camera view showing the operator’s hand positioning, probe angle, and patient landmark orientation.

Key Clinical Benefits

• Rural & Pre-Hospital Triage: Paramedics in ambulances or healthcare workers in isolated rural stations can perform eFAST or lung scans under the live visual direction of an emergency physician or radiologist located miles away.

• Clinical Education & Training: Experienced mentors can guide junior residents through complex nerve blocks or echocardiographic views in real time, accelerating the POCUS learning curve across health networks.

5. Feature Comparison Matrix: Basic Apps vs. Next-Gen AI Platforms

The matrix below compares the software capabilities of basic entry-level handheld probes against advanced AI- and cloud-enabled platforms:

6. Why UMY Medical Equipment Co Ltd Leads Smart Ultrasound Software

Building a high-performance handheld ultrasound system requires harmonizing hardware acoustic engineering with responsive, user-friendly mobile software.

               UMY MEDICAL SOFTWARE ARCHITECTURE
                               |
     +-------------------------+-------------------------+
     |                         |                         |
     v                         v                         v
[ Open Architecture ]     [ Cross-Platform Apps ]   [ Zero Subscription Costs ]
 Unlocked DICOM 3.0       iOS, Android & Windows    No Paywalls or Monthly Fees

Software Advantages for Global Healthcare Providers:

• Cross-Platform Compatibility: UMY Medical Equipment Co Ltd designs its software suite to run smoothly across smartphones, tablets, and computers running iOS, Android, or Windows operating systems.

• Open DICOM & Cloud Integration: UMY Medical systems feature native DICOM 3.0 functionality out of the box, allowing simple integration with hospital PACS networks, cloud servers, and electronic health record systems without requiring proprietary gateway hardware.

• Subscription-Free Lifetime Access: While competing manufacturers charge ongoing annual subscription fees to access advanced features or export images, UMY Medical maintains a zero-subscription policy, providing full system capabilities and software updates for the life of the product.

• Custom OEM / ODM Software Localization: UMY Medical supports international healthcare equipment distributors and government agencies by offering customized app branding, multi-language user interface translation, and custom clinical diagnostic presets.

Frequently Asked Questions (FAQ)

Q1: Does AI software replace the physician when interpreting handheld ultrasound scans?

No. AI tools are designed to assist, not replace, clinical judgment. AI algorithms automate repetitive tasks—such as tracing organ boundaries, calculating bladder volumes, or steering acoustic beams for needle visualization—allowing clinicians to make faster, more accurate diagnostic decisions at the bedside.

Q2: What internet connection speed is required for tele-ultrasound streaming?

Standard tele-ultrasound dual-video streaming requires a stable cellular network or broadband connection with a minimum upload speed of 2 to 5 Mbps. High-speed 5G networks or low-Earth-orbit (LEO) satellite connections provide the best results for real-time remote guidance.

Q3: Are patient images stored on the smartphone compliant with HIPAA/GDPR privacy laws?

Yes, provided the software utilizes proper security controls. Diagnostic apps from manufacturers like UMY Medical feature AES-256 bit encryption, password protection, auto-logout settings, and direct anonymized export capabilities to ensure full compliance with international patient privacy regulations.

Q4: Can UMY Medical handheld devices connect to third-party cloud PACS systems?

Yes. Because UMY Medical app platforms utilize universal DICOM 3.0 communication standards, images and patient reports can be transmitted to any standard hospital PACS, vendor-neutral archive (VNA), or third-party cloud medical storage provider.

Q5: How can software updates be installed on UMY Medical handheld ultrasound systems?

Software updates are delivered digitally through official mobile app stores or secure direct download links. Updates install quickly like standard mobile applications, ensuring your handheld ultrasound system always has the latest diagnostic tools, presets, and security patches.
