Tripod-Mounted 90kV Handheld X-Ray Machine for Emergency Medical Imaging | Ultra-Portable Low-Radiation DR System Factory OEM
Quick Info.
- SKU NO.: UMY-XM-082
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton or Wooden Cases
- Origin: China
- Material: Aluminum & Magnesium Alloys and Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 2000 Sets/Year
The handheld high frequency X ray machine delivers 360W of power with a kV range of 40 to 70 kV and mA range of 1 to 8 mA, ensuring consistent imaging quality in outpatient, dental, and emergency departments. With a weight of just 1.6 kg, it is easy to operate with one hand and offers both button and remote control exposure modes. Its operating frequency of 100 kHz and adjustable exposure times from 0.01 to 4 seconds provide flexibility for different diagnostic needs. Compact and efficient, it is designed for bedside and mobile use. For hospitals requiring a stationary option, the 32kW Hospital Stationary DR X Ray Machine serves as a reliable complementary solution.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Technical Specifications | |
| kV Range | 40 ~ 70kV |
| mA Range | 1 ~ 8mA |
| Exposure Time (S) | 0.01 ~ 4.0s |
| mAs Range | 0.01 ~ 10mAs |
| Exposure Mode | Button, remote control |
| Weight | 1.6kg |
| Power | 360W |
| Power Adapter Input | 110 ~ 220VAC ±10%, 50/60Hz |
| Operating Frequency | 100kHz |
Feature list for UMY-XM-082
* Adjustable kV (40-150) and mA (10-200) range for flexible imaging
* Four-direction floating bed panel for easy animal positioning
* Clear and stable images with reduced radiation dose
* Compact design for easy installation and space efficiency
Application
Designed for veterinary clinics, animal hospitals, and diagnostic centers. This system is ideal for X-ray imaging of various animal species, ensuring precise diagnosis in veterinary care.
-

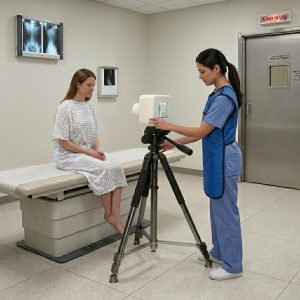

Dual-Mode Versatility (Handheld & Tripod Mounted): Experience total operational freedom. Use it as a lightweight handheld device for instant bedside imaging, or mount it instantly onto our heavy-duty, ultra-stable field tripod to completely eliminate operator fatigue and guarantee zero-vibration, motion-blur-free radiographs.
-
Targeted Safety via Front Extension Cone: Your safety is non-negotiable. Featuring an integrated front-facing radiation extension cone with a high-visibility protective ring , the system effectively collimates the X-ray beam, establishes the ideal source-to-skin distance (SSD), and provides industry-leading scatter protection for the operator.
-
90kV High-Penetration Emergency Power: Optimized with advanced high-frequency DC technology, this compact unit punches well above its weight class. It delivers up to 90kV of raw power, allowing field medics to easily capture deep-tissue bone structures, full extremities, and chest screenings under zero-infrastructure conditions.
-

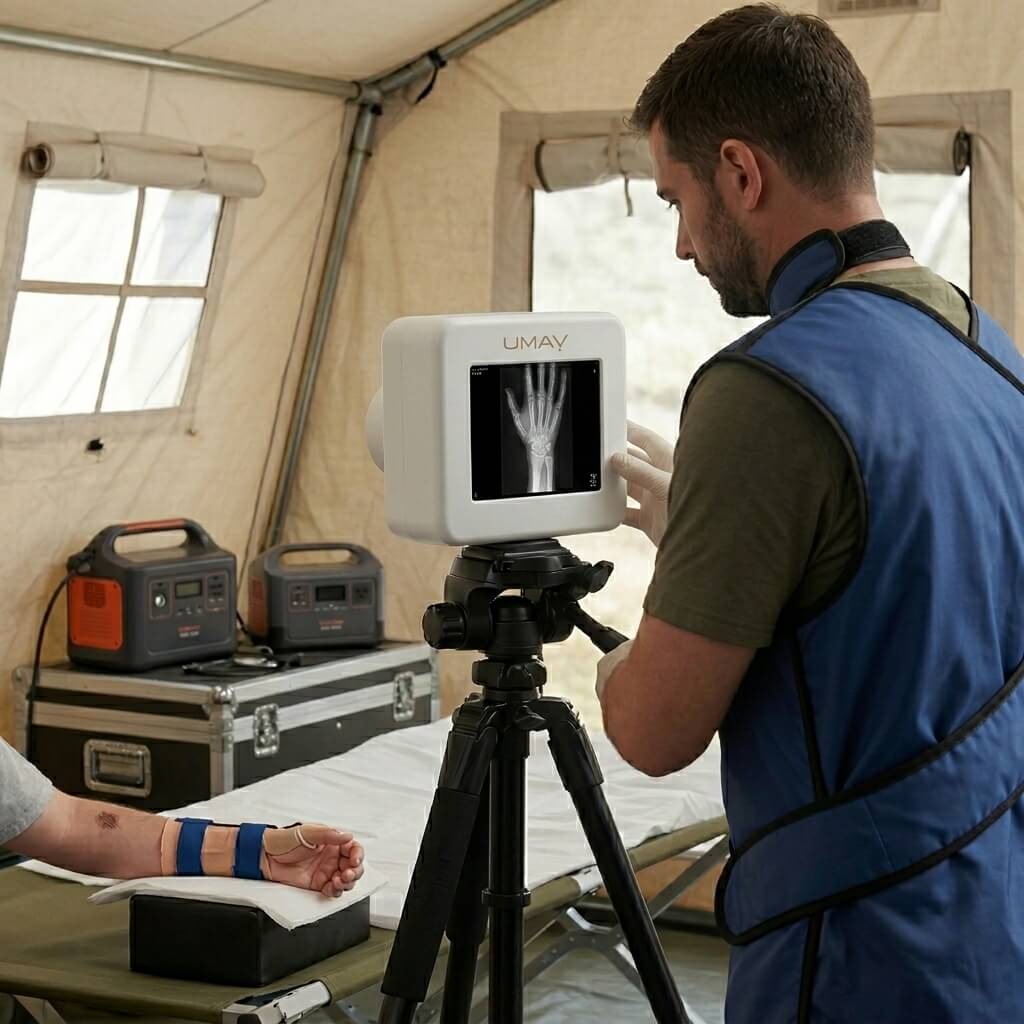

Rapid Deployment & Wireless Control: Engineered for high-stress scenarios. The entire system—generator, tripod, and DR flat panel—can be unpacked and fully operational in less than 2 minutes. Features a long-range wireless remote exposure control, allowing operators to execute exposures from a safe distance outside the radiation zone.
-
Military-Grade Field Endurance: Built to thrive where power grids fail. Equipped with a high-capacity, climate-resistant lithium battery pack, it guarantees hundreds of high-voltage exposures even in extreme hot or cold environments. Supports rapid field charging via vehicles or portable solar power stations.
-
Trusted B2B Factory OEM/ODM Support: Source directly from a premium Chinese medical imaging manufacturer. We specialize in custom branding options with flexible MOQs, including private labeling, customized UI software languages for localized emergency networks, and custom housing colors. Full ISO 13485 compliance and CE/FDA-ready technical dossiers are provided to ensure rapid international import and customs clearance.
