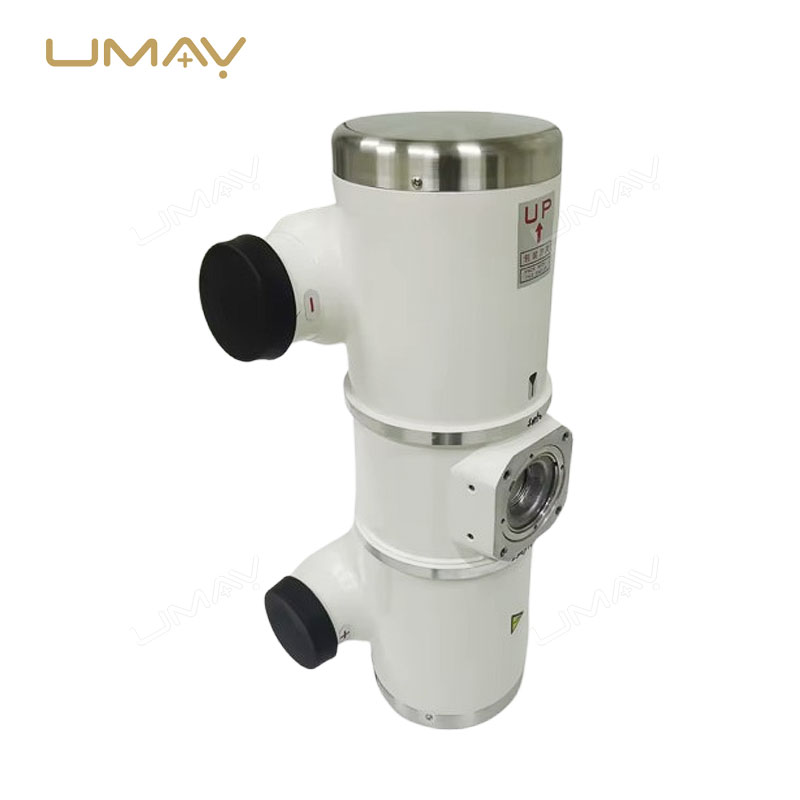

Rotating Anode X-ray Tube Assembly 32kw Insert Unit for Digital Radiographic Systems
SKU: UMY-XM-075
Brand: Umy
MOQ: 1
Origin: China
Quick Info.
- SKU NO.: UMY-XM-075
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton or Wooden Cases
- Origin: China
- Material: Aluminum & Magnesium Alloys and Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 2000 Sets/Year
This medical X ray tube assembly features a rotating anode design, engineered for high-performance diagnostic imaging up to 125 kV. With dual focal spots of 1.0 mm and 2.0 mm and a tungsten-faced molybdenum target, it delivers precision across a wide range of radiographic procedures. The tube’s compact housing supports stable high-voltage operation and effective heat dissipation for continuous clinical use. It is fully compliant with IEC 60526 and integrates seamlessly with digital X ray systems. For paired radiographic equipment, you can explore our digital radiography system with flat panel detector.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Electrical Parameters | |
| High Voltage Generator | Type: Constant Potential High-Voltage Generator |
| Grounding | Center-grounded |
| Nominal X-ray Tube Voltage (Radiographic) | 125kV |
| Nominal X-ray Tube Voltage (Fluoroscopic) | 125kV |
| Nominal Focal Spot Value (Large Focus) | 2.0 mm |
| Nominal Focal Spot Value (Small Focus) | 1.0 mm |
| Nominal Anode Input Power at 0.1s (50Hz, Large Focus) | 40 KW |
| Nominal Anode Input Power at 0.1s (60Hz, Large Focus) | 44 KW |
| Nominal Anode Input Power at 0.1s (50Hz, Small Focus) | 20 KW |
| Nominal Anode Input Power at 0.1s (60Hz, Small Focus) | 22 KW |
| Motor Rating | |
| Power Source (Hz) | 50/60 Hz |
| Voltage (Starting / Running) | 160 V / 60 V |
| Current (Starting / Running) | 3.5~5.5 A / 1.0~1.5 A |
| Min. Speed Up Time | 1~1.2 s |
| Capacitor | 43/30 μF |
| Anode Speed | |
| At 50 Hz | 2800 rpm |
| At 60 Hz | 3200 rpm |
| Stator Impedance | |
| Common Main Winding | 20 Ω |
| Common Auxiliary Winding | 50 Ω |
| Electrical Resistance | |
| Between Housing and Low Voltage Terminals | ≥2 MΩ |
| Operating Conditions | |
| Housing Temperature Range | 16–75 °C |
| Physical Parameters | |
| Overall Length | 480 mm |
| Maximum Diameter | 152.4 mm |
| Target | |
| Angle | 17.5° |
| Diameter | 70 mm |
| Construction | Pure Tungsten faced Molybdenum |
| Filtration | |
| Inherent Filtration | 1.0 mm Al |
| Additional Filtration | 1.5 mm Al (3×0.5 mm Al) |
| Leakage Technique Factor | |
| Tube Voltage / Current | 125 kV, 3.0 mA |
| X-ray Coverage | |
| Field Size | 420 mm × 420 mm at SID 1000 mm |
| Weight | |
| Tube Weight | About 17 kg |
| Compliance | |
| High Voltage Receptacle | IEC 60526 Compliant |
| Cooling Method | Natural or Forced Air |
| Maximum and Minimum Ratings | |
| Maximum Tube Voltage (Radiographic) | 125 kV |
| Between Anode (or Cathode) and Ground | 65 kV |
| Minimum Tube Voltage | 40 kV |
| Maximum Filament Current (Large & Small Focus) | 5.5 A |
| Filament Voltage | |
| Large Focus | 10–13 V |
| Small Focus | 7–9 V |
| Filament Frequency Limit | 0–25 kHz |
| Thermal Characteristics | |
| Anode Heat Content | 110 kJ (150 kHU) |
| Maximum Anode Heat Dissipation | 475 W (667 kHU/s) |
| X-ray Tube Assembly Heat Content | 1000 kJ (1410 kHU) |
| Nominal Continuous Input Power Without Air Circulator | 275 W (23 kHU/min) |
| Nominal Continuous Input Power With Air Circulator | 450 W (37 kHU/min) |
