Premium Diagnostic DR X-Ray Tube Unit | 150 kV High-Frequency Rotating Anode Tube | Drop-In Replacement for Global Brands
Quick Info.
- SKU NO.: UMY-XM-074
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton or Wooden Cases
- Origin: China
- Material: Aluminum & Magnesium Alloys and Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 2000 Sets/Year

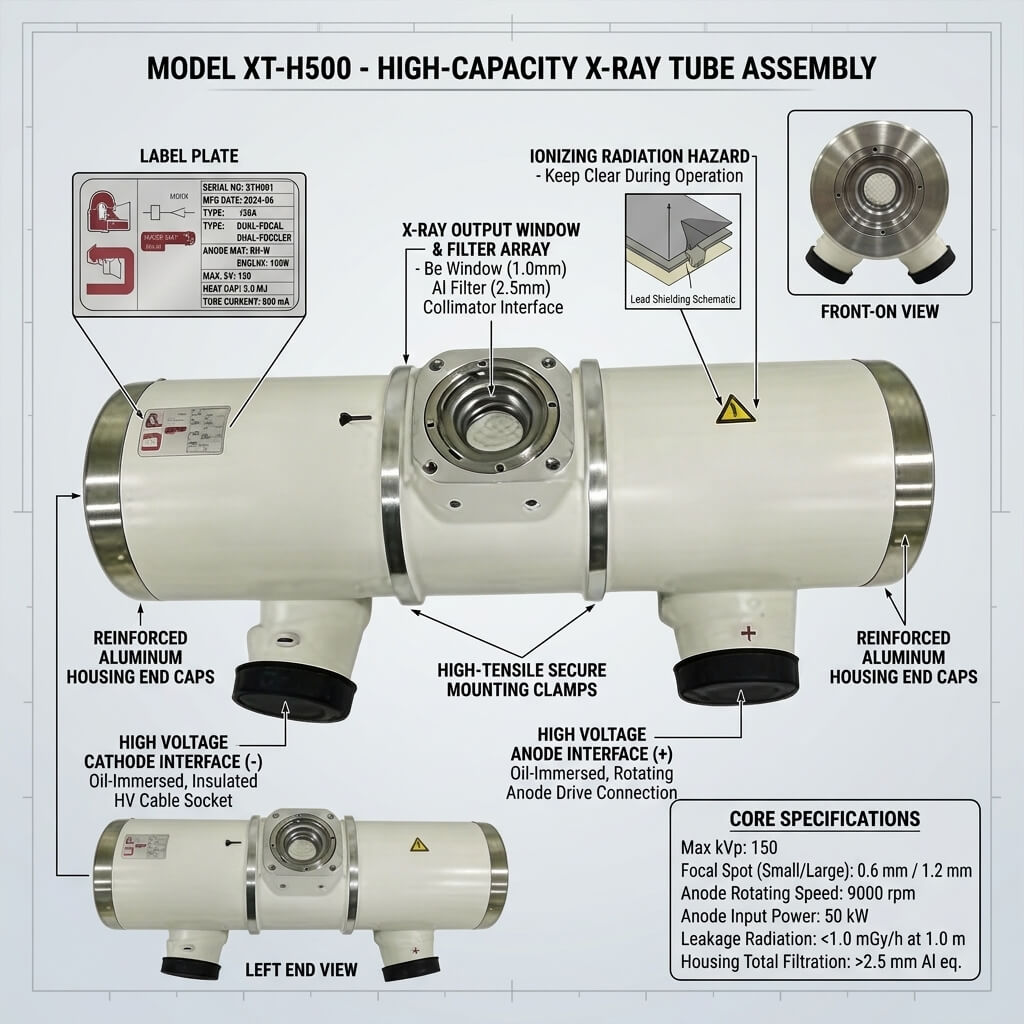

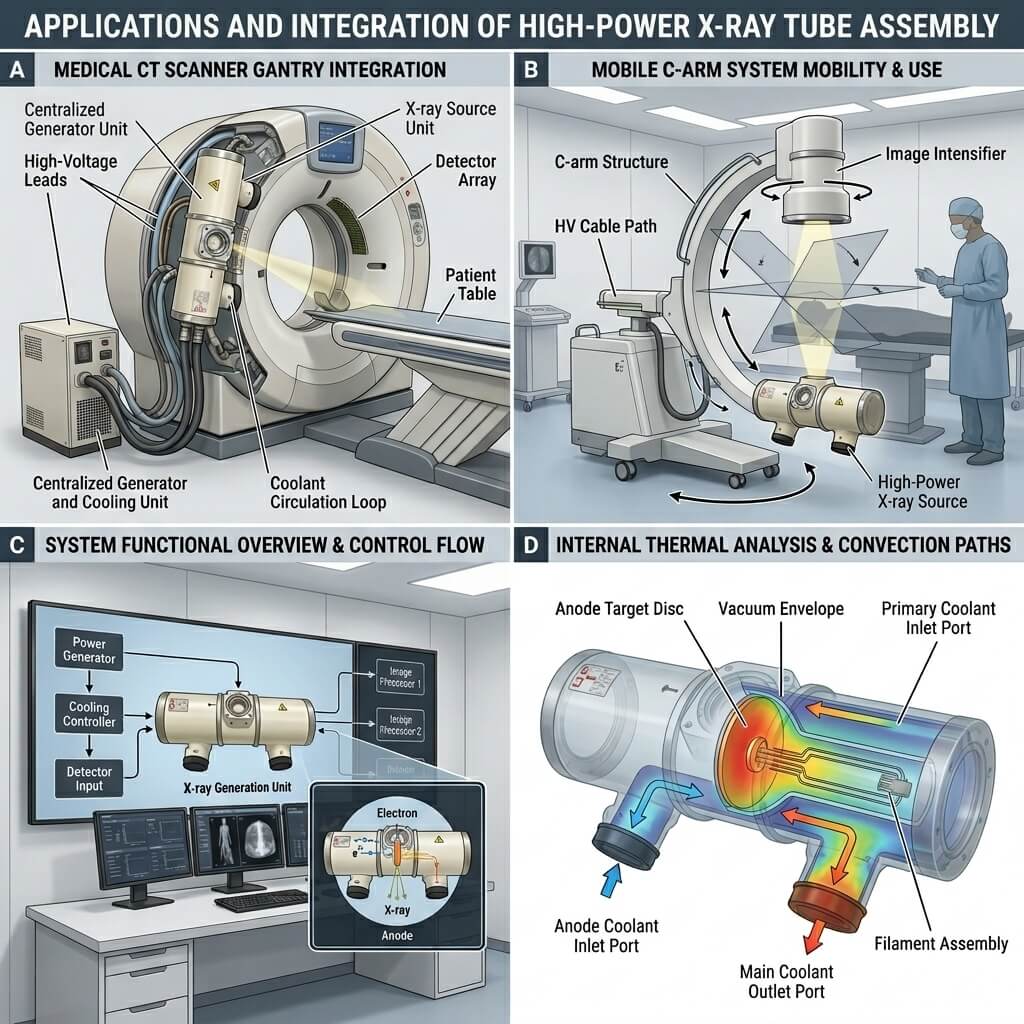

This 50kW rotating anode X ray tube insert is engineered for general radiographic use in modern digital X ray systems. Built with a 73mm rhenium-tungsten target and dual focal spots (0.6mm and 1.2mm), it delivers high clarity for chest, spine, and abdominal imaging. The unit operates up to 150kV and integrates seamlessly with IEC 60526 cable standards. To enhance system compatibility, you can explore pairing it with a digital 50kW X ray radiography system for optimized workflow and image quality. Its robust housing ensures safe thermal dissipation under extended use, making it suitable for hospitals and diagnostic centers.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Electrical Parameters | |
| High Voltage Generator | Constant Potential High-Voltage Generator |
| Grounding | Center-grounded |
| Nominal X-ray Tube Voltage (Radiographic) | 150kV |
| Nominal X-ray Tube Voltage (Fluoroscopic) | 125kV |
| Nominal Focal Spot Value – Large Focus | 1.2 mm |
| Nominal Focal Spot Value – Small Focus | 0.6 mm |
| Nominal Anode Input Power (Large Focus 50Hz/60Hz) | 50KW / 54KW |
| Nominal Anode Input Power (Small Focus 50Hz/60Hz) | 20KW / 22KW |
| Motor Ratings | |
| Power Source Frequency | 50/60Hz |
| Starting Voltage | 160V |
| Running Voltage | 60V |
| Starting Current | 3.5~5.5A |
| Running Current | 1.0~1.5A |
| Minimum Speed-Up Time | 1~1.2s |
| Capacitor | 43/30 μF |
| Motor Speed | |
| Anode Speed at 50Hz | 2800 rpm |
| Anode Speed at 60Hz | 3200 rpm |
| Stator Impedance | |
| Common Main Winding | 20.0Ω |
| Common Auxiliary Winding | 50.0Ω |
| Other Electrical Specs | |
| Resistance Between Housing and Low Voltage Terminals | ≥2MΩ |
| Operating Housing Temperature Range | 16–75℃ |
| Physical Parameters | |
| Overall Length | 480 mm |
| Maximum Diameter | 152.4 mm |
| Target | |
| Angle | 12° |
| Diameter | 73 mm |
| Construction | Rhenium-Tungsten faced Molybdenum |
| Filtration | |
| Inherent Filtration | 1.0 mm AL |
| Additional Filtration | 1.5 mm AL (3×0.5 mm AL) |
| Safety & Coverage | |
| Leakage Technique Factor | 150kV, 3.4mA |
| X-ray Coverage | 420mm × 420mm at SID 1000mm |
| Weight | Approx. 17 kg |
| High Voltage Receptacle | Complies with IEC 60526 |
| Cooling Method | Natural or Forced Air |
| Absolute Maximum and Minimum Ratings | |
| Maximum Tube Voltage (Radiographic) | 150 kV |
| Maximum Tube Voltage (Fluoroscopic) | 125 kV |
| Voltage Between Anode and Ground | 78 kV |
| Minimum Tube Voltage | 40 kV |
| Maximum Filament Current (Large Focus) | 5.3A |
| Maximum Filament Current (Small Focus) | 5.3A |
| Filament Voltage (Large Focus) | 13.5±1V |
| Filament Voltage (Small Focus) | 8.5±1V |
| Filament Frequency Limits | 0~25 kHz |
| Thermal Characteristics | |
| Anode Heat Content | 212kJ (300 kHU) |
| Maximum Anode Heat Dissipation | 750W (1056kHU/s) |
| Continuous Anode Input Power | 145W (200HU/s) |
| X-ray Tube Assembly Heat Content | 1000kJ (1410kHU) |
| Nominal Continuous Input Power Without Air-Circulator | 275W (23kHU/min) |
| Nominal Continuous Input Power With Air-Circulator | 450W (37kHU/min) |
-

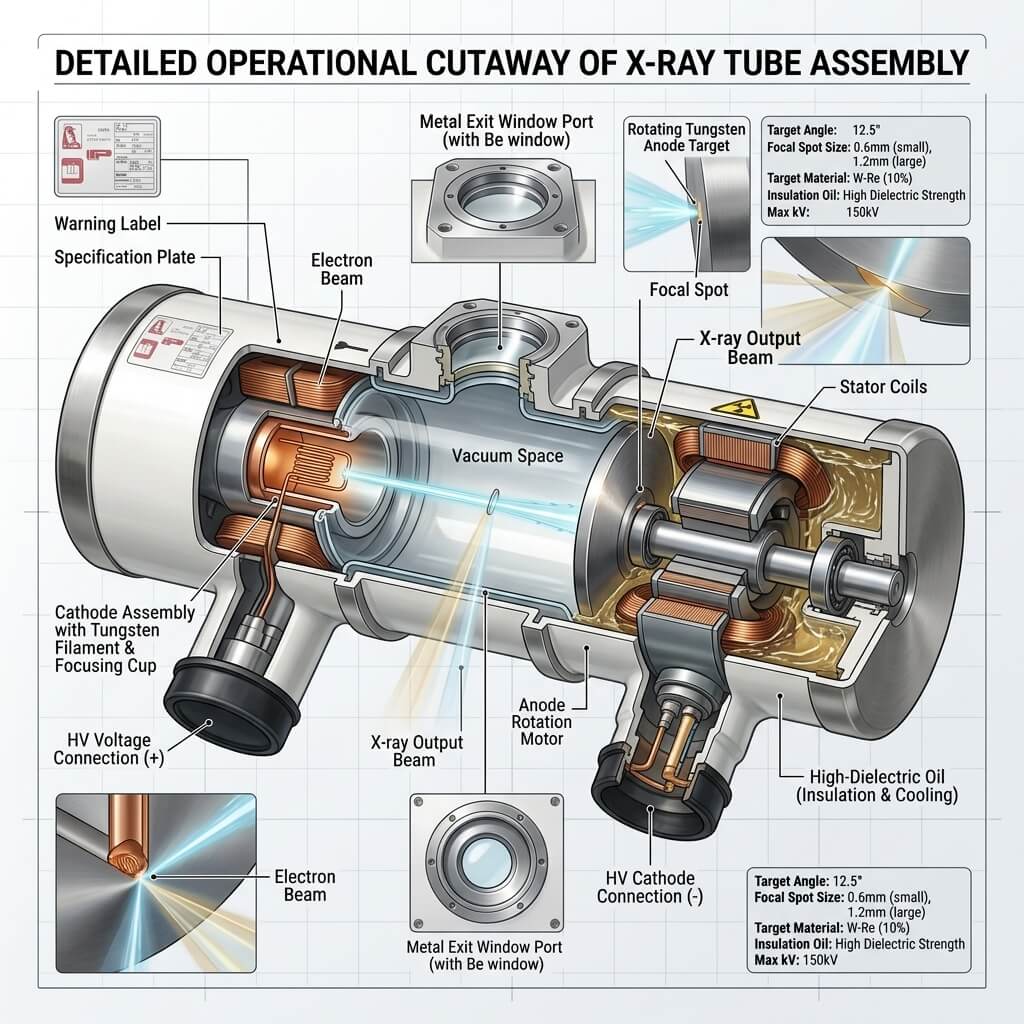

High Thermal Capacity & Rapid Dissipation: Armed with a premium [Insert e.g., 300 kHU / 150 kHU] anode heat storage capacity. Engineered with high-grade, premium cooling oil and optimized housing thermal pathways, it withstands high-intensity, continuous patient exposures in busy diagnostic environments without arc-overs or overheating.
-
Ultra-Fine Dual Focal Spots for Crisp Diagnostic Images: Designed with a dual focal spot configuration (e.g., 0.6 mm / 1.2 mm) and a high-efficiency Rhenium-Tungsten-Molybdenum (RTM) target. It guarantees outstanding spatial resolution, minimized geometric blur, and razor-sharp contrast for full chest, abdominal, and skeletal imaging.
-
Industry-Standard High-Voltage Receptacles: Equipped with precision-machined, heavy-duty positive (
+) and negative (-) high-voltage cable receptacles. It natively supports standard international mini-cable or federal interfaces, ensuring perfect electrical synergy with mainstream high-voltage generators (such as CPI, Spellman, or Sedecal). -
Universal 1:1 Drop-In Component Replacement: Significantly slash your manufacturing or maintenance costs. Our tubes are engineered to perfectly mirror the physical dimensions, mounting bolt configurations, and stator coil resistances of leading international brands, serving as a seamless, plug-and-play replacement for Varex/Varian (e.g., RAD-14/RAD-21) and Canon/Toshiba (e.g., E7239/E7252) series.
-
Advanced High-Vacuum Seasoning & Extended Lifespan: Built using state-of-the-art glass-to-metal or advanced ceramic insert technologies. Every single tube undergoes rigorous, multi-stage high-voltage seasoning, vacuum baking, and dynamic balance testing before leaving our facility, promising a stable, spark-free operating lifespan across millions of exposures.
-
Strict ISO 13485 Manufacturing Quality Control: Partner directly with a top-tier Chinese medical core-component manufacturer. We offer comprehensive technical dossiers, anode cooling curves, and structural schematics to accelerate your system’s local CE MDR, FDA, or ministry of health compliance tracking.
