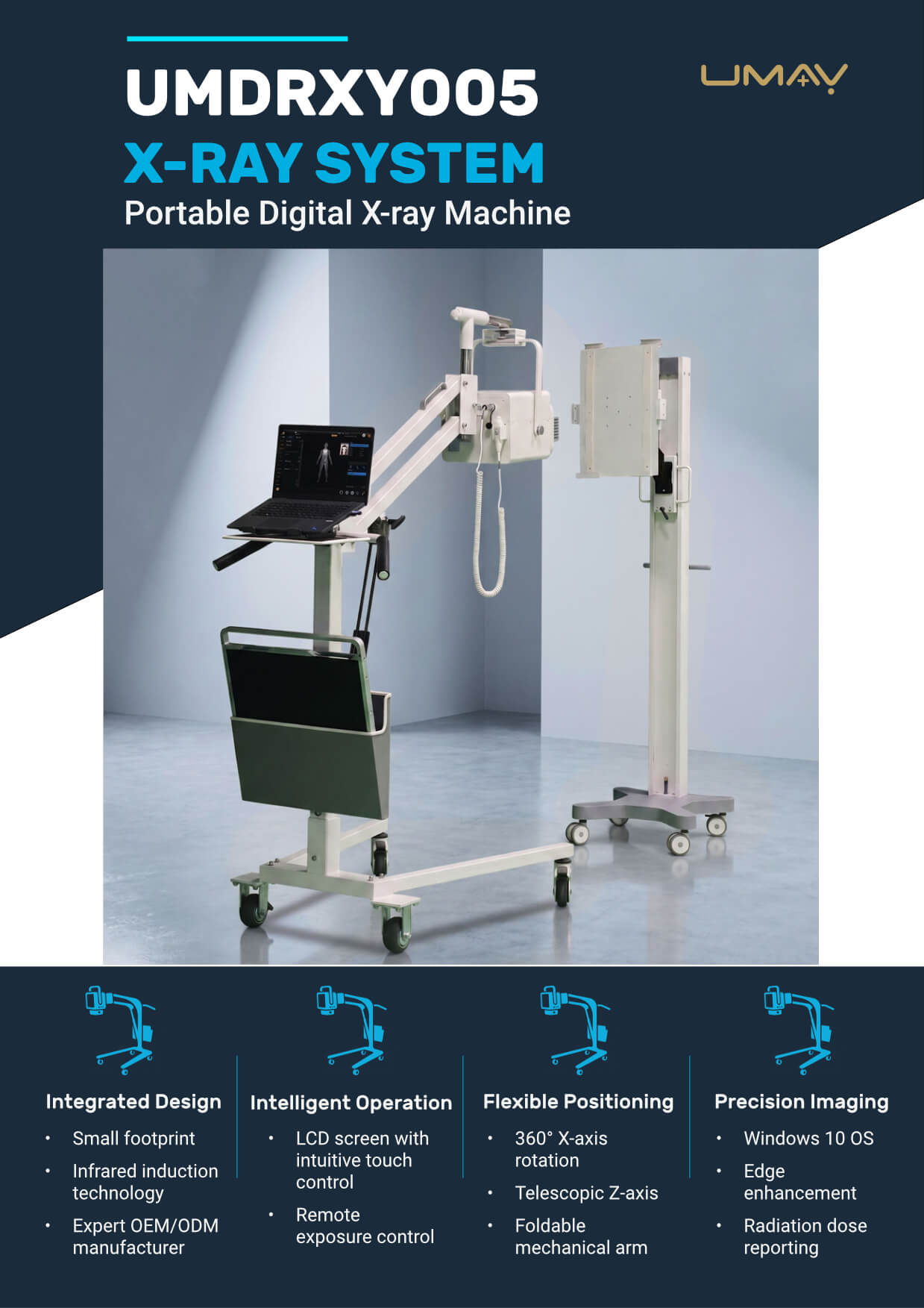

Modular Portable Digital Radiography System with Laptop Workstation | Complete Clinic DR X-Ray Suite with Mobile Vertical Stand, 4-Wheel Lockable Examination Table & Wireless Flat Panel Detector | Cost-Effective Compact Radiology Solution
Quick Info.
- SKU NO.: UMDRXY005
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton or Wooden Cases
- Origin: China
- Material: Aluminum and magnesium alloys
- After-Sale Service: Online Technical Support
- Production Capacity: 500 Sets/Year
Stop overpaying for heavy, fixed radiology systems that confine your practice. As showcased in, our fully integrated, split-type modular DR package brings high-definition digital radiography anywhere you need it—from private community clinics and boutique veterinary offices to field hospitals, military deployment zones, and mobile medical vans.
The Specific Parameters
-
-

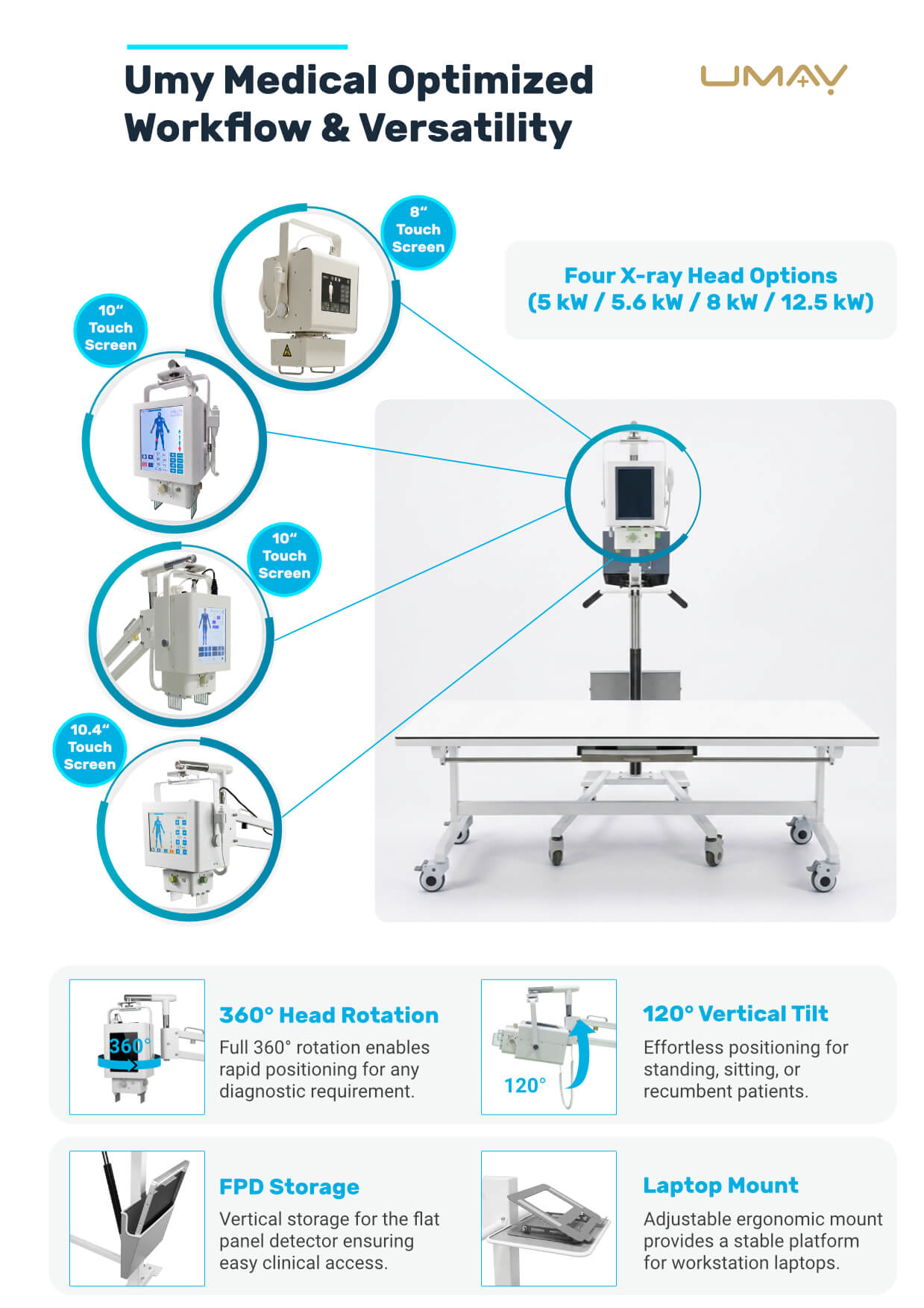

Detachable Multi-Scenario Touchscreen Monoblock: Maximize your asset utilization. The smart, touchscreen-integrated X-ray tube head can be easily unmounted from the mobile vertical stand in under a minute without any specialized tools. This allows clinicians to transition seamlessly from an in-clinic table configuration to a hand-carry portable unit for off-site or ambulatory field operations.
-
Full GCI Smart Software Integration: Enjoy high-end, unified control on a portable budget. The system features a native Generator Control Interface (GCI) linking the laptop workstation directly to the X-ray head. Selecting an anatomical profile on your laptop automatically updates the kV and mAs parameters on the monoblock’s rear LCD touchscreen, ensuring a fast and mistake-free bedside workflow.
-
Ergonomic Mobile Stand & Lockable Bed Combo: Turn any room into a digital X-ray suite. The package features a lightweight, gas-spring counterbalanced vertical column paired with a mobile, 4-wheel locking examination table. The table includes an integrated sliding sub-surface tray perfectly scaled to accommodate standard 14×17-inch or 17×17-inch wireless flat panel detectors.
-
Highly Cost-Effective & Infrastructure-Friendly: Drastically lower your facility barrier to entry. This 4kW/5kW high-frequency system plugs directly into a standard single-phase 110V/220V household wall outlet. It requires zero expensive room reinforcement, high-power commercial rewiring, or heavy-duty floor mounting.
-
Logistics-Optimized Architecture for Tenders: Lower your international shipping footprints. Unlike massive, pre-assembled fixed DR machines, the entire split architecture shown in breaks down cleanly to fit into standard air-freight crates or medical flight cases, slashing your import shipping costs and simplifying rapid on-site setup for emergency relief tenders.
-

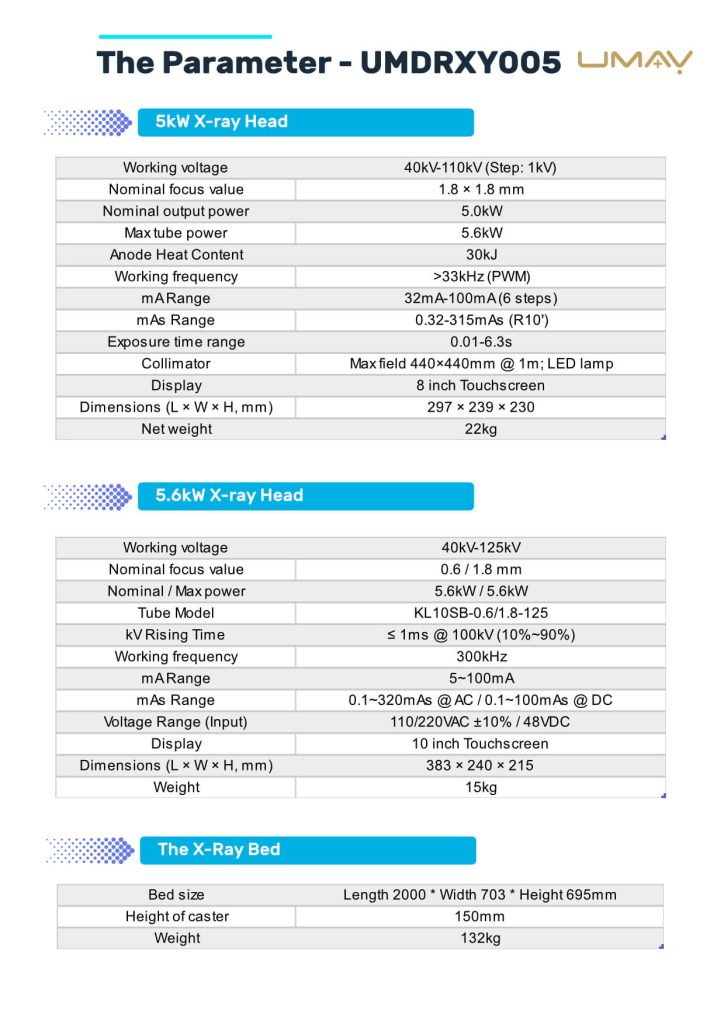

💡 Core Specifications At a Glance (Customizable):
-
System Type: Modular Split-Type Portable Digital Radiography Suite
-
X-Ray Source: Hand-Carry High-Frequency Monoblock with Smart Color LCD Screen
-
Table Mechanics: Lightweight Mobile Examination Bed with 4 Independent Lockable Wheels
-
Workstation Type: Medical-Grade Acquisition Software Pre-loaded on a Ruggedized Laptop PC
-
Imaging Receptor: High-QE Direct Deposition Wireless Flat Panel Detector (FPD)
❓ Crucial B2B Procurement Q&A
Q1: Can the hand-carry X-ray tube head be entirely detached from the vertical stand for field operations?

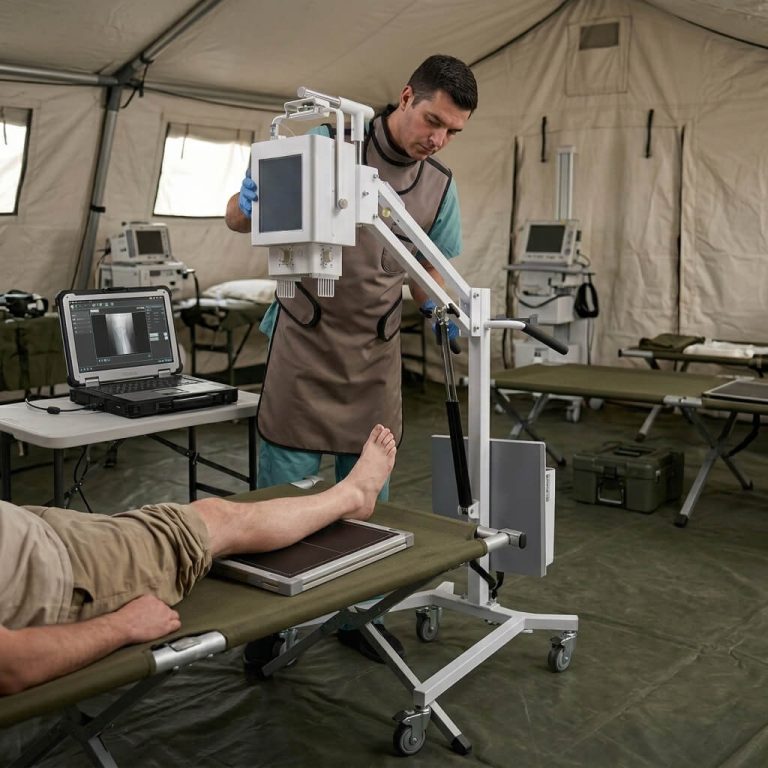

A: Yes, absolute portability is a core feature of this design. The monoblock generator can be detached from the vertical column assembly via a quick-release mechanism in seconds. It can then be carried by hand or mounted onto a lightweight field tripod, making it highly effective for disaster relief, military field medicine, or rural outreach.
Q2: Does the laptop workstation control the exposure settings, or do we have to adjust them manually on the tube head?
A: The system features a fully integrated bi-directional Generator Control Interface (GCI). You do not need to walk back and forth. When you select a body part or adjust exposure metrics (kV/mAs) on the laptop workstation software, the commands are transmitted via data bus directly to the tube head screen, synchronizing both interfaces automatically.
Q3: What sizes of flat panel detectors are compatible with the table’s built-in tray?

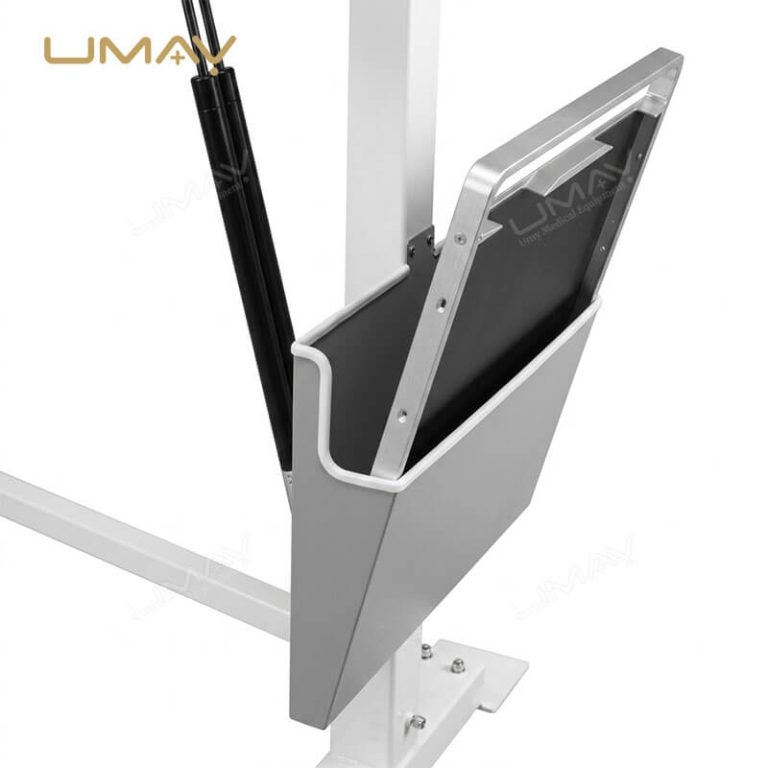

A: The integrated sliding Bucky tray built into the sub-frame of the mobile bed is a universal layout. It features adjustable locking brackets that seamlessly accommodate both 14×17-inch and 17×17-inch wireless flat panel detectors from any major brand, guaranteeing flexible hardware pairing and easy future upgrades.
Q4: How stable is the vertical tube stand during movement? Is there a risk of it tipping over?
A: Mechanical safety was a top priority when developing this ultra-lightweight architecture. The vertical stand is anchored by an H-shaped heavy-gauge steel base configuration with wide-set, lockable medical-grade casters. This design ensures an incredibly stable center of gravity, preventing shaking during exposure or tipping when pushing the column across elevator thresholds.
