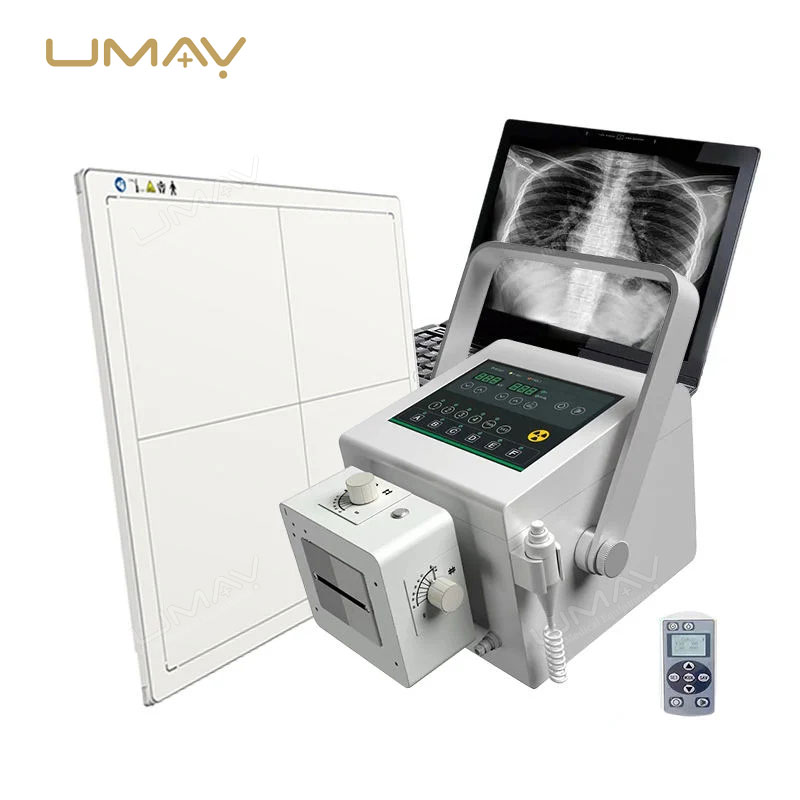

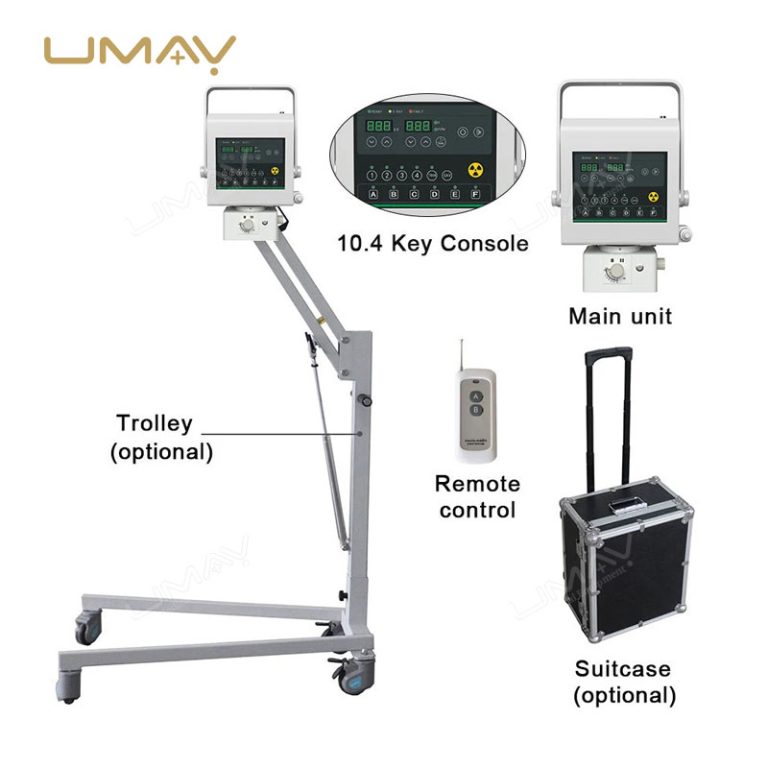

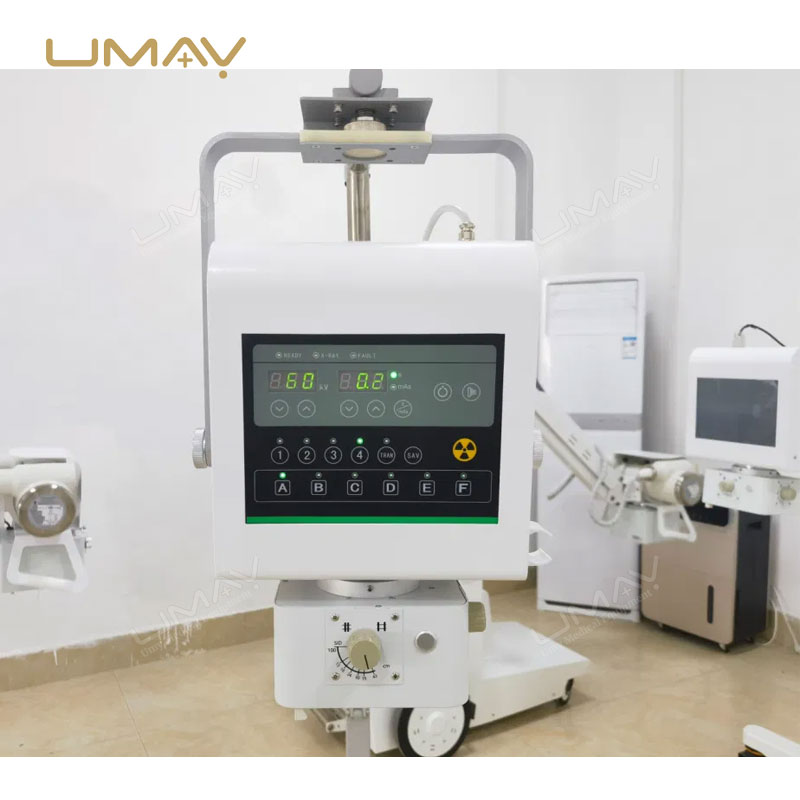

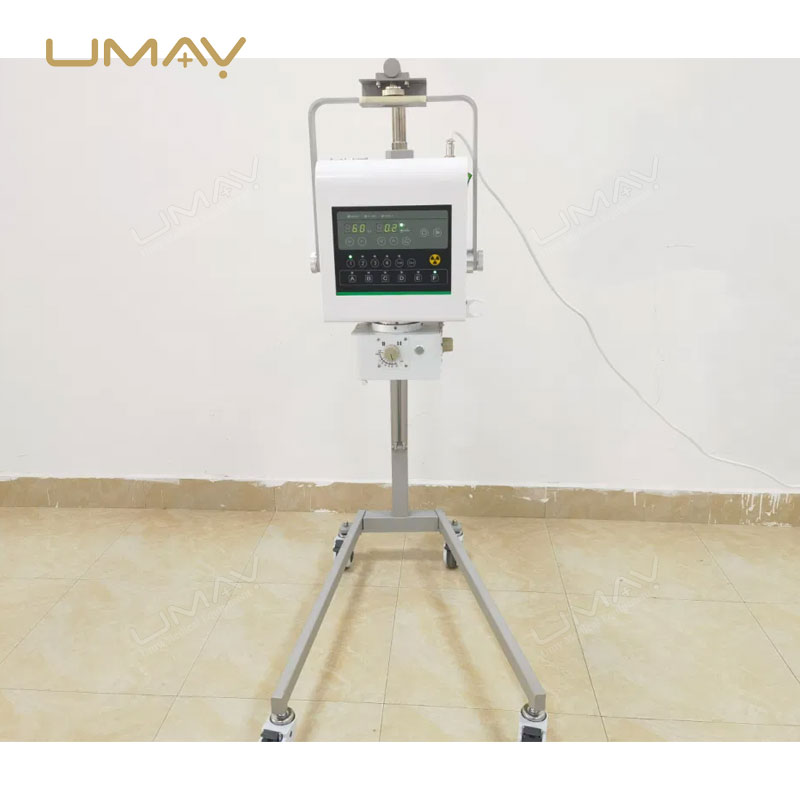

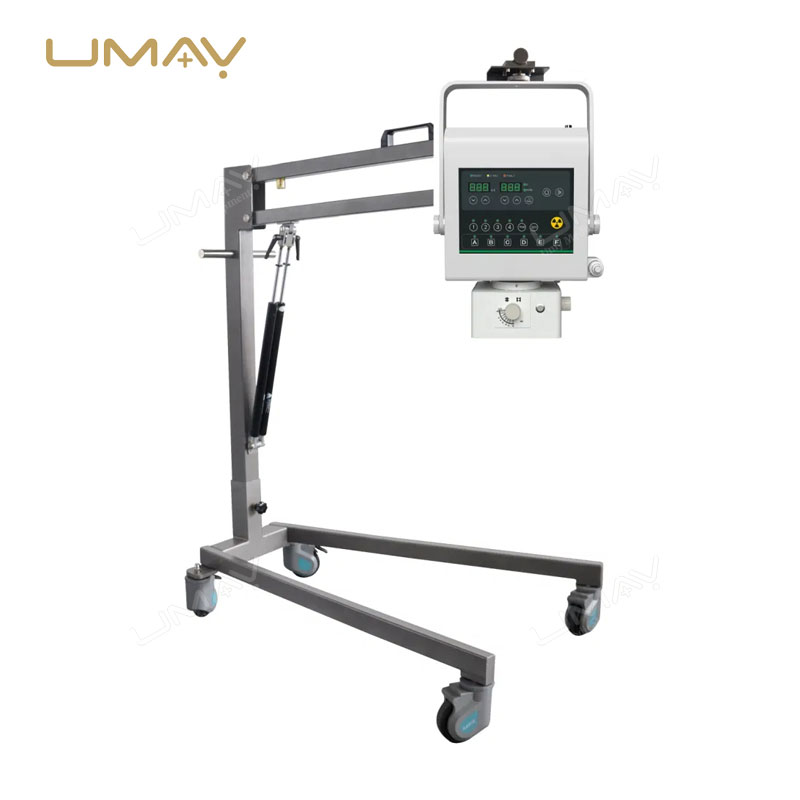

Mobile X-ray Machine with Digital Panoramic Ability UMY-XM-MO01

SKU: UMY-XM-MO01
Brand: Umy
MOQ: 1
Origin: China

OR

Quick Info.

Get versatile, high-quality imaging wherever you need it with our Mobile X-ray Machine. This system combines both traditional and panoramic X-ray capabilities into one portable solution, perfect for a wide range of diagnostic applications.

The mobile design gives you the flexibility to perform musculoskeletal assessments and full-body scans in hospitals, clinics, or emergency settings. With fast digital image acquisition and reduced radiation exposure, you can provide clear, detailed images while ensuring patient safety.

Enhance your diagnostic efficiency and deliver high-quality care with a single, reliable X-ray machine.

The Specific Parameters

ITEMSPARAMETERS
Power
VoltageAC220V / 110V (optional)
Power Output5kW
Working Frequency40kHz
Generator Specifications
kV Range40 ~ 110kV
mA Range10 ~ 100mA
mAs Range0.2 ~ 200mAs
Exposure Time0.01s ~ 3.2s
X-Ray Tube
Anode Heat Storage56KHU
Focus Size1.6mm / 1.8mm
Inherent Filtration1mm Al @ 75kV
Light SourceLED
Key Console Dimension10.4 inch
Physical Specifications
Weight18.8 kg
Main Unit Dimensions290 × 260 × 230 mm
