High-Sensitivity Digital Radiography Flat Panel Detector with Full-Field AED | Hybrid Wired/Wireless X-Ray FPD | ISO 13485 & CE Certified Manufacturer
Quick Info.
- SKU NO.: UMY-XM-078
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton or Wooden Cases
- Origin: China
- Material: Aluminum & Magnesium Alloys and Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 2000 Sets/Year

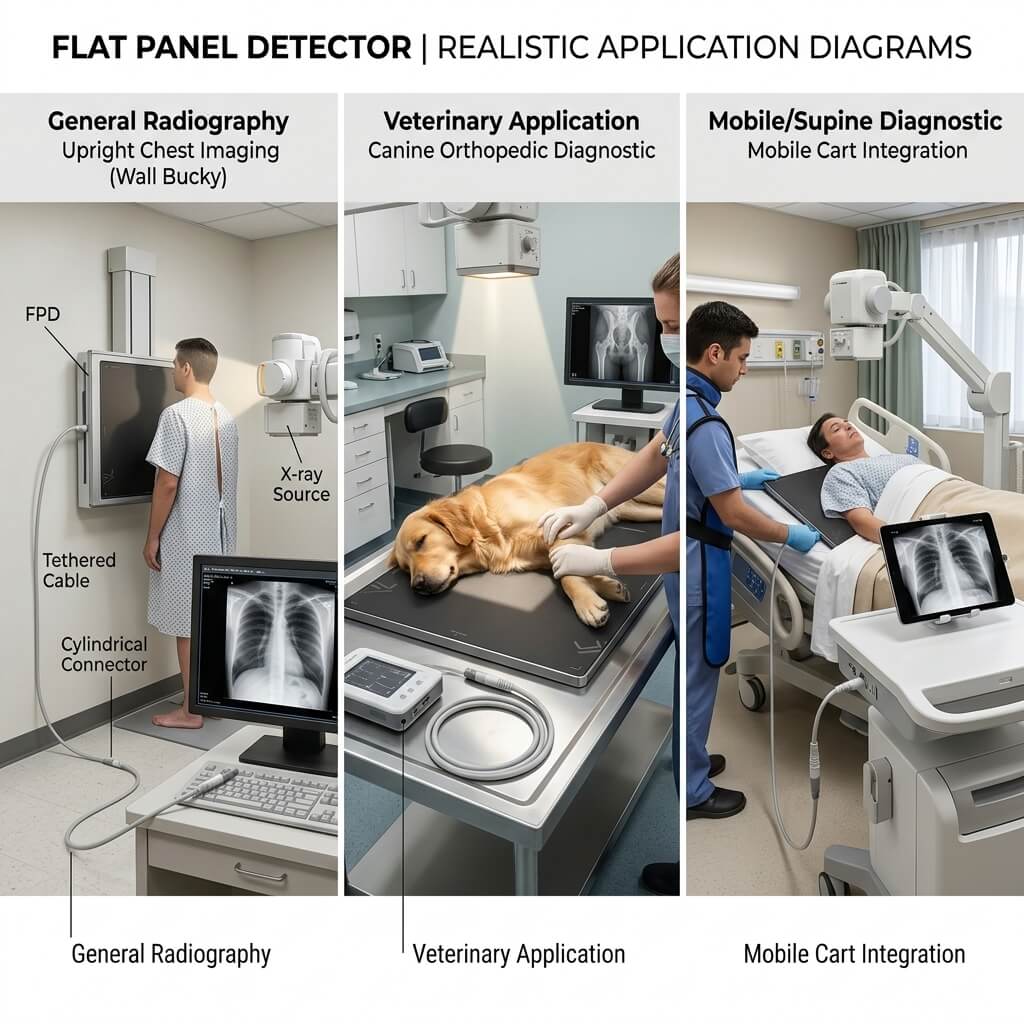

Designed for real-time imaging, the 17*17 flat panel detector features a 17 by 17 inch active area and a direct-deposition CsI scintillator for high DQE and low clinical dose. With frame rates up to 30 fps in 3×3 binning mode, it supports dynamic studies including gastrointestinal fluoroscopy and general radiography. The 139 µm pixel pitch and 16-bit ADC enhance image detail across variable gain settings. Optimized for high-speed diagnostics, this FPD integrates well into advanced DR systems. For complete system integration, see our 50kW hospital stationary DR X ray machine.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Detector Specifications | |
| Detector Technology | Amorphous Silicon |
| Scintillator | Csl |
| Active Area (inch) | 17 × 17 |
| Pixel Matrix | 3072 × 3072 |
| Pixel Pitch (µm) | 139 |
| Spatial Resolution (lp/mm) | 3.6 |
| AD Conversion (bit) | 16 |
| Frame Rate (fps) | 5 (1×1), 20 (2×2), 30 (3×3) |
| Data Interface | GigE |
| Physical Specifications | |
| Dimensions (mm³) | 460 × 460 × 16 |
| Weight (kg) | ≈ 4 |
| Power Dissipation (W) | ≤ 25 |
| Environmental Conditions | |
| Operating Temperature (°C) | 10 ~ 40 |
| Storage & Transport Temperature with Package (°C) | -10 ~ 55 |
| Operating Humidity (% RH) | 20 ~ 90 |
| Storage & Transport Humidity with Package (% RH) (Non-Condensing) | 10 ~ 95 |
-
Pristine Image Quality at Ultra-Low Doses: Powered by a direct-deposition Cesium Iodide (CsI) scintillator and an optimized pixel pitch. It provides exceptional spatial resolution and detective quantum efficiency (DQE), producing razor-sharp, diagnostic-grade images while drastically reducing radiation exposure for patients.
-
Universal Film-to-DR Retrofitting (Full-Field AED): Maximize your investment. Our highly sensitive Automatic Exposure Detection (AED) requires absolutely zero hardware modification or electrical synchronization with your current X-ray generator. Simply insert the cassette-sized detector, expose, and capture images instantly.
-
Sleek Ergonomics & Premium Durability: Featuring an ultra-narrow bezel and a lightweight, streamlined profile. Built to withstand rigorous clinical workflows, the ruggedized housing boasts a massive static weight-bearing capacity and a high IP dust and water protection rating to ensure a long operational lifespan in busy emergency rooms or orthopedics.
-

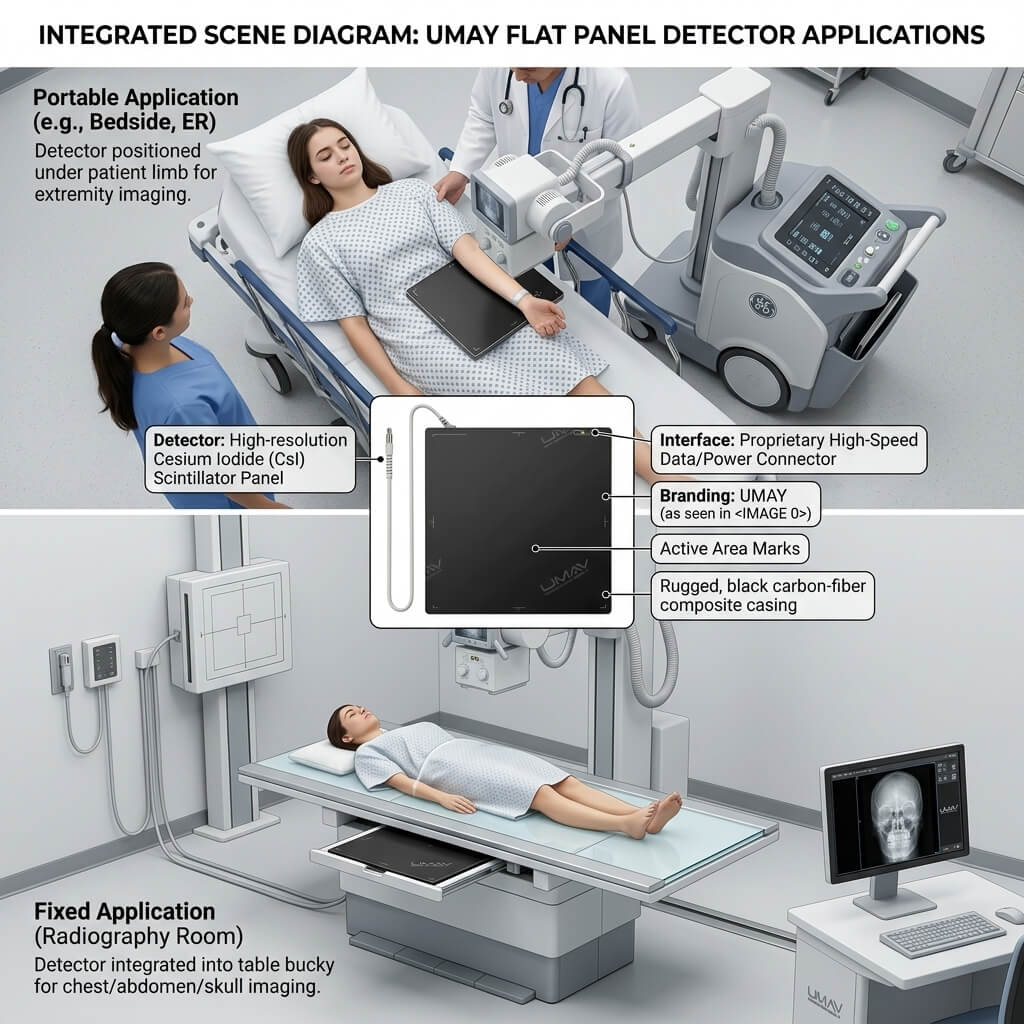

Hybrid Wired/Wireless Operational Freedom: Experience uninterrupted workflow versatility. Equipped with an ultra-fast wireless Wi-Fi module for absolute bedside mobility, it also features a heavy-duty, quick-disconnect magnetic tether cable for high-speed data transmission and simultaneous background charging.
-
Developer-Friendly SDK & DICOM 3.0 Workstation: We provide a comprehensive, stable Windows/Linux SDK development kit alongside expert engineering support for seamless integration into your proprietary system software. For plug-and-play clients, our acquisition software natively supports full DICOM 3.0 networks for instant PACS/RIS cloud synchronization.
Direct Factory OEM/ODM Customization: Source directly from a verified, state-of-the-art Chinese medical imaging manufacturer. We offer robust B2B support, including flexible MOQs for private labeling, custom casing finishes, and tailored software UI localization. Our manufacturing processes are strictly ISO 13485 audited, with complete technical dossiers ready to streamline your local CE MDR or regulatory clearance.
