High-Frequency Veterinary Portable X-Ray Generator Machine | Lightweight Hand-Carry Animal Diagnostic Radiography Monoblock | Companion Animal & Equine X-Ray Source with Dedicated Pet APR Screen & Manual Collimator
Quick Info.
- SKU NO.: UMY-XM-028
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton or Wooden Cases
- Origin: China
- Material: Aluminum and magnesium alloys
- After-Sale Service: Online Technical Support
- Production Capacity: 500 Sets/Year

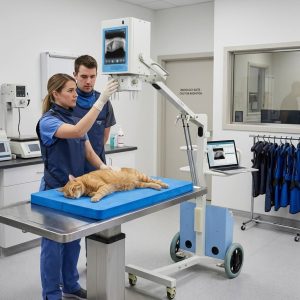

The portable ultra-high frequency X-ray machine for veterinary use offers flexible power options of 2.8kW, 5.6kW, and 8kW, making it ideal for a wide range of animal imaging applications. This lightweight and portable machine provides superior image quality and precision, ensuring accurate diagnostics for both small and large animals. Its ultra-high frequency technology reduces radiation exposure while maintaining sharp image clarity, enhancing safety for both patients and practitioners. This versatile X-ray system is perfect for veterinary clinics, mobile units, and field use.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Power | 2.8kW |
| Touch Screen Size | 8 inch |
| mA Range | 10-40mA |
| kV Range | 40-100kV |
| mAs Range | 0.1-12.5mAs |
| Exposure Time Range | 0.01-1.25s |
| Focal Spot | 1.0mm |
| Full Charging Time | 2h |
| Stand-by Time | 20h |
| Exposure Times at Fully Charged | 110 times at 100kV, 25mA, 100mS |
| Net Weight | 15.5kg |
| Gross Weight (Machine + Wooden Case) | 27kg |
| Dimensions (Machine + Wooden Case) | 600 × 420 × 460mm |
-
Dedicated Species-Specific APR Control Screen: Simplify clinical operations instantly. The integrated top-mounted digital interface features clear, animal-programmed radiography profiles. Technologists can rapidly select the target species and anatomical region—ensuring automated, precise exposure outputs that eliminate mathematical guesswork.
-
Ultra-Fine Focal Spot for Micro-Anatomy: Capture stunning clarity down to the smallest detail. Equipped with an optimized diagnostic focal spot, this generator delivers sharp edge definition and exceptional spatial contrast, allowing for precise tracking of fine fractures, dental pathways, and soft-tissue structures in small pets.
-
Rugged Field-Ready Chassis with Collimator Protection: Built for demanding ambulatory environments. Complete with an ergonomic, heavy-duty structural carry handle that doubles as a stand, the unit features protective side-wing metal guards flanking the manual collimator to shield sensitive dials from accidental field drops or bumps.
-
Precision Dual-Axis Manual Beam Collimator: Minimize scatter radiation and protect clinical handlers. The user-friendly front-facing dials allow precise adjustments to the light field boundaries, ensuring absolute control over the exposure beam area while maximizing contrast resolution.
-
Universal Vet DR System Integration: Build your ultimate digital suite. Designed with a flexible, coiled 2-stage exposure switch cord, our portable vet generator connects seamlessly to all major global veterinary wireless and wired flat panel detector workflows for instantaneous digital readouts.
💡 Core Specifications At a Glance:
-
Modality Configuration: High-Frequency Hand-Carry Veterinary X-Ray Generator
-
User Interface: Species-Specific Animal APR Presets with Tactile Toggle Keys
-
Collimator Assembly: Manual Adjustment Dials with Dual Structural Protection Guards
-
Trigger Mechanism: Coiled Extension Cord with Ergonomic 2-Stage Safety Exposure Switch
-
Application Scope: Optimized for Companion Animal Clinics, Mobile Equine, and Exotic Medicine
❓ Crucial B2B Veterinary Sourcing Q&A
Q1: Can the pre-set animal APR settings be customized for unique exotic species or specific clinical techniques? A: Yes. While the system comes pre-programmed out of the box with highly accurate exposure curves for standard domestic pets (canine, feline) and common anatomical regions, the operator console allows full manual override. Clinicians can adjust and save preferred kilovoltage (kV) and milliampere-seconds (mAs) profiles to accommodate specialized clinical preferences.
Q2: What is the purpose of the dual metal grid wings on the front of the collimator? A: Those are heavy-duty structural reinforcement guards. In mobile veterinary medicine—especially equine or farm call diagnostics—the unit can easily be bumped against stall walls or kicked by animals. These wings shield the manual collimator adjustment knobs from direct impact, ensuring the internal lead shutters maintain perfect mechanical calibration.
Q3: Is this portable generator compatible with standard single-phase wall outlets found in typical vet clinics? A: Yes, absolutely. The internal inverter electronics are designed to draw highly efficient, stable power from standard single-phase 110V or 220V wall connections. It incorporates advanced line-voltage compensation technology, preventing generator errors even if the local clinic power grid experiences minor fluctuations.
Q4: How easily does this monoblock integrate with veterinary PACS software and medical record databases? A: The generator serves as the raw exposure source. When linked to your Vet DR flat panel detector system via our standard synchronization interface port, the acquired images are processed natively by your workstation software in standard DICOM 3.0 formatting. This guarantees smooth archiving to your existing local vet PACS, practice management databases, or cloud-based sharing networks.
