High-Frequency 5kW Mobile Digital Radiography DR X-Ray System with Wheeled Patient Table | Smart Touchscreen Tube Head Console Mobile DR Machine Combo | Radiolucent Examination Table Suite for Outpatient Clinics & Orthopedics
Quick Info.
- SKU NO.: UMDRXY005-5kW
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton or Wooden Cases
- Origin: China
- Material: Aluminum and magnesium alloys
- After-Sale Service: Online Technical Support
- Production Capacity: 500 Sets/Year
The 5kW portable high-frequency veterinary X-ray machine is designed for versatile and efficient animal care, providing high-quality imaging for both small and large animals. Its high-frequency technology ensures clear, precise images while minimizing radiation exposure, making it a safe option for veterinary diagnostics. The portable design allows for easy transportation, ideal for use in clinics or mobile veterinary services. Offered at an affordable factory price, this machine is a cost-effective solution for veterinary professionals seeking reliable and accurate imaging tools.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| General Specifications | |
| Inverter Frequency | ≥30kHz |
| Input Power Type | 220V ±10%, 50Hz/60Hz |
| Host Size | 370mm × 260mm × 230mm |
| Weight | 21kg |
| Inverter Mode | PWM (Pulse Width Modulation) |
| Maximum Output Power: | 5.0kW |
| Power Capacity | 100kV @ 50mA |
| Photography kV Range | 40-50kV, 40-60kV, 40-80kV, 40-100kV, 40-110kV |
| Photography mA Range | 100mA, 80mA, 63mA, 50mA, 40mA, 32mA |
| mAs Range | 0.32-315mAs |
| Exposure Time Range | 0.01-6.3s |
| Maximum Output Power: | 3.5kW |
| Power Capacity | 70kV @ 50mA |
| Photography kV Range | 40-70kV, 40-90kV, 40-110kV |
| Photography mA Range | 50mA, 40mA, 32mA |
| mAs Range | 0.32-200mAs |
| Exposure Time Range | 0.01-4s |
-
Advanced 5kW High-Frequency Monoblock Generator: Achieve superior beam penetration. The highly efficient internal inverter outputs extremely stable, monochromatic X-ray pulses, eliminating soft scatter radiation while ensuring high-contrast bone and soft-tissue detail.
-

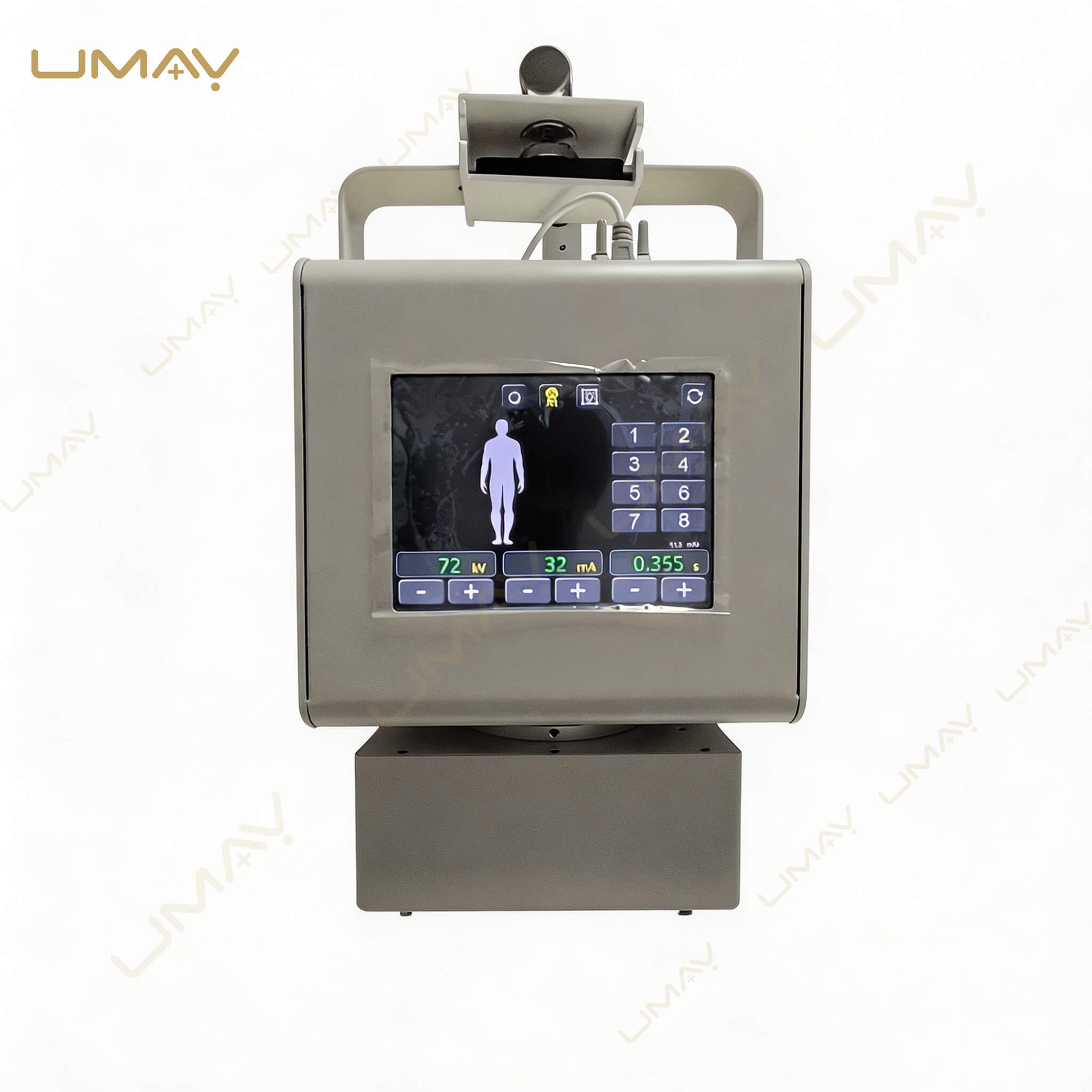

Smart Touchscreen Tube-Head Interface: Simplify bedside patient positioning. The vertical column stand features a large, color touchscreen operating console directly on the tube assembly. Radiographers can adjust kV/mAs metrics, toggle APR presets, and manage workflows without stepping away from the patient.
-
Heavy-Duty Wheeled Radiolucent Patient Table: Ensure absolute structural stability and effortless mobility. The low-attenuation tabletop features clean mechanical lines and high-clearance swivel casters equipped with independent locking brakes, allowing for smooth repositioning anywhere in the facility.
-
Perfect Under-Table Mechanical Docking: Maximize geometric alignment efficiency. The low-profile wheel base of the radiographic table is engineered to slide smoothly with the mobile X-ray stand’s frame, ensuring the overhead X-ray tube aligns accurately with the sub-surface detector tray.
-
Digital-Ready Universal Open Architecture: Expand your imaging capabilities seamlessly. The slide-out cassette tray underneath the table is equipped with adjustable self-centering retention clamps, allowing for immediate integration with wired or wireless digital flat panel detectors (FPD).
💡 Core Specifications At a Glance:
-

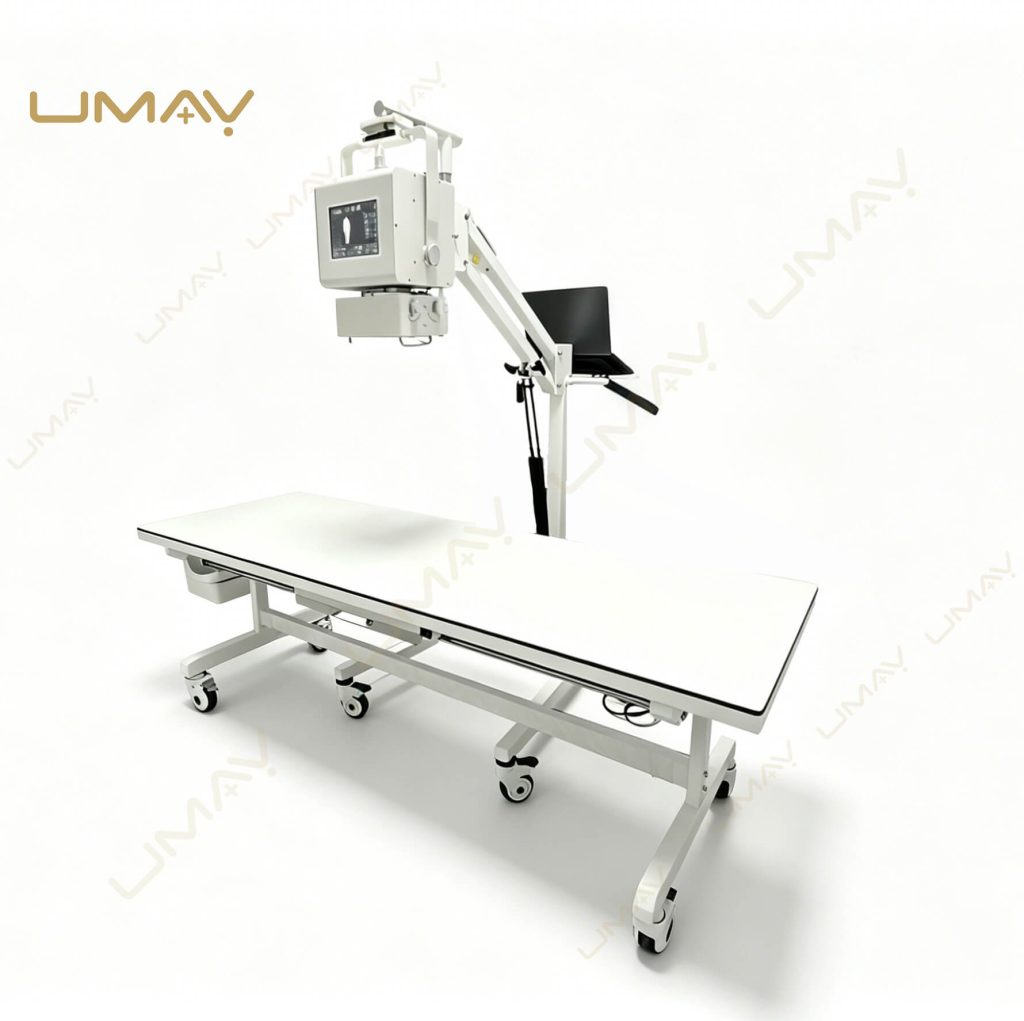

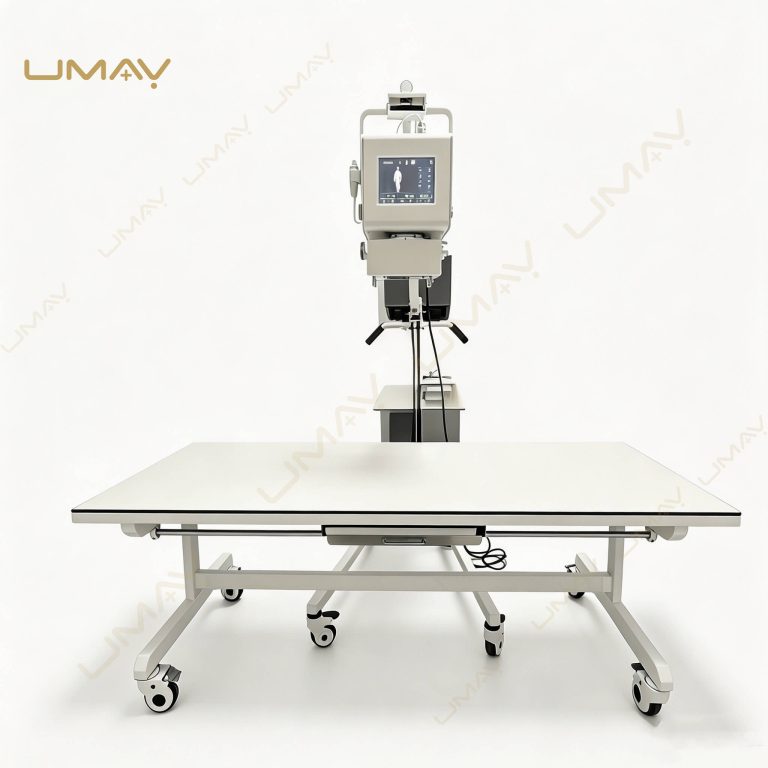

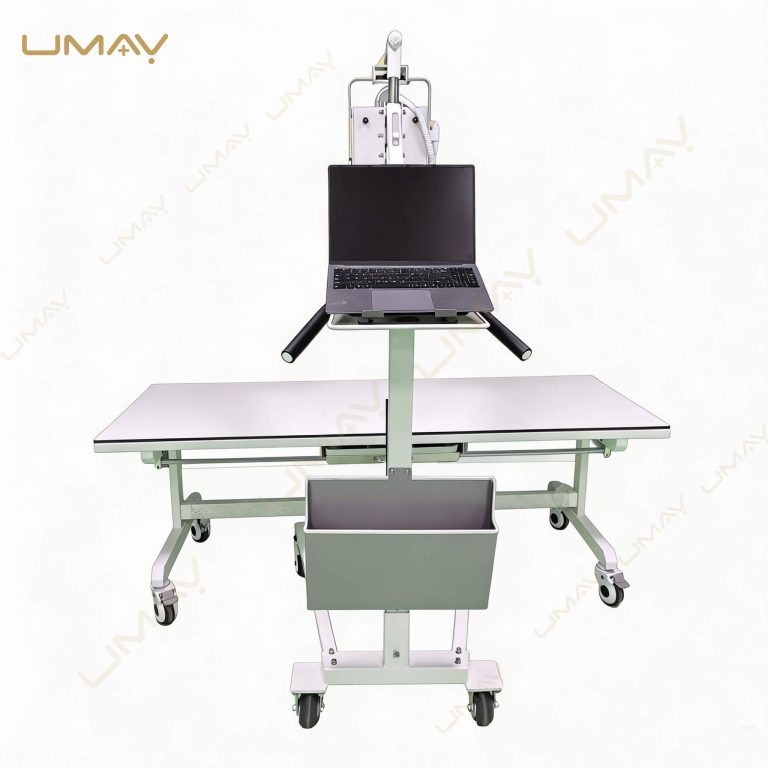

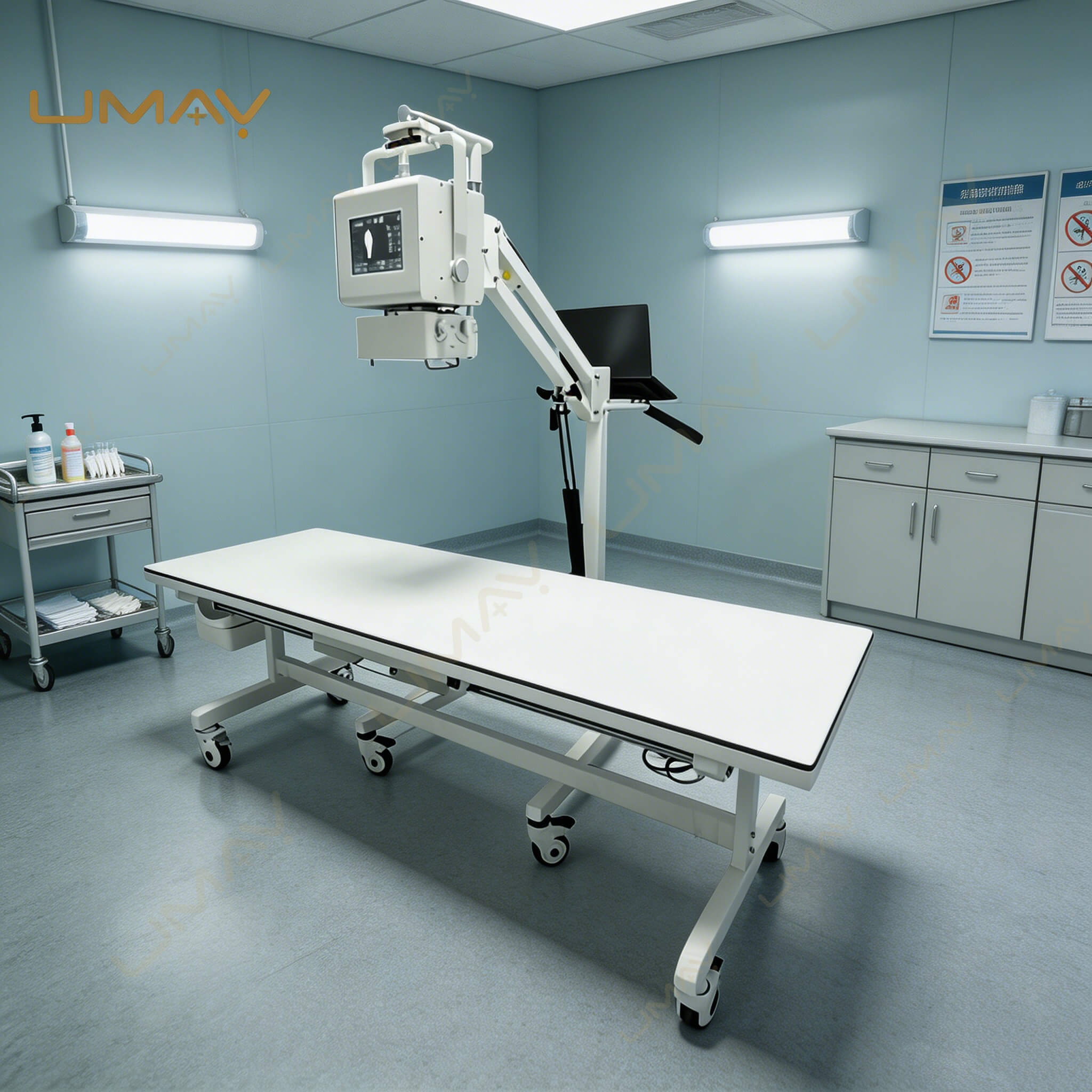

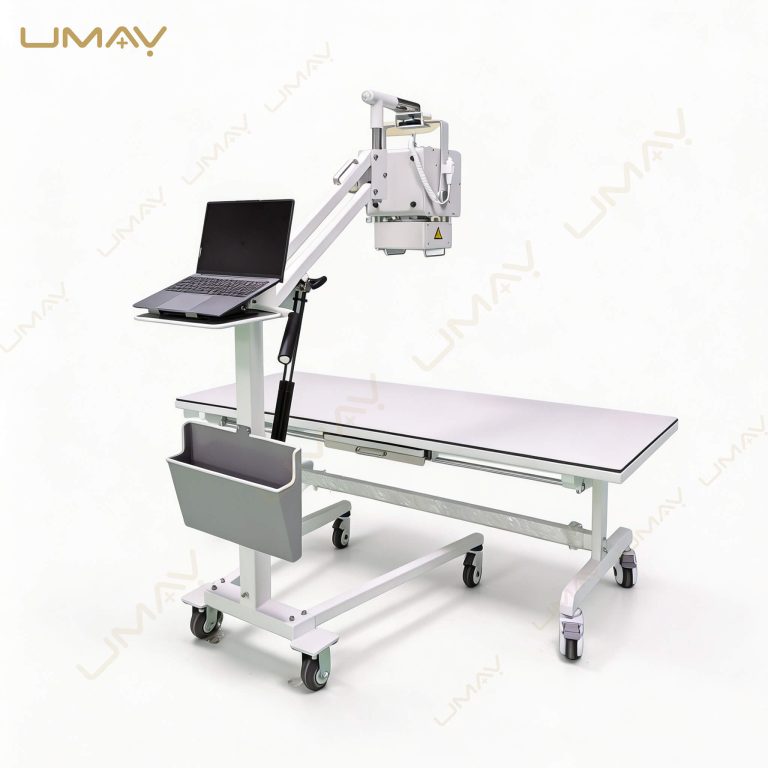

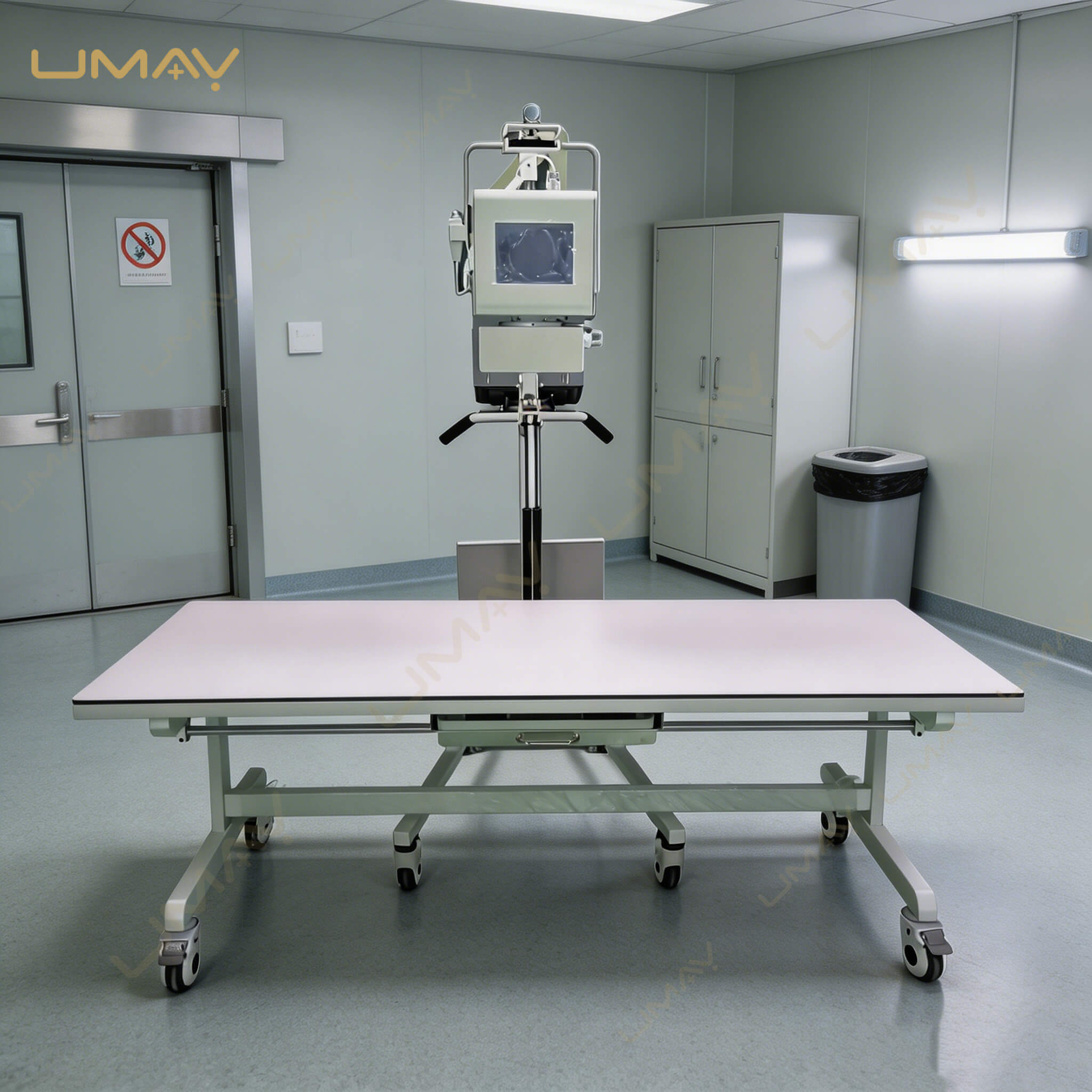

System Layout: 5kW High-Frequency Mobile Tube Stand + Mobile Examination Table Suite
-
Operator Control: Integrated Color Touchscreen Console with Multi-Axis Tube Rotation
-
Table Mobility: Smooth-Rolling Medical Casters with Independent Foot-Operated Brakes
-
Cassette Integration: Universal Sub-Surface Tray for 14×17 / 17×17 Inch Flat Panel Detectors
-
Electrical Grid: Optimized for Standard Single-Phase 110V / 220V Power Infrastructure
❓ Crucial B2B Component Sourcing Q&A
Q1: Can the 5kW mobile X-ray column stand be separated from the table for bedside examinations?
A: Yes, absolutely. The mobile column stand and the wheeled patient table are separate, modular units. While they are engineered to align perfectly as a complete clinic room configuration, the mobile X-ray cart can be unlocked and wheeled independently to any hospital bed, ICU room, or emergency bay for over-bed exposures.
Q2: What is the maximum patient weight rating for the accompanying mobile examination table?
A: The table is built from high-grade, reinforced structural alloys designed to support patient loads up to 200kg (440 lbs). The industrial-strength medical casters ensure low rolling resistance and smooth steering even when the table is under maximum capacity.
Q3: How does the system manage line-voltage fluctuations in rural clinics or field hospitals?
A: This 5kW system features built-in automatic line-voltage compensation circuits. Whether operating on single-phase 110V or 220 V lines (50 Hz / 60 Hz), the internal generator self-adjusts to maintain stable kilovoltage output, preventing exposure drops and minimizing equipment wear during localized grid fluctuations.
Q4: Does the sub-surface table tray include an anti-scatter grid for dense body imaging?
A: Our standard configurations ship with a universal cassette tray that natively holds any standard wired or wireless flat panel detector. For facilities requiring high-contrast abdominal or lumbar spine imaging, we can customize the under-table housing to include a removable high-density anti-scatter grid (10:1 or 12:1 ratio) optimized for the tube’s focal distance.
