Digital Dental CBCT Panoramic X-Ray Machine | 3D Cone Beam CT Imaging System with Cephalometric Option for Implant Planning, Orthodontics, Oral Surgery & Dental Clinics
Quick Info.
- SKU NO.: UMCBCT010
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton or Wooden Cases
- Origin: China
- Material: Aluminum and magnesium alloys
- After-Sale Service: Online Technical Support
- Production Capacity: 500 Sets/Year
Upgrade your dental practice with a high-performance Digital Dental CBCT System combining 3D Cone Beam CT, panoramic X-ray, and optional cephalometric imaging in one platform. Designed for implant planning, orthodontics, oral surgery, endodontics, TMJ diagnosis, and comprehensive dental imaging, the system delivers outstanding image quality, low radiation exposure, intelligent positioning, fast reconstruction, and seamless digital workflow. As an experienced Chinese dental imaging equipment manufacturer, we provide OEM/ODM services, global technical support, competitive factory pricing, and reliable after-sales service for distributors, hospitals, and dental clinics worldwide.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|

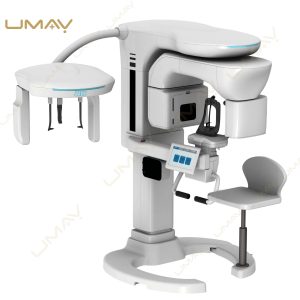

| Equipment Requirement | 3 in 1 (CT + Pan + CE), Stand and wheelchair accessible |

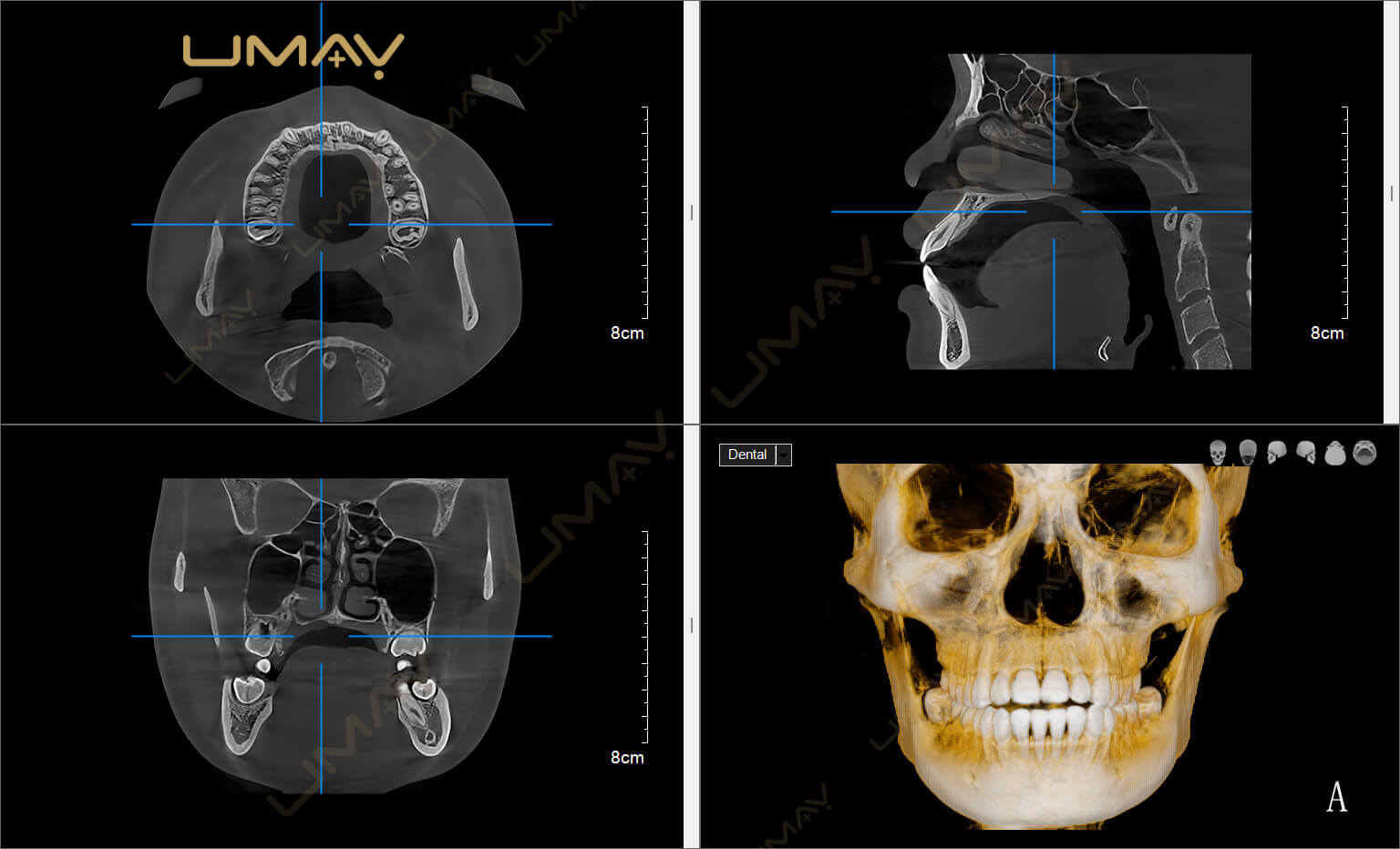

| CT Image | Outputs oral 3D digital images and shows the relationship between oral tissue positions of patients (Independent non-CBCT data synthesis) |
| Panoramic Image | Outputs a digital panoramic image of the whole dentition (Independent non-CBCT data synthesis) |
| Cephalometric Image | With a cephalometric device, captures a digital photo for cephalometric analysis |
| Power Input | 220AC, 50Hz |
| Shooting Mode | CT, PA, Local HD CT, CE (Switchable by software; no manual sensor replacement needed, Independent non-CBCT data synthesis) |
| Tube Current | 2~10mA, 1mA adjustable |
| Tube Voltage | 60~90kV, 1kV adjustable |
| Tube | Filter: ≥2.5mm Al with overload automatic protection device |
| Exposure Time (s) | CBCT: 20s (effective 8s); Pan: 17s; CE: 12s (Mixed pulse radiation source) |
| Focal Point | 0.5mm |

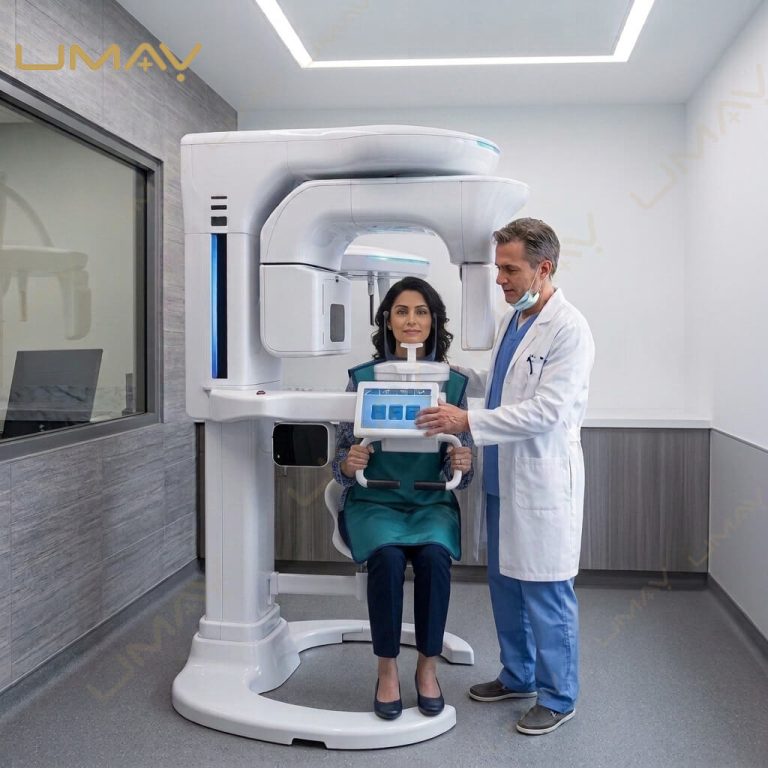

| Patient Position | Stand or chair |
| Lift Arm Range | ≥730mm |
| CBCT (FOV) | 12 × 8cm |
| Max Voxel | ≤70µm (Non-stitch image) |

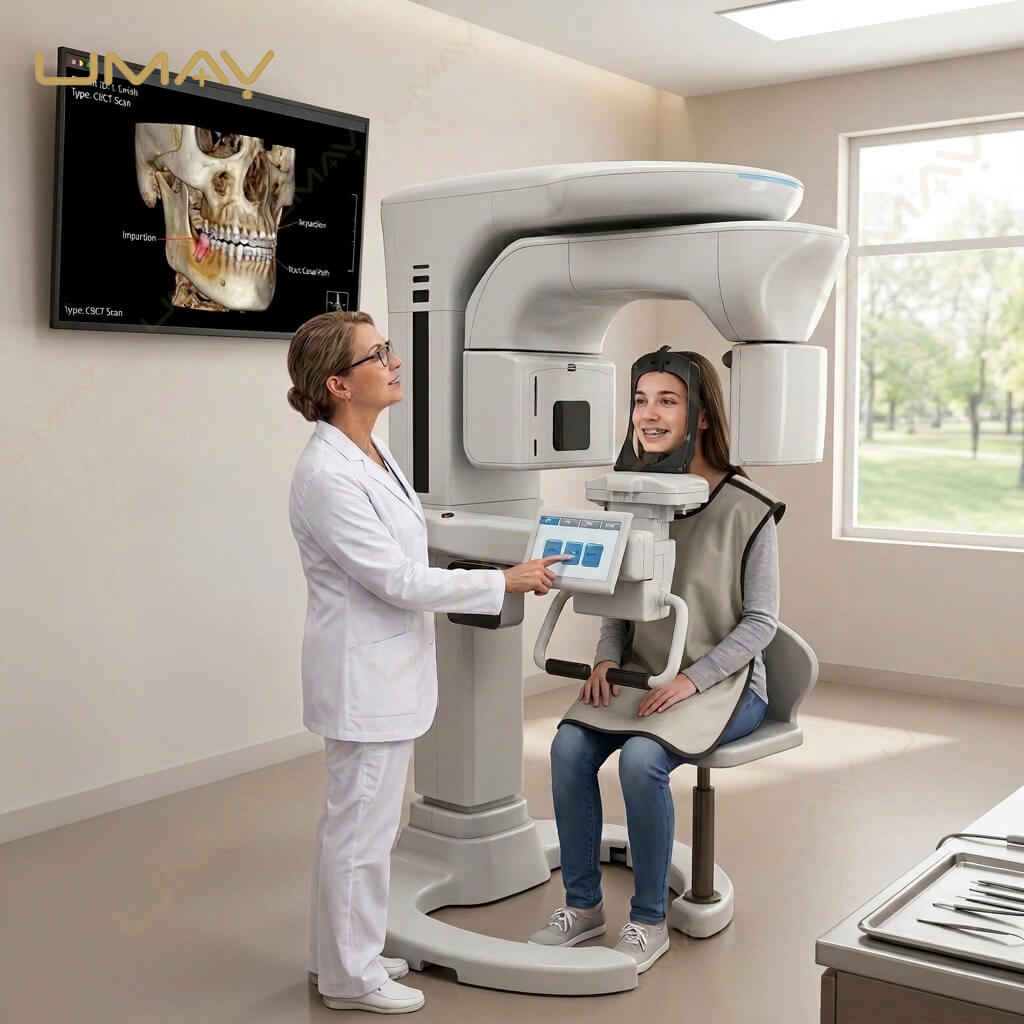

Modern dental diagnosis requires more than traditional panoramic radiography. Our Digital Dental CBCT Imaging System integrates 3D Cone Beam CT, Digital Panoramic X-Ray, and Optional Cephalometric Imaging into one intelligent platform, providing comprehensive oral and maxillofacial imaging for dental professionals.
The system is engineered to deliver crystal-clear diagnostic images with low-dose radiation technology, enabling dentists to evaluate bone structures, tooth roots, impacted teeth, mandibular canals, temporomandibular joints (TMJ), sinuses, and surrounding anatomical structures with exceptional precision. Three-dimensional CBCT imaging plays an important role in implant planning, complex endodontic cases, orthodontic assessment, and oral surgery.
Whether for routine examinations or advanced surgical planning, the equipment improves diagnostic confidence while streamlining clinical workflow through intuitive software, rapid image acquisition, automatic patient positioning, DICOM compatibility, and efficient data management.
As a professional Chinese dental imaging equipment manufacturer with extensive international export experience, we provide OEM and ODM services, CE and ISO-compliant manufacturing, professional installation guidance, technical training, and long-term after-sales support for distributors, hospitals, and dental clinics worldwide. Our goal is to deliver reliable, cost-effective dental imaging solutions that help customers improve clinical efficiency and patient care.
📊 Comprehensive Technical Specifications:
| Technical Parameter Component | Standard System Configuration Attribute |
| System Device Classification | 3-in-1 Dental CBCT + Panoramic + Cephalometric Station |

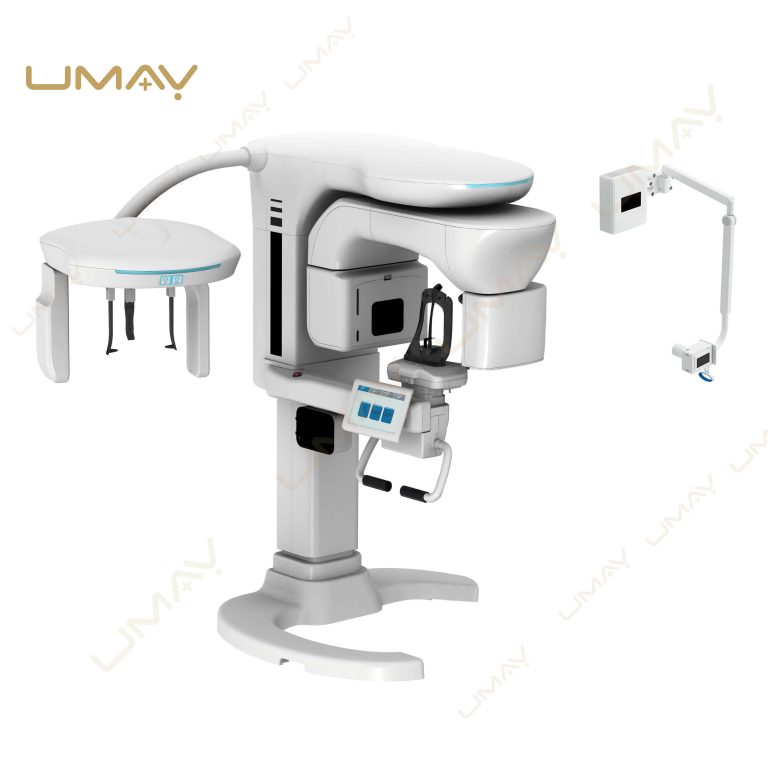

| Accompanying Modalities | Wall-Mounted High-Frequency Intraoral X-Ray Unit |
| Sensor Technology | Amorphous Silicon Flat Panel Detector (CsI FPD Technology) |
| User Navigation Interface | Column-Integrated Digital Touchscreen Panel Controller |
| Patient Alignment Architecture | Integrated Motorized Alignment Chair with Fixed Column Stabilizers |
| Data Output Protocol | Open System Architecture Native DICOM 3.0 Compliance |
FAQ
Q1. What imaging modes does this system support?
It supports digital panoramic imaging, high-resolution 3D Cone Beam CT (CBCT), and optional cephalometric imaging for comprehensive dental diagnosis.
Q2. Is this machine suitable for dental implant planning?
Yes. The CBCT function provides accurate 3D visualization of bone volume, anatomical structures, and nerve locations, making it ideal for implant planning and guided surgery.
Q3. Which dental specialties can use this equipment?
It is suitable for implantology, orthodontics, endodontics, oral surgery, periodontics, prosthodontics, pediatric dentistry, and general dentistry.
Q4. Does the system support DICOM?
Yes. The imaging software supports DICOM export and can be integrated with PACS and other digital dental management systems.
Q5. Is OEM or private labeling available?
Yes. We provide OEM, ODM, logo customization, software language customization, and distributor cooperation programs.
Q6. What certifications are available?
The system can be supplied with CE certification, ISO 13485 manufacturing standards, and other export documentation according to your market requirements.
Q7. What after-sales support do you provide?
We offer remote installation guidance, online technical training, software updates, spare parts supply, maintenance support, and long-term technical assistance.
Q8. Why choose a Chinese dental imaging manufacturer?
A professional Chinese manufacturer can provide factory-direct pricing, flexible OEM/ODM services, stable production capacity, strict quality control, faster delivery, and comprehensive global after-sales support, helping distributors and dental clinics achieve a better return on investment.
