Complete Floor-Mounted Fixed Digital Radiography System | Professional 32kW/50kW Dual-Column Medical DR Suite | Flat Panel Detector & Workstation Package | CE MDR & ISO 13485 Certified Factory Turnkey Solution
Quick Info.
- SKU NO.: UMDRXY001
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton or Wooden Cases
- Origin: China
- Material: Aluminum and magnesium alloys
- After-Sale Service: Online Technical Support
- Production Capacity: 500 Sets/Year

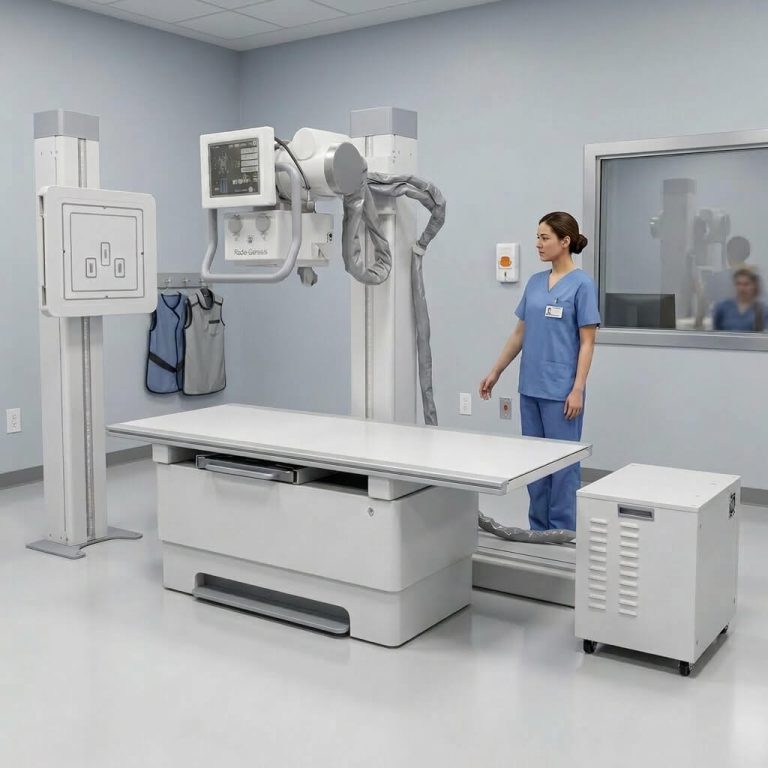

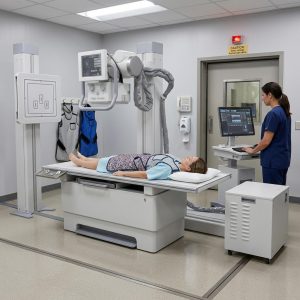

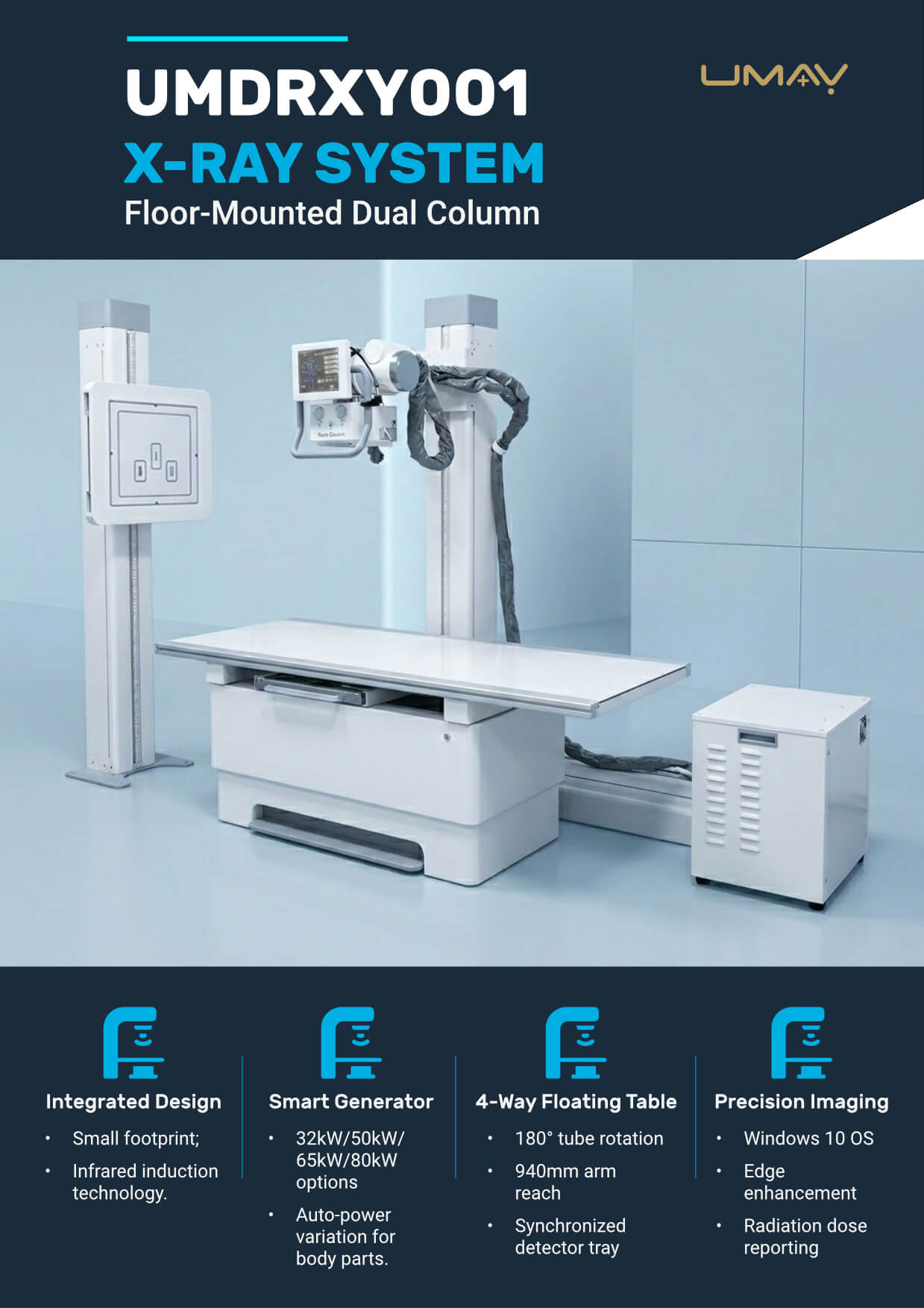

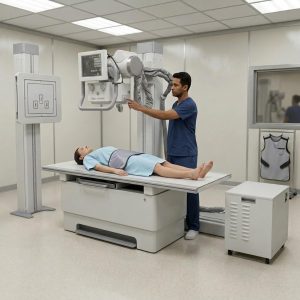

Equip your diagnostic imaging department with a fully integrated, high-throughput fixed digital radiography (DR) workstation. As a comprehensive turnkey package prominently featured in, this floor-mounted dual-column system combines a robust clinical patient table, independent vertical chest Bucky stand, heavy-duty high-voltage generator cabinet, and premium flat panel detector technology into a seamless, DICOM-native imaging suite.
The Specific Parameters
-
Fully Bundled Turnkey Imaging Package: Eliminate integration headaches. Our comprehensive system arrives as a complete clinical suite—incorporating the dual-column floor mount, floating patient table, vertical stand, standalone high-voltage generator box, premium flat panel detector (FPD), and a dedicated acquisition workstation PC.
-

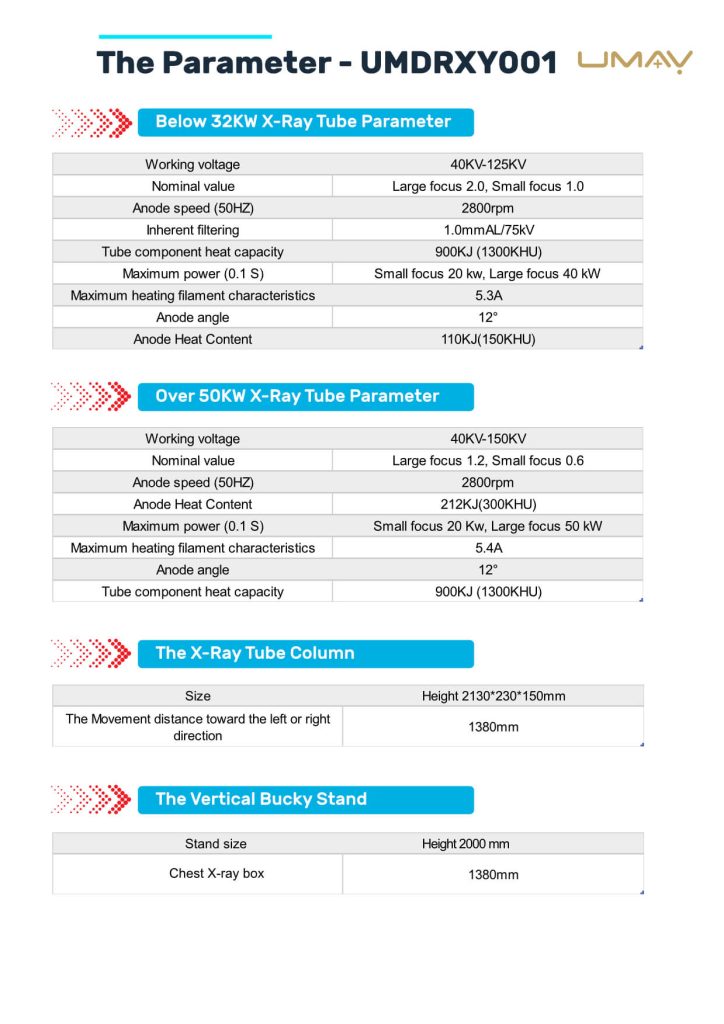

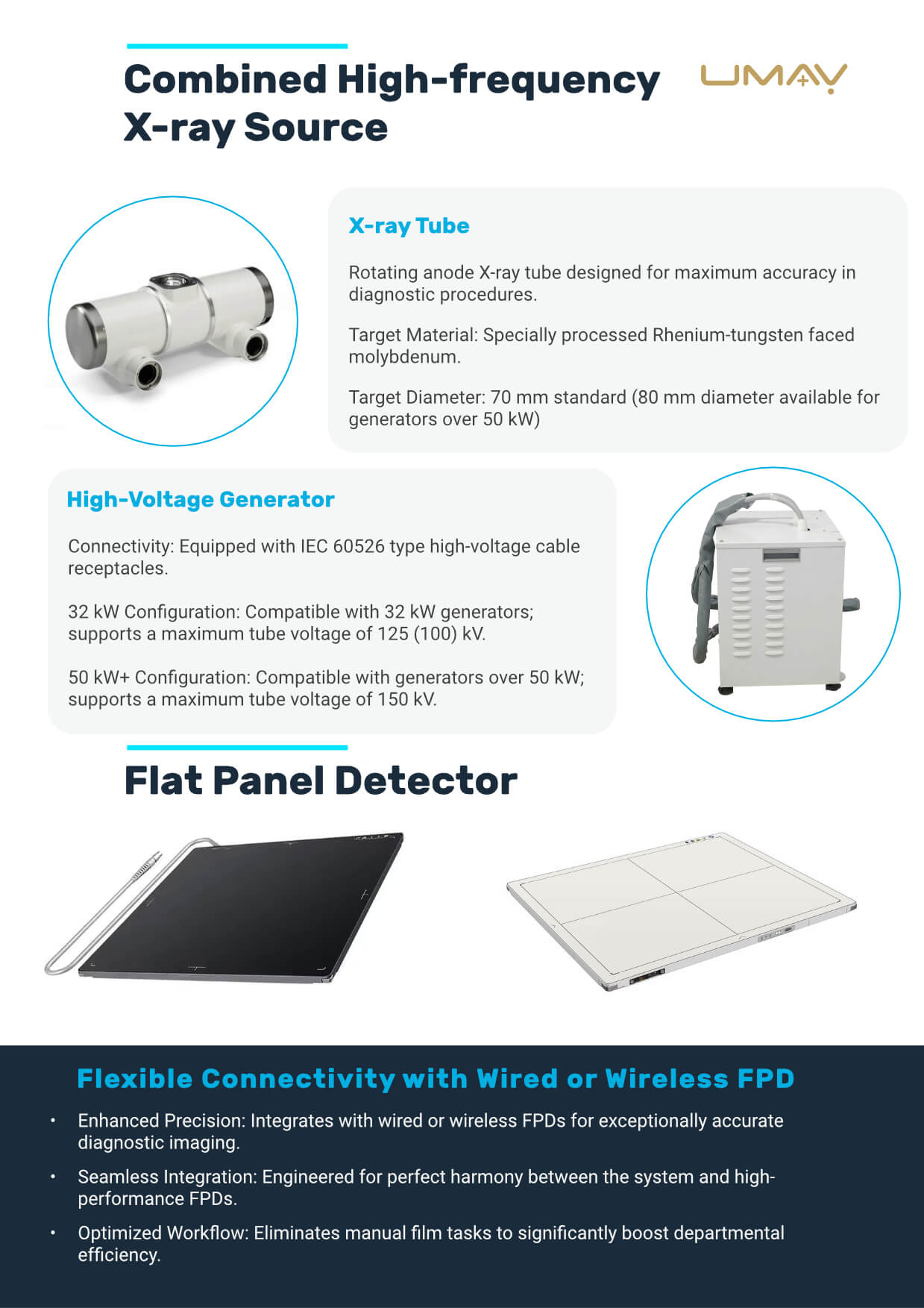

Transparent Tier-1 Component Architecture: Source with absolute technical confidence. We utilize a highly reliable, transparent supply chain featuring premium high-frequency rotating anode tubes (available up to 300kHU/400kHU) and direct-deposition Cesium Iodide (CsI) flat panel detectors to guarantee exceptional contrast and crisp, low-dose diagnostic images.
-
Heavy-Duty 32kW/50kW Generator with Weak-Grid Options: Built to thrive in demanding environments. The standalone high-voltage power cabinet delivers the intense penetration density required for dense pelvic, full spine, and bariatric exposures. For regions with unstable local infrastructure, we offer an optional Capacitor Energy Storage Version that runs efficiently on a standard single-phase 220V supply.
-

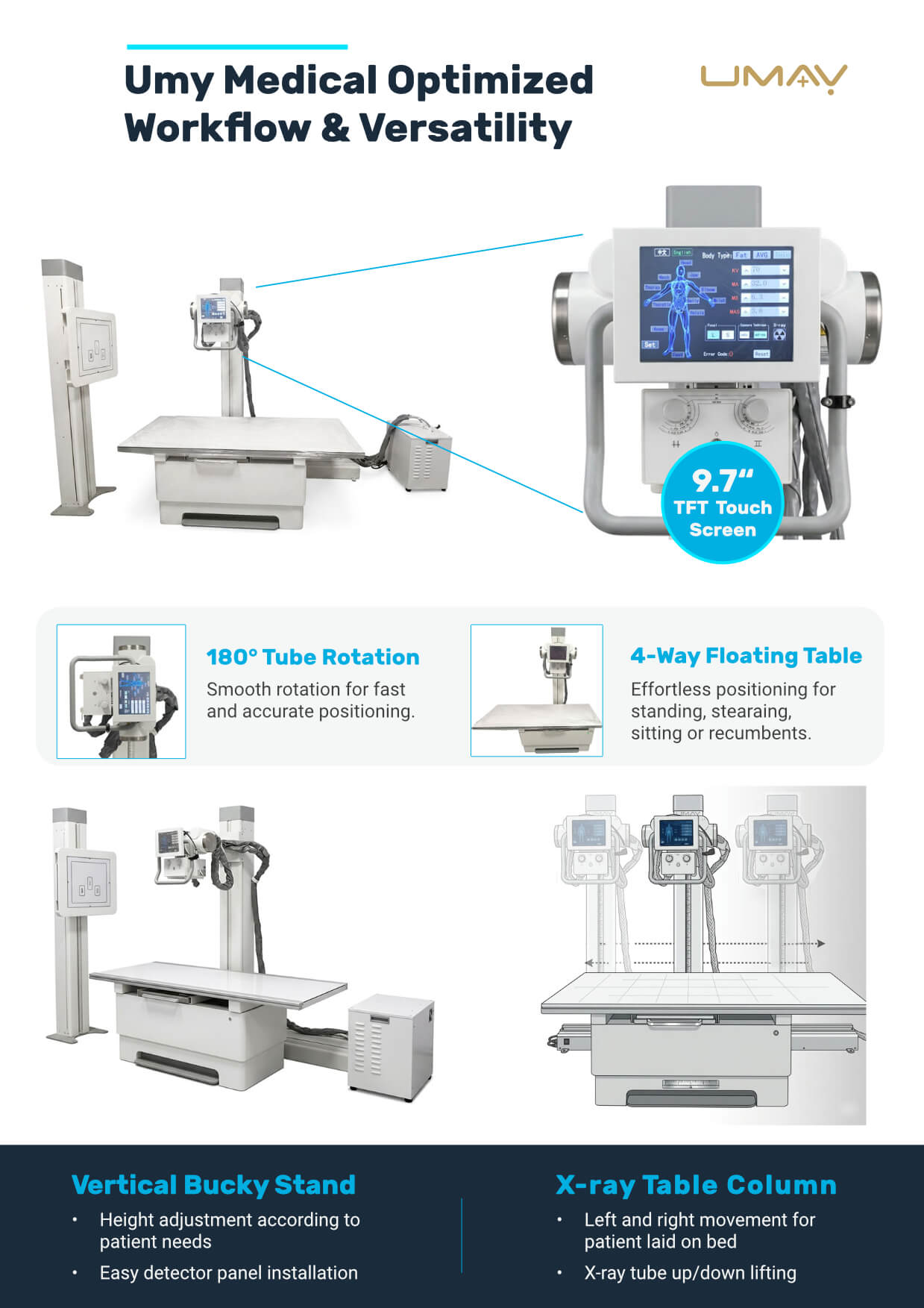

Precision Mechanical Realignment & Fluid Positioning: Streamline technologist workflows. The floor-mounted tube stand and vertical chest Bucky move fluidly along precision-engineered tracks, incorporating robust counterbalanced mechanical locks and optimized alignment links to drastically reduce patient positioning times and avoid repetitive exposure adjustments.
-

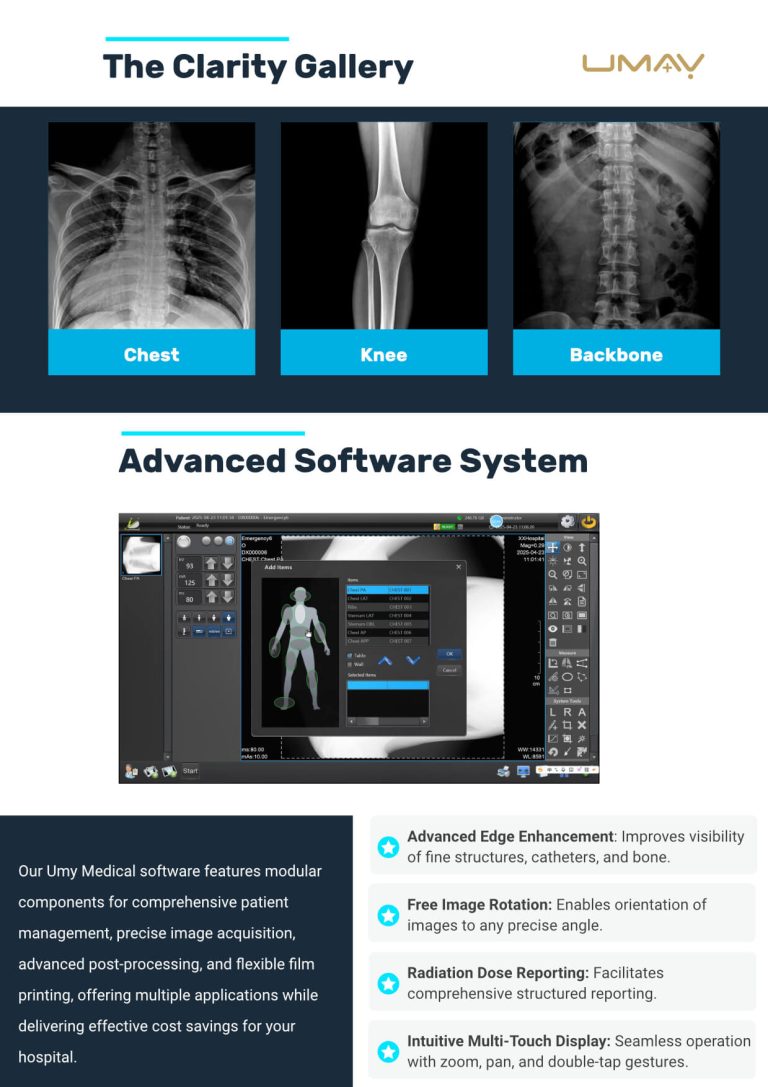

Advanced DICOM 3.0 Workstation with Smart APR: Driven by our original, fully compliant imaging software running on a medical-grade PC console. The software features an extensive Anatomical Programmed Radiography (APR) library that automatically optimizes exposure metrics based on the target organ, enabling seamless data syncing with hospital PACS/RIS networks.
-
Export-Grade Shock-Proof Packaging & Logistics Readiness: Built for global distribution. The entire system is carefully crated into heavy-duty, export-grade shock-proof wooden packing blocks. We provide comprehensive room layout blueprints, electrical schematic installation guides, and complete ISO 13485 / CE technical dossiers to ensure smooth local Ministry of Health customs clearance.

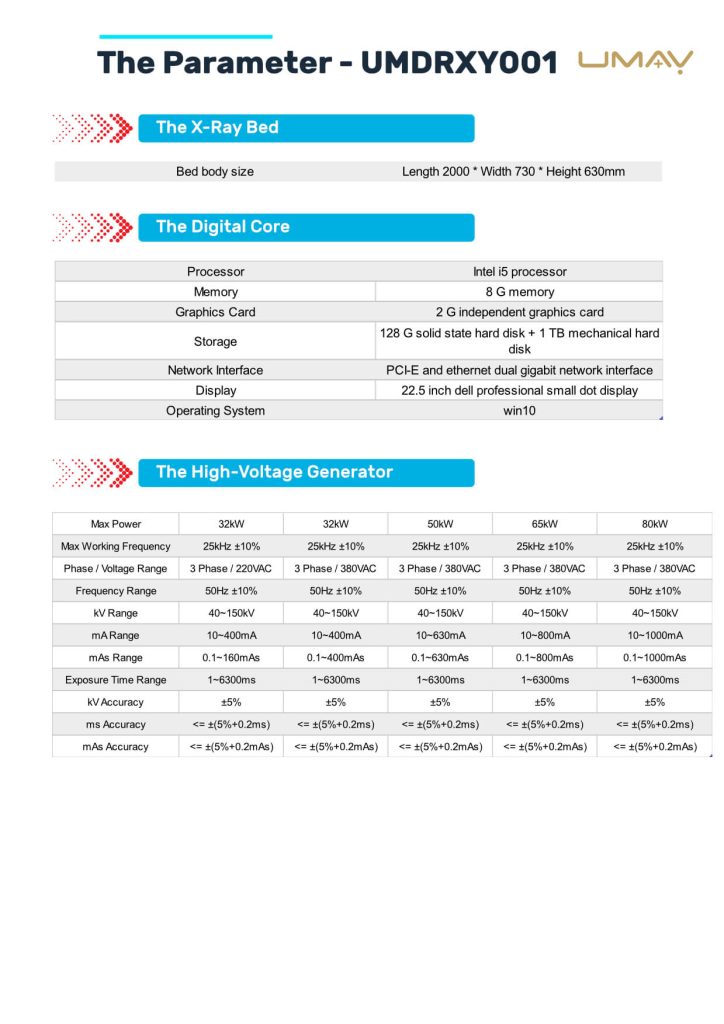

💡 Core Specifications At a Glance (Customizable):
-
System Architecture: Floor-Mounted Dual-Column Fixed DR Suite (with Independent Vertical Chest Stand)
-
Generator Configuration: 32kW / 50kW High-Frequency Standalone Cabinet (Stored-Energy Capacitor Option Available)
-
Detector Matrix: Premium High-Resolution Cesium Iodide (CsI) Flat Panel Detector (Wired/Wireless Shared Configuration)
-
Patient Table: Heavy-Duty Low-Attenuation Floating Radiographic Table
-
Network Synchronization: Native DICOM 3.0 Protocol Compliance (PACS Store, Print, Worklist, RIS)
❓ Crucial B2B Procurement Q&A
Q1: What is the specific brand and origin breakdown for the “Big Three” core components (Tube, Generator, FPD)?

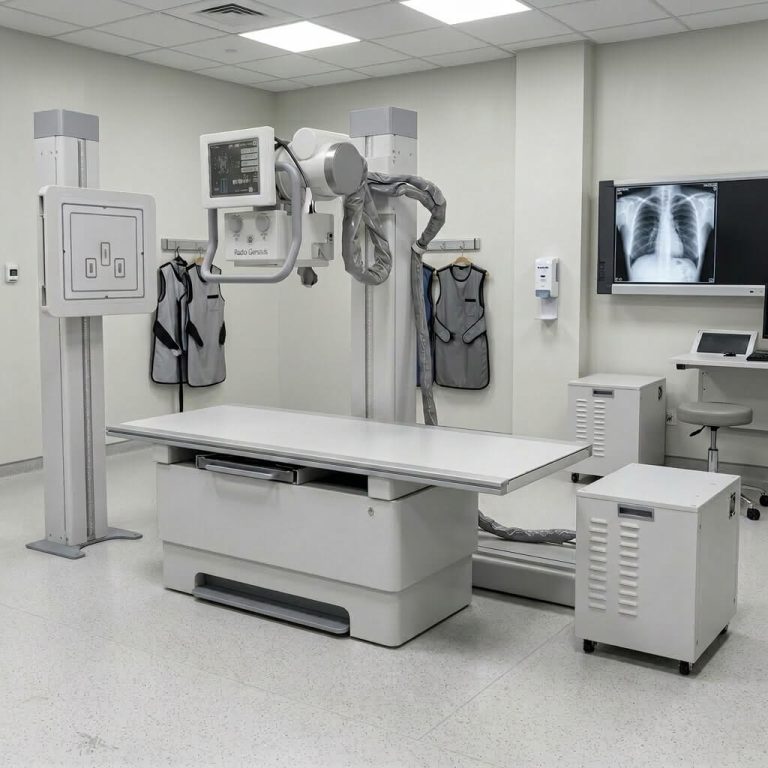

A: We prioritize complete supply chain transparency to support your hospital tender requirements. While the structural columns, patient table, and vertical stand shown in are manufactured in our audited ISO 13485 facility, we partner with world-class component leaders: our X-ray tubes utilize premium rotating anodes (such as Canon/Toshiba or Varex), our high-voltage generators feature advanced high-frequency arrays, and our flat panel detectors utilize top-tier CsI technology (such as iRay or Careray). Exact component datasheets are customized and provided upon quotation.
Q2: Our target hospital site suffers from unstable power grids. Can this 32kW/50kW system operate without a dedicated three-phase power line?
A: Yes, absolutely. For infrastructure settings where three-phase 380V power is unavailable or highly unstable, we can configure the standalone generator cabinet seen in with a specialized Capacitor Energy Storage Module. This allows the heavy-duty generator to accumulate energy from a standard single-phase 220V wall outlet and release a powerful, stable high-voltage pulse during exposure, protecting your images from local voltage drops.

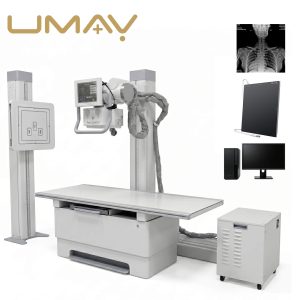

Q3: Does the system bundle include the flat panel detector and acquisition workstation software seen in the picture?
A: Yes, this is a 100% complete turnkey package. As illustrated in the right-hand panel of the package explicitly includes a high-definition flat panel detector, the physical computer tower and monitor, and our native acquisition software pre-installed and calibrated. The software arrives fully unlocked with advanced algorithms for noise reduction, edge enhancement, and standard DICOM 3.0 networking protocols ready to plug into the hospital’s PACS network.
Q4: What are the shipping dimensions, and what level of installation support do you provide for international buyers?
A: Because this is a fixed clinical system with heavy counterweights, the entire configuration is packaged into 3 to 4 reinforced, export-grade wooden crates to prevent maritime moisture and transit shock. We provide a full breakdown of the gross weights and total volume (CBM) upon order validation. For installation, we provide comprehensive room shielding blueprints, structural anchoring guide videos, and live, remote video support connecting your local biomedical engineers directly with our senior factory technicians.
