Advanced 32kW Mobile Digital Radiography System | Motorized Power-Assist ICU Bedside DR X-Ray Machine | Counterbalanced Articulated Arm | CE MDR & ISO 13485 Certified Factory
Quick Info.
- SKU NO.: UMY-XM-073
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton or Wooden Cases
- Origin: China
- Material: Aluminum & Magnesium Alloys and Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 2000 Sets/Year
This 25 kW mobile digital X‑ray machine offers a robust yet flexible imaging solution ideal for hospital and bedside diagnostics. With high-powered output, it delivers crisp visualization of thoracic, abdominal, and skeletal structures—helping detect conditions like pneumonia, bone fractures, and joint degeneration. Its wheeled design allows rapid deployment in emergency rooms or patient wards, minimizing patient movement and speeding up diagnosis. Fairly priced and optimized for clinical efficiency, it meets the demands of modern medical facilities.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Flat Panel Detector | |
| Detector Type | TFT full-plate amorphous silicon flat panel detector |
| Panel Size | 430 mm × 430 mm |
| Effective Imaging Size | 17 × 17 inches |
| Pixel Matrix | 3072 × 3072 |
| Pixel Pitch | 146 μm |
| Spatial Resolution | 3.4 LP/mm |
| Pixel Gray Scale | 16 Bit |
| Image Acquisition & Transmission Time | 3 seconds |
| High-Frequency High Voltage Generator | |
| Maximum Output Power | 32 kW |
| Input Power | 220V AC, Single Phase |
| Output Voltage | 40 – 150 kV |
| Tube Current Range | 10 – 320 mA |
| Exposure Time Range | 1 ms – 10000 ms |
| mAs Range | 0.1 mAs – 250 mAs |
| Support Functions | AEC, APR automatic exposure |
| Features | Fault self-diagnosis and display |
| X-ray Tube Component | |
| Focal Spot Design | 0.6 mm / 1.2 mm |
| Nominal Electrical Power | 21 kW / 46 kW (50Hz) |
| Maximum kV | 150 kV |
| Anode Target Angle | 12° |
| Column | |
| Column Rotation Angle | ±90°, error ±2° |
| Vertical Travel of Focal Spot | 1259 cm, error ±2 cm |
| Horizontal Rotation of Tube & Collimator | > ±90°, error ±2 cm |
| Grid and Collimator | |
| Grid Material | Aluminum-based grid |
| Grid Dimensions | 18 × 18 inches (48 × 48 cm) |
| Grid Ratio | 10:1 |
| Lines per Inch | 215C |
| Grid Focal Distance | 1000 mm |
| Features | Light field included, multi-leaf DR dedicated collimator |
-
Fail-Safe Dual-Power Battery Architecture: Power redundancy built for non-stop clinical workflows. The system utilizes an independent dual-power battery configuration: one high-capacity power pack dedicated to motorized driving and another dedicated exclusively to high-voltage exposure. Supports standard wall-plug charging with “shoot-while-charging” functionality.
-

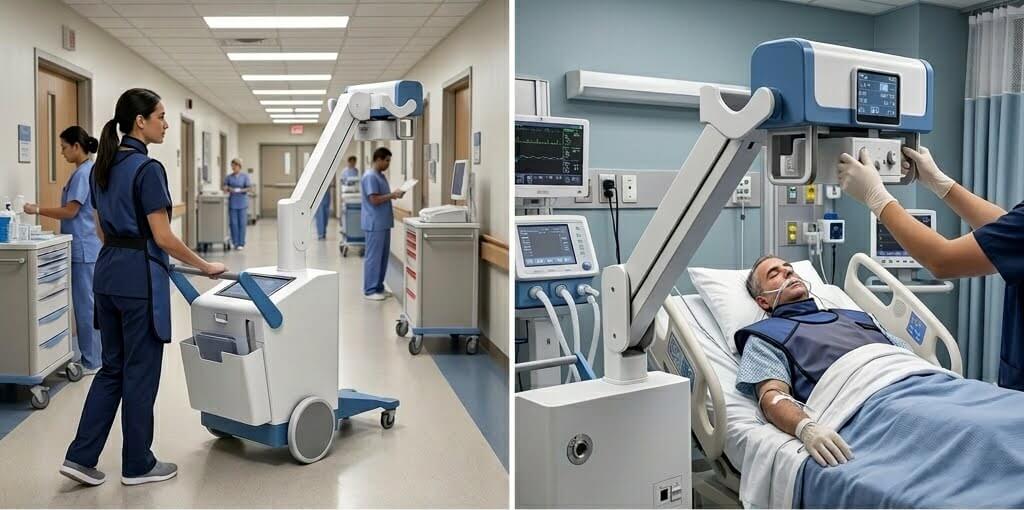

Zero-Gravity Counterbalanced Articulated Arm: Achieve perfect clinical positioning in seconds. The heavy-duty, multi-joint counterbalanced mechanical arm extends seamlessly and hovers steadily at any desired angle without drifting. It enables precise over-bed positioning for immobile or trauma patients while maintaining absolute safety.
-

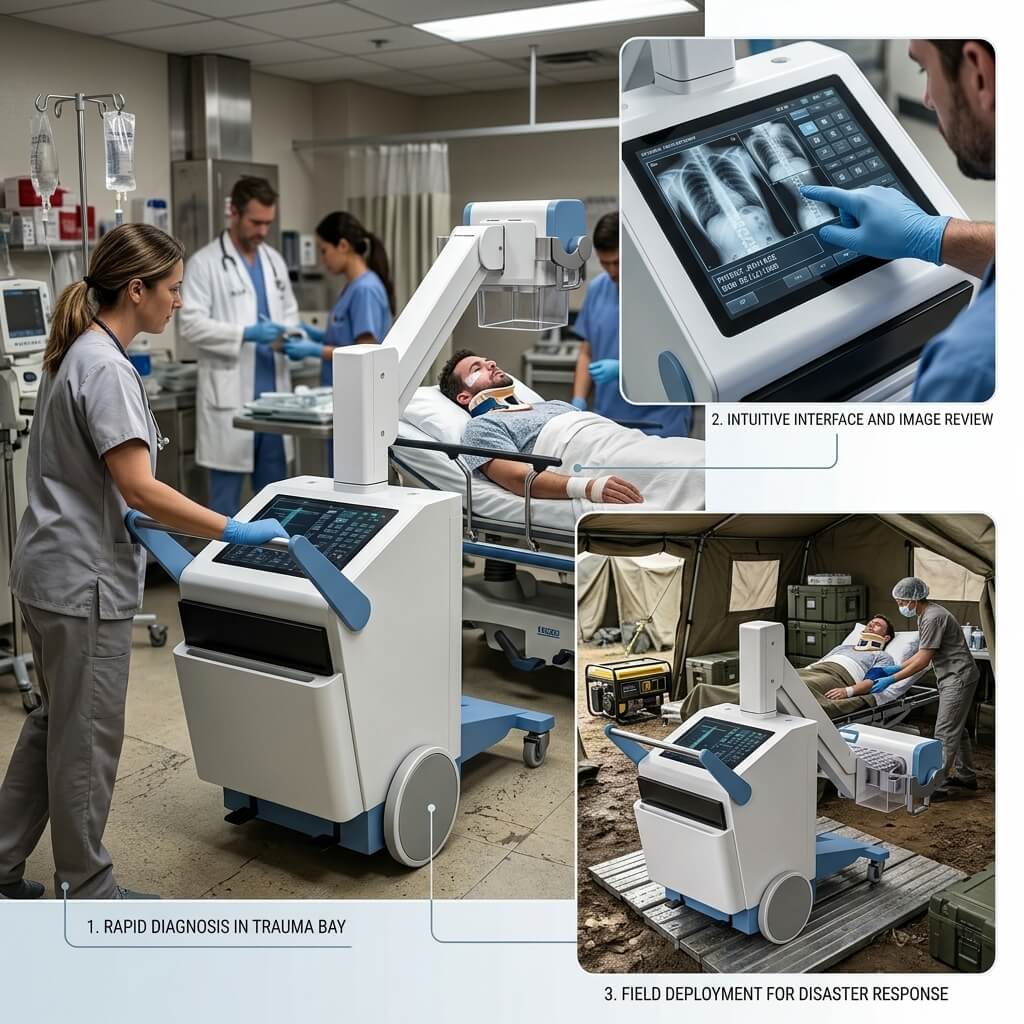

Integrated Large-Screen Workstation & Smart FPD Dock: Features a brilliant, medical-grade touchscreen acquisition console embedded directly into the sleek upper console. Below the workspace, a protective smart docking slot stores your wireless flat panel detector, complete with integrated wireless synchronization and automated background charging.
-
Effortless Motorized Power-Assist Navigation: Say goodbye to physical strain. The heavy-duty chassis features an intelligent motorized drive system with pressure-sensitive steering controls on the ergonomic push-handle. It allows nursing and radiology staff to maneuver the system through tight hospital corridors, elevators, and carpeted ward floors with absolute ease.
-
High-Output Generator for Critical Care Chest/Abdomen Imaging: Equipped with a premium 32kW (or optional 50kW) high-frequency DC generator and a high-thermal-capacity X-ray tube. This provides the massive penetration power required to deliver sharp, motion-artifact-free diagnostic images for full chest, pelvis, and bariatric patient examinations right at the bedside.
-
Built-in Safety Bumpers & Collision Avoidance: Patient and equipment safety is paramount. The front lower wheelbase (highlighted in premium blue accents) is armed with high-sensitivity anti-collision bumpers and automatic proximity sensors, ensuring the vehicle stops instantly if an obstacle or corridor wall is detected during transit.
-
International Tender Compliance & Premium OEM Support: Partner with a verified, top-tier Chinese medical imaging manufacturer. We safeguard your local distribution rights with strict IP protection, custom software localization, and private-label OEM branding. All manufacturing lines are strictly ISO 13485 audited, with comprehensive technical dossiers ready to support your local CE MDR or ministry of health registration.
