1.5T Superconducting MRI System | High-Field Magnetic Resonance Imaging Scanner with Wide Bore Gantry, Detachable Patient Table, Zero Helium Boil-Off, Phased Array Coils, & DICOM 3.0 PACS for Hospital Radiology & Neurology
Quick Info.
- SKU NO.: UMY-MRI-15
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton or Wooden Cases
- Origin: China
- Material: Metal
- After-Sale Service: Online Technical Support
- Production Capacity: 500 Sets/Year
Delivering uncompromised signal resolution and rapid clinical throughput, this 1.5T superconducting MRI system combines a wide-bore gantry design with advanced zero-boil-off helium technology. Featuring a detachable docking patient table on heavy-duty casters, multi-channel optical RF receiving architecture, and intuitive gantry touch controls, this high-field magnetic resonance imaging scanner excels in neurological, MSK, abdominal, and vascular diagnostic protocols while streamlining hospital radiology workflows.
The Specific Parameters
Magnet subsystem
Using advanced actively shielded superconducting magnets, the 1.5TMRI has the
following features:
1. The magnetic field uniformity is excellent. Even when the FOV reaches 50cm, the
image edge is still clear without deformation, the signal intensity attenuation is
small, and the image brightness uniformity is not significantly different from the
image center.
2, strong magnetic field stability;
3, with liquid helium zero boil off technology;
4. The magnet aperture is 600mm with high openness, which is suitable for most
obese patients and difficult-to-scan parts.
Workflow Innovation & Technical Superiority for Medical Procurement Networks:
-

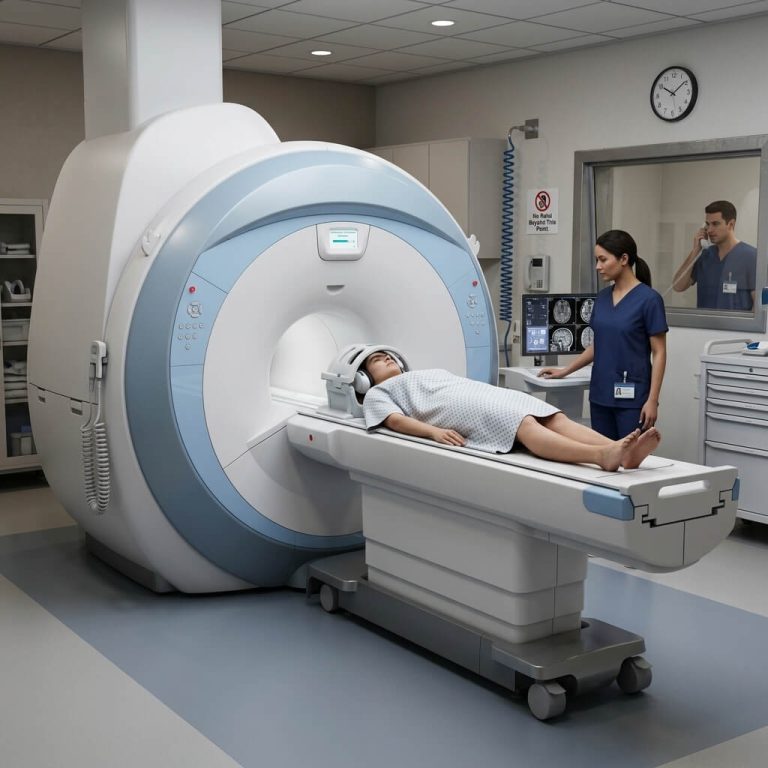

Streamlined Multi-Room Patient Transport: The mobile patient table unlatches smoothly from the gantry base, allowing nurses and technologists to transfer patients directly from preparation rooms or wards into the magnet suite without extra lifting.
-
Comprehensive Clinical Imaging Suite: Supports advanced acquisition protocols including Diffusion-Weighted Imaging (DWI), Magnetic Resonance Angiography (MRA), FLAIR, Spectral Fat Suppression, and dynamic cardiac tracking.
-
Optimized Total Cost of Ownership (TCO): Built-in thermal stabilization, energy-saving standby modes, and long-life superconducting wire assemblies provide dependable 24/7 hospital duty cycles with reduced utility consumption.
Comprehensive Technical Specifications
| Technical Parameter Component | Standard System Configuration Attribute |
| System Device Classification | 1.5T Superconducting Magnetic Resonance Imaging System |
| Magnet Type & Field Strength | 1.5 Tesla High-Homogeneity Superconducting Magnet |
| Helium System Technology | Closed-Loop Cold Head (Zero Liquid Helium Boil-Off Technology) |

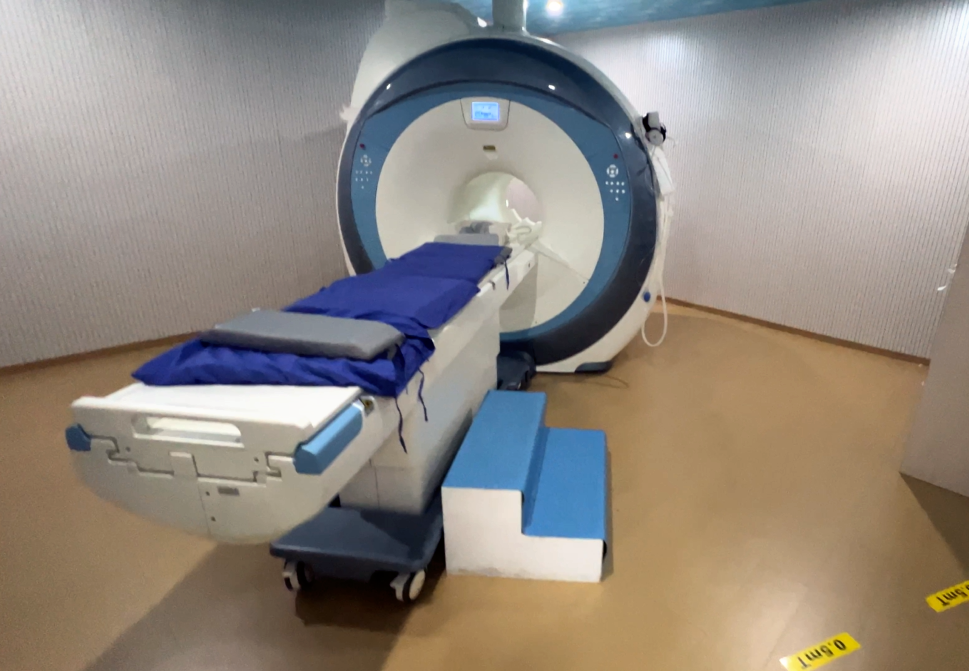

| Patient Table System | Motorized Detachable Docking Mobile Table on Locking Casters |
| Gantry Bore Diameter | ≥ 60 – 70 cm Ergonomic Clearance Aperture |
| RF & Gradient Performance | Multi-Channel Optical Digital RF (16/32 Channels); High-Slew Gradient |
Crucial B2B Component Sourcing Q&A
Q1: How does the zero boil-off helium system benefit high-volume hospital operations?
A: Zero boil-off technology re-condenses evaporating helium gas back into liquid form inside a closed loop, eliminating the need for routine liquid helium refills under normal operating conditions and significantly lowering lifetime operational costs.
Q2: What are the main clinical advantages of a 1.5T superconducting MRI over low-field permanent magnet units?
A: A 1.5T field strength provides much higher signal-to-noise ratio (SNR) and spatial resolution, enabling faster scan speeds, thinner slice acquisition, and specialized diagnostic applications such as functional neuro-imaging, small-joint MSK cartilage evaluation, and detailed MR angiography.
Q3: How does the detachable table design improve safety and efficiency during emergency trauma scans?
A: The detachable table allows critical or mobility-impaired patients to be prepped, monitored, and positioned safely in an anteroom before rolling directly into the RF shield room, minimizing gantry idle time between consecutive patient appointments.
Q4: What OEM branding, site planning support, and export documentation do you provide to global distributors?
A: We offer full OEM solutions, including custom gantry side panel branding, multilingual acquisition software interfaces, complete RF cage/site engineering blueprints, technician installation training, and full CE / ISO 13485 export documentation for regulatory clearance.
