Wireless Handheld Ultrasound Probe Portable POCUS Ultrasound Scanner System for Medical Imaging Cardiac Abdominal OB GYN and Clinical Diagnosis
Quick Info.
- SKU NO.: UMUS108
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton
- Origin: China
- Material: Metal, Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 7000 Sets/Year

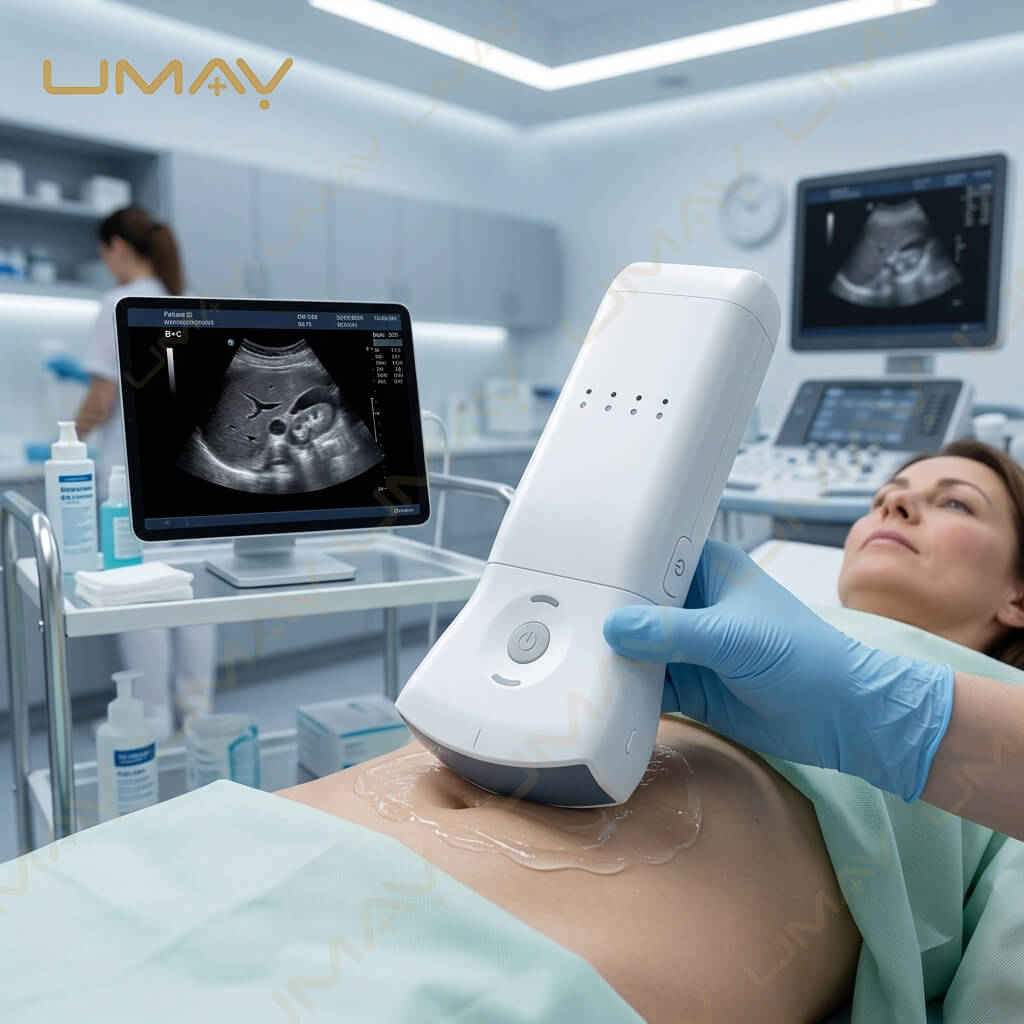

Our wireless handheld ultrasound probe is an advanced portable ultrasound imaging solution designed for hospitals, clinics, emergency departments and mobile healthcare applications. Combining compact design, high-quality ultrasound imaging and wireless connectivity, this portable ultrasound scanner enables doctors to perform rapid point-of-care diagnosis anytime and anywhere.
Designed for professional medical users, this portable ultrasound scanner system is an ideal choice for hospitals, private clinics, ambulance services, rural healthcare centers and telemedicine solutions. We provide reliable medical ultrasound equipment with OEM and ODM services for global distributors and healthcare providers.
The Specific Parameters
Core Systems Engineering Advantages for Medical Sourcing Networks:
-
High-Element Transducer Precision: Capture clear anatomical structures. Advanced acoustic beamforming and high-density piezo elements render sharp diagnostic tissue contrast from superficial vascular structures down to deep abdominal organs.
-
Fast Wireless Connection with Minimal Latency: Perform real-time ultrasound-guided needle injections and fluid aspirations without image lag, backed by low-power high-speed Wi-Fi chips.
-

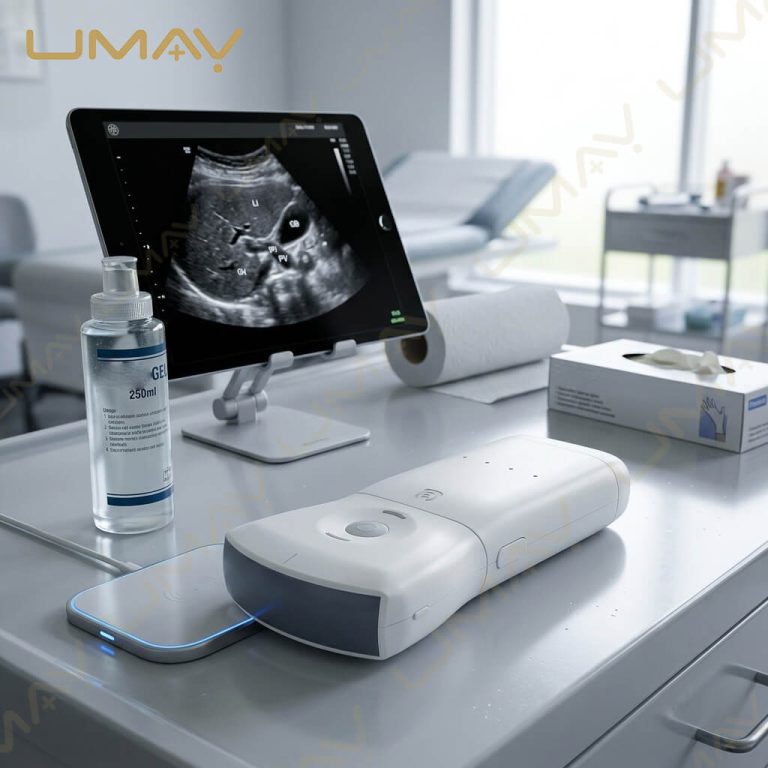

Long-Lasting Battery & Convenient Charging: Equipped with a high-capacity internal lithium battery providing up to 3 hours of continuous active scanning, supported by convenient USB or wireless charging docks.

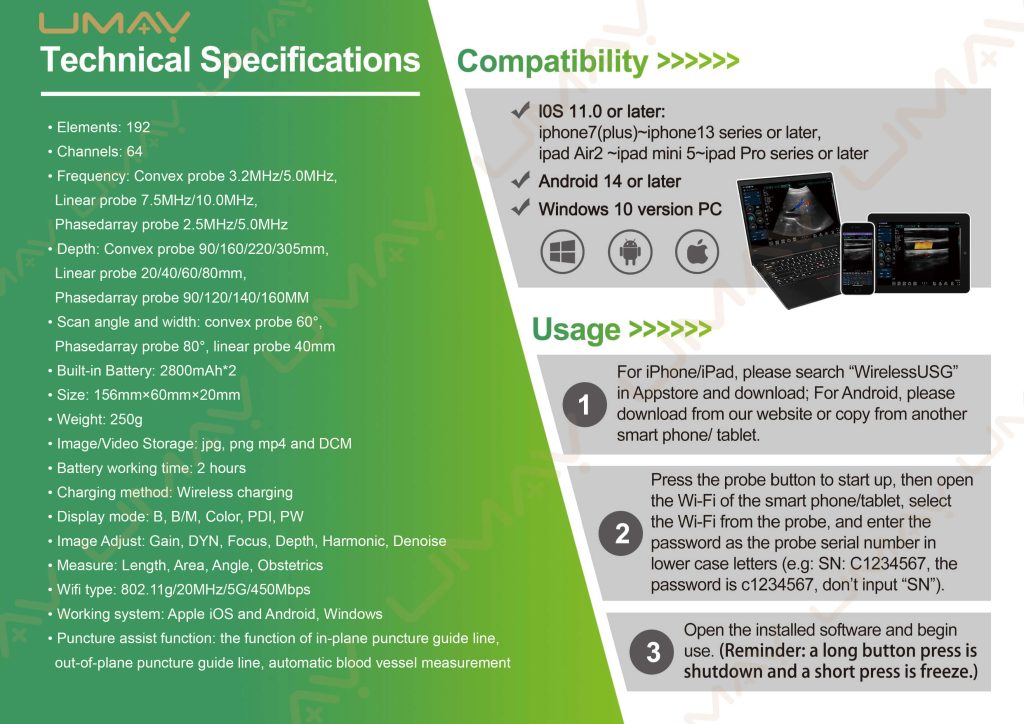

📊 Comprehensive Technical Specifications:
| Technical Parameter Component | Standard System Configuration Attribute |
| System Device Classification | Wireless Handheld Pocket Ultrasound Transducer Probe |
| Transducer Array Types | Electronic Array (Convex, Linear, or Dual-Head Array Options) |

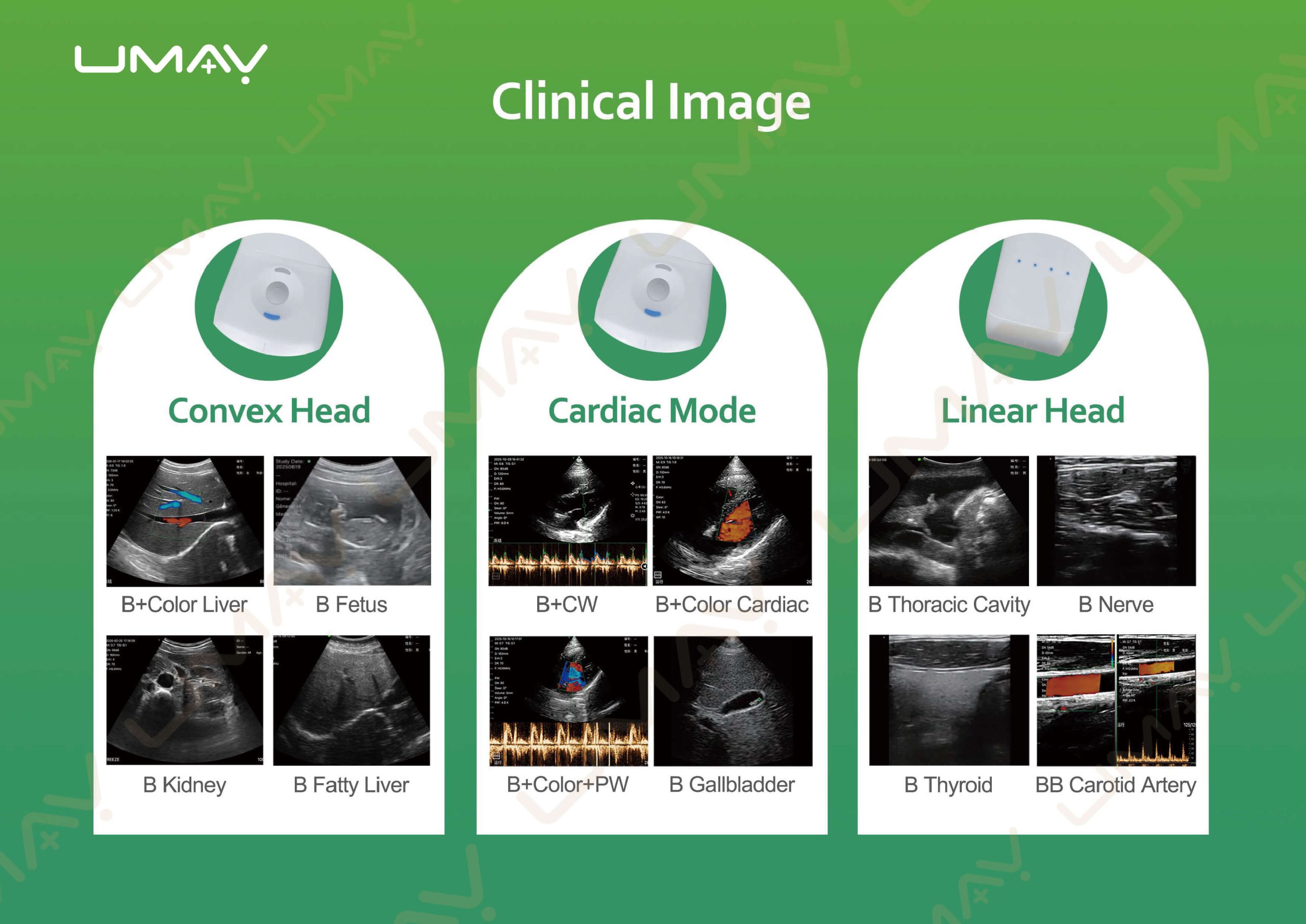

| Supported Imaging Modes | B, B/M, Color Doppler, Power Doppler (PDI), Pulsed Wave (PW) |
| Wireless Connectivity & Range | Built-in Wi-Fi 802.11n/ac (2.4GHz / 5GHz), Up to 5 meters |
| Compatible Mobile Operating Systems | Apple iOS, Android, and Microsoft Windows Platforms |
| Waterproof Rating & Battery Life | IPX7 Waterproof Enclosure; 2.5 – 3 Hours Continuous Operation |
❓ Crucial B2B Component Sourcing Q&A
Q1: How does a wireless handheld ultrasound probe connect to a mobile phone or tablet?
A: The probe generates its own secure high-speed Wi-Fi signal. Once switched on, clinicians connect their smartphone or tablet to the probe’s Wi-Fi network and open the dedicated scanning application to start real-time imaging without requiring external internet or cellular data.
Q2: Is there an annual software subscription fee or image storage charge for using the app?
A: No. Our handheld wireless ultrasound scanners come with a fully unlocked, subscription-free mobile application. Clinicians enjoy free lifetime app updates, on-device image storage, and direct DICOM 3.0 PACS export without recurring license fees.
Q3: Can this wireless ultrasound probe be used for needle guidance and interventional procedures?
A: Yes. The probe features low-latency image transmission and supports in-plane and out-of-plane puncture needle enhancement software overlays, making it ideal for ultrasound-guided nerve blocks, central line placements, and joint injections.
Q4: What OEM white-label branding and regulatory certification packages are provided for global importers?
A: We offer complete OEM/ODM solutions, including custom housing colors, private-label logo printing, customized app software interfaces, and multi-language packaging. We supply comprehensive CE (MDR), FDA 510(k) clearance, and ISO 13485 quality system documentation for seamless customs import clearance globally.
