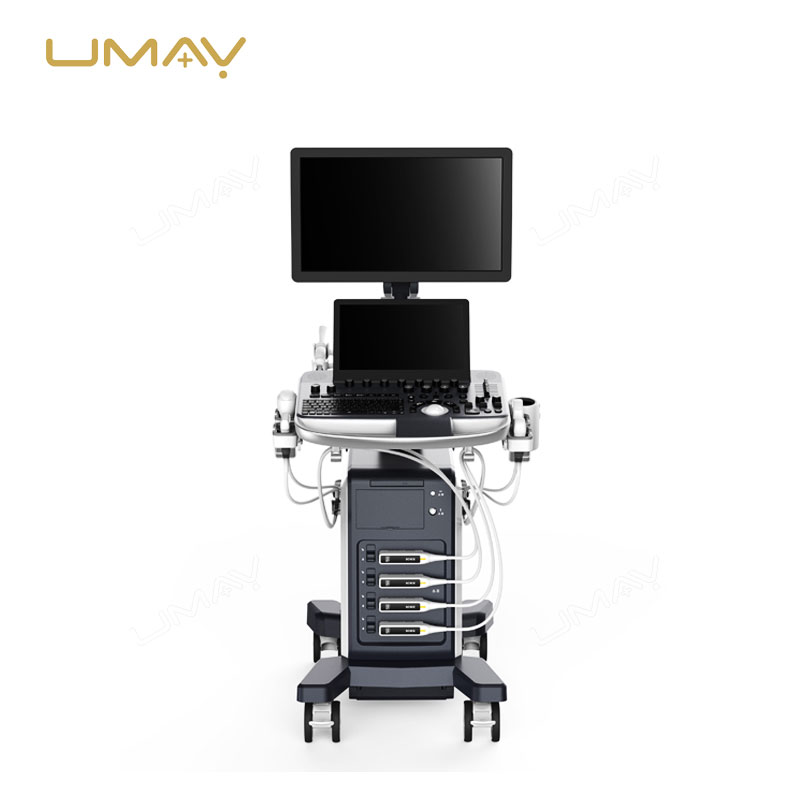

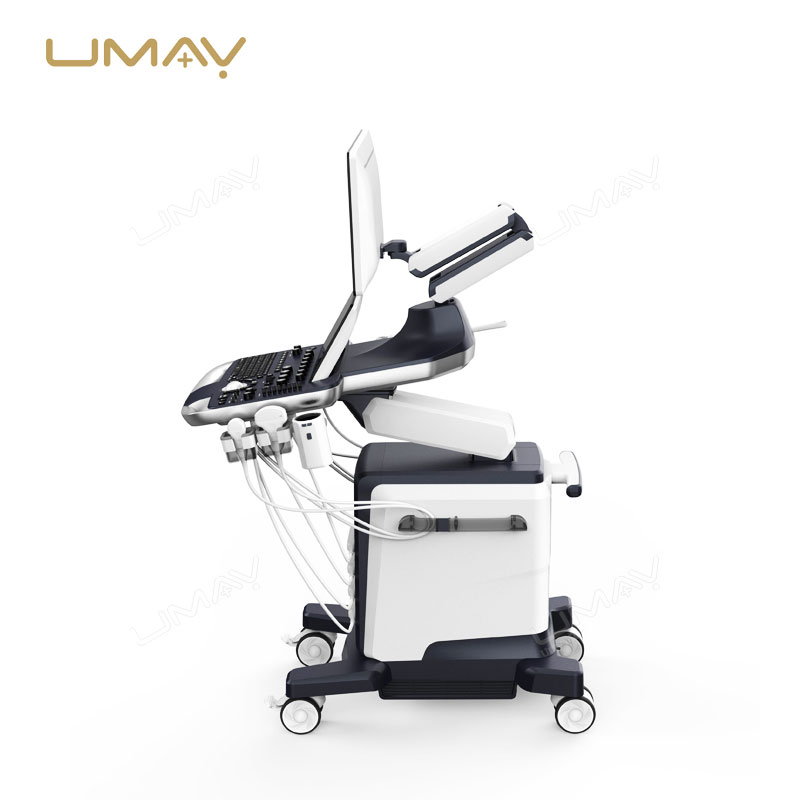

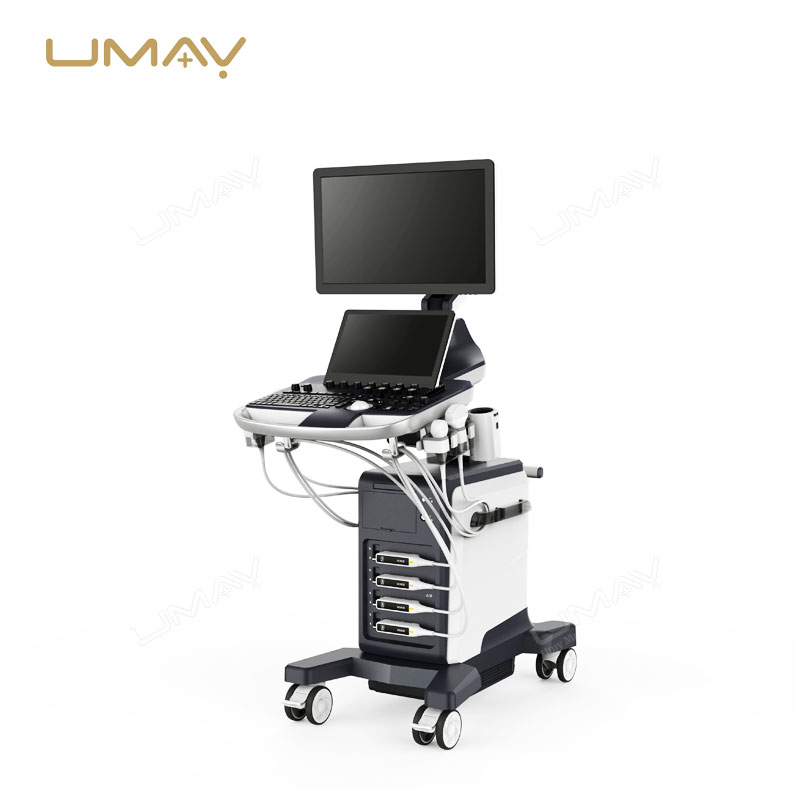

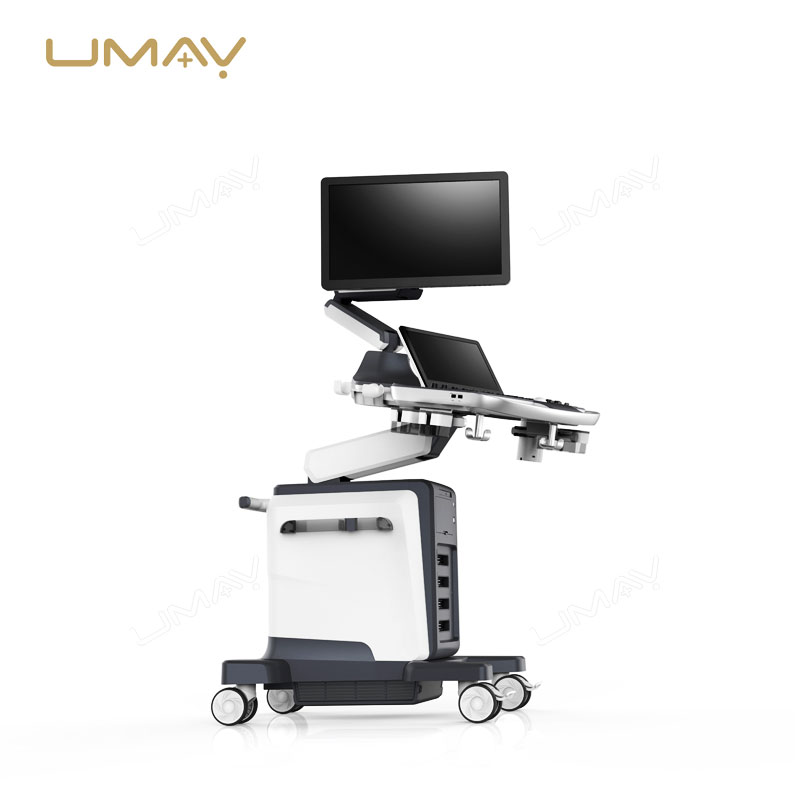

Trolley Color Doppler Ultrasound Machine with 21.5-Inch Medical LCD Monitor and Articulating Arm
SKU: UMY-US-078
Brand: Umy
MOQ: 1
Origin: China
Quick Info.
- SKU NO.: UMY-US-078
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton
- Origin: China
- Material: Metal, Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 3000 Sets/Year
This trolley-mounted color Doppler ultrasound machine is equipped with a 21.5-inch medical-grade LCD monitor featuring an articulating arm for flexible positioning. It provides high-resolution imaging for applications such as abdominal diagnostics, obstetrics, gynecology, and vascular studies. The articulating arm enhances usability, allowing clinicians to adjust the monitor for optimal viewing during procedures. With advanced Doppler capabilities, this machine ensures precise visualization of blood flow and tissue structures, making it ideal for hospitals and clinics seeking a versatile and efficient diagnostic solution.
The Specific Parameters
ITEMS | PARAMETERS |
---|---|
Technical Specifications | |
Display Size | 21.5 inch LED screen, 13.3 inch touch screen |
Display Modes | B, 2B, 4B, M, CM, PDI, DPDI, CW, PW, TDI, 3D/4D |
Image Mode | CFM, PW, PDI, DPDI, CW, HPRF, TDI, CMM, AMM, Wfov, E, 3D/4D |
Type | Color Doppler |
Instrument Classification | Class I |
Software Packages | Abdomen, Cardiac, Obstetrics, Gynecology, Urology, Orthopedics |
Image Quality Features | Elastic imaging, Panoramic imaging, Tissue Doppler Imaging (TDI), AMM, 3D/4D skin rendering |
Physical Specifications | |
Product Name | 4D Color Doppler Ultrasound MSLCU50 |
Display Features | 21.5 inch Medical Display (rotatable, stretchable, foldable) |
Second Screen | 13.3 inch high-sensitive touch screen (50° reversible) |
Probe Head | 4 probe heads |
Gross Weight | — |
Safety Standard | EN 149 -2001+A1-2009 |
Package Size | — |
Power | |
Power Supply Voltage | 100V~240VAC |
Input Power | 650VA |
Frequency | 50Hz / 60Hz |
Circuit Breaker | 250V~, 10A |
Power Supply | 110-240V |
Connectivity & Interface | Video, S-Video, USB2.0 (Double), VGA, RS-232, RJ45 |
Language Support | English, Chinese, Spanish, French, Russian |
Application Scene | |
Application | Hospital |
Use Cases | Cardiology, Radiology, Obstetrics & Gynecology |
Optional Features & Accessories | |
Probe Options | Convex, Linear, Micro Convex, Endocavity, Phased Array, 4D Volume |
3D/4D Imaging | Optional |
