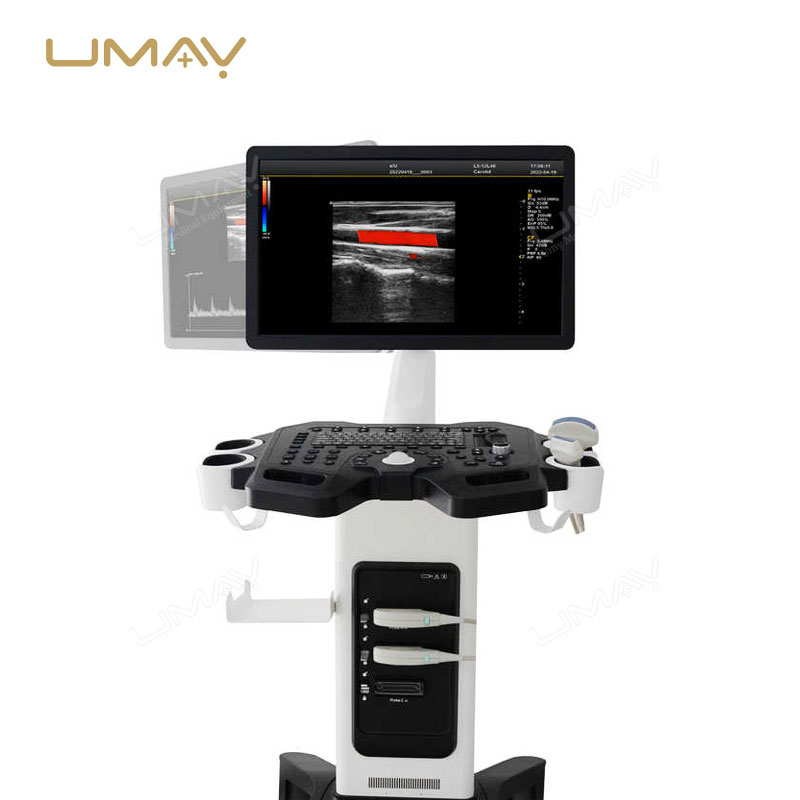

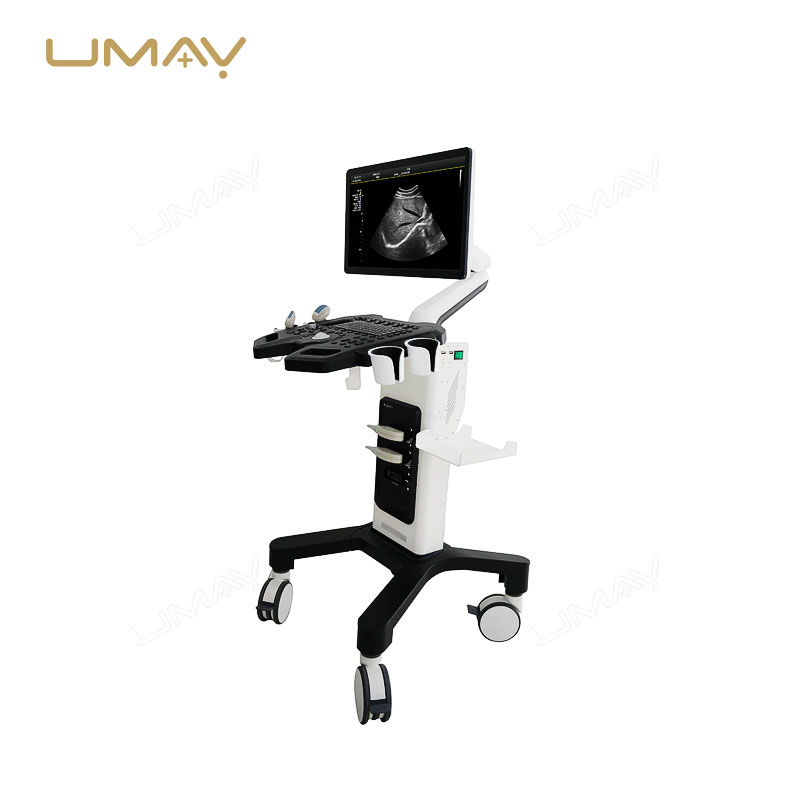

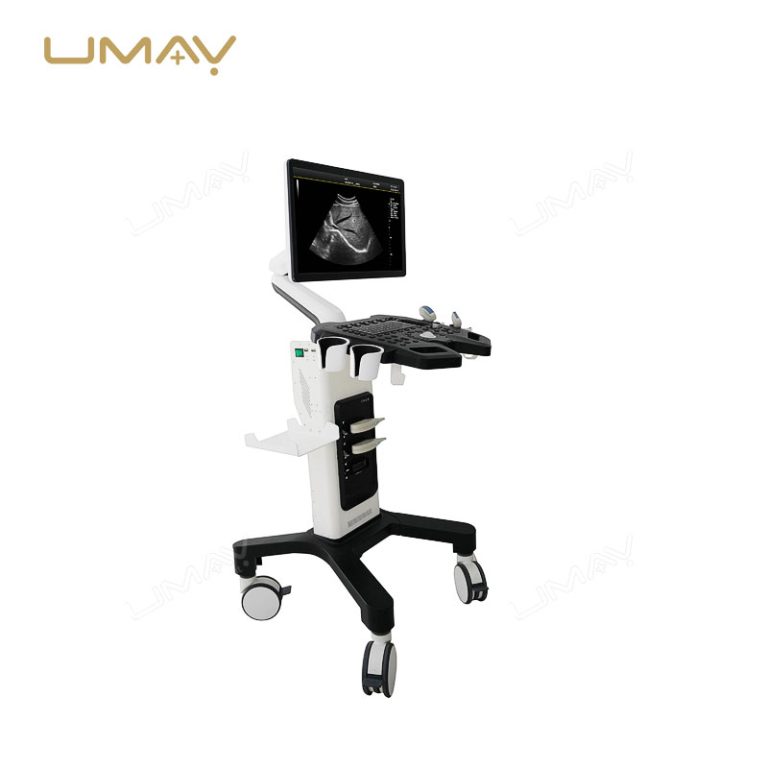

Trolley Color Doppler Ultrasound Machine with 21.5-Inch Medical-Grade High-Definition LCD Display
SKU: UMY-US-075
Brand: Umy
MOQ: 1
Origin: China
Quick Info.
- SKU NO.: UMY-US-075
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton
- Origin: China
- Material: Metal, Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 3000 Sets/Year
This trolley-mounted color Doppler ultrasound machine features a 21.5-inch high-definition medical-grade LCD display, delivering crystal-clear images for precise diagnostics. Ideal for a range of applications, including abdominal imaging, obstetrics, gynecology, angiology, and small parts evaluation, it supports versatile diagnostic workflows. The advanced Doppler technology ensures detailed visualization of blood flow and tissue structures, enhancing accuracy in clinical decision-making. With its ergonomic trolley design, this system is well-suited for hospitals and clinics seeking reliable and efficient imaging solutions.
The Specific Parameters
ITEMS | PARAMETERS |
---|---|
Display & Interface | |
Display | 19 inch LCD screen |
Display Modes | B, B/B, 4B, M, CFM, CMF/B, PDI, PW, THI |
Gray Level | 256 |
Display Depth | ≥280mm |
Interface | HDMI, VGA, USB, DICOM interface |
Input Voltage | Input voltage |
Technical Specifications | |
Scanning Mode | Electron convex array, high frequency linear array, cavity, micro convex, rectum |
Scanning Depth | 2–280mm |
Operating Frequency Range | 2.0–12.0MHz |
Dynamic Range | 80~280dB adjustable |
Imaging Modes | Full digital multi-beamforming, speckle noise suppression, tissue harmonic imaging, etc. |
Gain Adjustment | 8 segments TGC, B/M/D/C gain can be adjusted respectively, TGC curve can be displayed and automatically hidden |
Pseudo-Color Processing | 16 pseudo-color coding options |
Application Scene | |
Application Mode | Abdomen, gynecology, obstetrics, superficial organs, pediatrics, urology, heart, blood vessels, and other modes |
Sound Output | Real-time display of mechanical index and thermal index, adjustable sound power and real-time display |
Transducer | |
Probe Interface | 2 automatic probe identification ports |
Physical Specifications | |
Appearance Size | 590mm × 885mm × 1205mm |
Weight | ≤18Kg |
