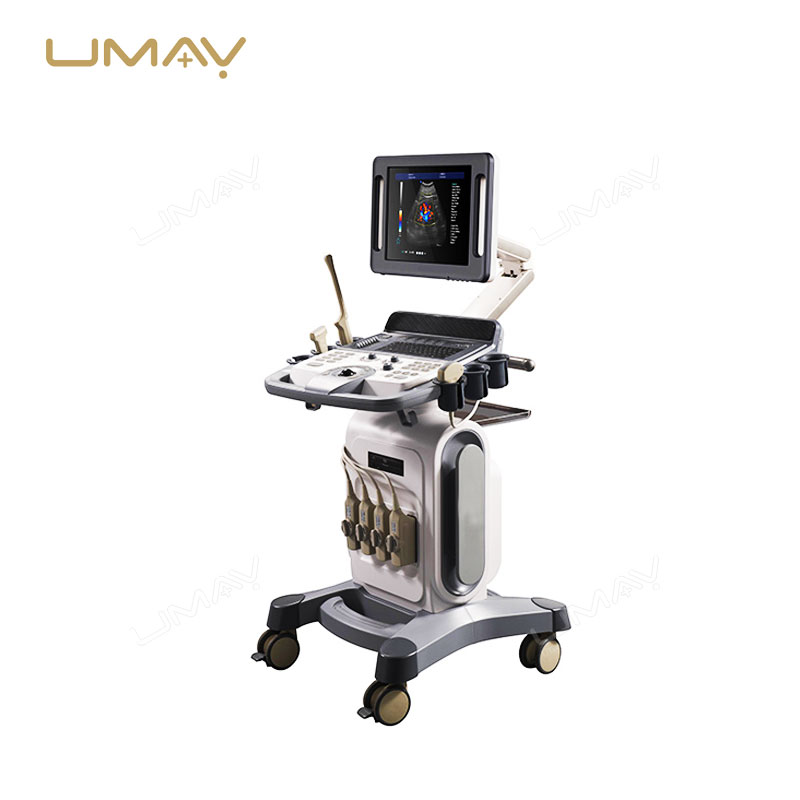

Trolley-Based 4D Full Digital Color Doppler Ultrasound Diagnostic Machine
SKU: UMY-US-054
Brand: Umy
MOQ: 1
Origin: China
Quick Info.
- SKU NO.: UMY-US-054
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton
- Origin: China
- Material: Metal, Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 1000 Sets/Year
This trolley-based 4D full digital color Doppler ultrasound machine offers advanced imaging capabilities for comprehensive diagnostics in obstetrics, cardiology, and abdominal assessments. Designed for high-resolution visualization, it provides real-time color Doppler imaging to assess blood flow and soft tissue structures accurately. The mobile trolley setup ensures easy maneuverability within clinical environments, enhancing workflow efficiency. This ultrasound machine is ideal for healthcare providers seeking precision and versatility in a full digital diagnostic system.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Imaging & Display | |
| Displaying Mode | B, B/B, 4B, B/M, M, PW, B/C, B/C/D, B/D, duplex, triplex, CFM |
| Signal Processing | Full-digital beam forming, dynamic filter, dynamic real-time receiving focusing, RDA, DRA, spectral processing, CFM processing, real-time dynamic focusing, dynamic aperture in all fields |
| Image Processing | |
| THI | Yes |
| PSHI TM | Yes, broadband multi-frequency harmonic image |
| Speckle-reduction | Yes |
| Power Adjustable | Yes |
| Smoothing Function | Yes |
| iBeam TM | Intelligent space image technology |
| iZoom TM | Undistorted full screen image |
| Free Xros M | Yes |
| Low Power Engineer Control | Yes |
| Edge Enhancement | Yes, image optimizing disposal |
| One-key Optimization | Yes |
| Image Conversion | Yes |
| Up/Down Conversion | Yes |
| Left/Right Conversion | Yes |
| Workstation Languages | Chinese/English |
| Doppler Sound Volume | Adjustable |
| Wall Filter | Adjustable |
| Base Line | Adjustable |
| Sampling Frame | Adjustable |
| Spectrum Sampling Volume | Adjustable |
| Spectrum Sampling Volume Angle | Adjustable |
| PRF | Adjustable |
| General Measurement | |
| B-mode | Distance, circumference, area, volume, angle, area Red, Diam Red |
| M-mode | Distance, time, velocity, heart rate |
| Abdomen Measurement | |
| Liver | Yes |
| GB | Yes |
| Aorta | Yes |
| GBWT | Yes |
| CBD | Yes |
| Portal Vein | Yes |
| Spleen | Yes |
| OB Packages | EDD Table: GS, BPD, CRL, FL, YS, TAD, LV, OFD, NT, AC, HC, APAD, Cx length |
| Gynecological Packages | |
| Uterine Measurement | Uterine diameter, uterine endometrial |
| Ovary Measurement | Left/right |
| Sacculus Measurement | Left/right |
| Cervix & Uterine Depth | Yes |
| Urology Packages | |
| Kidney Measurement | Left/right |
| Kidney Volume/Cortex | Yes |
| Small Parts Measurement | |
| Thyroid Measurement | Left/right, volume, Isthmus |
| Calculating Report | Yes |
| Cardiac Measurement Package | |
| Heart Rate | Yes |
| Valve Speed | Yes |
| Structures | Measured: LV, aortic, mitral, ventricular |
| Skeletal & Muscles | |
| Structures | Skeletal & Muscles |
| Measurements | Distance, area, Hip angle |
| Vascular | Sinosis Sinosis A, Lt/Rt VVA, Lt/Rt Rulb, Lt/Rt ICA |
| Body Mark | Abdominal, Gynecology, Obstetrics, Small parts |
| Scanning | |
| Depth | Up to 300mm |
| Cine Loop | Automatically & manually, speed control |
| Image Management | |
| Image Storage Format | BMP, JPEG, PNG |
| Image Storage Size | 500G |
| Input/Output Ports | VGA, USB port, DICOM port (network port) |
| Standard Configuration | Main unit, 15 inch LED monitor, 3.5Mhz convex probe, 7.5Mhz linear probe, free arm, 4 probe connectors, user’s manual, 500G hard disk, DVD-RW |
| Optional Configuration | 6.5Mhz transvaginal probe, 19 inch LED monitor, video printer, laser printer, DICOM 3.0, biopsy kit |
