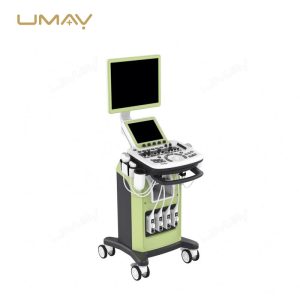

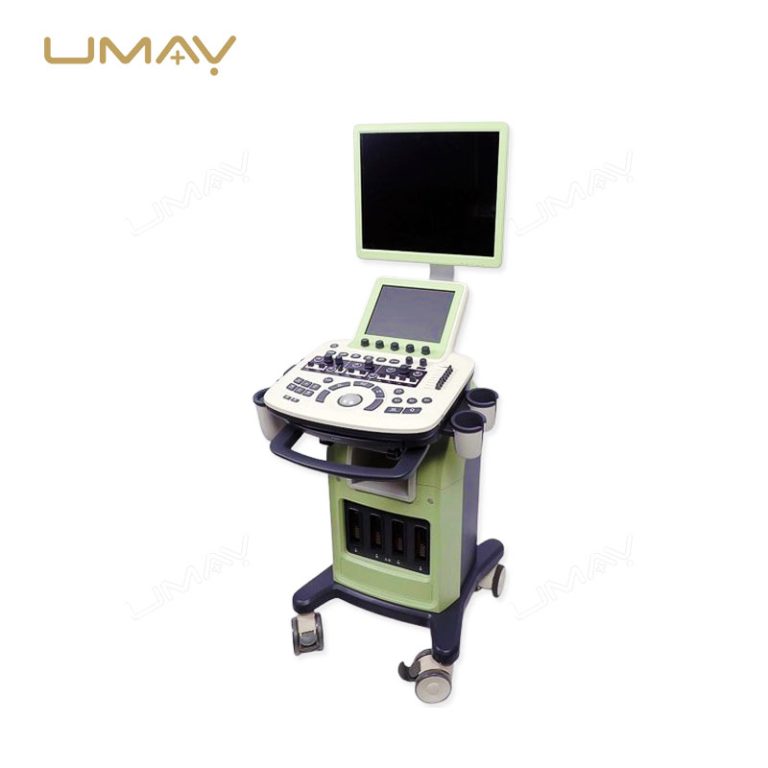

Trolley 3D and 4D Color Doppler Ultrasound Machine for Fine-Detail Imaging
SKU: UMY-US-090
Brand: Umy
MOQ: 1
Origin: China
Quick Info.
- SKU NO.: UMY-US-090
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton or Wooden Box
- Origin: China
- Material: Metal, Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 1000 Sets/Year

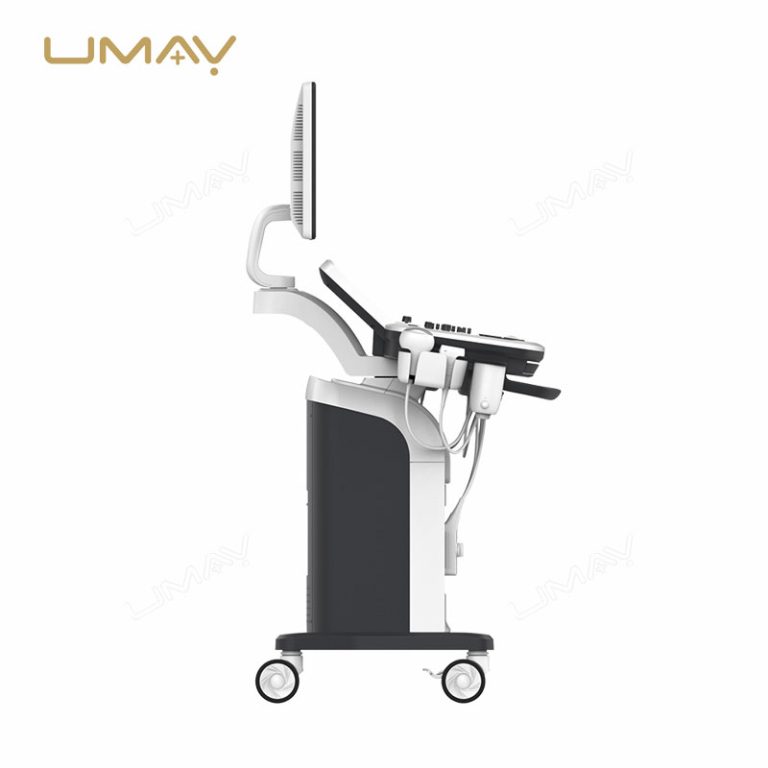

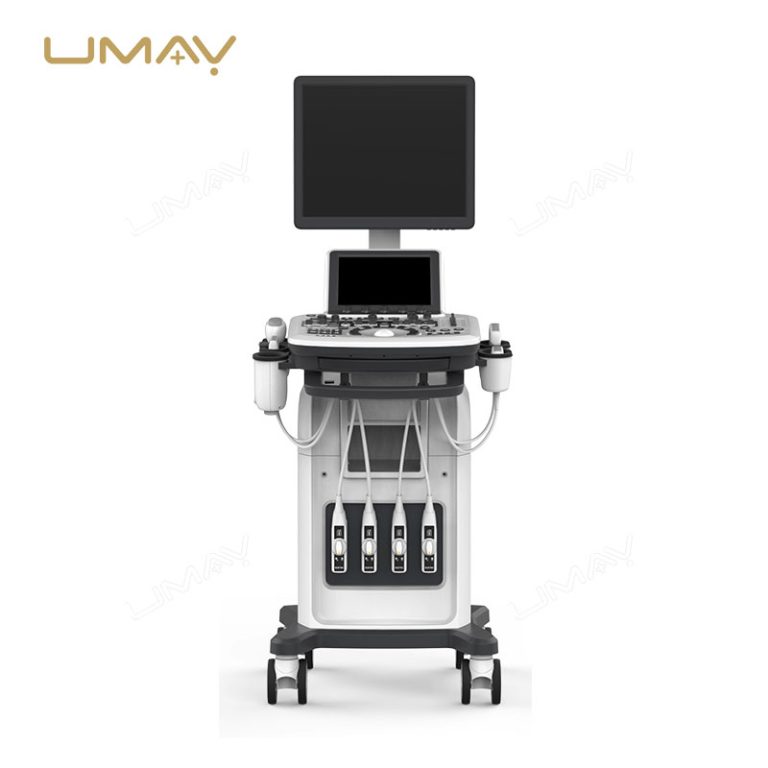

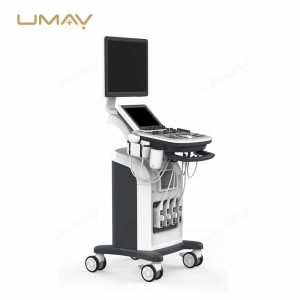

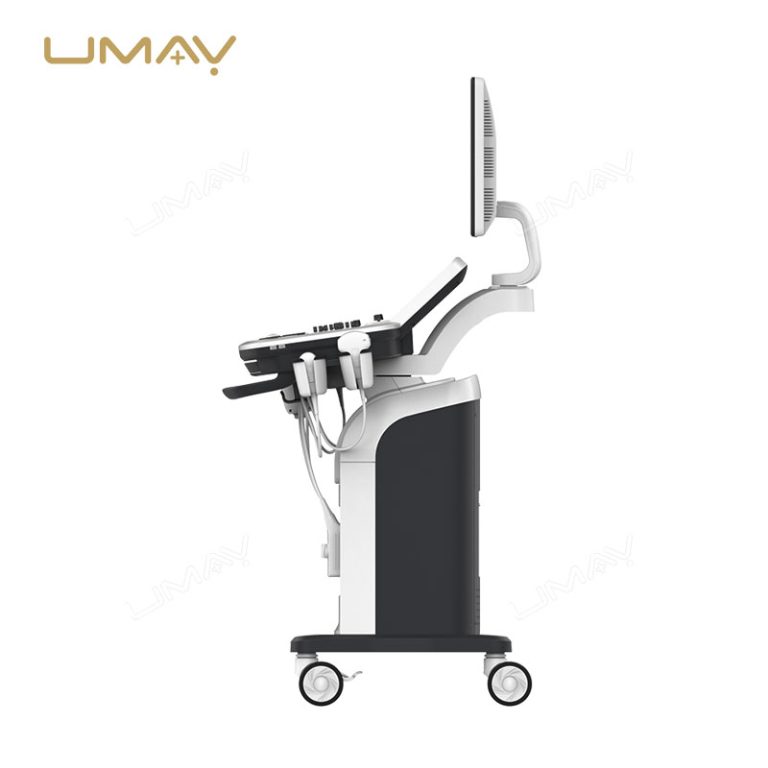

This trolley-mounted color Doppler ultrasound machine offers fine-detail 3D and 4D imaging capabilities, making it ideal for detailed diagnostics in obstetrics, gynecology, cardiology, and abdominal studies. Its high-resolution color Doppler technology ensures precise visualization of blood flow and tissue structures, enhancing diagnostic accuracy. The ergonomic trolley design allows for easy maneuverability in clinical settings, supporting efficient workflows. This system is a valuable tool for medical professionals seeking reliable and versatile imaging solutions.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Clinical Applications | Abdomen, Obstetrics, Gynecology, Urology, Cardiology, Pediatric, Small Parts, Blood Vessel, Superficial, Orthopedic, MSK, Nerve, Custom |
| Technical Specifications | |
| Type | Color trolley ultrasound machine |

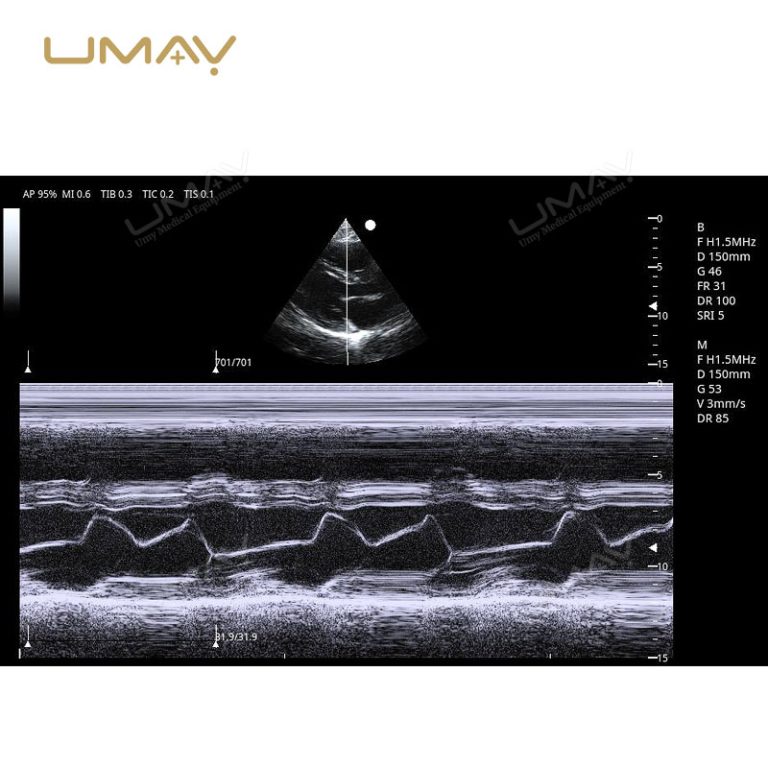

| Display Modes | 2D, M, PW, CW, TDI, Elastic, AMM, CMM, 4D |
| Display Features | 19-inch high-resolution color display screen |
| Display Resolution | 1024×768 |
| Display Rotation | Rotate angle range 90°(L/R) |
| Display Tilt | Tilt angle range 0-90°(U/D) |

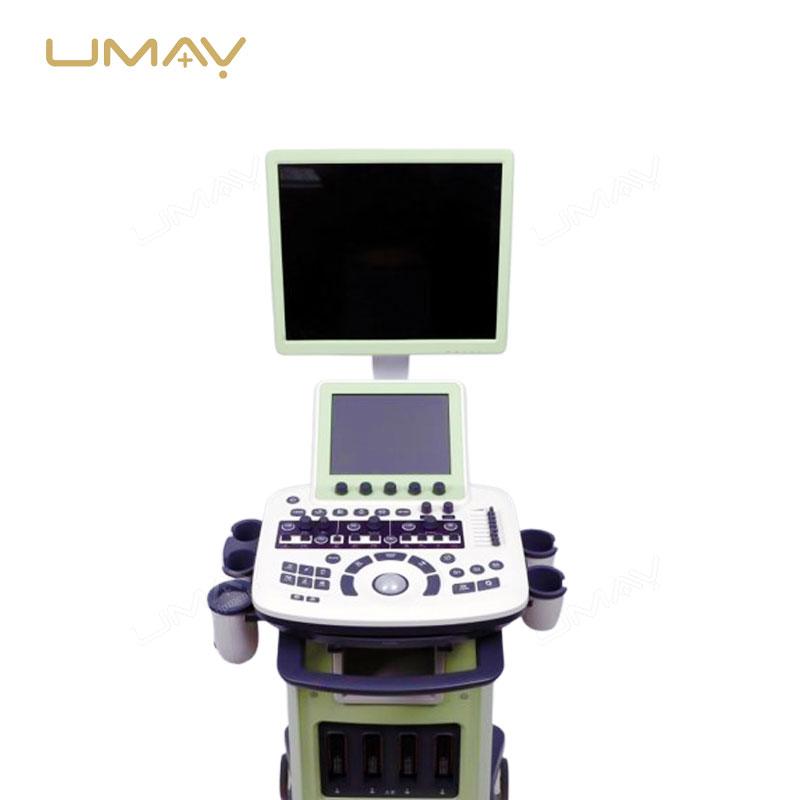

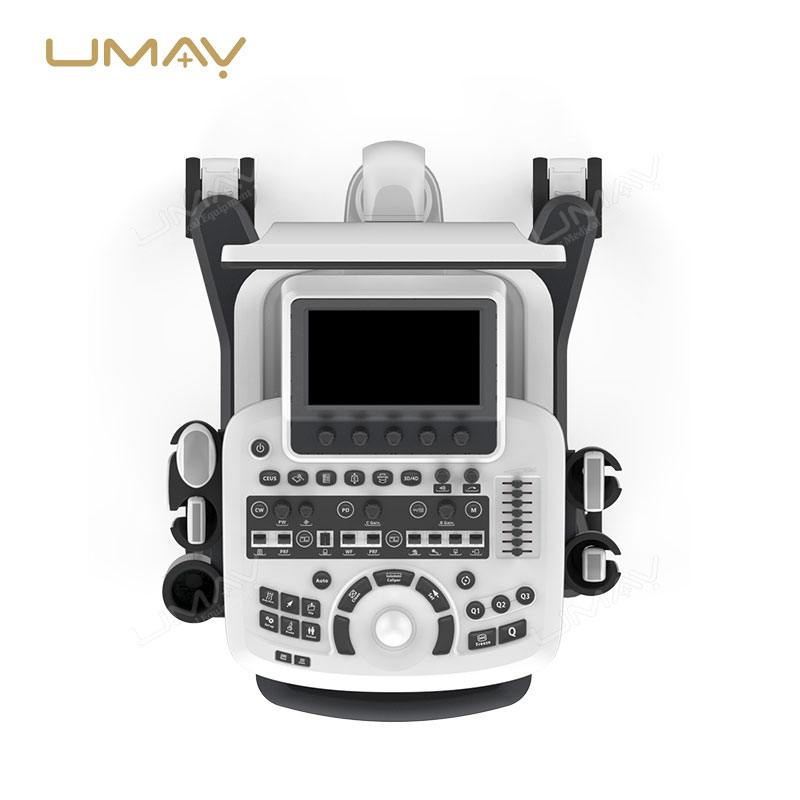

| Touch Screen | 10.4-inch touch screen, 1024×768 resolution |

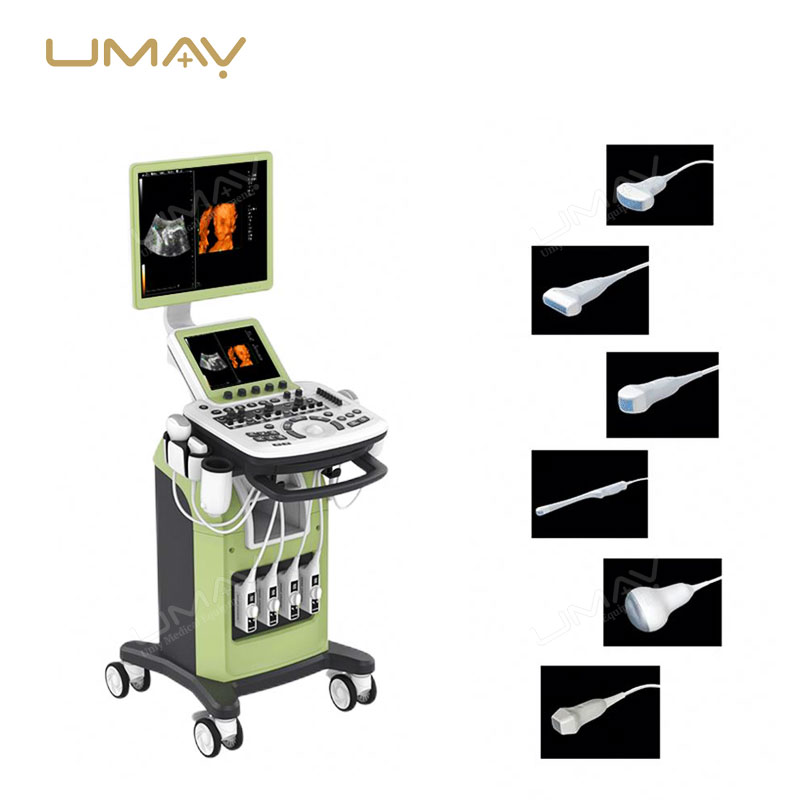

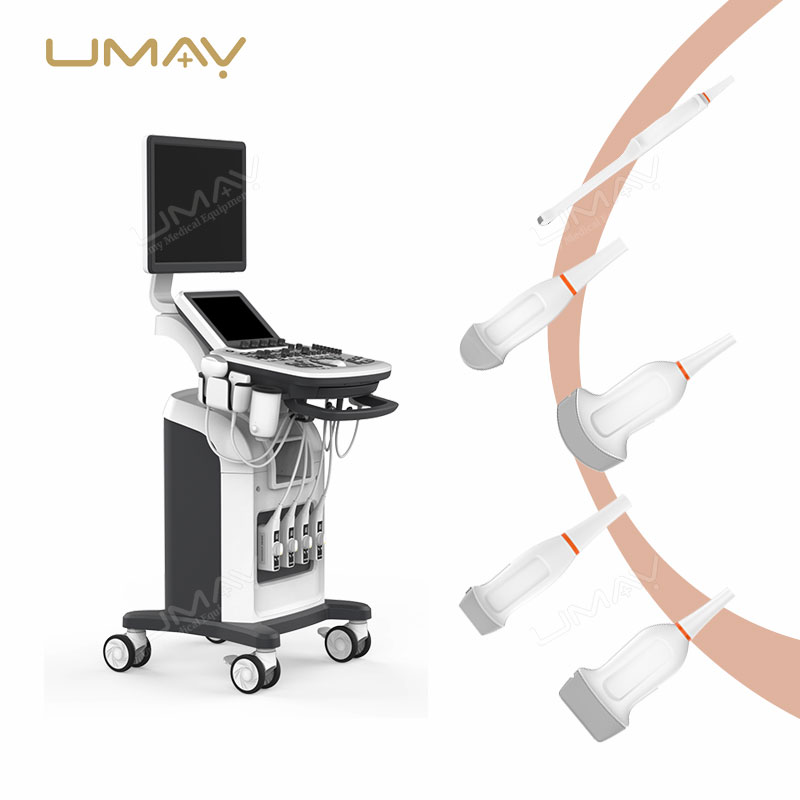

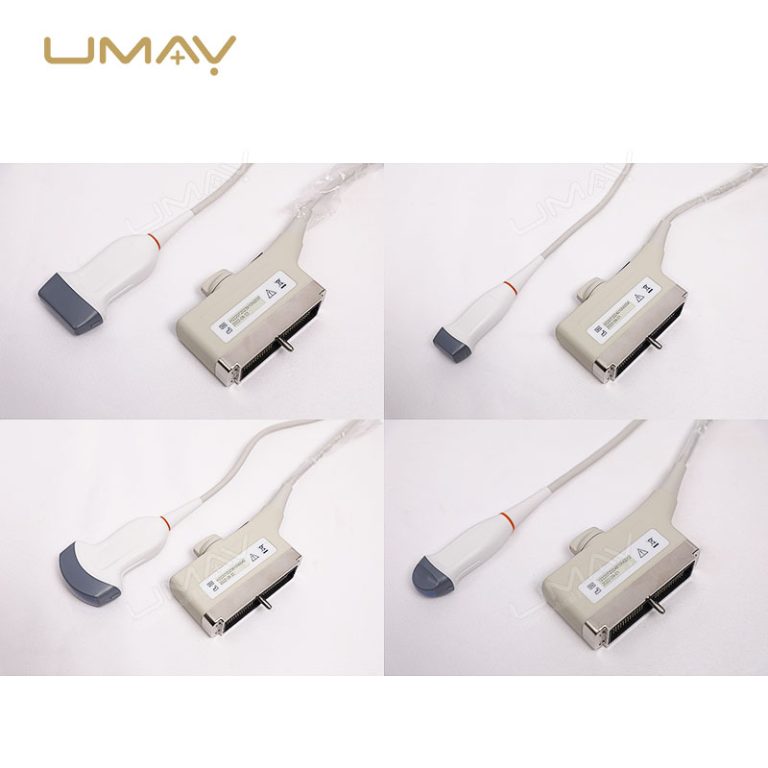

| Transducer Ports | 4 activated transducer ports |
| Transducer Holders | 4 removable transducer holders |
| Probe Wire Hook | 4 probe wire hooks |
| Electrical Specifications | |
| Voltage | AC 100V ~ 240V |
| Power | 320VA |
| Frequency | 50/60Hz |
| Input Fuse | φ5×20 mm, F3.15AL250V AC |
| Output Fuse | φ5×20 mm, F2AL250V AC |
| Physical Specifications | |
| Dimensions | 565×845×1455mm |
| Weight | Approx. 70kg |
| Certificates | CE, ISO |
| Product Features | |

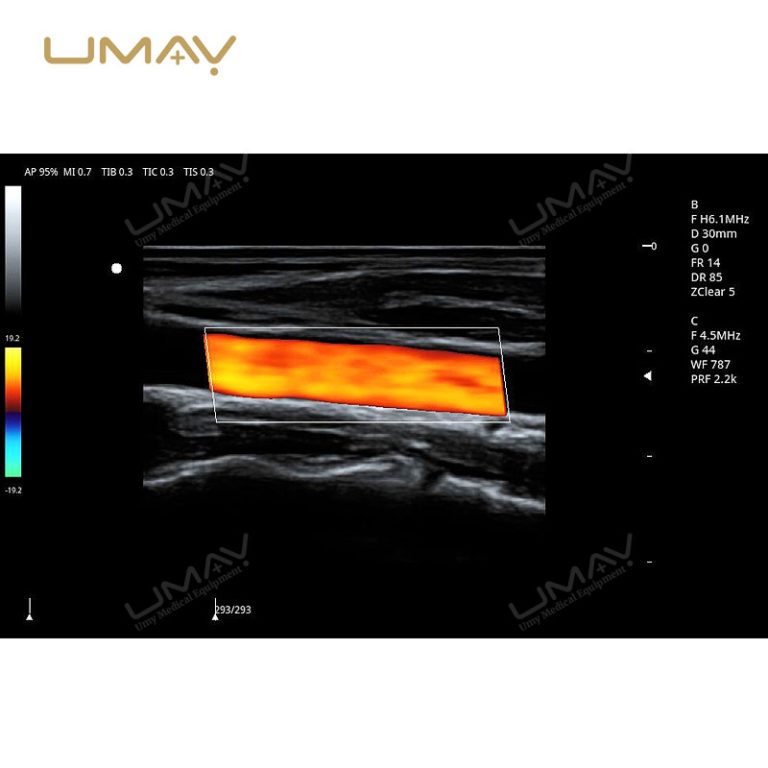

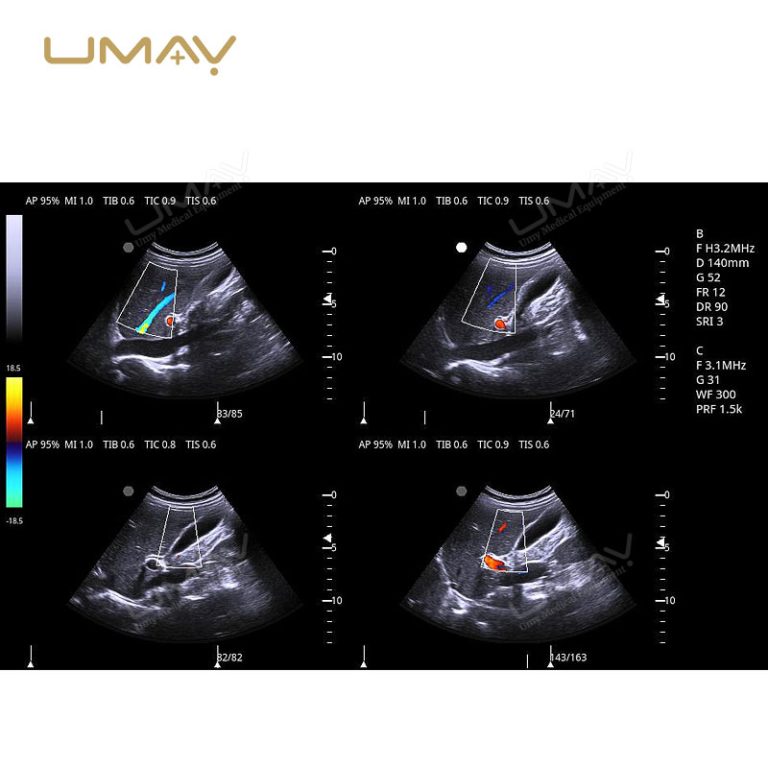

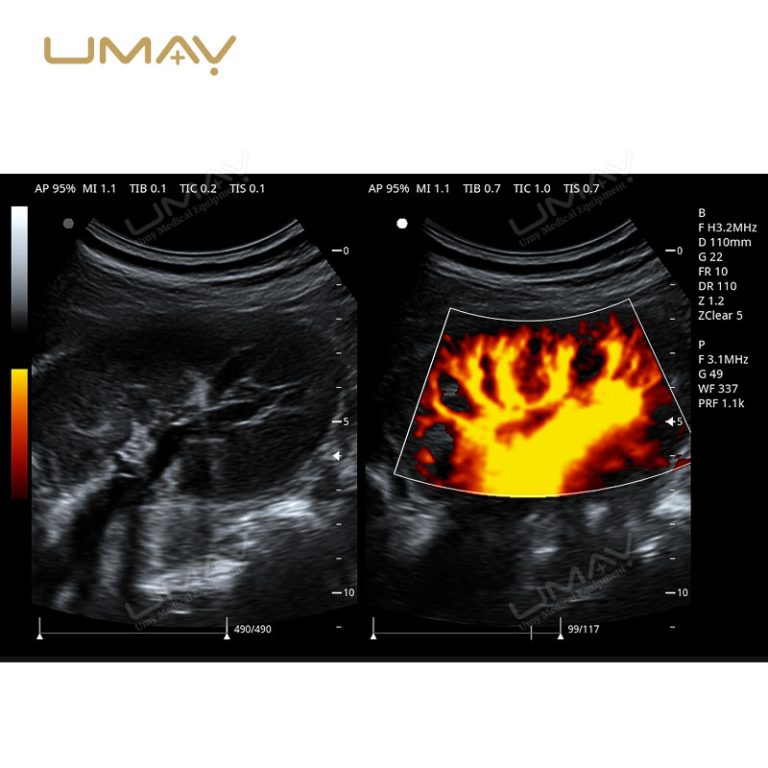

| Supported Imaging Modes | 2D, CFM, M, PW, CW, CMM, DPDI, AMM, 3D/4D, ZPage |
| Advanced Imaging | ZLive, TDI, Elastic Imaging, Panoramic Imaging |
| Imaging Enhancements | THI, SRI, SCI, TSI, FCI, EFOV, HR flow, B-steer |
| Measurement Tools | Standard Auto IMT measurement, PW auto trace and auto calculation |
| Amplification Support | Local and global amplification |
| Connectivity | Preposed USB ports, supporting multi-data transmission |
| User Interface | One-Key Q Save – parameter saving/presetting by one key |

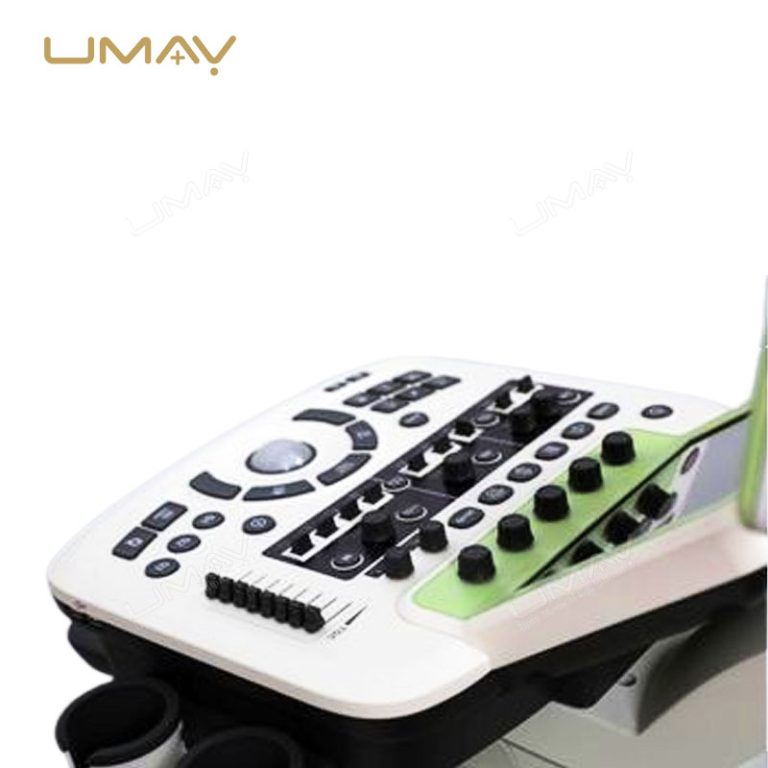

| Customization | Four user-defined buttons |
| Functionality | Biopsy function |
