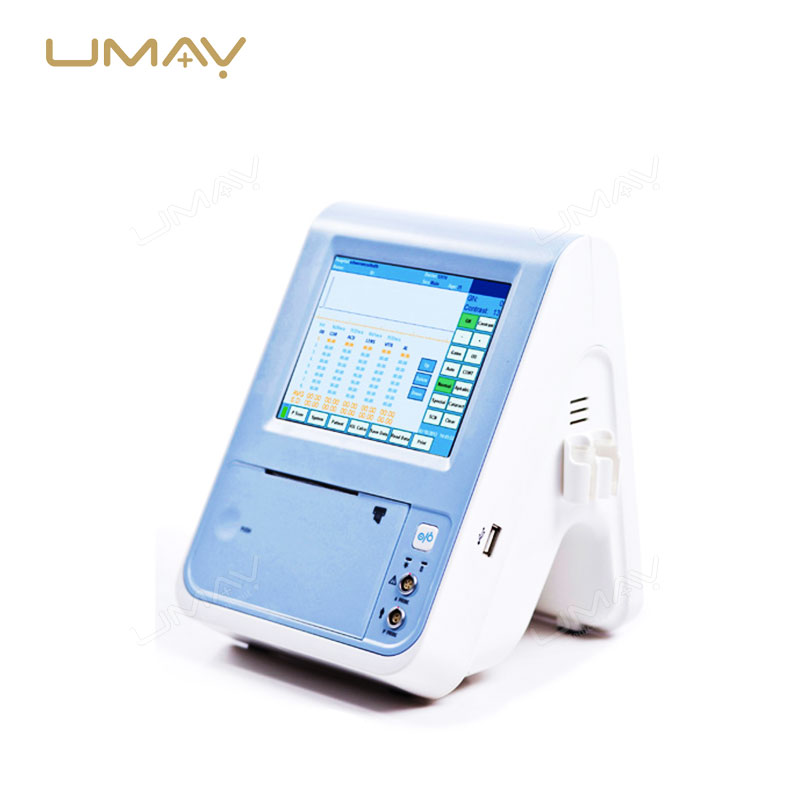

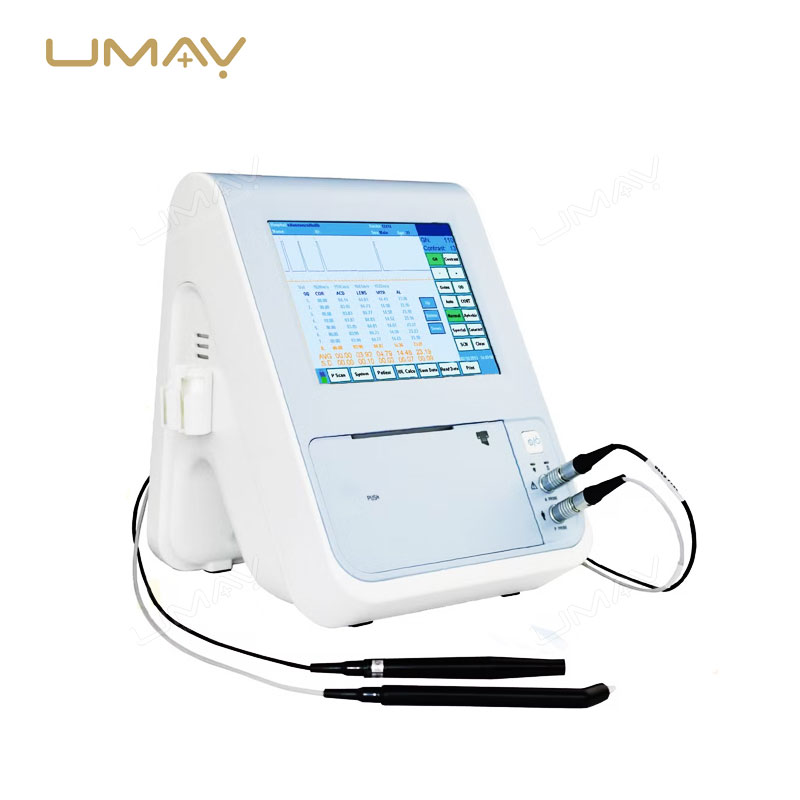

Portable Ophthalmic A-Scan Ultrasound Biometer and Pachymeter with Advanced Definition
SKU: UMY-US-061
Brand: Umy
MOQ: 1
Origin: China
Quick Info.
- SKU NO.: UMY-US-061
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton
- Origin: China
- Material: Metal, Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 3000 Sets/Year
This portable ophthalmic A-scan ultrasound biometer and pachymeter offers advanced definition imaging, ideal for accurately diagnosing and managing eye conditions such as cataracts, glaucoma, and corneal thickness irregularities. The A-scan mode provides precise axial length measurements crucial for cataract surgery planning, while the pachymeter assesses corneal thickness, supporting glaucoma evaluation. Compact and easy to use, it’s perfect for both clinic and mobile ophthalmic care, delivering high-quality diagnostics for comprehensive eye health.
The Specific Parameters
ITEMS | PARAMETERS |
---|---|
Biometer Specifications | |
Probe Frequency | 10 MHz |
Resolution | 0.01 mm |
Accuracy | ±0.02 mm |
Gain Adjustable | 0–120 dB |
Measurement Range | 15–35 mm (velocity 1640 m/s) |
Measurement Targets | ACD, Lens, Vitreous, AXL |
Examination Modes | Normal, Aphakic, Pseudophakic, Dense Cataract |
Measurement Mode | Immersion and contact, auto and manual |
IOL Formulas | SRK-II, SRK-T, BINKHORST, HOLLADAY, HOFFER-Q, HAIGIS |
Pachymeter Specifications | |
Probe Frequency | 20 MHz |
Resolution | 1 µm |
Measurement Range | 0.23–1.3 mm |
Accuracy | ±5 µm |
Power Requirements | |
Model | MSLPU21 Biometer/Pachymeter |
Input Voltage | AC 100–240V, 50–60Hz |
Power Consumption | ≤ 45 VA |
Physical Dimensions (L×W×H) | 200 × 168 × 165 mm |
Standard Configuration | |
Main Unit | Included |
10.0 MHz A Probe | Included |
20.0 MHz Angled Probe | Included |

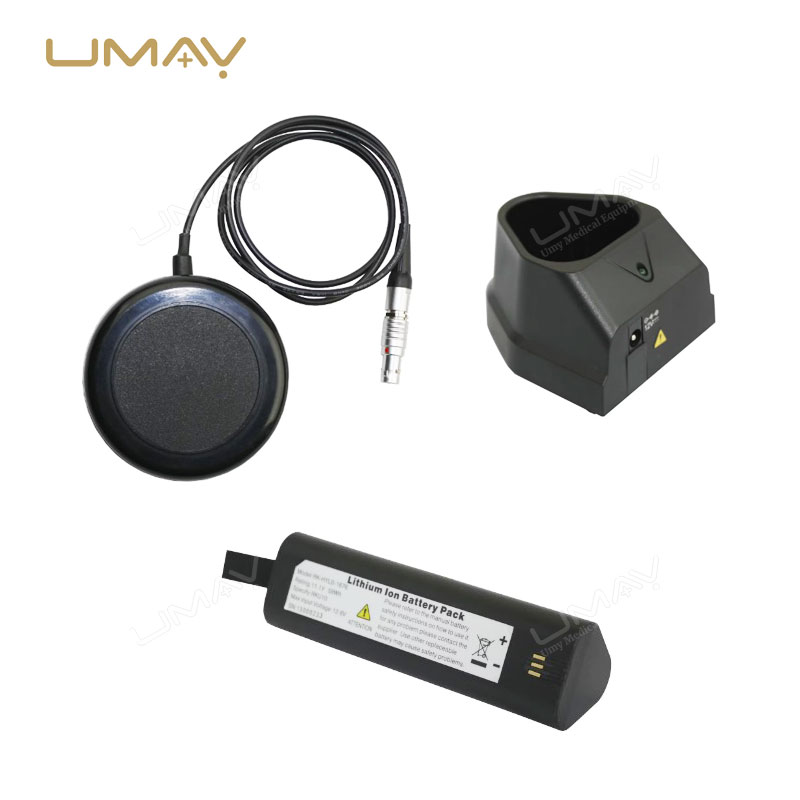

Gage Blocks | Two kinds |
Footswitch | Included |
Adapter | Included |
Touch Screen Pen | Included |
