Portable Full Digital Veterinary Ultrasound Scanner with 8-Inch LCD for Premium Image Clarity
SKU: UMY-US-096
Brand: Umy
MOQ: 1
Origin: China
Quick Info.
- SKU NO.: UMY-US-096
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton or Wooden Box
- Origin: China
- Material: Metal, Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 3000 Sets/Year
This portable full digital ultrasound scanner, equipped with an 8-inch large LCD, offers premium image clarity for veterinary diagnostics. Designed for use in hospitals and clinics, it is ideal for diagnosing small animals and livestock with precision. Its lightweight and compact design ensure ease of mobility, making it suitable for field applications. The advanced diagnostic system provides clear visuals for abdominal, musculoskeletal, and reproductive health assessments in animals.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Technical Specifications | |
| Host Material | Metal |
| Screen Size | 8 inch |
| Available Languages | Chinese, English, Spanish, Russian, French, Portuguese |
| Display Mode | B, B+B, 4B, B+M, M |
| Measurement Functions | Routine measurements, backfat measurements, cardiac measurements, obstetric measurements |
| Backfat Measurement Mode | Automatic backfat function (Smart one-touch measurement), fast backfat function (moving reading scale), manual backfat measurement function |
| Body and Probe are Waterproof | YES |
| One Key Restore Factory | YES |
| Energy Saving Mode | YES |
| Grid Scales and Dot Scales | YES |
| Image Rotation | YES |
| Playback | 256 frames |
| Memory | 32G |
| Interface | TV*1, HDMI*1, USB*1, DC*1, TF*1, probe interface |
| Pseudo-color | 16 |
| Number of Channels | 16 |
| Dynamic Range | 0–135dB |
| Gain Range | 0–100dB |
| Power | |
| Battery Capacity | 10000mAh |
| Battery Life | >8 hours |
| Physical Specifications | |
| Dimensions | — |
| Weight | — |
| Waterproof Interface | Supports USB interface, HDMI interface, TE interface, power interface |
| Features | |
| Waterproof Design | Fully waterproof, washable and cleanable with water |

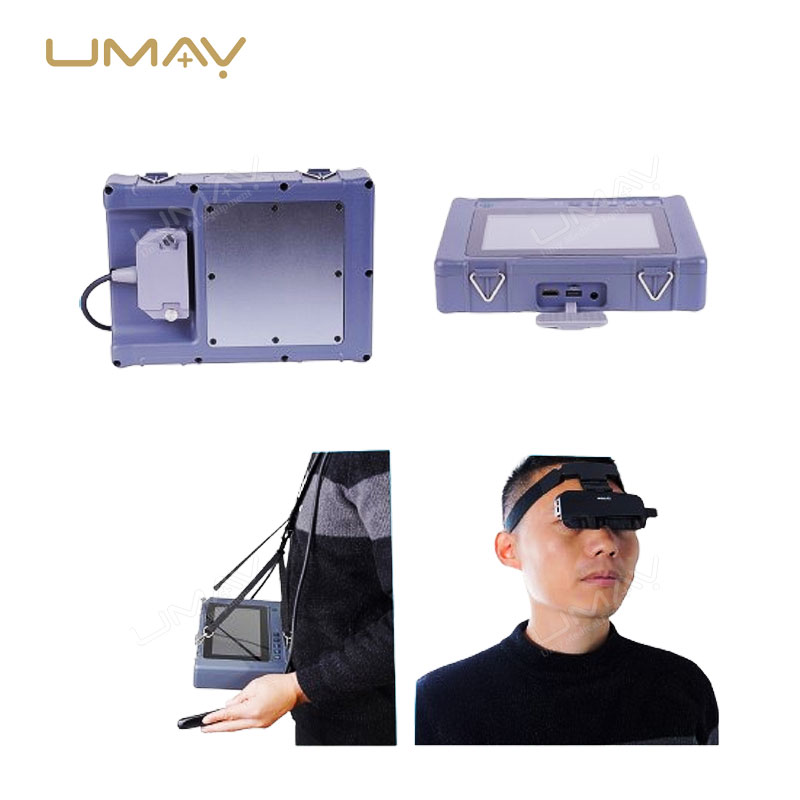

| Optional Accessories | Video glasses for enhanced viewing |
| Display | 8-inch large LCD medical Chinese touch display, dual internal and external screens, explosion-proof, scratch-proof |
| Viewing Capability | Full-viewing IPS high-resolution screen for multiple angles |
| Screen Rotation | One-click smart rotation, reversible image and touch buttons for left or right hand use |
| Heat Dissipation | Metal plate radiator for excellent heat dissipation |
| Electronic Probe Support | Variety of probes with five-stage frequency conversion, no conversion box required |
| Playback Capability | Multiple movie playback functions, selectable and savable image annotations |
| Storage | 32G internal storage for massive image storage |
| Measurement Tools | Grid ruler and dot ruler for quick reading |
| Software Packages | Animal-specific measurement packages for pregnancy cycles |
| Color Options | 16 adjustable colors for lesion observation |
| Settings | Time/date, video output, TV format, key tone switch, parameter mode, standby protection, multi-language, customized gestational age |
| Parameter Restore | One-click restore of factory parameters |
