Portable B-Mode Sector Veterinary Ultrasound Scanner
SKU: UMY-US-066
Brand: Umy
MOQ: 1
Origin: China
Quick Info.
- SKU NO.: UMY-US-066
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton
- Origin: China
- Material: Metal, Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 3000 Sets/Year
This portable B-mode sector veterinary ultrasound scanner is designed for high-precision imaging in animal diagnostics, ideal for reproductive, abdominal, and cardiac assessments. Its sector scanning technology provides clear, detailed visuals, even in deep and narrow areas, supporting comprehensive evaluations of soft tissue and organ structures. Lightweight and easy to operate, it is suitable for both clinical and field settings, enabling veterinarians to conduct on-the-spot diagnostics. This scanner is essential for veterinary professionals needing a versatile, portable imaging solution.
The Specific Parameters
ITEMS | PARAMETERS |
---|---|
Technical Specifications | |
Displayed Depth (mm) | 192 |
Maximal Detect Depth (mm) | ≥140 |
Resolution (mm) | Lateral, ≤4 (depth≤80); ≤5 (depth>80) |
Blind Zone (mm) | ≤8 |
Geometric Position Precision | Horizontal ≤20; Vertical ≤10 |
Monitor Size | 5.0″ TFT-LCD |
Display Mode | B, B+B, B+M, M, 4B |
Image Gray Scale | 256 |
Scan Depth | 120mm–190mm |
Image Process | Histogram, color encode, gamma, image smooth |
Measurement | Distance, circumference, area, volume, heart rate, gestation age |
Notation | Date, time, name, sex, age, full screen words edit and etc. |

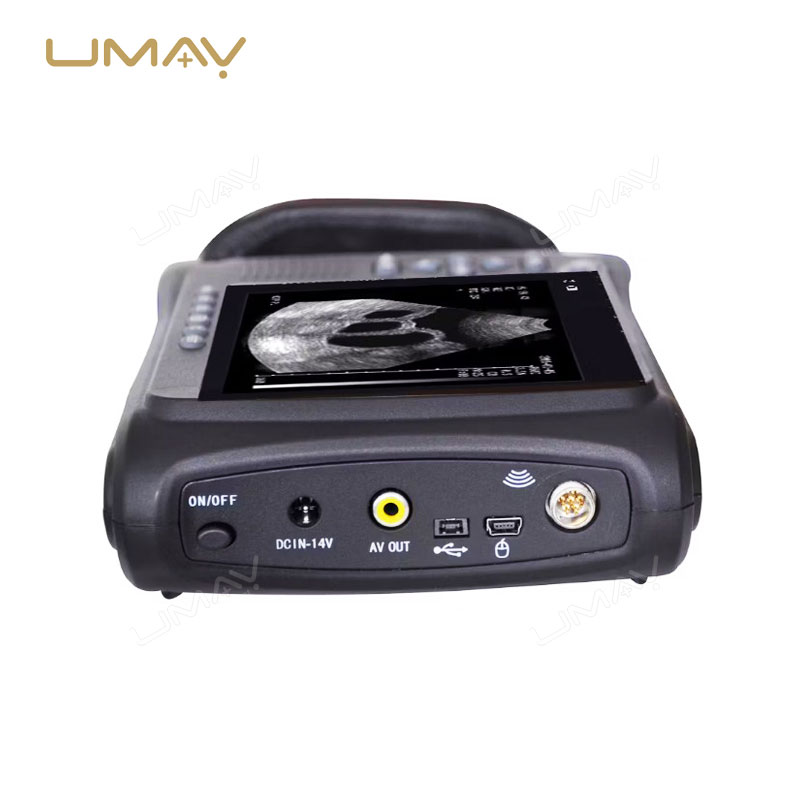

Output | USB 2.0, VIDEO (PALD, NTSC) |
Power | |
Charging Method | Adapter, Battery |
Adapter Rating | 100-240V, 50-60Hz, 70VA |
Battery | 2600mAh, continuous work ≥ 3 hours |
Physical Specifications | |
Machine Dimension | 230mm (L) × 120mm (W) × 38mm (H) |
Net Weight | 800g |
Standard Configuration | |
Scanner Body | 1pc |
Li-ion Battery | 1pc |

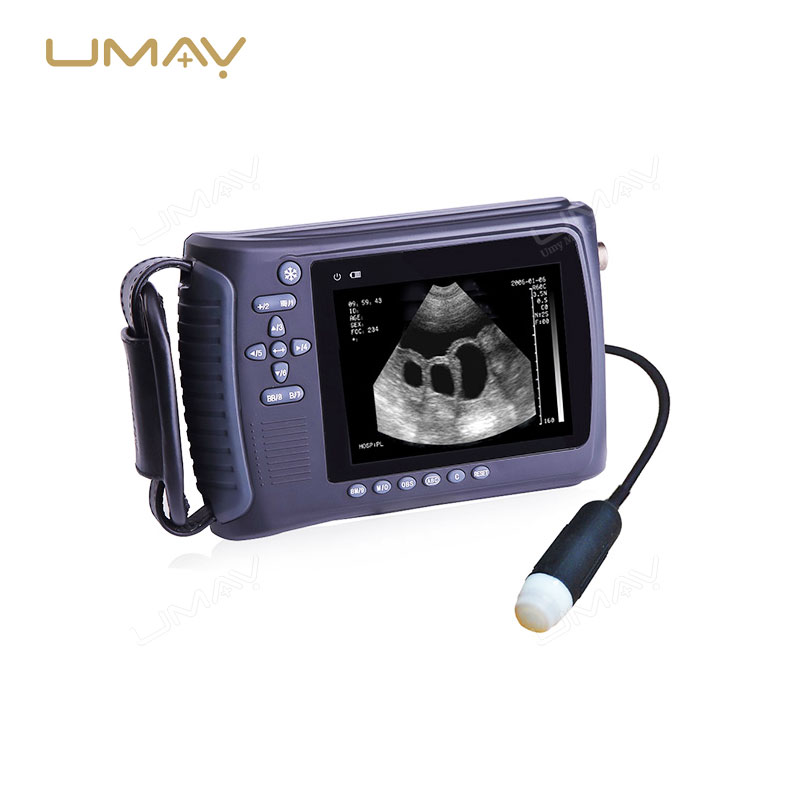

3.5MHz Sector Probe | 1pc |
Charger with a Set of Wires | 1 set |
Wrap Bag | 1pc |
Bottle of USG Gel | 1pc |
Transportation Case | 1pc |
User Manual | 1pc |
Optional Accessories | |
Optional Probe | 5.0MHz Waterproof Sector Probe |
Printer | Video Printer |
Additional Power | Li-ion Battery, Car Charger |
Cable | Charging Adaptation Wire |
