Point-of-Care Color Doppler Ultrasound System with Touchscreen for Ovum Pick-Up Procedures
SKU: UMY-US-070
Brand: Umy
MOQ: 1
Origin: China
Quick Info.
- SKU NO.: UMY-US-070
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton
- Origin: China
- Material: Metal, Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 2000 Sets/Year

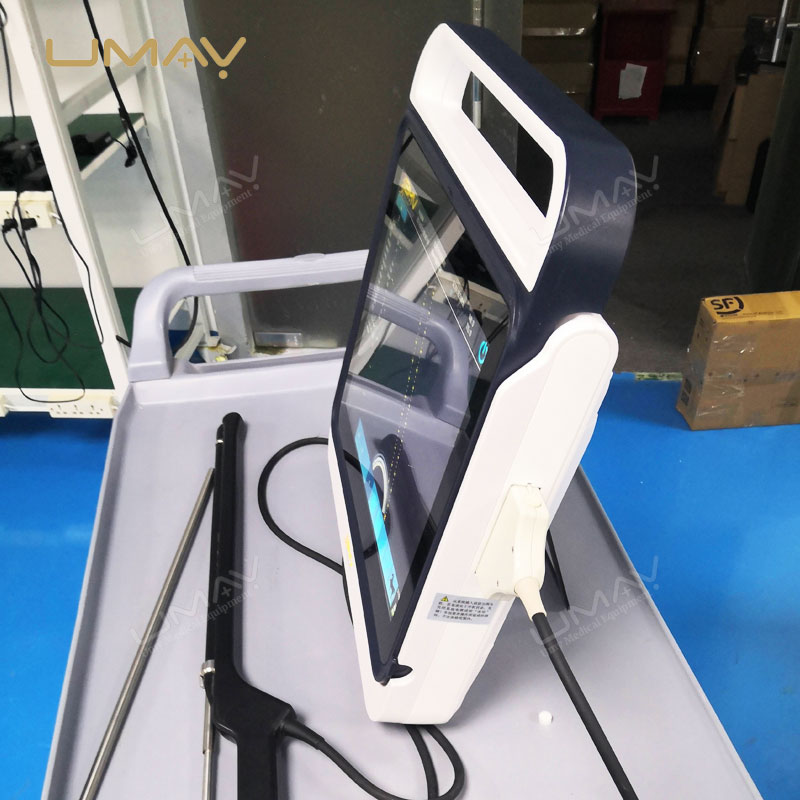

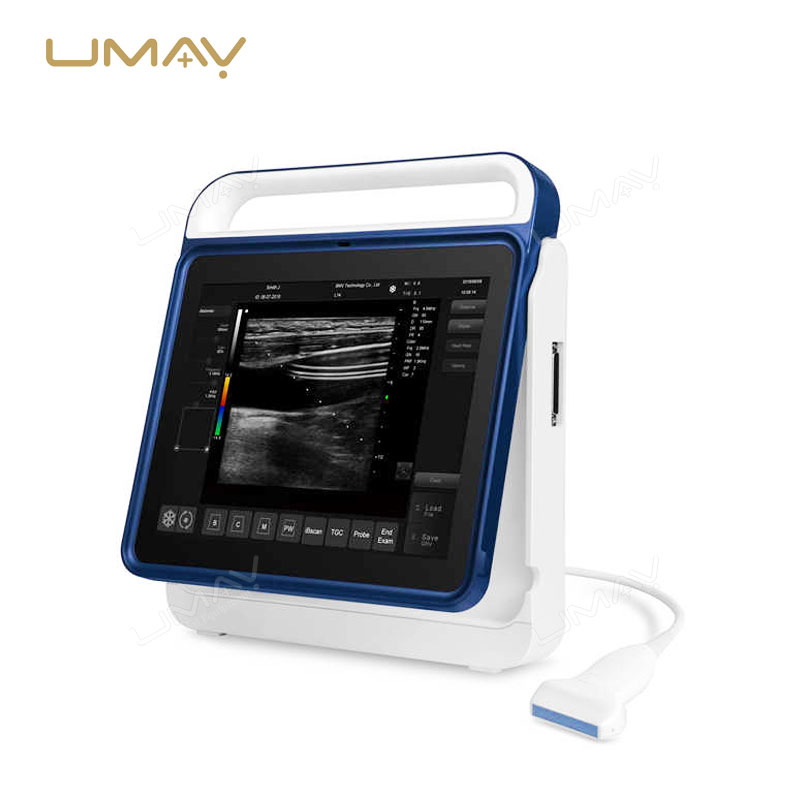

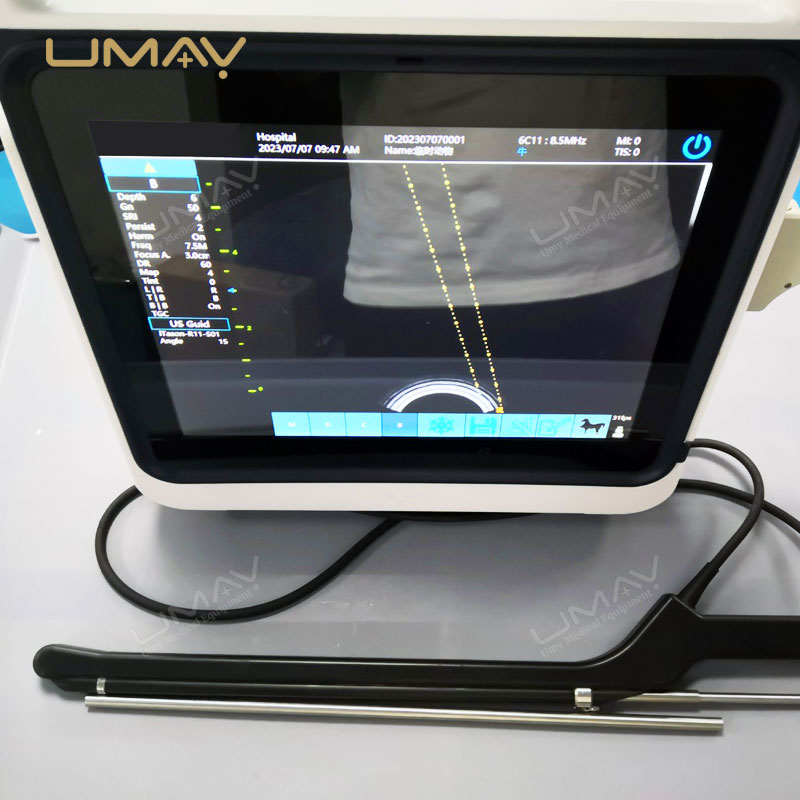

This point-of-care color Doppler ultrasound system features a high-resolution touchscreen interface, designed for ovum pick-up and other gynecological procedures. Its advanced Doppler imaging provides detailed visualization of ovarian follicles and blood flow, ensuring precision during fertility treatments. Compact and portable, it allows for efficient use in clinics and hospitals, supporting both diagnostic and interventional workflows. This ultrasound system is ideal for healthcare professionals focused on reproductive health and high-quality imaging.
The Specific Parameters
ITEMS | PARAMETERS |
---|---|
Technical Specifications | |
Imaging Modes | B, B+B, B+M, Color, PW, PDI |
Display Monitor | 15 inch |
Gray Scale Levels | 256 |
Dynamic Range | 120 dB |
Frame Rate | 15 frames/sec |
Cine Loop | 200 frames movie playback stored |
Weight (with probe) | 4.5 kg |
Main Configuration | |
Main Unit | Included |
OPU Transducer | All-in-one, 4–9 MHz |
OPU Needles | Two (for 12 to 18 gauge needles) |
Built-in Battery | One included |
AC Adapter | Included |
Bluetooth Keyboard | Optional |
Vacuum Pump | Optional |
Tube Heater | Optional |
Transducers | |
All-in-one OPU Transducer | Included |
Micro-convex Transducer | Optional |
Rectal Linear Transducer | Optional |
Linear Transducer | Optional |
Convex Transducer | Optional |
