Handheld Micro-Convex Color Doppler Veterinary Ultrasound Probe with IPX7 Waterproof Design
SKU: UMY-US-083
Brand: Umy
MOQ: 1
Origin: China
Quick Info.
- SKU NO.: UMY-US-083
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton
- Origin: China
- Material: Metal, Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 2700 Sets/Year

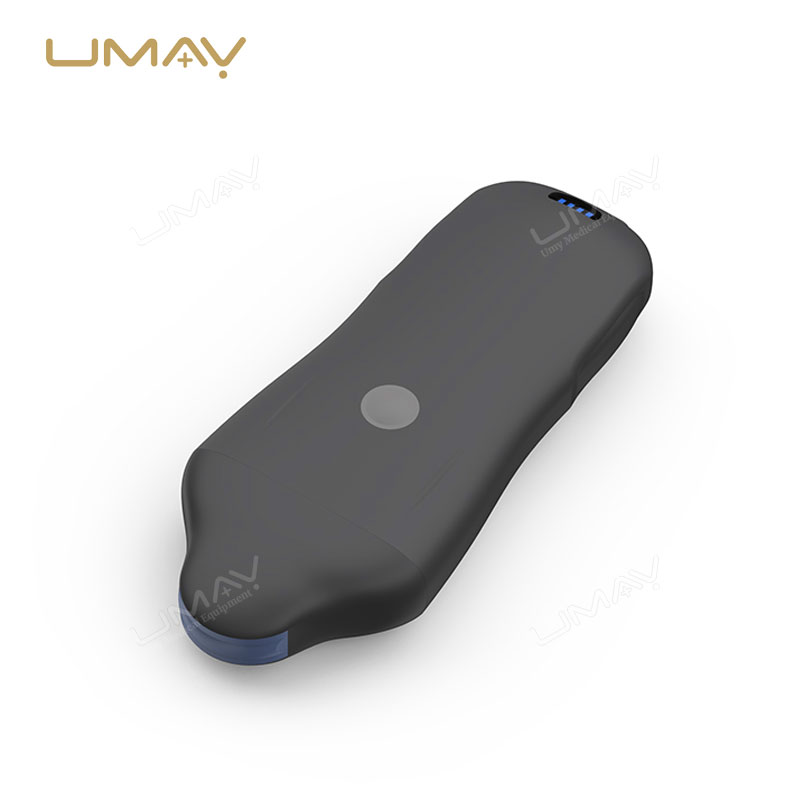

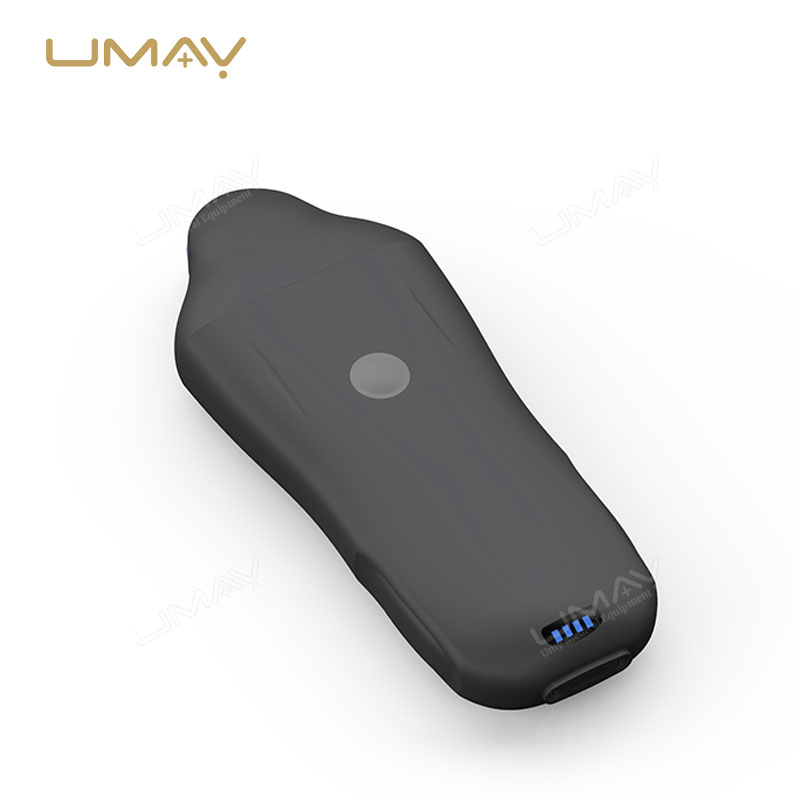

This portable wireless micro-convex color Doppler ultrasound probe is specially designed for veterinary diagnostics, featuring an IPX7 waterproof design for enhanced durability. Ideal for small animals and livestock, it provides high-resolution imaging for abdominal, urological, and reproductive health assessments. The wireless functionality ensures flexibility for both fieldwork and clinical environments, while the micro-convex probe delivers detailed visuals of deep tissue structures. This ultrasound probe is an indispensable tool for veterinarians seeking accurate and portable diagnostic solutions.
The Specific Parameters
ITEMS | PARAMETERS |
---|---|
Application Scene | |
Application Sites | Neck angiopathy, Vascular, MSK, Breast, Pediatrics, Thyroid, Carotid, Small Organs, Nerve |
Supported Devices | Android tablet or smartphone, iPhone and iPad |
Working System | Apple iOS and Android |
Technical Specifications | |
Probe Type | Micro Linear |

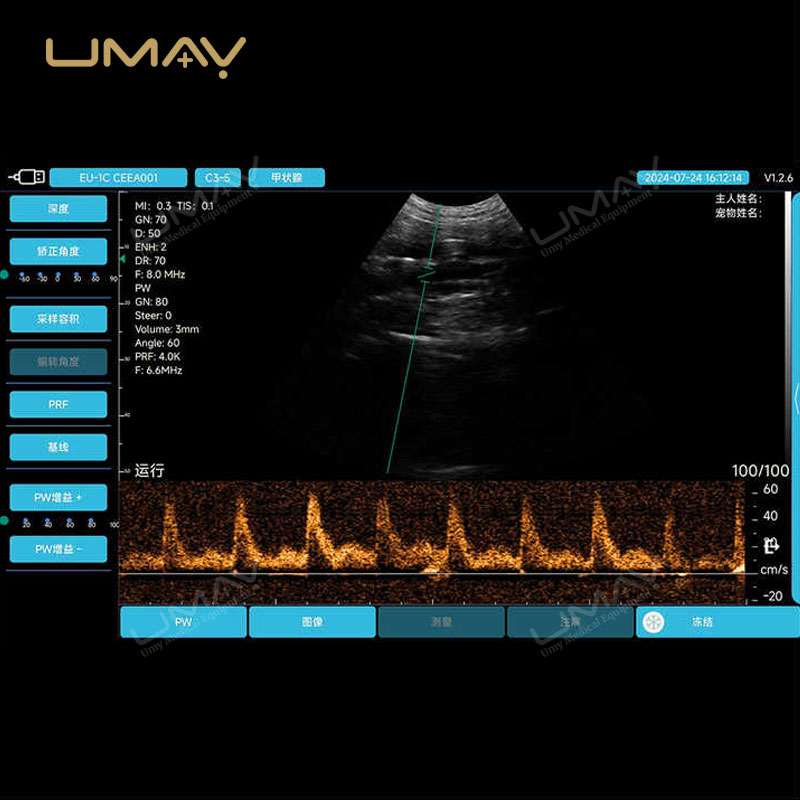

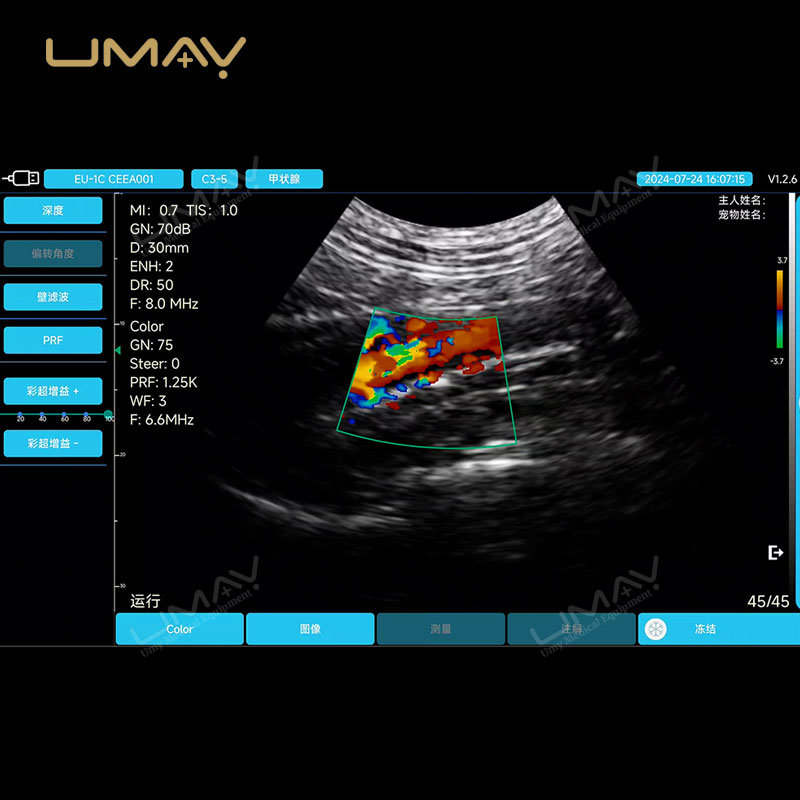

Display Mode | B, B/M, PW, Color |
Channel of RF Circuit Board | 64 |
Probe Element | 128 |
TGC | 8 |
Focus | 3 |
Probe Frequency | Linear head: 10–13.2 MHz |
Scan Depth | Linear head: 100 mm |
Image Save Format | jpg, mp4 |
Cine Loop Capacity | 1000 frames movie playback stored |
Frame Rate | — |
Measurement Capabilities | Distance, area, perimeter, heart rate |
Image Adjustments | TGC, Gain, Focus, PRF, Dynamic Range |
Connectivity & Compatibility | |
WiFi Coverage Distance | ≥6 m |
Data Interface | Wireless |
Language Options | Chinese, English |
Battery Working Time | 2–3 hours |
Standard Configuration | |
Main Unit | Wireless Ultrasound Scanner x1 unit |
Charging Cable | USB Charging Cable x1 pcs |
Optional | Android or iOS tablet |
