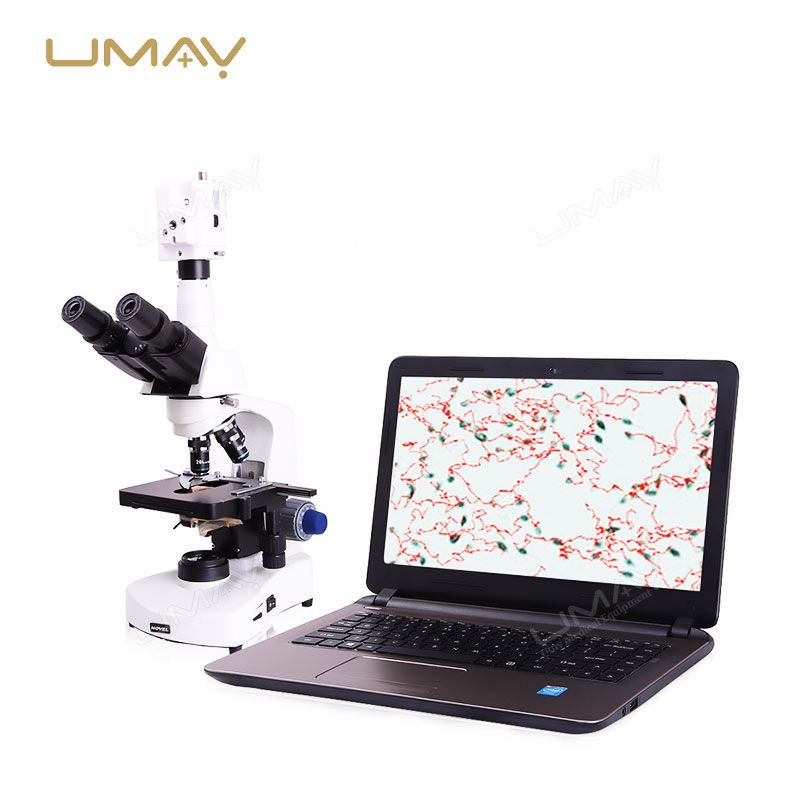

Veterinary Animal Sperm Analysis System for Reproductive Diagnostics with Laptop
Quick Info.
- SKU NO.: UMY-VEBT-003
- Device Classification: Class â…¡
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton or Wooden Cases
- Origin: China
- Material: Metal, Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 2000 Sets/Year
Power Source:Â Electric
Warranty: 1 year
After-sale Service: Online service and delivering spare parts
Transport Package: Carton or Wooden Cases
Material: Metal, Plastic
Instrument Classification:Â Class â…¡
Quality System Standard: ISO13485
This veterinary animal sperm analysis system is designed to support reproductive diagnostics through comprehensive image and data analysis.
It provides intuitive visualization with data rich semen analysis covering sperm motility, velocity classification, and movement patterns.
The system supports curvilinear motion, linear motion, and average path analysis to deliver accurate sperm behavior assessment.
Advanced statistical functions classify sperm velocity into multiple grades and identify abnormal sperm count, appearance, and motility.
High speed image capture and flexible sample capacity support efficient testing in both routine and research oriented workflows.
It is widely used by veterinary clinics, breeding centers, and animal reproduction laboratories focused on fertility evaluation.
For complementary reproductive imaging, it can be used together with to support broader diagnostic needs.
This solution improves diagnostic clarity and supports informed decision making in animal reproductive management.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Product Overview | |
| Product Type | Veterinary Portable Semen Analyzer |
| Primary Function | Automated analysis of animal sperm motility, concentration, and morphology |
| Motility Analysis | |
| Analysis Parameters | VAP average path velocity; VCL track speed; VSL straight velocity; ALH head swing frequency; BCF flagellar beat frequency; LIN linearity VSL/VCL; STR straightness index; WOB wobble index |
| Trajectory Analysis | Single sperm trajectory tracking with kinetic parameter calculation |
| Image Handling | Save and generate images for future reference and analysis |
| Concentration Analysis | |
| Detection Standard | Automatic sperm concentration detection according to WHO standard |
| Concentration Metrics | Sperm per milliliter concentration and overall density |
| Count Types | Total static sperm count Type D; forward movement count Type A and B; total motile count Type A B C |
| Morphology Analysis | |
| Analysis Mode | Monochromatic mode for sperm head deformity identification |
| Head Parameters | Head area, perimeter, length, and width |
| Midpiece Parameters | Middle section area and width |
| Embedding Metrics | Central embedding distances and angles |
| Tail Evaluation | Normal tail identification and assessment |
| Software System | |
| Operating System | Windows XP with Chinese and English interface |
| Capture Method | Medical dedicated capture card supporting single field, single frame, and continuous frame acquisition |
| Image Processing | High resolution image capture with static and dynamic sperm analysis |
| Data Functions | Statistical analysis, visual analysis, query, modification, storage, and report printing |
| Standard Configuration | |
| Computer | Laptop Lenovo 1 pc |
| Camera | Camera China 1 pc |

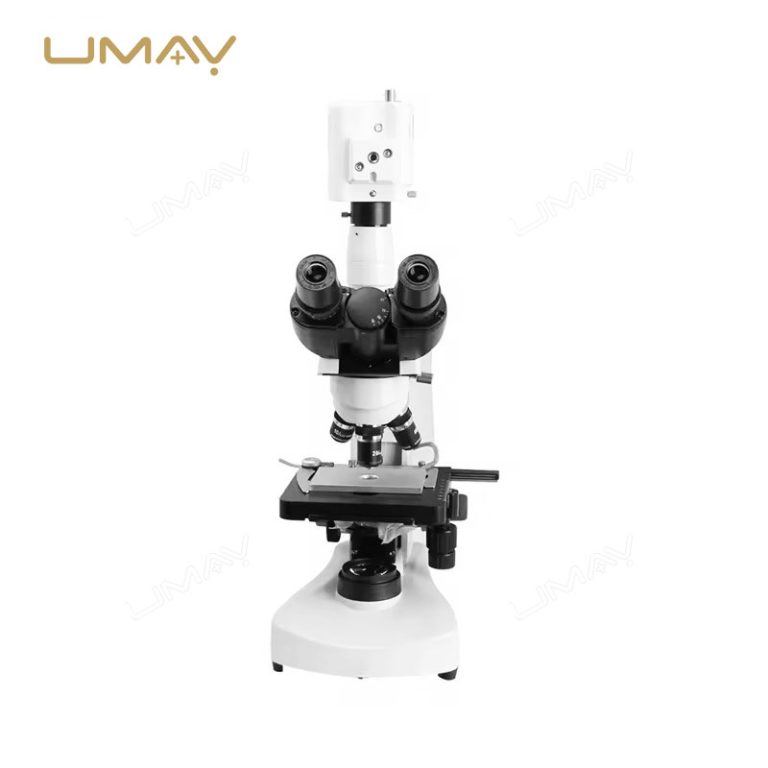

| Microscope | Binocular Microscope 1 pc |
| Analysis Software | Microscope Analysis Software 1 pc |
| Accessories | Counting Plate 1 pc; Sperm Thermostat 1 pc; Microscope Slide 1 pc |
| Documentation | User Manual 1 pc |
Feature list for UMY-VEBT-003
- Multi parameter sperm motion and velocity analysis
- High speed image capture with frame by frame review
- Large sample capacity and flexible data grouping
- Automated reporting with clear visual output
Application
Designed for veterinary hospitals, animal breeding centers, research institutes, and livestock reproduction laboratories. It supports fertility assessment, breeding evaluation, and reproductive research across multiple animal species.
