Smart Patient Monitor With 5.5 Inch Touchscreen SpO2 NIBP And ECG For Small & Large Animals
Quick Info.
- SKU NO.: UMY-VEPM-007
- Device Classification: Class â…¡
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton or Wooden Cases
- Origin: Guangzhou City, Guangdong, China
- Material: Metal, Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 2200 Sets/Year
Power Source:Â Electric
Warranty: 1 year
After-sale Service: Online service and delivering spare parts
Transport Package: Carton or Wooden Cases
Material: Metal, Plastic
Origin: Guangzhou City, Guangdong, China
Instrument Classification:Â Class â…¡
Quality System Standard: ISO13485
This smart veterinary patient monitor delivers accurate multi-parameter vital signs tracking in an ultra-thin handheld design weighing just 0.3kg, built for clinical reliability across a broad range of species. Equipped with advanced anti-motion SpO2 technology and multi-parameter vital signs coverage including NIBP, ECG, respiration, and temperature, the system adapts to both small and large animal physiological ranges without reconfiguration.
Flexible configuration options:
Five selectable hardware configurations from the basic SpO2-only model through to the full SpO2 plus NIBP plus ECG plus TEMP version allow clinics to match the monitor precisely to their caseload requirements and budget.
Built for portable animal monitoring in practice and field:
The 4000mAh lithium battery sustains over six hours of continuous portable animal monitoring, while WiFi connectivity and an iOS/Android companion app extend real-time data access beyond the bedside.
Veterinary teams managing post-operative recovery can also explore the Vet Patient Monitor With 10 1 Inch Touch Screen Ecg Nibp Spo2 Resp Temp as a trolley-based companion to this veterinary patient monitor.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Physical Specifications | |
| Dimensions | 153 × 83 × 28 mm |
| Weight | 0.3 kg |
| Display | 5.5″ color LCD, 1280 × 720 px, capacitive touchscreen |
| Power | |
| Input Voltage | DC 5V 2A |
| Battery Life | Up to 6 hours (4000 mAh lithium) |
| Connectivity | Type-C, Wi-Fi, iOS / Android app |
| Application Scene | Small and large animals |
| SpO2 | |
| Measurement Range | 0 ~ 100% |
| Accuracy | ±2% (70%–100%) |
| NIBP | |
| Large Animal (SYS / DIA / MEAN) | 30–280 / 10–220 / 20–240 mmHg |
| Small Animal (SYS / DIA / MEAN) | 30–220 / 10–160 / 20–170 mmHg |
| Accuracy | Maximum mean error ±5 mmHg |
| Heart Rate | |
| Large Animal | 15 ~ 300 bpm |
| Small Animal | 15 ~ 350 bpm |
| Temperature | 0.0 ~ 50.0 °C, accuracy ±0.1 °C |
| ECG | 3 Leads (I, II, III), sweep speed 6.25–25 mm/s |
| Respiration Rate | 0 ~ 120 BrPM (large) / 0 ~ 150 BrPM (small) |
| EtCO2 (Optional) | 0 ~ 150 mmHg, NDIR method, RR 3–150 BrPM |
Feature list for UMY-VEPM-007

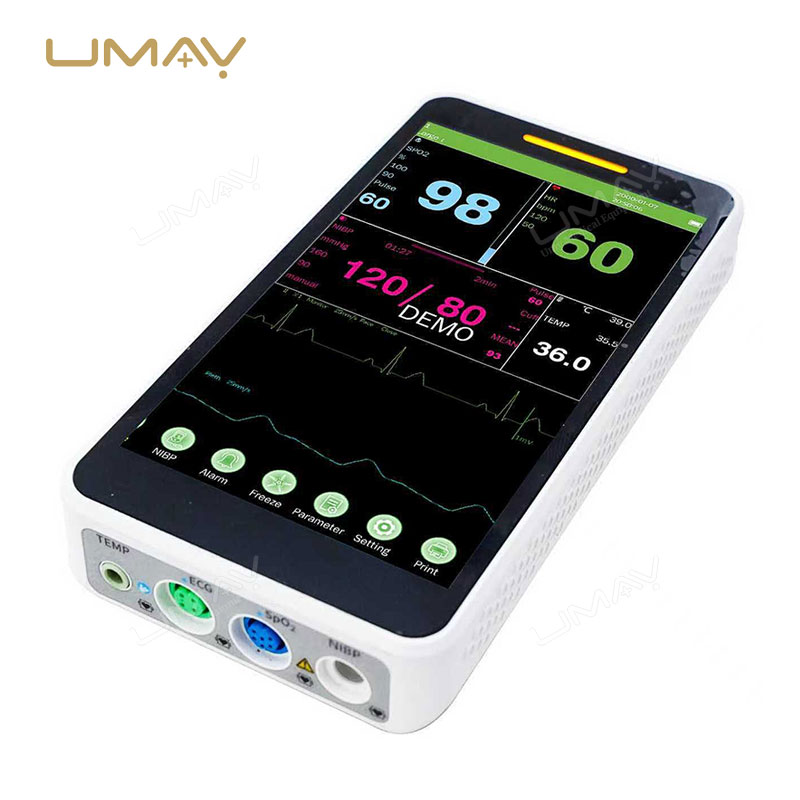

*5.5 Inch Capacitive Touchscreen With 1280×720 Resolution and Friendly UI
*Five Hardware Configurations From SpO2 Only to Full SpO2 NIBP ECG TEMP
*Anti-Defibrillator Anti-ESU Protection With Titration Function
*6 Hour Rechargeable Lithium Battery With WiFi and iOS Android App Support

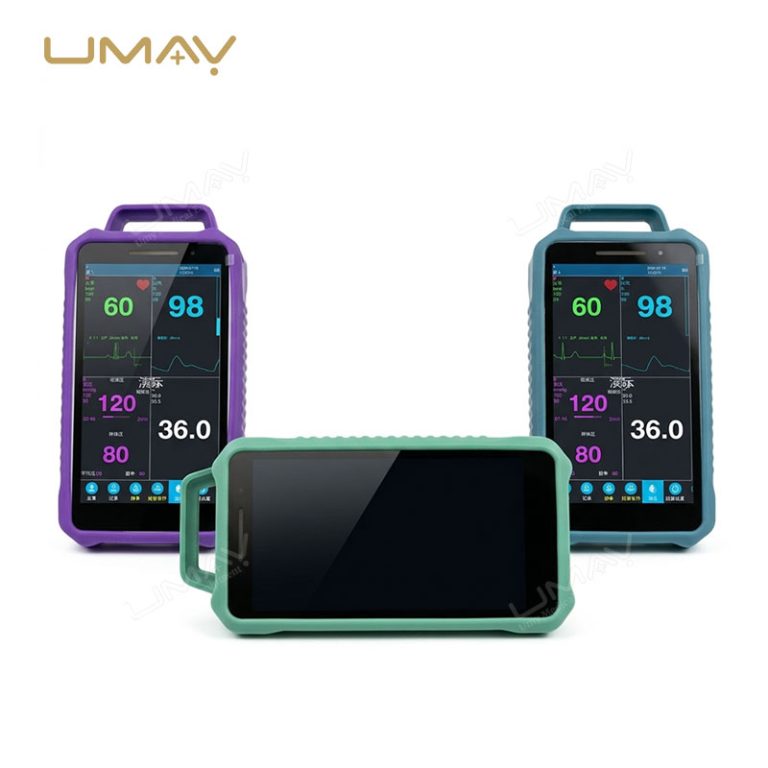

*Optional EtCO2 Wireless Printer and Silicone Protective Cover
Application
This smart veterinary patient monitor is used in small animal clinics, large animal practices, surgical suites, and field settings for continuous intraoperative and post-operative vital signs monitoring. It serves veterinarians, veterinary nurses, and surgical technicians monitoring dogs, cats, exotic species, and livestock requiring real-time SpO2, NIBP, ECG, temperature, and respiration data during procedures, recovery, and general health assessment.
Q1: Can the EtCO2 module be added to an existing unit after purchase or must it be specified at the time of ordering?
A1: The EtCO2 module is an optional add-on that should be specified at the time of ordering to ensure correct hardware configuration and compatibility.
Q2: What protective measures does the monitor incorporate to safeguard the device and the animal during surgical use with electrosurgical units?
A2: The monitor integrates anti-defibrillator and anti-ESU circuitry with baseline recovery under one second in surgery mode, protecting both the device and measurement integrity during electrosurgical procedures.
Q3: What warranty and after-sales technical support does this monitor come with, and where can complementary veterinary monitoring products be reviewed?
A3: Warranty terms and post-purchase technical support are confirmed at the time of order; complementary monitoring solutions can be reviewed Here.
