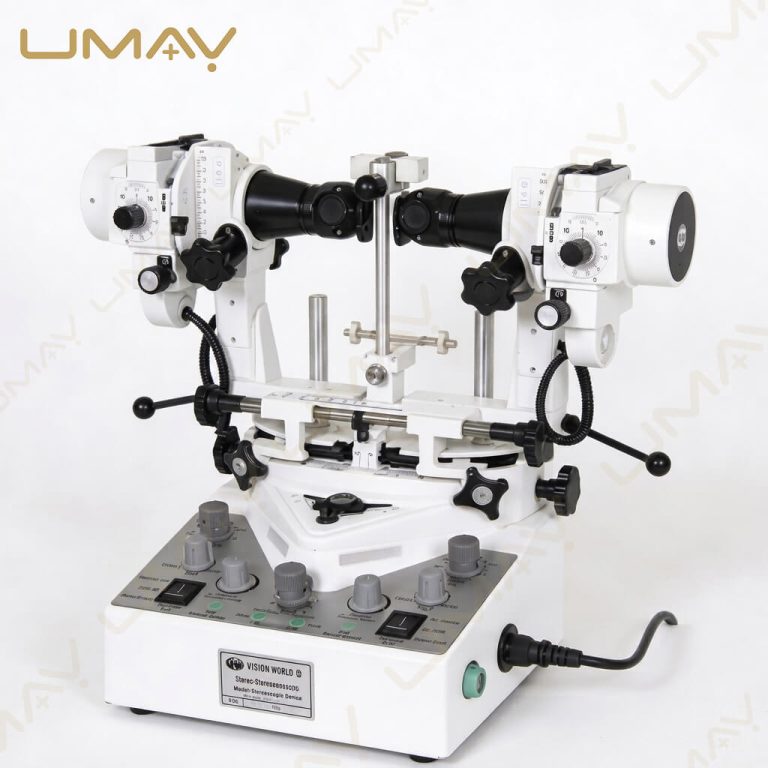

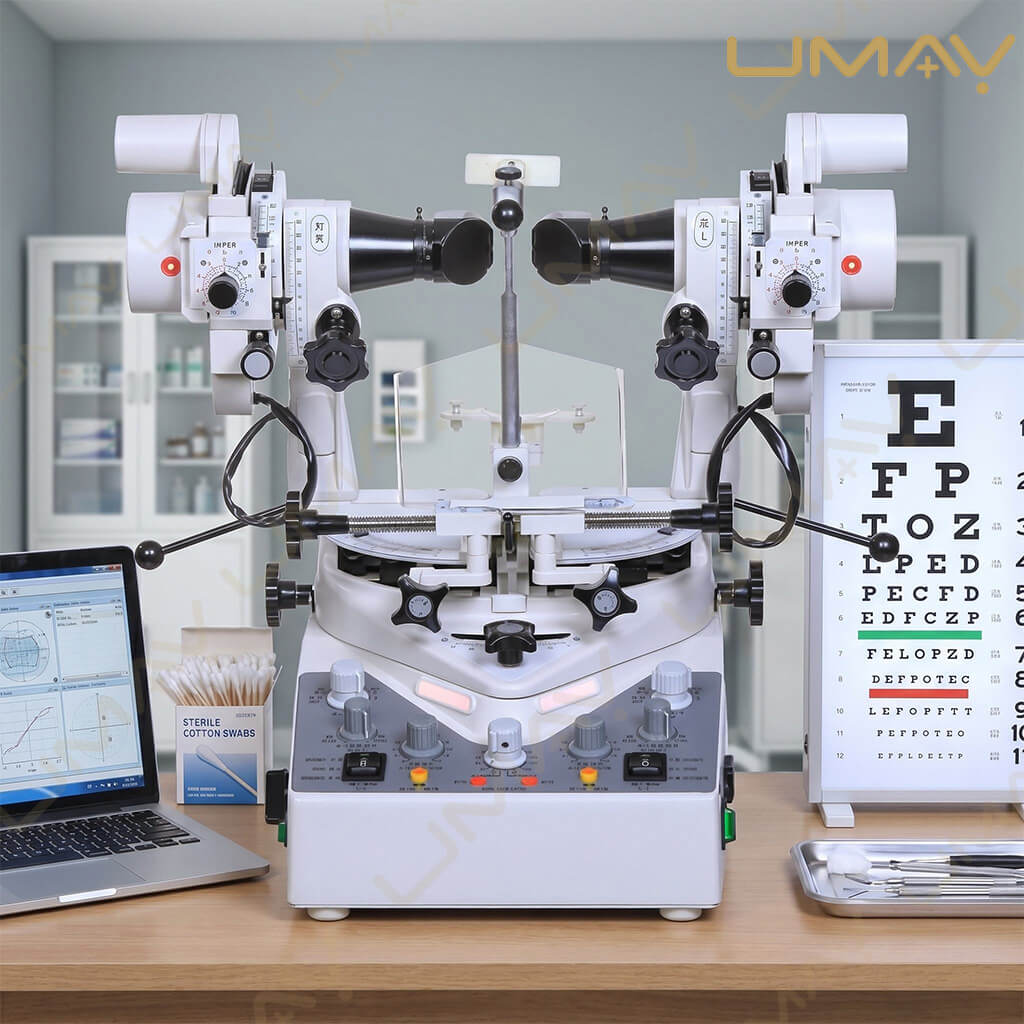

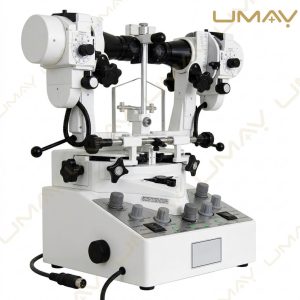

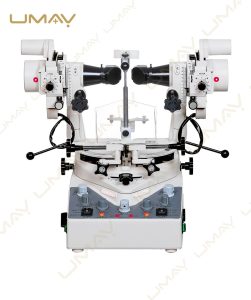

Ophthalmic Synoptophore Major Amblyoscope | High-Precision Orthoptic Equipment for Strabismus Diagnosis, Amblyopia Therapy, Binocular Single Vision Assessment, & Ocular Motility Testing with Standard Diagnostic Slides

SKU: UMSTRE001

Brand: Umy

MOQ: 1

Origin: Guangzhou City, Guangdong, China

Empower your ophthalmic clinic with an industry-standard synoptophore major amblyoscope engineered for precise strabismus diagnosis, amblyopia treatment, and binocular motility assessment. Designed for eye hospitals, pediatric ophthalmology departments, and orthoptic therapy centers, this advanced diagnostic instrument combines smooth haploscopic optical movement with fine illumination control. By offering accurate measurements of subjective and objective angles of deviation alongside specialized therapeutic training modes, this synoptophore streamlines complex orthoptic examinations and vision rehabilitation.

Quick Info.

Engineered for comprehensive orthoptic diagnosis and vision therapy, this premium ophthalmic synoptophore (major amblyoscope) provides accurate evaluation and treatment of strabismus, amblyopia, binocular vision anomalies, and ocular motility disorders. Equipped with dual adjustable optical viewing tubes, precise angular scales, automatic flashing modes, and smooth IPD adjustments, this clinical orthoptic instrument enables eye care specialists to measure objective/subjective angles of deviation, evaluate fusion vergence, and conduct suppression therapy with superior clinical accuracy.

The Specific Parameters

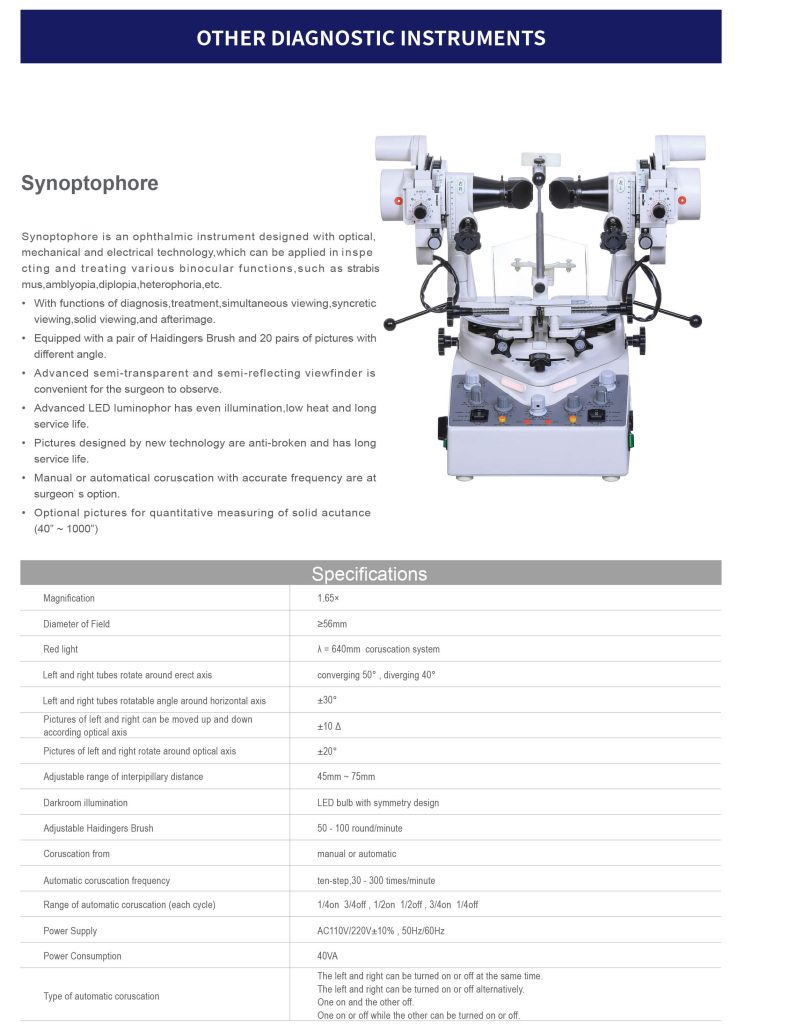

Synoptophore technical specifications chart and features overview for eye clinics. — Technical brochure showing features and parameter specifications for the synoptophore diagnostic system.

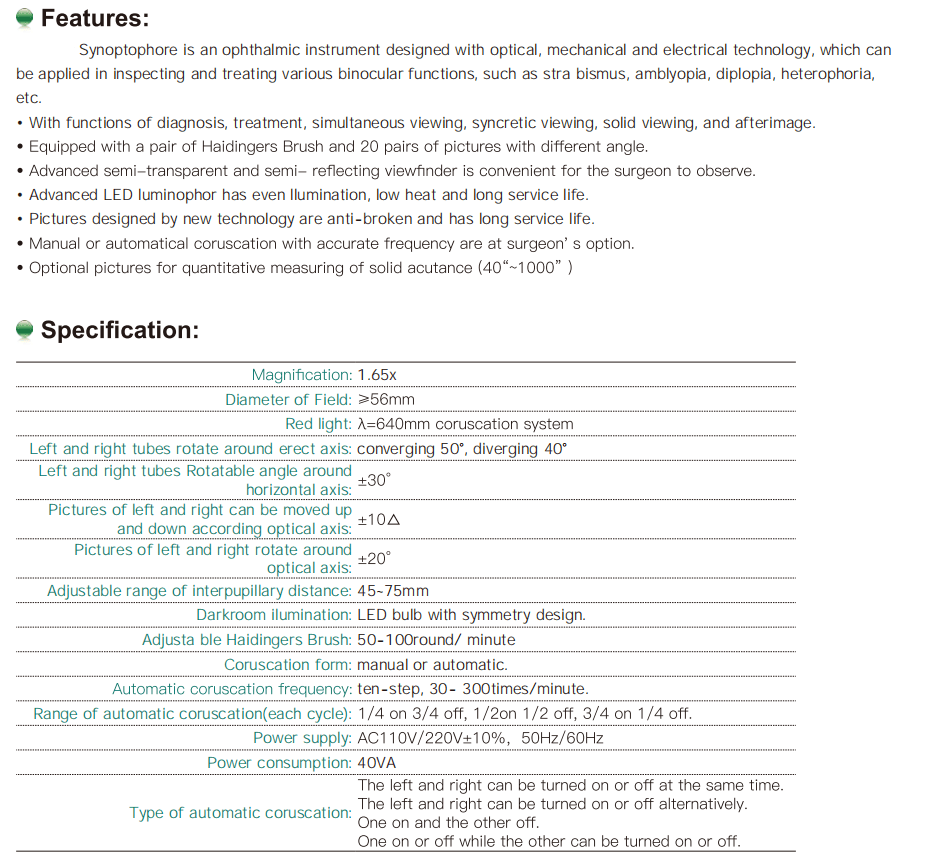

Specification table listing optical and mechanical features of synoptophore instrument. — Summary of key functional features and technical parameters for synoptophore diagnostic equipment.

Core Systems Engineering Advantages for Medical Sourcing Networks:

Precise Haploscopic Optical Architecture: Deliver reliable diagnostic results. The mirror-based optical system presents independent target images to each eye, allowing clinicians to measure retinal correspondence, suppression depth, and fusional vergence with high reproducibility.
Versatile Therapeutic & Diagnostic Application: Combine evaluation and treatment in one unit. From assessing angle kappa and heterophoria to conducting orthoptic fusion exercises, this machine serves as a complete binocular vision workstation.
Rugged Mechanical & Electronic Reliability: Built for long service life. The solid base housing houses low-voltage illumination circuits, smooth mechanical lock knobs, and easy-access slide holders, ensuring trouble-free daily operation.

📊 Comprehensive Technical Specifications:

Technical Parameter Component	Standard System Configuration Attribute
System Device Classification	Ophthalmic Synoptophore / Major Amblyoscope
Eyepiece Optical Lens Power	$+6.50\text{ D}$ Standard Viewing Lenses
Horizontal Angular Scale Range	$-40^\circ\text{ (Convergence) to }+40^\circ\text{ (Divergence)}$
Vertical & Torsional Scale Range	Vertical $\pm 30^\circ$ , Cyclotorsional $\pm 20^\circ$
IPD Adjustment Distance Range	$45\text{ mm -- }75\text{ mm}$ Mechanical Adjustment

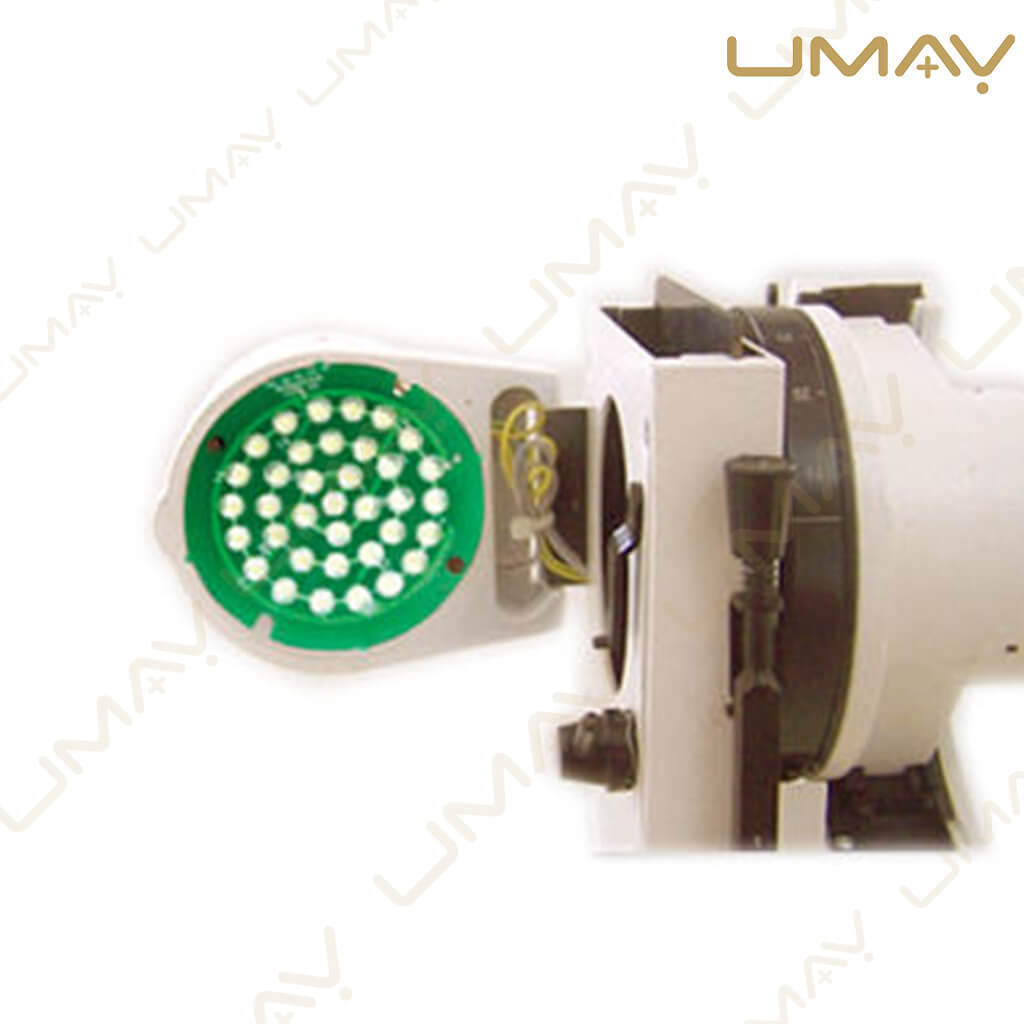

Illumination & Flashing Control	Independent Rheostat Dimming & Auto/Manual Flashing

❓ Crucial B2B Component Sourcing Q&A

Q1: What primary clinical diagnostic tests can be performed with this synoptophore?

A: The synoptophore is used to measure the objective and subjective angle of deviation, assess the three grades of binocular single vision (simultaneous perception, fusion, and stereopsis), evaluate abnormal retinal correspondence (ARC), detect suppression, measure horizontal/vertical vergence ranges, and check for cyclophoria and hyperphoria.

Q2: How does the flashing unit aid in therapeutic orthoptic treatment?

A: The integrated flashing unit allows clinicians to alternately or simultaneously illuminate the target slides at variable speeds. This light stimulation helps break down retinal suppression, stimulate the amblyopic eye, and retrain normal binocular correspondence during vision therapy sessions.

Q3: Does the package include diagnostic target slides for strabismus and stereopsis testing?

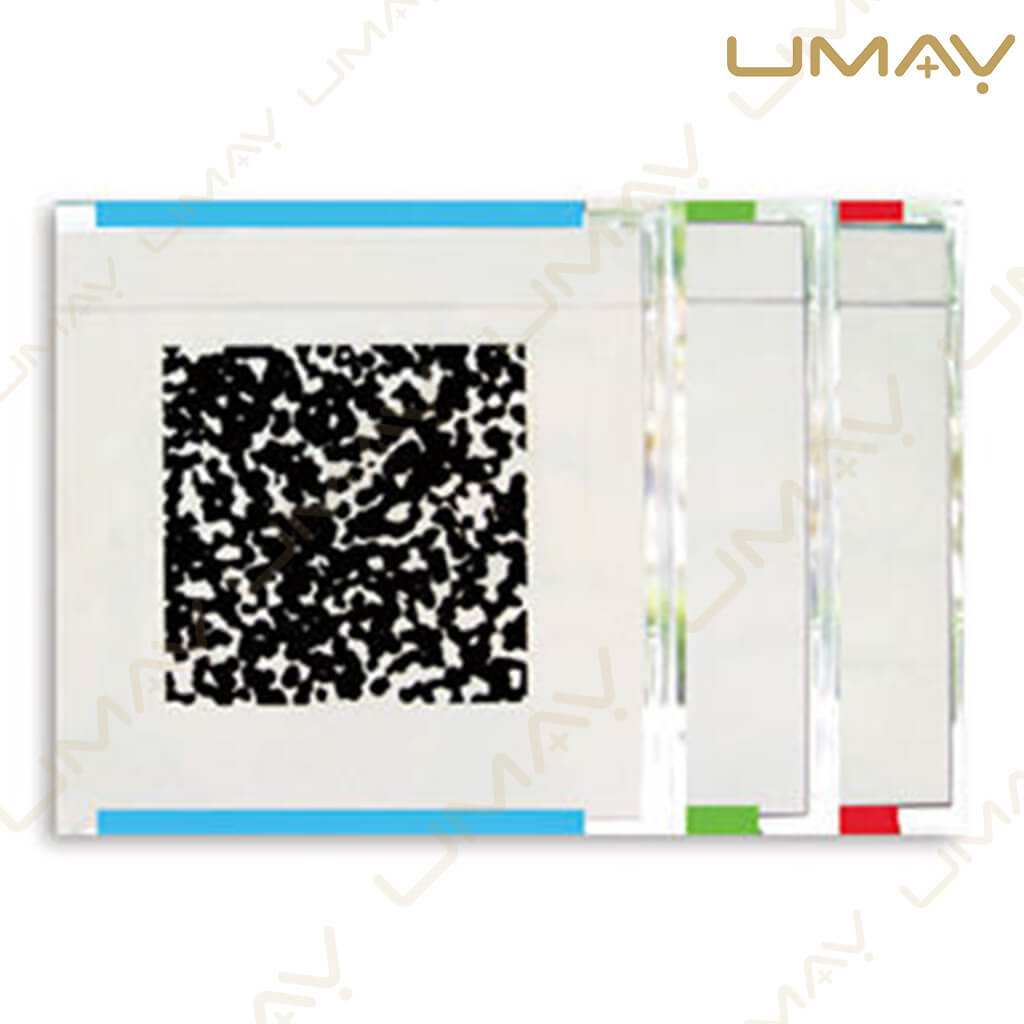

A: Yes. We offer standard and customized slide packages that include Simultaneous Macular Perception (SMP) slides, Fusion slides, and Stereopsis slides, allowing practitioners to conduct immediate, full-spectrum orthoptic evaluations upon installation.

Q4: What OEM branding, voltage customization, and export certifications are provided for international importers?

A: We support complete OEM customization, including custom exterior logos, localized packaging, multi-language manuals, and voltage adaptations ( $110\text{V} / 220\text{V}$ ). We also supply full CE certificates, ISO 13485 quality system documentation, and factory test reports for regional customs clearance.
