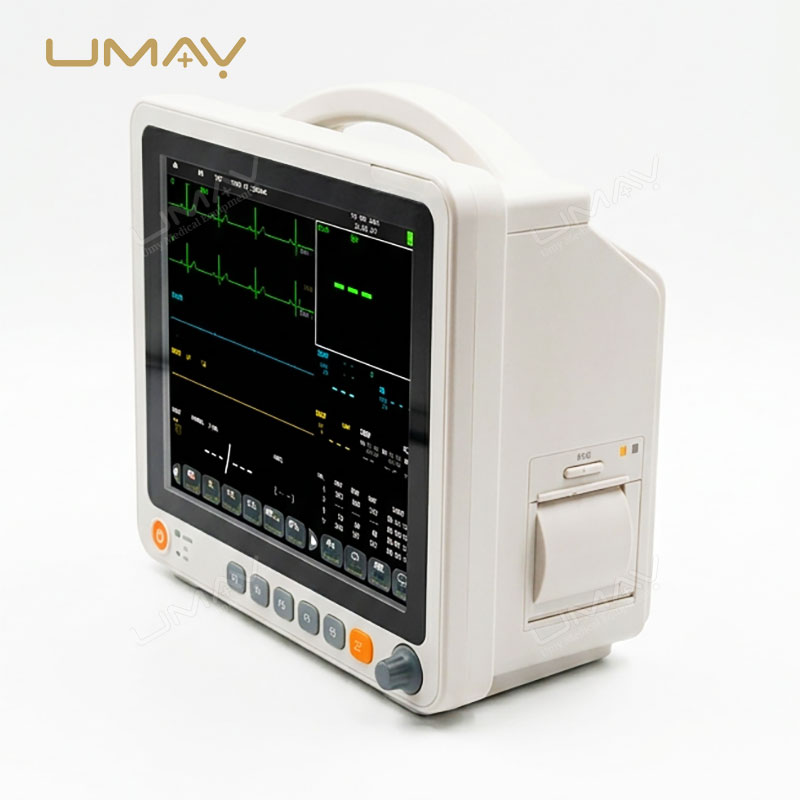

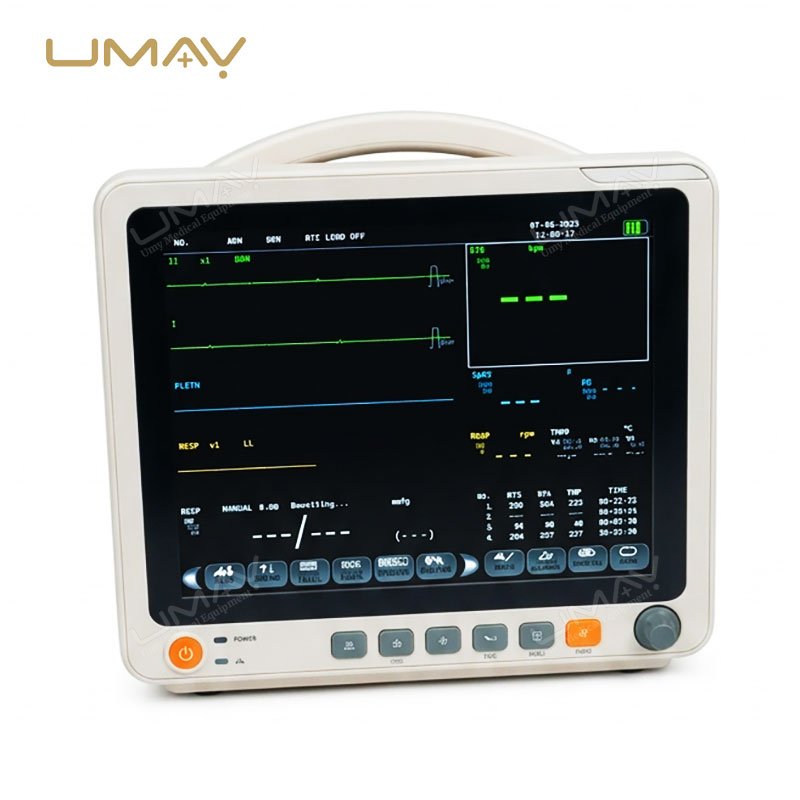

Multi Parameter Monitor With 12.1‘ Display ECG RESP NIBP SPO2 TEMP and PR for Clinical and Surgical Use
Quick Info.
- SKU NO.: UMY-PM-001
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton or Wooden Cases
- Origin: Guangzhou City, Guangdong, China
- Material: Metal, Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 3700 Sets/Year
Power Source: Electric
Warranty: 1 year
After-sale Service: Online service and delivering spare parts
Transport Package: Carton or Wooden Cases
Material: Metal, Plastic
Origin: Guangzhou City, Guangdong, China
Instrument Classification: Class Ⅱ
Quality System Standard: ISO13485
This multi-parameter monitor delivers continuous real-time patient data across six core vital signs including ECG, RESP, NIBP, SPO2, TEMP, and PR. It features a 12.1-inch high-resolution color TFT display with touch-screen operation for fast, intuitive navigation at the bedside. The built-in USB interface supports seamless software upgrades and data transfer without requiring additional tools.
Display and interface versatility
Three working modes — Monitoring, Surgery, and Diagnosis — allow clinical teams to adapt the device to different care scenarios. The multiple display options including ECG Standard Full Display, Large Font, and Trend Table ensure data is always presented in the format most useful to the attending team.
Designed for reliable around-the-clock operation
ICU wards, operating rooms, and high-dependency units rely on this device for continuous vital sign surveillance across adult, pediatric, and neonatal patient groups. The built-in high-capacity battery supports up to three hours of continuous operation during transport or power interruptions.
For other essential clinical monitoring solutions, explore our Biphasic Defibrillator Monitor with ECG for Medical Emergency. Trusted by hospitals and surgical centers, this multi-parameter monitor delivers the clinical reliability and workflow flexibility that frontline medical teams depend on.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Core Display & Interface | |
| Screen Type | 12.1 inch high resolution color TFT Touch-screen |
| Display Modes | Standard, Large font, ECG Full Display, OXY, Trend Table, BP Trend |

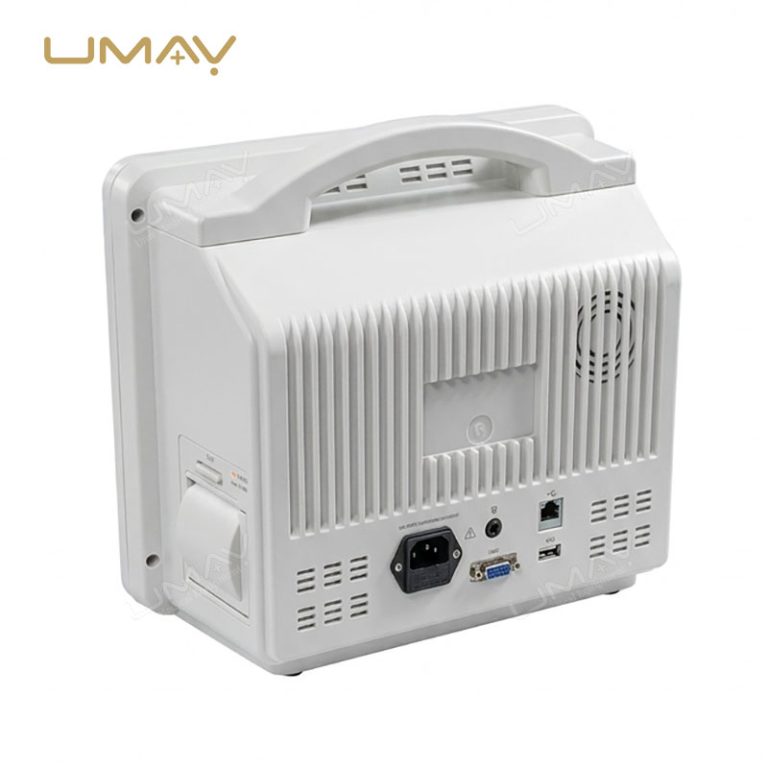

| External Output | VGA output for external display |
| Connectivity | USB interfaces and Central Monitoring System (CMS) compatible |
| ECG (Electrocardiogram) | |
| Lead Mode | 5 Leads (I, II, III, AVR, AVL, AVF, V) |
| Heart Rate Range | Adult: 15-300 BPM; Neonatal: 15-350 BPM |
| Bandwidth | Diagnostic: 0.05~130 Hz; Monitor: 0.5~40 Hz; Surgery: 1~20 Hz |
| ST Measurement | Range: -2.0 ~ +2.0 mV; Accuracy: ±0.02mV or ±10% |
| SPO2 & Pulse Rate | |
| SPO2 Range | 0 ~ 100% (Accuracy: ±2% between 70%~100%) |
| Pulse Rate Range | 20-250 BPM (Accuracy: ±3 BPM) |
| NIBP (Non-Invasive Blood Pressure) | |
| Method | Oscillometry (Manual, Auto, STAT modes) |
| Adult Range | SYS: 40 ~ 280 mmHg; DIA: 10 ~ 225 mmHg |
| Pediatric Range | SYS: 40 ~ 220 mmHg; DIA: 10 ~ 160 mmHg |
| Neonatal Range | SYS: 40 ~ 135 mmHg; DIA: 10 ~ 100 mmHg |
| Respiration & Temperature | |
| RESP Method | Impedance between RA-LL or RALA |
| RESP Range | Adult: 10 ~ 120 BrPM; Neonatal/Pediatric: 7 ~ 150 BrPM |
| TEMP Range | 0 ~ 50 C (Accuracy: ±0.1C) |
| Physical & Power | |
| Battery | Built-in high capacity; up to 3 hours continuous work |
| Single Unit Size | 37*28*36cm |
| Single Gross Weight | 4.5 KG |
| Standard Accessories | ECG cable/electrodes, SpO2 probe, NIBP cuff/tube, TEMP probe |
| Optional Upgrades | |
| Advanced Modules | 12-lead ECG, EtCO2, Dual IBP, Nellcor SpO2, Sun Tech NIBP |
| Integrated Hardware | Built-in Recorder (Printer) |
Feature list for UMY-PM-001
* 12.1 Inch High Resolution Color TFT Touch Screen Display
* Six Standard Parameters: ECG, RESP, NIBP, SPO2, TEMP, PR
* Three Working Modes: Monitoring, Surgery and Diagnosis
* Built-in High Capacity Battery Up to 3 Hours Continuous Operation
* Compatible With Central Monitoring System and VGA External Display Output
Application
Suitable for ICU wards, operating theatres, emergency departments, and general hospital wards. Designed for use by clinical nursing staff, surgeons, and anesthesiologists requiring continuous multi-parameter vital sign monitoring across adult, pediatric, and neonatal patients.
Q1: Is this monitor compatible with a central monitoring system for multi-bed ward use?
A1: Yes, the monitor supports connectivity with a Central Monitoring System (CMS), allowing real-time data to be viewed and managed across multiple beds from a central nurses’ station.
Q2: What design features support safe use during extended clinical operation?
A2: The monitor incorporates dual fuse protection on the AC220V power supply and a high-capacity internal battery that maintains stable operation during power fluctuations or patient transport between departments.
Q3: How can I place an order or request technical support for this monitor?
A3: Please visit our contact page to submit an inquiry or reach our after-sales support team. Each unit includes a one-year warranty and online technical assistance.
