High-Frequency Monopolar & Bipolar Electrosurgical Unit (ESU) | Multi-Mode Surgical Diathermy Generator with Dedicated ENDO Port, Pure/Blend Cut, Spray/Soft Coag, & Return Electrode Safety Monitoring for Operating Rooms & Endoscopy Suites
Upgrade your surgical suite’s cutting accuracy and coagulation speed with a versatile high-frequency electrosurgical unit (ESU) built for general surgery, gynecology, urology, dermatology, and gastrointestinal endoscopy.
In fast-paced operating theaters, surgeons require predictable tissue dissection without excessive lateral thermal damage or carbonization. This desktop electrosurgical generator utilizes dynamic tissue impedance sensing to automatically adapt high-frequency output as the electrode passes through fat, fascia, and vascular beds. With color-coded yellow (CUT) and blue (COAG / BIPOLAR) functional zones on a sealed, disinfectant-resistant membrane front panel, circulating nurses and surgical technologists can verify and adjust wattage settings from across the operating room.
Quick Info.
- SKU NO.: UMES032
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton or Wooden Cases
- Origin: China
- Material: Metal, Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 500 Sets/Year

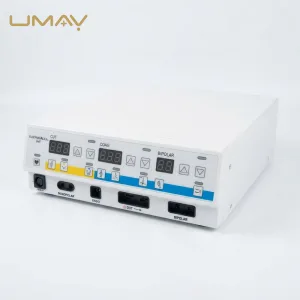

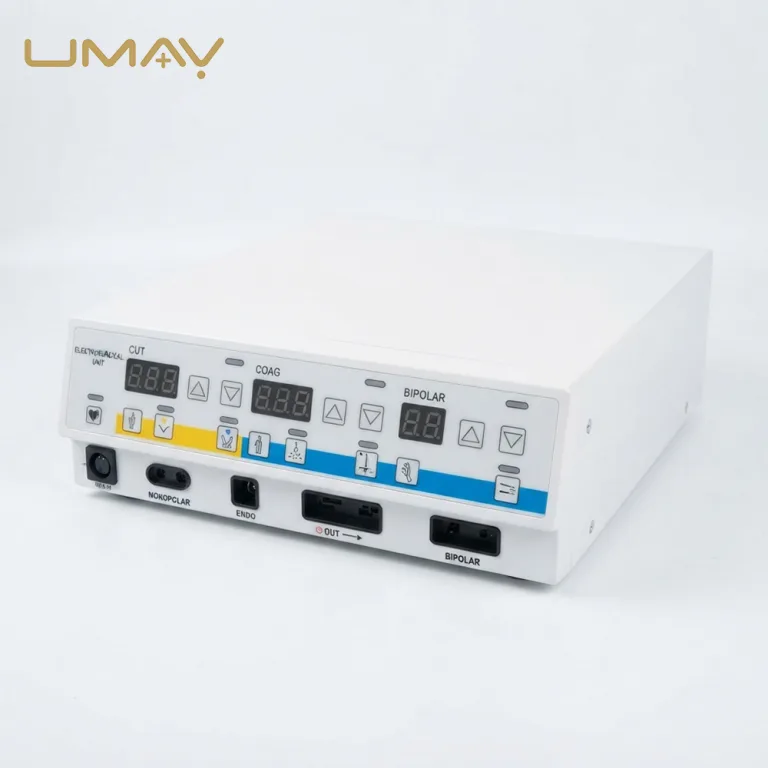

Engineered for surgical precision and reliable hemostasis across multi-disciplinary operating rooms, this high-frequency monopolar and bipolar electrosurgical unit (ESU) delivers stable radiofrequency energy across diverse tissue densities. Featuring an intuitive tri-zone digital LED control panel for independent CUT, COAG, and BIPOLAR power management, a dedicated ENDO output port for minimally invasive endoscopic procedures, and real-time Return Electrode Monitoring (REM) for patient burn prevention, this compact desktop surgical diathermy generator provides hospitals, ambulatory surgery centers, and endoscopy clinics with a safe, cost-effective electrosurgical platform.
The Specific Parameters
-
-

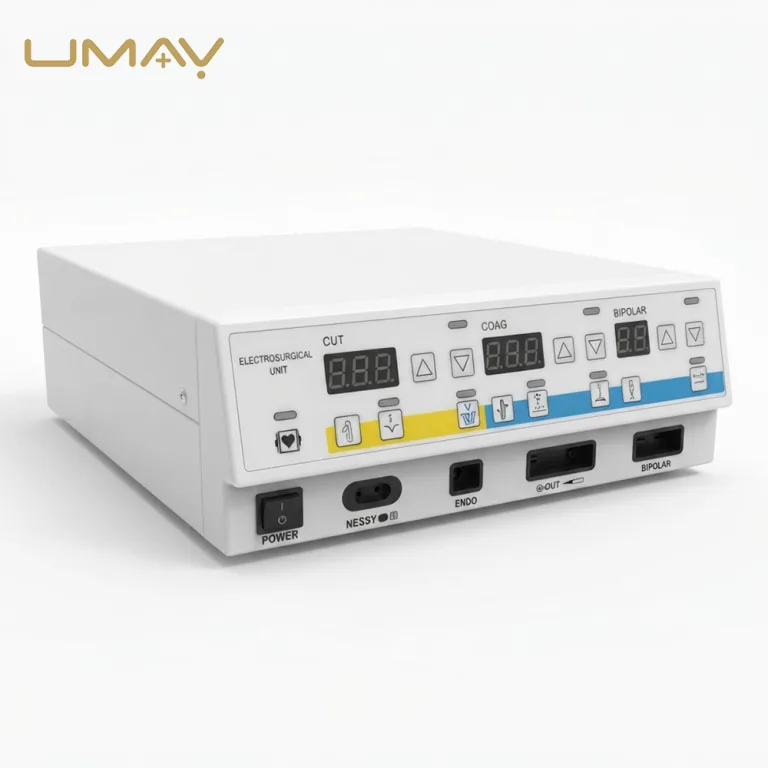

Independent Tri-Zone Digital Control Console: Features three separate high-visibility LED numeric displays with dedicated tactile membrane arrow keys for simultaneous tracking and instant adjustment of Monopolar Cut, Monopolar Coagulation, and
BIPOLARpower outputs. -
Dedicated Endoscopic Surgical Port: Equipped with a specialized
ENDOconnection port and micro-controlled fractionated cutting pulses tailored for gastrointestinal polypectomy, papillotomy, and endoscopic mucosal resection. -
Versatile Multi-Mode Tissue Dissection & Hemostasis: Supports Pure Cut and Blend Cut modes for smooth incision alongside Contact/Soft Coag, Forced Coag, and non-contact Spray Coagulation for rapid capillary and arterial sealing.
-
Continuous Return Electrode Monitoring (REM): Integrates an intelligent neutral pad contact quality circuit on the front console that continuously verifies skin-to-pad contact area, shutting down RF output immediately if pad detachment is detected.
-

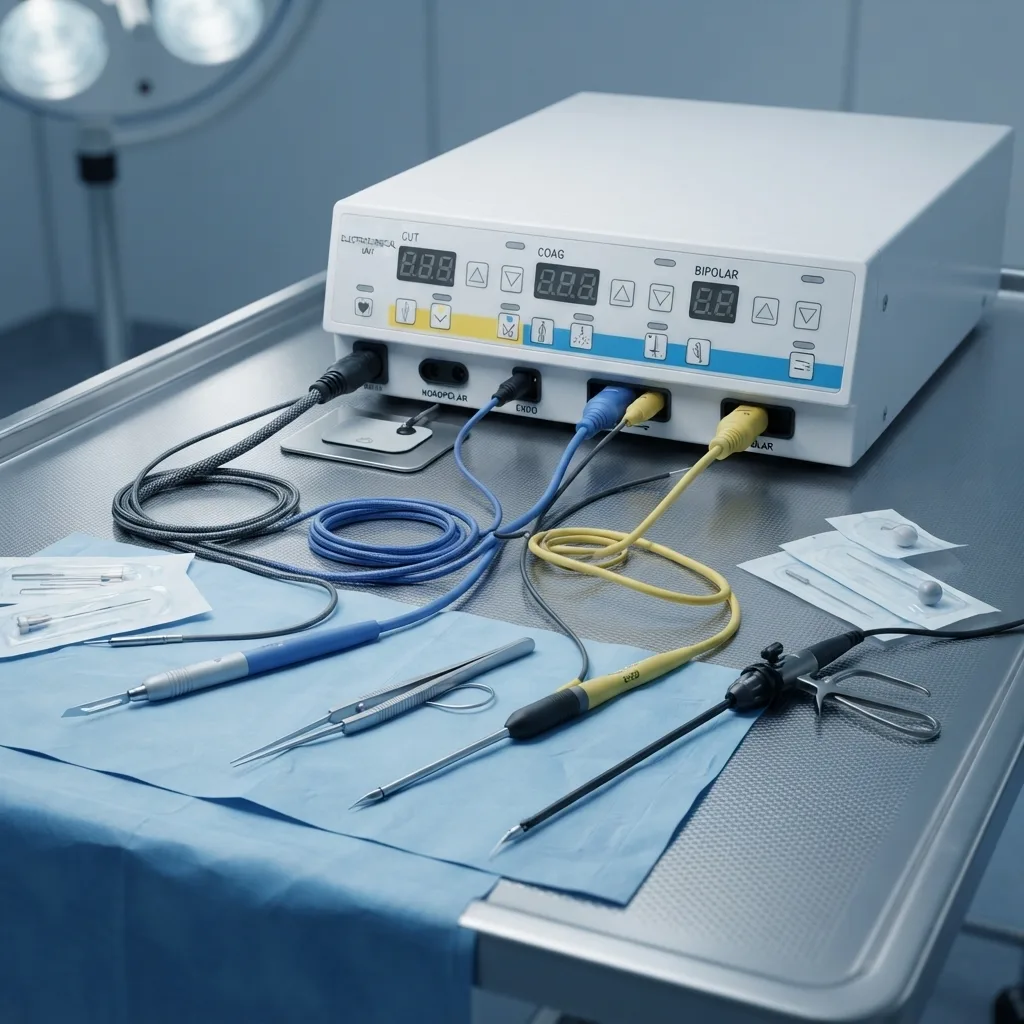

Dual Monopolar & Bipolar Output Architecture: Clearly organized lower receptacle bank allows seamless plug-and-play connection of hand-switched pencils, foot-controlled electrodes, endoscopic snares, and precision bipolar forceps.
-

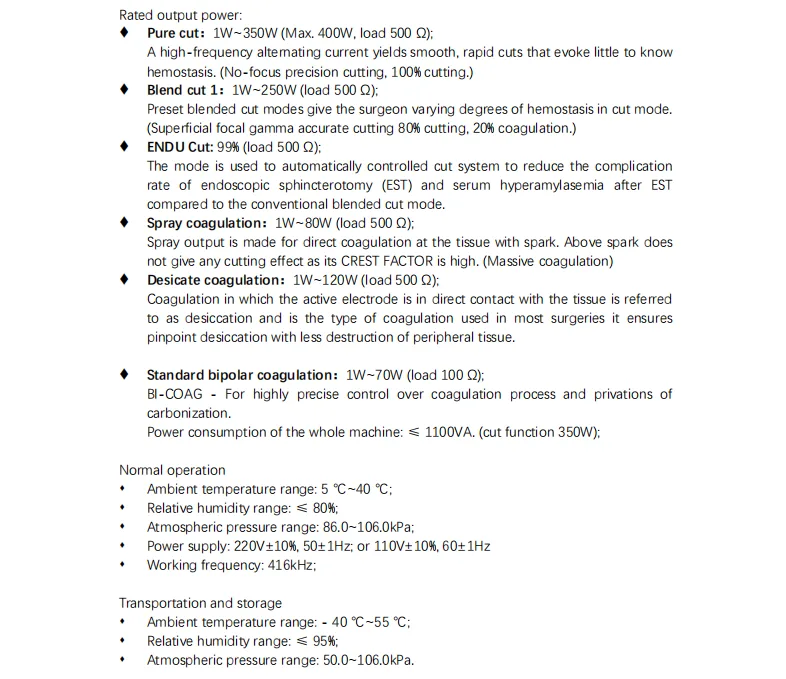

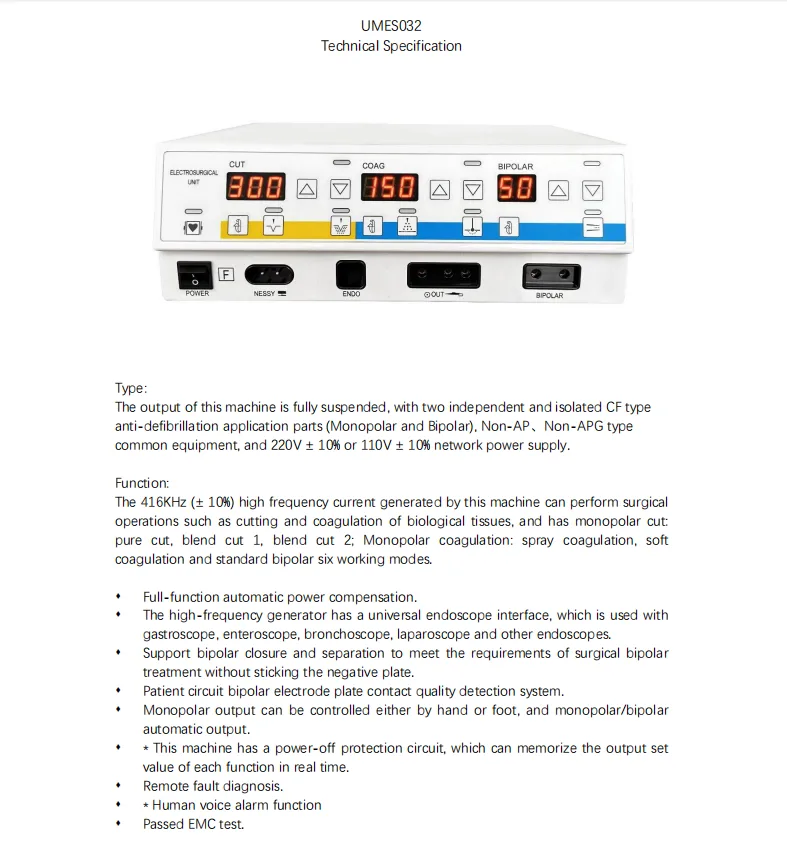

Comprehensive Technical Specifications
| Technical Parameter Component | Standard System Configuration Attribute |
| Device Classification |
High-Frequency Monopolar & Bipolar Electrosurgical Unit (ESU) |
Monopolar Cut Modes (CUT) |
Pure Cut & Blend Cut Modes with 3-Digit LED Power Display |
Monopolar Coag Modes (COAG) |
Soft/Contact Coag, Forced Coag, & Non-Contact Spray Coagulation |
Bipolar Output (BIPOLAR) |
Standard/Micro Bipolar Coagulation with 2-Digit LED Power Display |
Endoscopic Integration (ENDO) |
Dedicated Front |
| Front Panel Output Ports |
Aux/Footswitch Port, |
| Safety Monitoring System |
Real-Time Return Electrode Contact Quality Monitoring (REM) |
| Activation Control Methods |
Hand-Switch Pencil Control & Waterproof Footswitch Activation |
Q1: What is the clinical purpose of the dedicated ENDO port on the front panel?
A: The ENDO port is specifically designed to connect endoscopic electrosurgical accessories, such as polypectomy snares and sphincterotomes. In endoscopic mode, the generator alternates controlled cutting and coagulation cycles automatically, allowing gastroenterologists to resect polyps and mucosal lesions cleanly while minimizing the risk of bleeding or thermal perforation.
Q2: How does the Return Electrode Monitoring (REM) system protect patients during high-power monopolar surgery?
A: When used with a split dual-foil grounding pad, the REM circuit continuously measures contact impedance between the patient’s skin and the return pad. If the pad partially peels off or impedance rises outside the safe range, the indicator flashes, an audible alarm sounds, and RF power output is automatically disabled to prevent return-site burns.
Q3: Can this electrosurgical unit use standard disposable electrosurgical pencils and grounding pads available in local markets? A: Yes. The front receptacle array is engineered to accommodate standard international 3-pin hand-controlled monopolar pencils, universal neutral return electrode plugs, and standard 2-pin bipolar forceps cables, eliminating proprietary consumable lock-in for hospitals.
Q4: What OEM customization and regulatory compliance documents do you offer for international distributors?

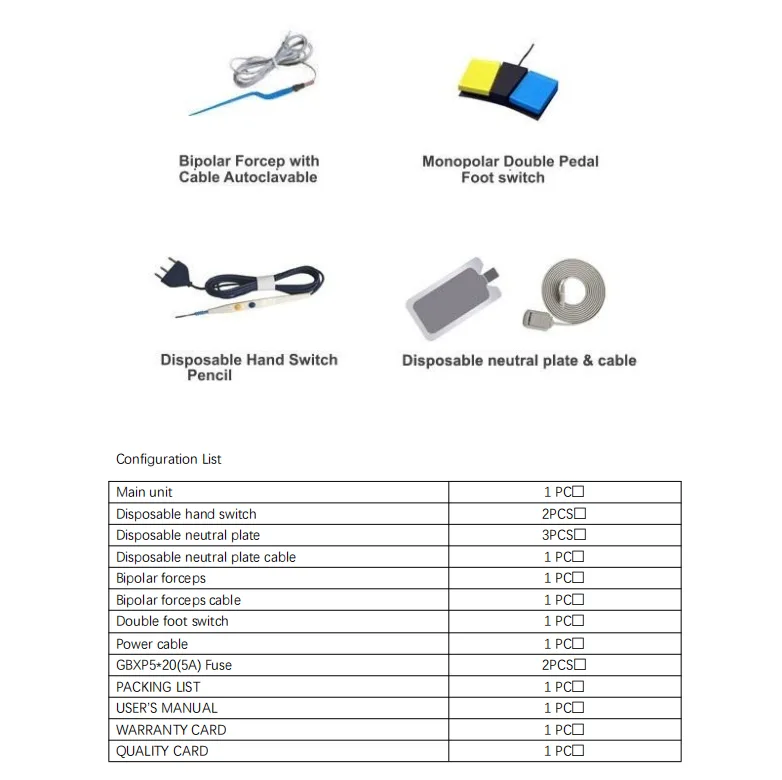

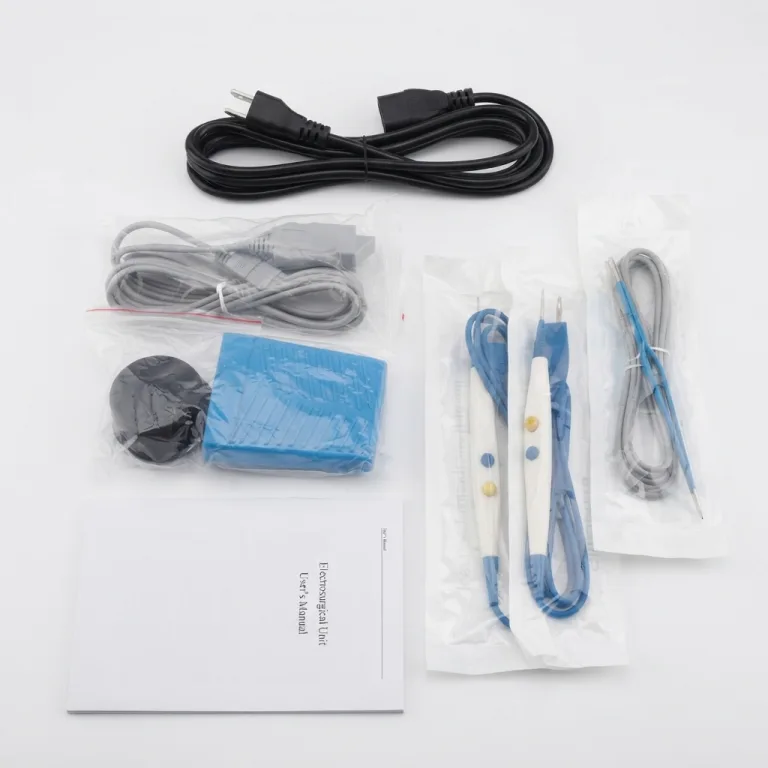

A: We provide comprehensive OEM/ODM services, including custom front panel branding, customized maximum wattage configurations (e.g., 200W, 300W, or 400W models), dual voltage compatibility (110 V/ 220 V), complete accessory kits (pencils, pads, bipolar forceps, footswitches), and full CE, ISO 13485, and IEC 60601-2-2 test reports for global registration.
