Dual Channel Semi Auto Coagulation Analyzer with Optical Detection and Low Reagent Consumption
Quick Info.
- SKU NO.: UMY-CO-002
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton or Wooden Cases
- Origin: China
- Material: Metal, Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 2600 Sets/Year
Power Source: Electric
Warranty: 1 year
After-sale Service: Online service and delivering spare parts
Transport Package: Carton or Wooden Cases
Material: Metal, Plastic
Instrument Classification: Class Ⅱ
Quality System Standard: ISO13485

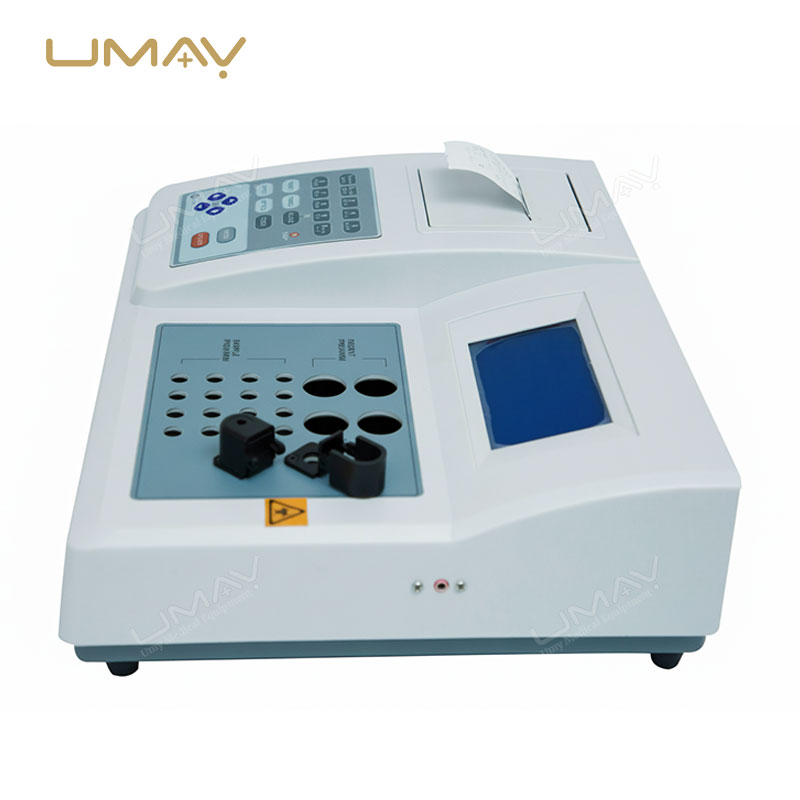

This clinical coagulation analyzer provides stable and efficient hemostasis testing with dual channel capability for parallel parameter analysis. It features optical measurement at a fixed wavelength to deliver reliable PT INR and fibrinogen results with low coincidence variation. The system maintains precise reaction temperature control and supports low sample and reagent consumption to reduce operating costs. With multiple incubation positions and an intuitive LCD interface, it simplifies daily laboratory workflows. Compact design and PC connectivity make it suitable for laboratories with limited space and high efficiency requirements. This analyzer is ideal for facilities seeking dependable coagulation testing with flexible dual channel operation.
Explore more additional laboratory diagnostic equipment.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Technical Specifications | |
| Test Channel Number | 2 channels; simultaneous analysis of 2 different parameters |
| Sample Incubation Block | 16 positions |
| Reagent Incubation Block | 4 positions |
| Software Timer | 2 |
| Test Wavelength | 470 nm |
| Memory Capacity | 10,000 test results |
| Temperature Control Precision | 37 ±0.3 °C |
| Sample Consumption | 20 µL–40 µL |
| Reagent Consumption | 20 µL–40 µL |
| Coincidence Indicator | ≤3% |
| Result Reporting Units | S %, PTR, INR, g/L |
| Display & Interface | |
| Screen | 240×128 LCD |
| Operation Language | English |
| Power Supply | 220 VAC ±15%, 50–60 Hz |
| Operating Environment | |
| Working Temperature | 15 °C–30 °C |
| Working Humidity | Wet ≤90% |
| Physical Specifications | |
| Dimensions | 395 mm (L) × 320 mm (W) × 135 mm (H) |
| Weight | 6 kg |
| Test Menu | |
| Coagulation Tests | PT, APTT, TT, FIB |
| Extended Coagulation Parameters | RT, VT, VIII, IX, XI, XII, II, V, VII, X, PS, PC, Xa, etc. |
Feature list for UMY-CO-002:
* Dual channel testing enabling two parameter analysis at the same time
* Optical detection system with precise light matching technology
* Low reagent consumption below twenty microliters per test
* Supports PT APTT TT fibrinogen and clotting factor assays
* Precision thermostat control at thirty seven degrees with tight tolerance
* Special testing cup location system with additional sample bracket
* Dispensing precision with CV less than two percent
* Built in thermal sensitive printer for immediate reporting
* Data storage capacity of ten thousand test results
* RS232 interface for PC connectivity
Application:
Designed for hospital laboratories clinical diagnostic centers and outpatient testing facilities performing routine coagulation screening and monitoring. Suitable for daily PT INR and fibrinogen testing with consistent result accuracy.
