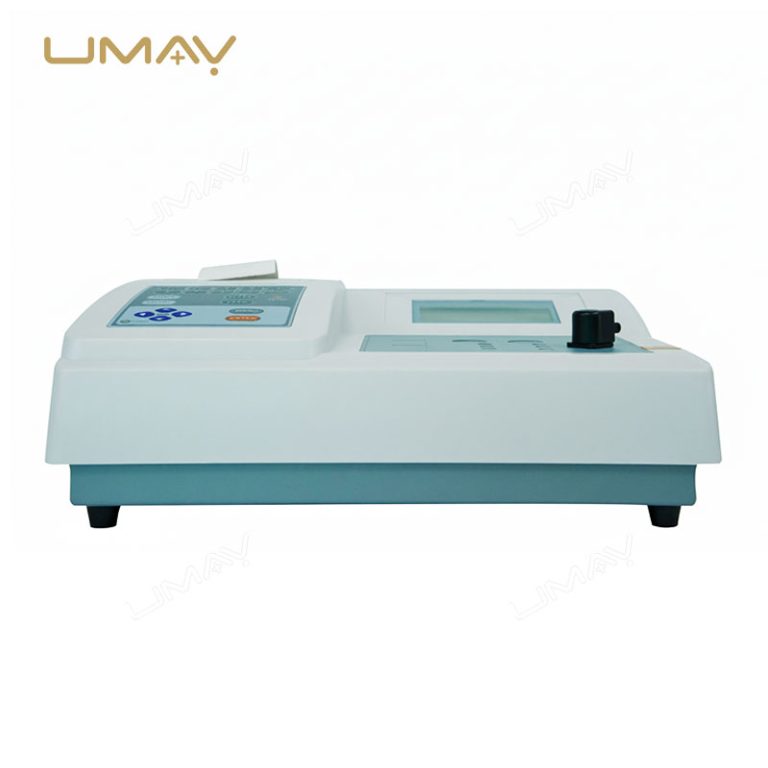

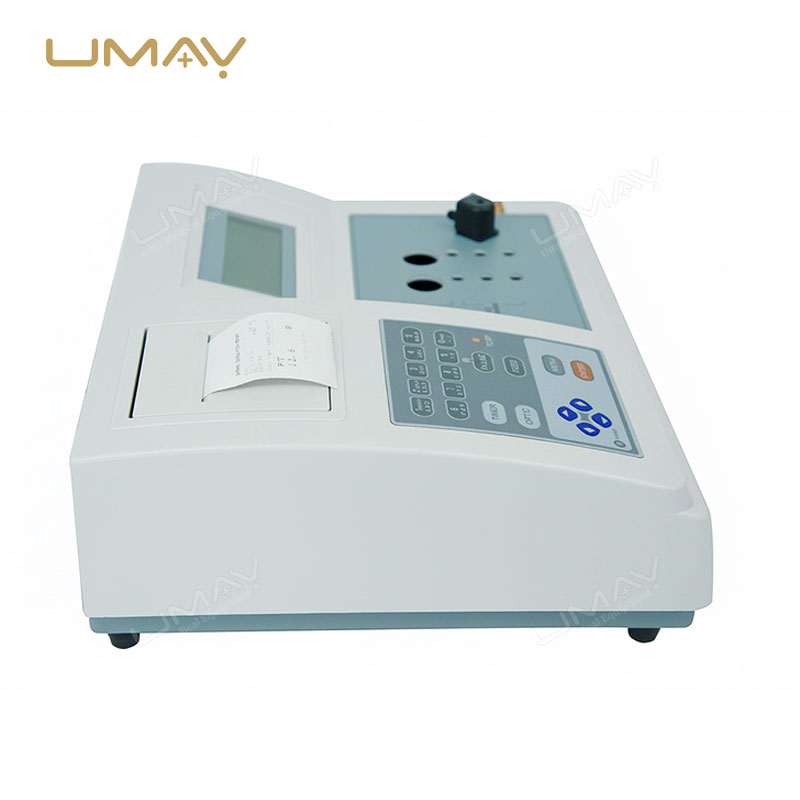

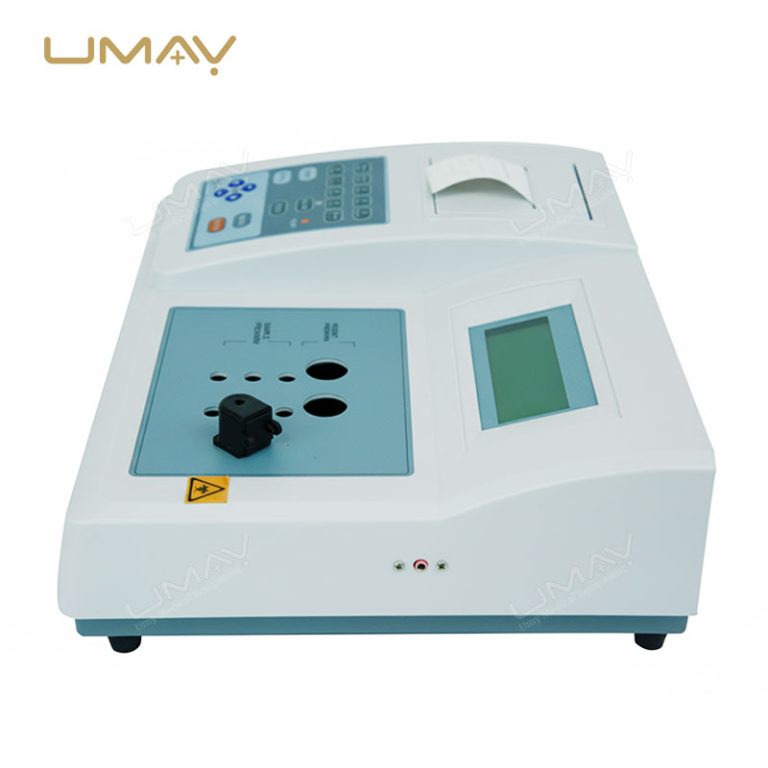

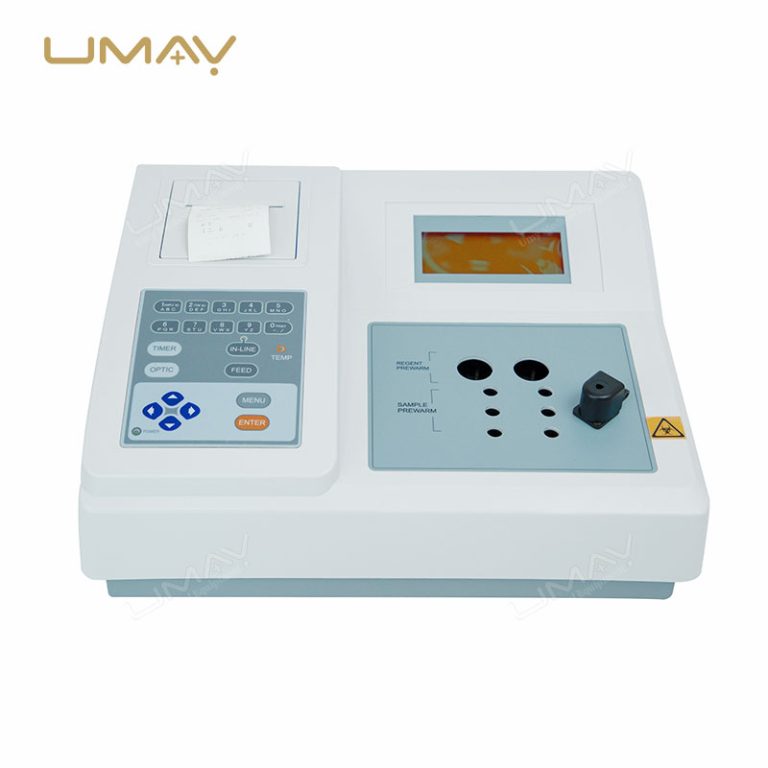

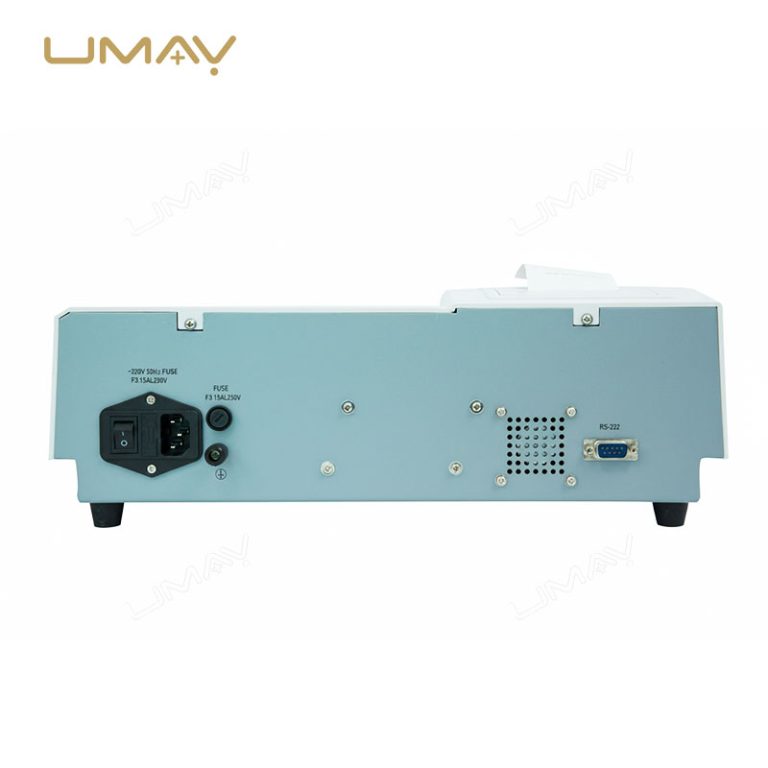

Clinical Coagulation Analyzer with Optical Measurement and Built In Printing
Quick Info.
- SKU NO.: UMY-CO-001
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton or Wooden Cases
- Origin: China
- Material: Metal, Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 2400 Sets/Year
Power Source: Electric
Warranty: 1 year
After-sale Service: Online service and delivering spare parts
Transport Package: Carton or Wooden Cases
Material: Metal, Plastic
Instrument Classification: Class Ⅱ
Quality System Standard: ISO13485
This clinical coagulation analyzer provides stable and accurate testing for routine hemostasis assessment using optical measurement technology. It features a single testing channel with multiple incubation blocks to support smooth sample and reagent handling. The analyzer delivers reliable PT INR and fibrinogen results while maintaining precise temperature stability throughout the reaction process. With low reagent consumption and an electronically linked pipette it helps reduce operating cost and manual error. Compact design and built in micro printer make it suitable for laboratories with limited space.
Explore more additional laboratory diagnostic equipment.
This system is ideal for laboratories seeking dependable coagulation testing with simple operation.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Technical Specifications | |
| Testing channel | 1 channel |
| Sample incubation block | 5 |
| Reagent incubation block | 2 |
| Software timer | 1 |
| Memory capacity | 10000 test results |
| Test wavelength | 470 nm |
| Reagent consumption | 20 uL to 40 uL |
| Result notation | S %, PTR, INR, g/L |
| Data entry | Keyboard |
| Operation language | English |
| Temperature control precision | 37 ±0.3 °C |
| Printer | Built-in micro printer, 58 mm paper width |
| Power supply | 220 VAC ±15% or 110 VAC ±15%, 50–60 Hz, 80 W |
| Operating Environment | |
| Operating temperature | 10 °C to 30 °C |
| Operating humidity | ≤80% |
| Physical Specifications | |
| Dimensions | 270 mm (L) × 270 mm (W) × 115 mm (H) |
| Weight | 6 kg |
| Test Parameters | |
| Coagulation tests | PT, APTT, TT, FIB |
| Extended factors | RT, VT, VIII, IX, XI, XII, II, V, VII, X, PS, PC, Xa, etc. |
Feature list for UMY-CO-001:
* Optical coagulation measurement with stable result accuracy
* Supports PT INR APTT TT fibrinogen reporting
* Single channel testing with dedicated incubation blocks
* Precision temperature control at thirty seven degrees
* Low reagent consumption per test
* Integrated micro printer with fifty eight millimeter paper width
* Keyboard data entry with simple operation
* RS232 interface for laboratory system integration
* Compact footprint suitable for routine clinical use
Application:
Ideal for hospitals clinics and diagnostic laboratories performing routine coagulation testing and patient monitoring. Supports daily hemostasis evaluation with reliable optical measurement.
