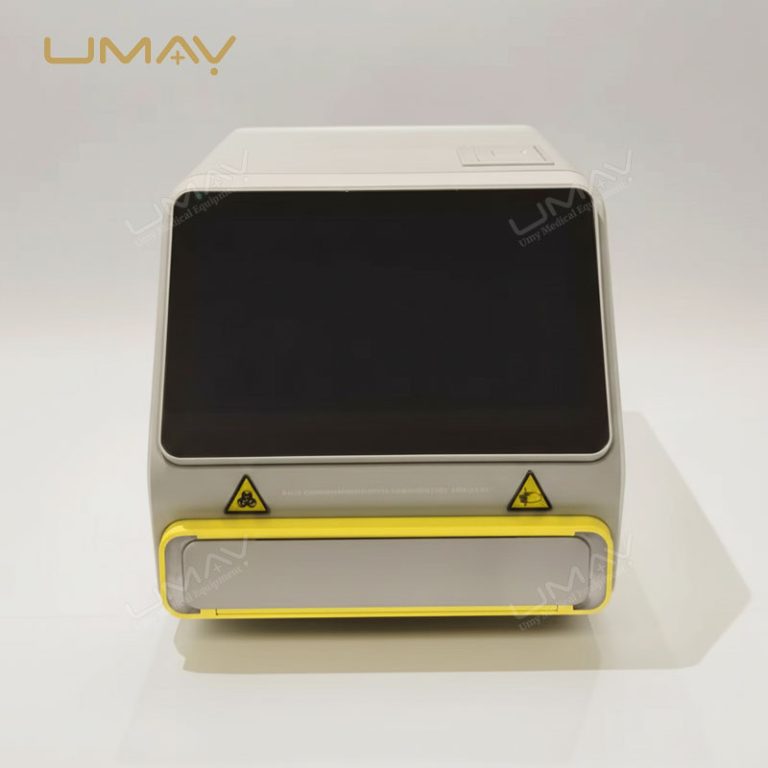

Automatic Vet Chemiluminescence Immunoassay Analyzer for Multi Species Diagnostic Testing CE Authorized
Quick Info.
- SKU NO.: UMY-VEIA-002
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton or Wooden Cases
- Origin: China
- Material: Metal, Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 2000 Sets/Year
Power Source: Electric
Warranty: 1 year
After-sale Service: Online service and delivering spare parts
Transport Package: Carton or Wooden Cases
Material: Metal, Plastic
Instrument Classification: Class Ⅱ
Quality System Standard: ISO13485
This automatic veterinary chemiluminescence immunoassay analyzer is designed to deliver fast and reliable diagnostic testing for animal healthcare environments. It uses enzymatic chemiluminescent immunoassay principles with eight reaction channels and achieves a throughput of up to one hundred twenty tests per hour. The system provides the first result within twelve minutes, supporting efficient clinical decision making. Disposable reagent cartridges help minimize cross contamination while simplifying daily operation. Lyophilized micro bead technology allows reagent storage and short term transport at controlled temperatures without added complexity. A related veterinary diagnostic category can be viewed.
This analyzer supports veterinary clinics and hospitals seeking consistent immunoassay performance with streamlined workflows.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Technical Specifications | |
| Principle | Enzymatic Chemiluminescent Immunoassay |
| Reaction Channel | 8 |
| Throughput | 120 tests per hour |
| Time for First Result | 12 minutes |
| Precision | CV ≤ 5.0% |
| Sampling Mode | Manual sampling |
| Specimen Type | Whole blood, serum, plasma, capillary blood, urine |
| Display and Interface | 10.1-inch color touch screen |
| Physical Specifications | |
| Dimension | 260 × 417 × 256 mm (W × D × H) |
| Weight | 16.5 kg |
| Operational Features | |
| Ready to Use | Disposable reagent cartridge minimizes cross contamination |
| Cost Effective | No extra consumables, everything included in the kit |
| Lyophilized Micro-Bead Technology | Reagents can be stored and transported at 4–37 ℃ for 7 days |
| Innovative and Efficient | Unique triple test concept, up to 24 parameters in one batch |
| Veterinary Assay Coverage | Broad menu of immunoassays optimized for veterinary use |
| Assay Menu | |
| Renal Function | Creatinine, Canine & Feline CysC, Canine & Feline SDMA |
| Pancreatitis | Canine PL, Feline PL, Canine PL/CRP, Feline PL/SAA, Canine & Feline TLI |
| Thyroid Function | Canine TSH, Feline TSH, Canine & Feline TSH/FT4/TT4 |
| Infectious Disease | Canine Parvovirus/Distemper Virus/Hepatitis Virus IgG; Feline Calicivirus/Herpesvirus/Panleukopenia Virus IgG |
| Drug Monitoring | Canine & Feline Phenobarbitone; Canine & Feline Cyclosporine |
| Tumor and Gastric Function | Canine & Feline AFP; Canine & Feline TK1 |
| Cardiac Marker | Canine NT-proBNP; Feline NT-proBNP; Canine cTnI; Feline cTnI; Canine & Feline D-Dimer; Canine & Feline ST2 |
| Diabetes and Hypertension | Canine & Feline HbA1c; Canine & Feline Cortisol; Canine & Feline Insulin; Canine & Feline ACTH |
| Anemia and Bone Marker | Canine & Feline Vitamin B12; Canine & Feline Vitamin D; Canine & Feline Folate; Canine & Feline FGF23 |
| Fertility | Canine & Feline E2; Canine & Feline Prog; Canine & Feline Testo |
Feature list for UMY-VEIA-002:
* Enzymatic chemiluminescent immunoassay testing for veterinary diagnostics
* Eight reaction channels with up to one hundred twenty tests per hour
* Twelve minute time to first result for rapid diagnosis
* Disposable reagent cartridge design to reduce cross contamination
* Lyophilized micro bead reagents for simplified storage and transport
* Supports whole blood serum plasma capillary blood and urine samples
* Ten point one inch color touch screen for intuitive operation
* Compact structure suitable for routine veterinary laboratory use
Application:
Designed for veterinary hospitals clinics and diagnostic laboratories performing immunoassay testing across multiple animal species. Suitable for routine screening disease monitoring and follow up testing in clinical veterinary settings.
