Animal Electro-Ejaculator With Species Specific Electrode Rods For Veterinary Semen Collection
Quick Info.
- SKU NO.: UMY-VEBT-005
- Device Classification: Class â…¡
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton or Wooden Cases
- Origin: Guangzhou City, Guangdong, China
- Material: Metal, Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 2100 Sets/Year
Power Source:Â Electric
Warranty: 1 year
After-sale Service: Online service and delivering spare parts
Transport Package: Carton or Wooden Cases
Material: Metal, Plastic
Origin: Guangzhou City, Guangdong, China
Instrument Classification:Â Class â…¡
Quality System Standard: ISO13485
The animal electro-ejaculator delivers controlled low-voltage AC stimulation to the sacral nerve center, enabling reliable semen collection from a wide range of species without prior training. With selectable output levels of 0-15V and 0-50V, the instrument supports semen collection across animals as small as rats and as large as cattle, using species-matched electrode rods sized accordingly.
Precision stimulation control:

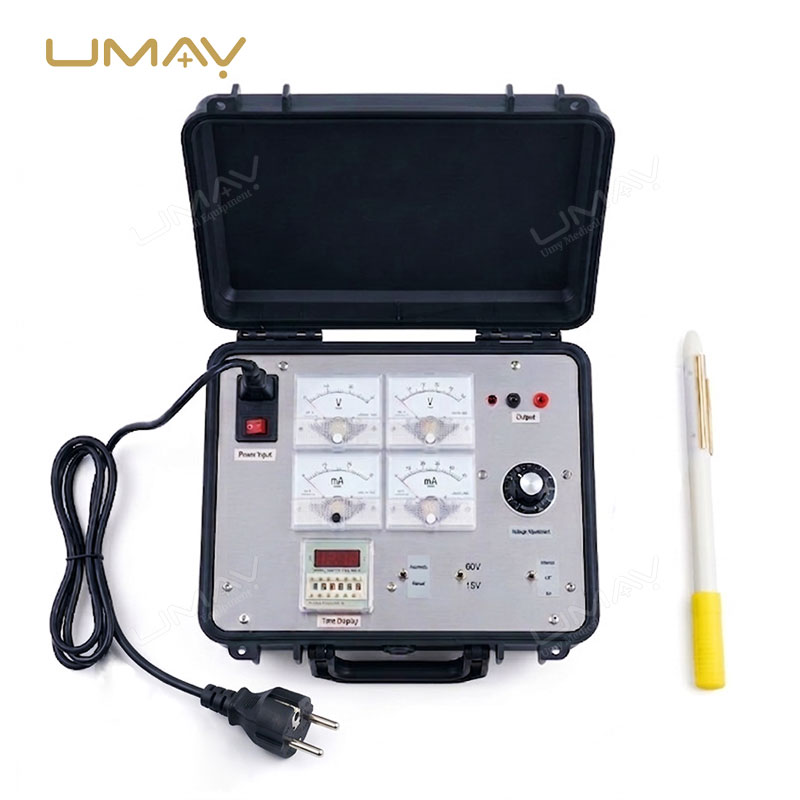

Both automatic and manual operating modes are available, with a programmable time display that allows operators to set custom stimulation and rest intervals for repeatable, protocol-driven sessions.
Practical field and clinic design:
Veterinary reproductive programs in livestock farms, wildlife conservation facilities, and research institutions rely on this instrument for its compact and portable hard case housing, making it well-suited for both in-clinic and field deployment.
For teams already working with diagnostic imaging, the Veterinary Animal Sperm Analysis System For Reproductive Diagnostics With Laptop pairs effectively with this animal electro-ejaculator for end-to-end male fertility assessment.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Power | |
| Power | 200W |
| Power Supply | AC 220V |
| Output Voltage | Level 1: 0–15V AC / Level 2: 0–50V AC |
| Output Current | <2A |
| Compatible Animals | Cattle, sheep, pigs, deer, rabbits, mice, cats, rats |
| Electrode Rod | |
| Electrode Material | Plastic with three copper electrodes |
| Electrode Arrangement | Longitudinal at 120° dividing, or circular electrode |
| Lubrication | Apply petrolatum to surface before use |
| Electrode Rod Insertion Depth (Reference) | |
| Cattle | 20–25 cm |
| Sheep | 15–20 cm |
| Swine | 15–20 cm |
| Feline | 6–8 cm |
| Rabbit | 6–8 cm |
| Rat | 1–1.5 cm |
| Stimulation Parameters | |
| Voltage Step (Reference) | 0.5V increments, typical effective range 3–6V |
| Current Step (Reference) | 5 mA increments (2 mA for small animals), max ~100 mA |
| Stimulation Time to Semen | ~2 minutes |
| Package Contents | |
| Included Items | Electro-ejaculator host ×1, electrode rod ×1 (size varies by animal), power cable ×1 |
Feature list for UMY-VEBT-005
*Dual Voltage Output Selection (0-15V and 0-50V)
*Automatic and Manual Stimulation Modes With Programmable Time Display

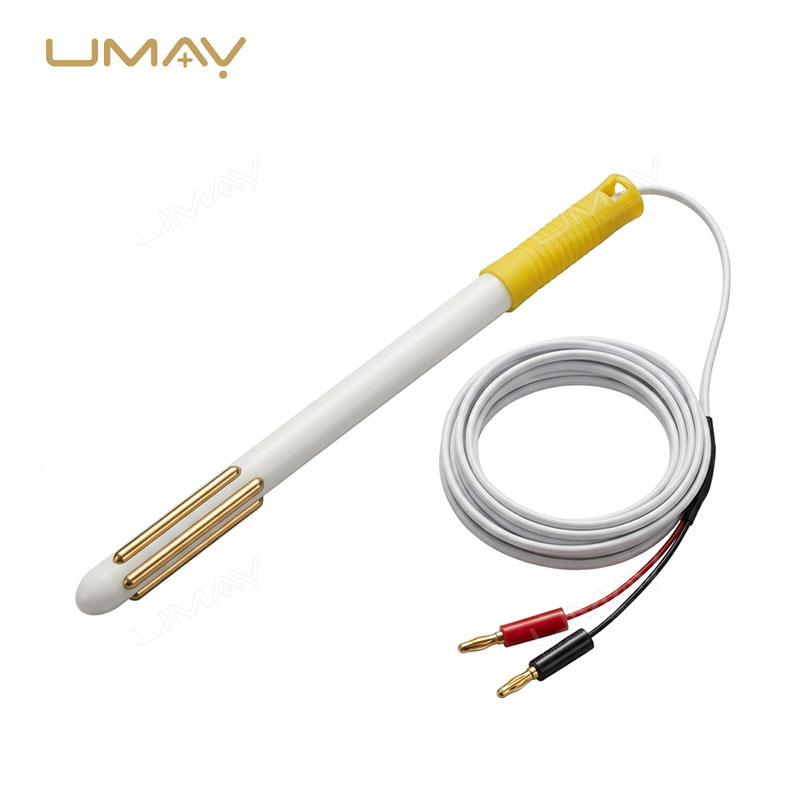

*Pure Copper Extended Electrode Rod With Species Specific Sizing

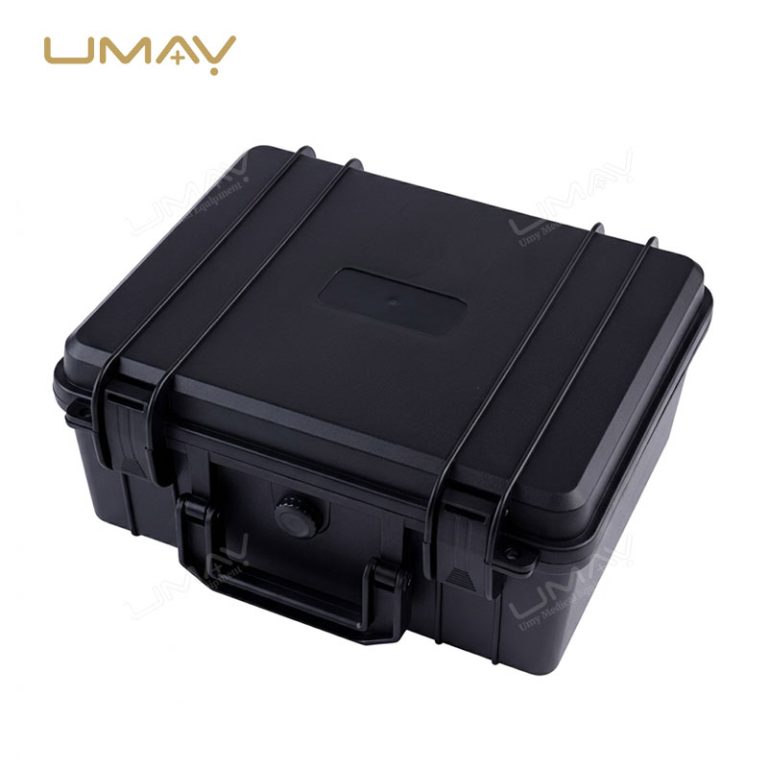

*Hard Carry Case for Portable Field and Clinic Use
*Output Current Capped at Less Than 2A for Controlled Stimulation
Application
The animal electro-ejaculator is used in livestock breeding operations, veterinary clinics, wildlife conservation programs, and academic research facilities for non-training-dependent semen collection. It serves reproductive specialists, farm veterinarians, and research technicians working with cattle, sheep, swine, rabbits, cats, rats, deer, and other mammals requiring controlled ejaculation stimulation for artificial insemination or fertility evaluation programs.
Q1: Can additional electrode rods for other species be ordered separately if they are not included in the standard package?
A1: Additional species-specific electrode rods are available as separate accessories and can be specified at the time of order to match your target animal.
Q2: What materials are used in the instrument housing and control panel to ensure durability in field conditions?
A2: The unit is housed in a hard-shell carry case with a metal-panel instrument board designed to withstand repeated transport between field and clinic environments.
Q3: What is the standard warranty period and what after-sales technical support is available for this instrument?
A3: The instrument comes with manufacturer warranty coverage and technical support; contact us directly or explore related veterinary reproductive products at here for further assistance.
