AED Trainer with 7-inch display and Bluetooth data transfer
Quick Info.
- SKU NO.: UMY-ED-004
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton or Wooden Cases
- Origin: China
- Material: Metal, Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 2000 Sets/Year
Power Source: Electric
Warranty: 1 year
After-sale Service: Online service and delivering spare parts
Transport Package: Carton or Wooden Cases
Material: Metal, Plastic
Instrument Classification: Class Ⅱ
Quality System Standard: ISO13485

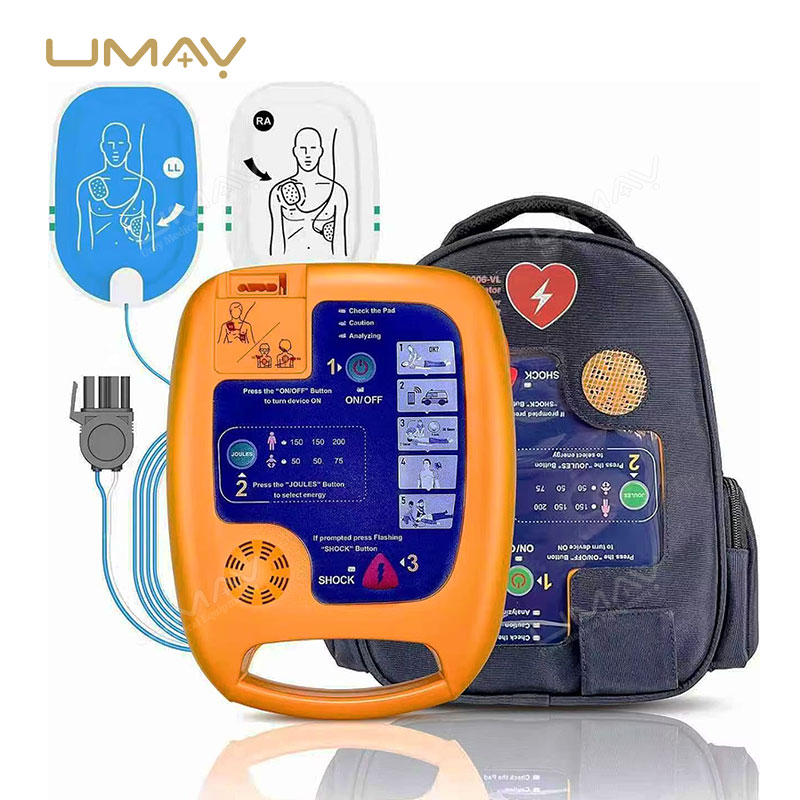

The automated external defibrillator (AED) is designed for use in emergencies, providing quick and effective life-saving intervention. With both child and adult mode settings (50.50.75J for child and 150.150.200J for adult), it delivers optimal energy levels based on the patient’s needs. Equipped with a 7-inch display and LED indicators, it ensures clear visual instructions, while the integrated Bluetooth functionality allows for easy data transfer. The AED also features an extensive self-test function (daily, weekly, or monthly) and a rechargeable lithium battery for more than 1000 uses.
For additional emergency equipment, visit our Portable emergency medical ventilator for hospitals.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Technical Specifications | |
| Self-test | Daily, Weekly, Monthly |
| Mode | Adult, Child |
| Waveform | Biphasic truncated exponential |
| Energy | 200-500 Joules max |
| Energy Sequence | 50.50.75 Joules (Child), 150.150.200 Joules (Adult) |
| Charge Time | Less than 6 sec. to 150J (New, at 25°C) |
| Voice Prompt | Extensive voice prompt |
| Control | Three buttons: ON/OFF, Select Mode, Shock |
| ECG Storage | 1,800 events (upgradeable to 65 hours) |
| Data Transmission | Bluetooth |
| Type | 12V, 2800mAh Li-Mn02 Cell |
| Operating Conditions | |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 30% to 95% (non-condensing) |
| Storage Temperature | -20°C to 55°C |
| Storage Humidity | Up to 93% (non-condensing) |
| Disposable Pad Temperature | 0-50°C |
| Physical Specifications | |
| Dimensions | 80mm Depth, 240mm Width, 300mm Length |
| Weight | 1.9kg (4.2 Pounds) |
| Power | |
| Power Type | 12V, 2800mAh Li-Mn02 Cell |
| Battery | Non-rechargeable |
| Power Rating | 500W |
Feature list for UMY-ED-004:
* 7-inch display for clear visuals
* Child and adult mode settings with adjustable energy levels
* Bluetooth data transfer capability
* Self-test function with daily, weekly, and monthly options
* Rechargeable lithium battery for more than 1000 uses
Application:
This AED is ideal for use in hospitals, emergency departments, clinics, and public spaces, providing quick defibrillation for sudden cardiac arrest victims in both adult and pediatric patients.
