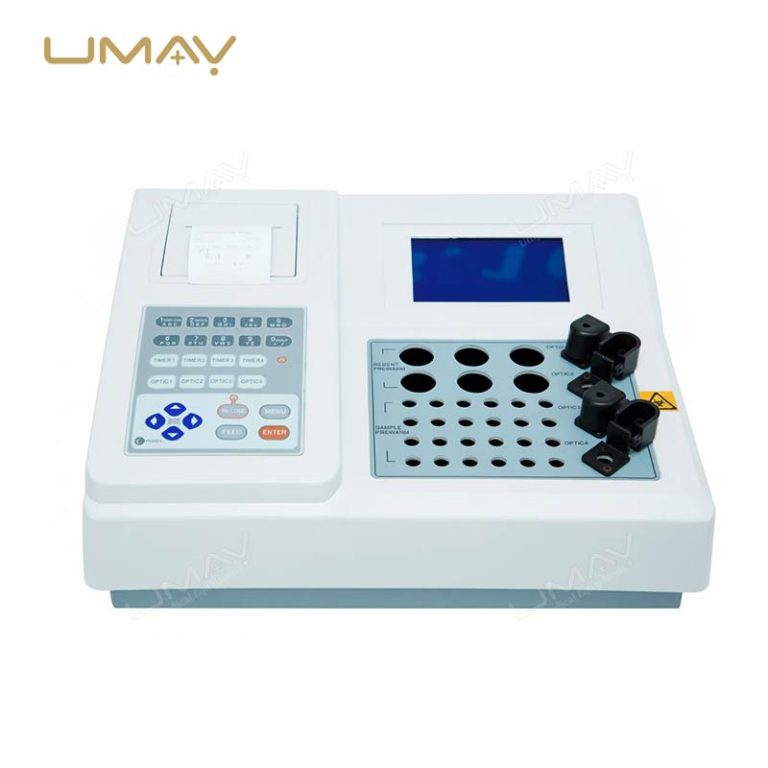

4-Channel Semi Auto Coagulation Analyzer with Optical Detection and High Throughput Testing
Quick Info.
- SKU NO.: UMY-CO-003
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton or Wooden Cases
- Origin: China
- Material: Metal, Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 2000 Sets/Year
Power Source: Electric
Warranty: 1 year
After-sale Service: Online service and delivering spare parts
Transport Package: Carton or Wooden Cases
Material: Metal, Plastic
Instrument Classification: Class Ⅱ
Quality System Standard: ISO13485
This four channel semi auto coagulation analyzer is designed for efficient and accurate routine coagulation testing in clinical laboratories. It enables simultaneous analysis of four different parameters to improve daily testing efficiency and reduce turnaround time. Advanced optical light matching technology ensures precise result detection while maintaining low reagent consumption below twenty microliters per test. The system supports essential coagulation assays including PT APTT TT fibrinogen and clotting factors for comprehensive hemostasis evaluation. With precise temperature control maintained at thirty seven degrees and large internal memory capacity it supports stable and traceable laboratory workflows.
A related laboratory diagnostics category can be explored.
This analyzer is suitable for laboratories seeking higher throughput coagulation testing with consistent accuracy and controlled reagent usage.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Testing & Analysis Capacity | |
| Test Channels | 4 channels, supports simultaneous analysis of 4 different parameters |
| Sample Incubation Positions | 24 positions |
| Reagent Incubation Positions | 6 positions |
| Optical & Measurement System | |
| Test Wavelength | 470 nm |
| Coincidence Indicator | ≤3% |
| Result Notation | S, %, PTR, INR, g/L |
| Temperature Control Precision | 37 ±0.3 °C |
| Consumables Usage | |
| Sample Consumption | 20 μL–40 μL |
| Reagent Consumption | 20 μL–40 μL |
| Data & Software | |
| Software Timers | 4 |
| Memory Capacity | Up to 10,000 test results |
| Operation Language | English |
| Display & Interface | 240×128 LCD |
| Power Supply | 220 VAC ±15%, 50–60 Hz |
| Working Environment | Temperature 15–30 °C, humidity ≤90% |
| Physical Specifications | |
| Dimensions | 395 mm (L) × 320 mm (W) × 135 mm (H) |
| Weight | 7 kg |
| Usual Test List | PT, APTT, TT, FIB, RT, VT, VIII, IX, XI, XII, II, V, VII, X, PS, PC, Xa, etc. |
Feature list for UMY-CO-003
* Four channel testing supporting four parameter analysis at the same time
* Optical detection system with advanced light matching technology
* Low reagent consumption below twenty microliters per test
* Supports PT APTT TT fibrinogen and clotting factor assays
* Precision thermostat control at thirty seven degrees with tight tolerance
* Special testing cup location system with additional sample bracket
* Dispensing precision with CV less than two percent
* Built in thermal sensitive printer for immediate result output
* Data storage capacity of ten thousand test results
* RS232 interface for PC connectivity
Application
Designed for hospital laboratories clinical diagnostic centers and outpatient facilities performing routine coagulation screening monitoring and therapy assessment. Suitable for daily PT INR and fibrinogen testing with high sample volume demand.
