Premium AI 3D Dental Intraoral Scanner | Digital Impression System with Cloud Share | Open Software Handheld Oral Scanner Machine for Orthodontic Simulation & Restorative CAD/CAM Dentistry with Autoclavable Tips
Quick Info.
- SKU NO.: UMH-ECO02
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton or Wooden Cases
- Origin: China
- Material: Metal, Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 1000 Sets/Year

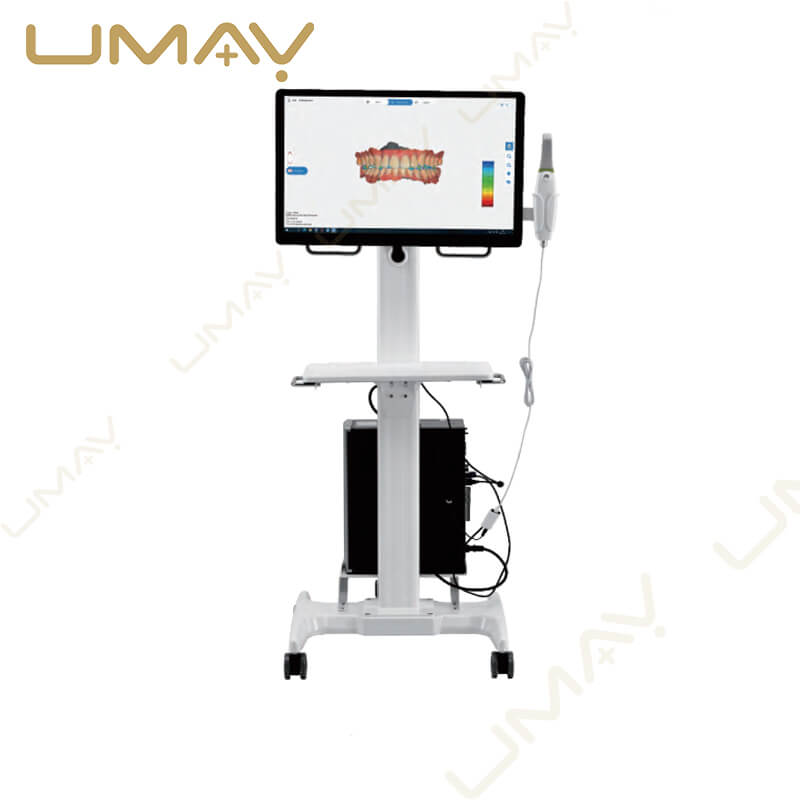

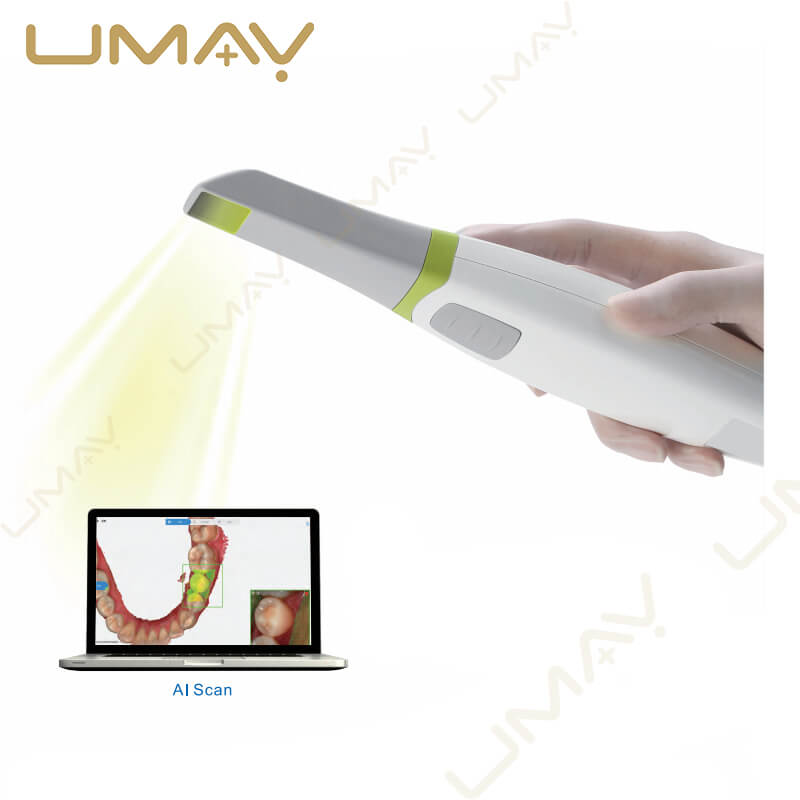

This premium, full digital 3D dental intraoral scanner revolutionizes clinical workflows by replacing uncomfortable traditional impression materials with instant, high-precision digital scanning. Engineered with an intelligent AI software engine that auto-filters soft-tissue artifacts, a native cloud-sharing ecosystem for immediate laboratory transmission, and an open architecture supporting subscription-free STL/PLY exports, this handheld oral scanning wand is the ultimate foundation for modern CAD/CAM restoration and orthodontic clear aligner design.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Technical Specifications | |
| Product Name | 3D Dental Intraoral Scanner |
| Cmos | 13*13mm |
| Pixels Size | 1024*768 pixels |
| Scope of Reconstruction | 14*14*15mm |
| Intensity of Light Radiation | ≤100mw/cm2 |
| Size of Scanner | 200*58*36mm |
| Data Cable of Scanner | 1.9m |
| USB Data Cable | 1.2m |
| USB Connection | USB 2.0 |
| Operating System | Windows 10 or Microsoft Windows 1064 pro or above |
| Input | 100-240V, 50-60Hz, 0.7A |
| Output | 12V, 1.5A |
| Intra Oral Scanner | 12V, 1.5A |
| Physical Specifications | |
| Weight | 6kg |
| Dimension | 395mm(L)*320mm(W)*135mm(H) |
| Computer System Configuration | |
| CPU (Laptop Recommended) | Intel Core i7-11700H |
| Graphic Card (GPU) | NVIDIA GeForce 3060 or above 6G memory |
| RAM | 16GB or higher |
| Hard Disk Drive | 256GB SSD or above |
| Power Consumption | 25 VA |
| I/O Port | USB 3.0 or higher port |
| System | Windows 10/11 Pro/Corporate Edition (64-bit) |
| Display Resolution | 1920×1080, 60Hz |
Fast Impression Taken
Fast scanning, linear scanning speed up to 80mm/s;
Full arch scanning speed up to 90s.

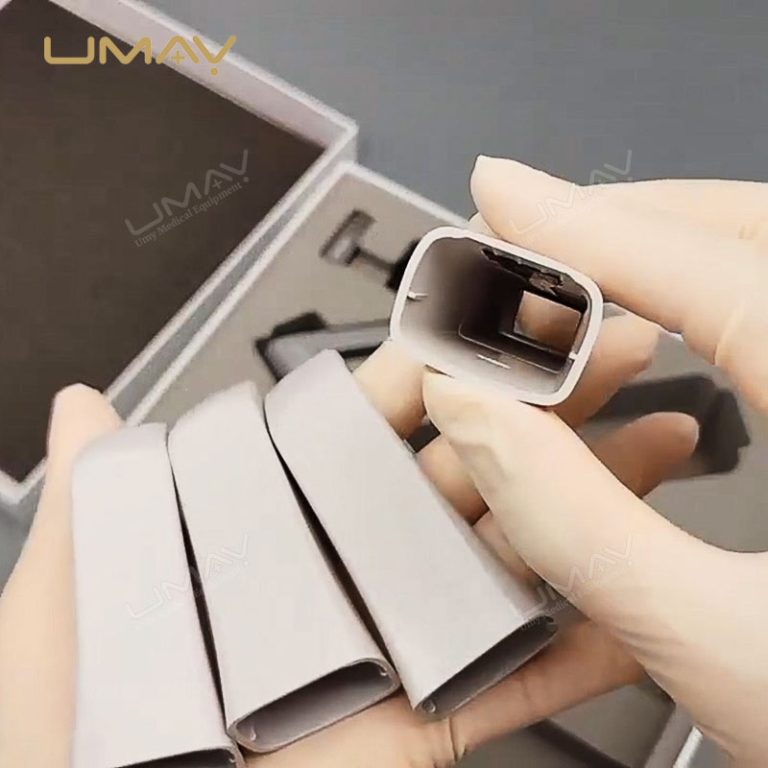

Humanized Scanner Tip Design
New smaller scanner tip, with internal heating system to kconstant temperature inside the patient mouth during scaThe mirror angle of the scanning tip is close to 45 degrees can take into account the mesial and distal areas at the sa

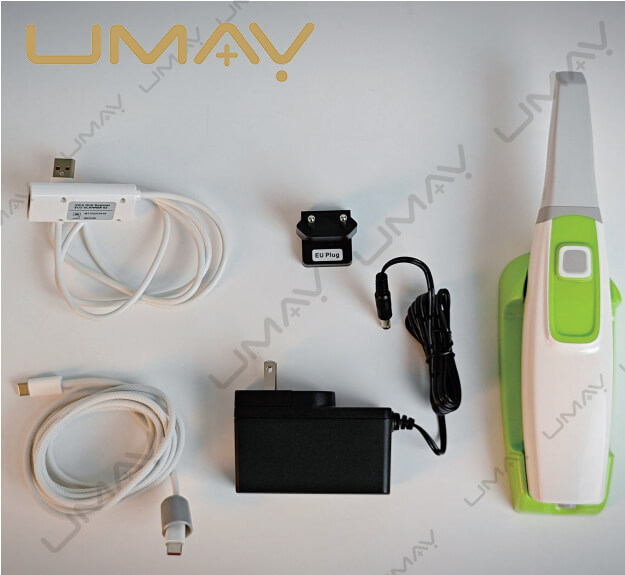

Screw Type Cable Connection
New screw type cable connection ensures a better connection between the cable and the handpiece.

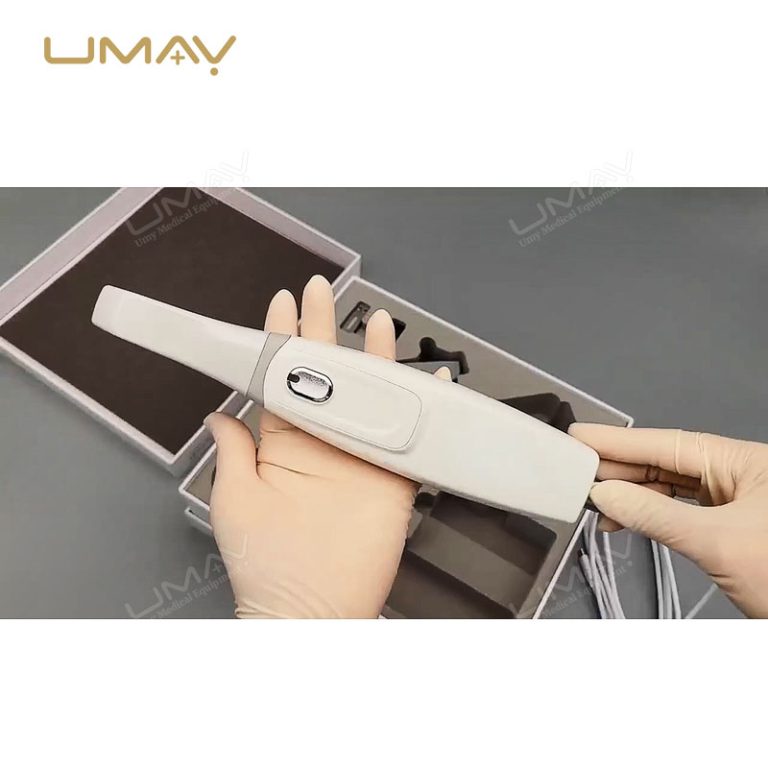

Fashion and Light Handpiece Design
The overall appearance of the handpiece is with streamlindesign, the net weight of the handpiece is 210g, and thehand-held design makes the operation much more convenient and simpler.
📊 Comprehensive Technical Specifications:
| Technical Parameter Component | Standard System Configuration Attribute |
| System Device Classification | Handheld 3D Digital Intraoral Scan Wand Workstation |
| Data Export File Layouts | Fully Open Architecture (Standard STL, PLY, OBJ Formats) |
| Intelligent Software Features | Real-Time AI Artifact Filtering, Cloud Share Tracking, Ortho Simulation |
| Sterilization Compliance | Detachable Scan Heads Support 134°C Autoclave Processing |
| Anti-Fog Hardware Mechanism | Internal Smart Heating Element for Instant Defogging |
❓ Crucial B2B Component Sourcing Q&A
Q1: What specific dental design software programs are compatible with the exported files from this intraoral scanner?
A: Because this system features a completely open architecture, it exports standard, unencrypted STL, PLY, and OBJ data files. This guarantees 100% plug-and-play compatibility with all major third-party dental CAD/CAM software ecosystems globally, including Exocad, 3Shape, dental lab milling software, and clear aligner manufacturing software networks.
Q2: How does the integrated anti-fog heating technology protect clinical workflows?
A: Traditional oral mirrors and cameras fog up instantly due to the temperature differential between the room air and human breath. Our handheld wand features an automated internal heating element near the optical lens. It pre-warms the scanner tip to match the intraoral temperature before scanning begins, ensuring continuous, clear optical recording without needing to pause for defogging spray.
Q3: Can a distributor label this system under their own private medical brand name?
A: Yes, absolutely. As an established, certified medical device manufacturer operating under ISO 13485 standards, we offer extensive OEM/ODM private-label partnerships. Qualified distribution networks can customize the physical housing graphics, software splash screens, cloud portal branding coordinates, and product packaging layout to suit local market demographics.
Q4: What data protection security features are applied to your cloud share platform?
A: Our cloud share infrastructure incorporates advanced end-to-end data encryption protocols for all incoming and outgoing 3D model file streams. Patient records are completely anonymized during lab transfers, ensuring that your medical agency or clinical facility fully complies with strict international patient healthcare data security regulations.
