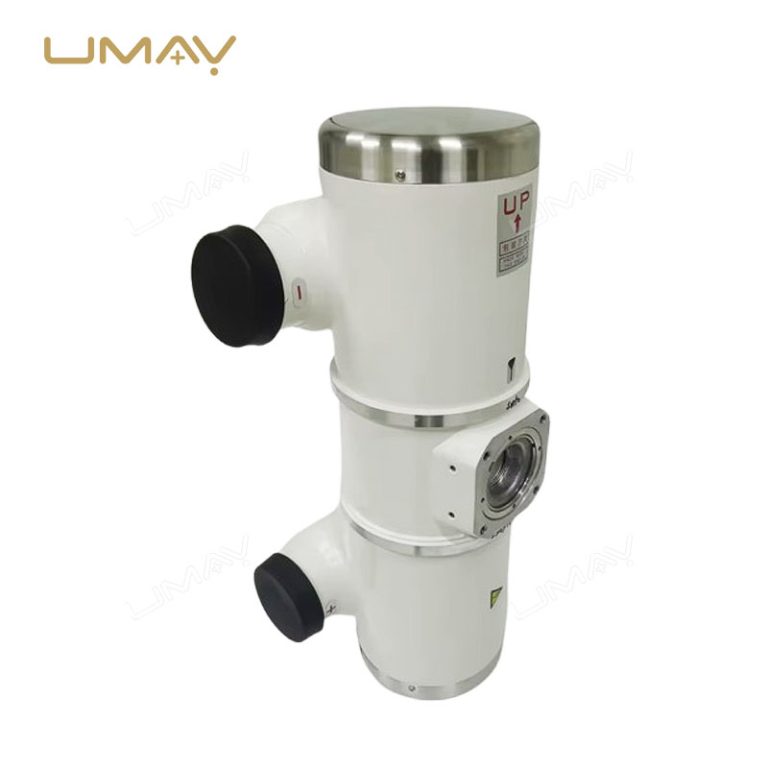

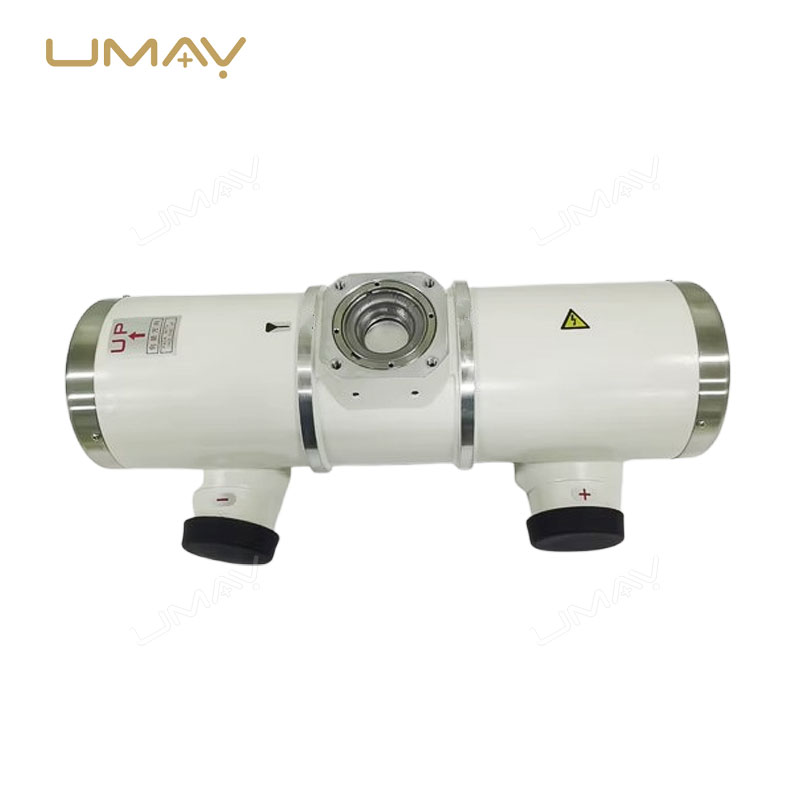

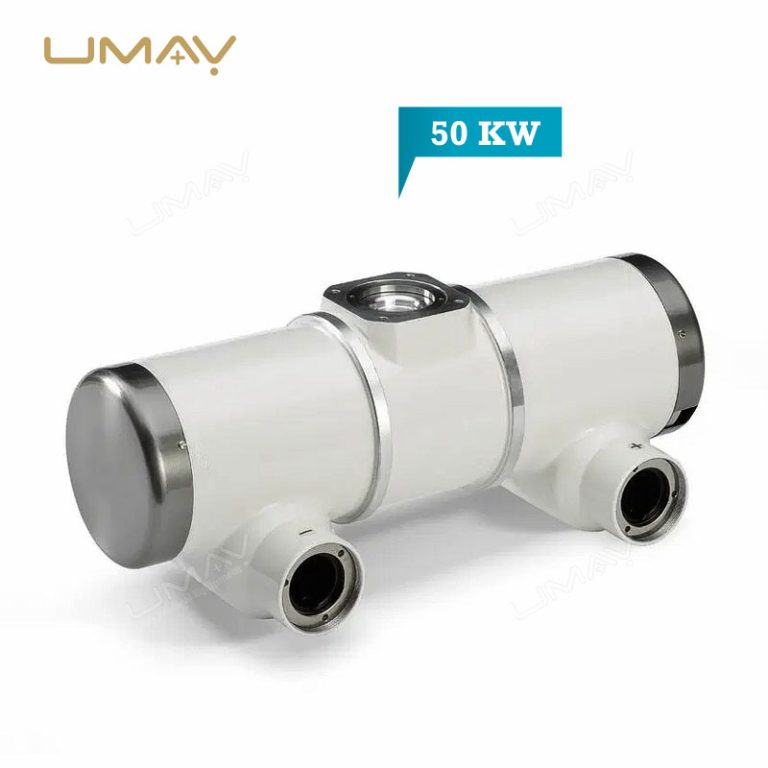

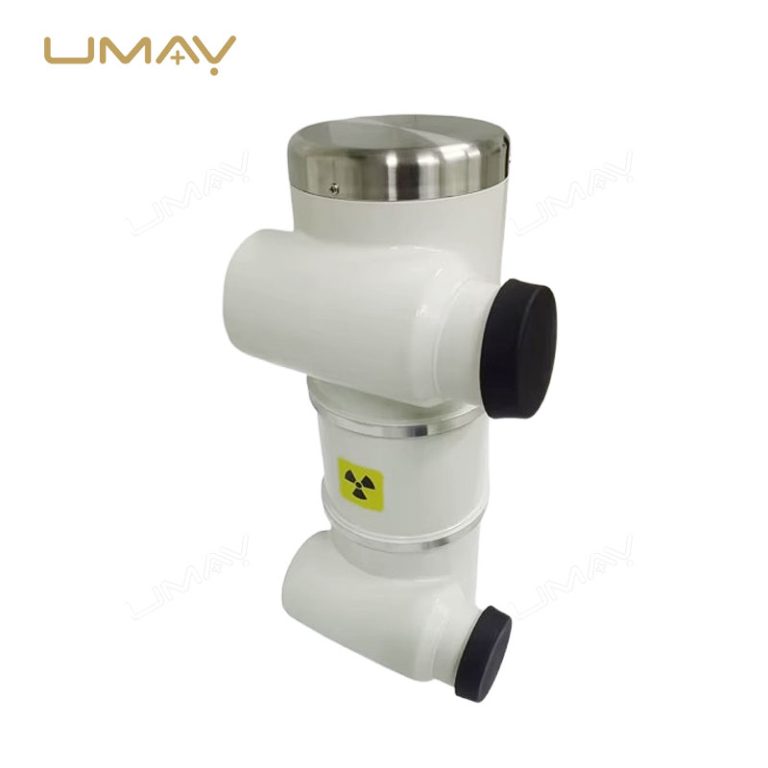

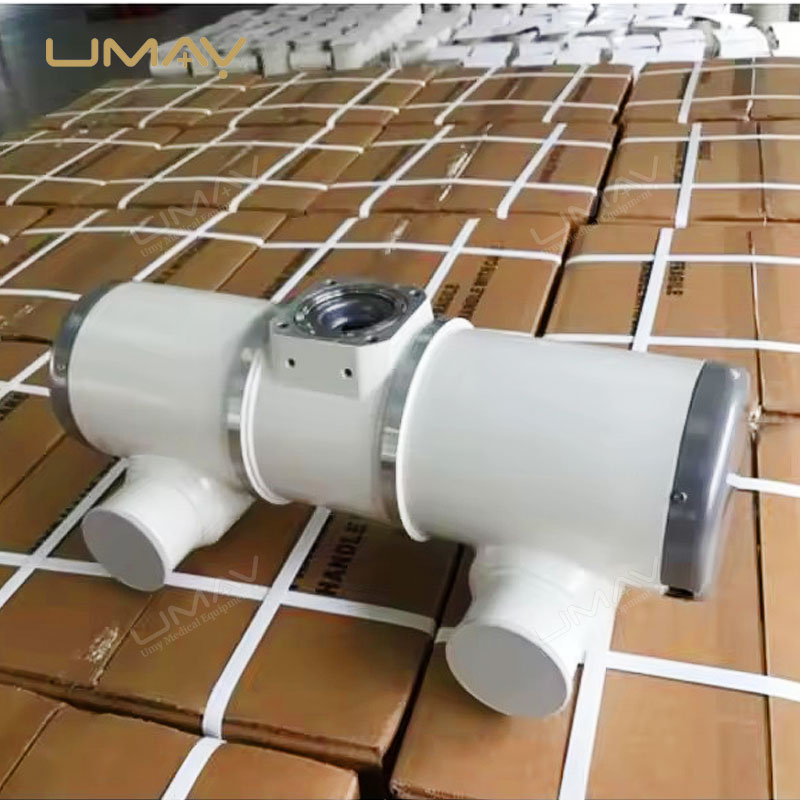

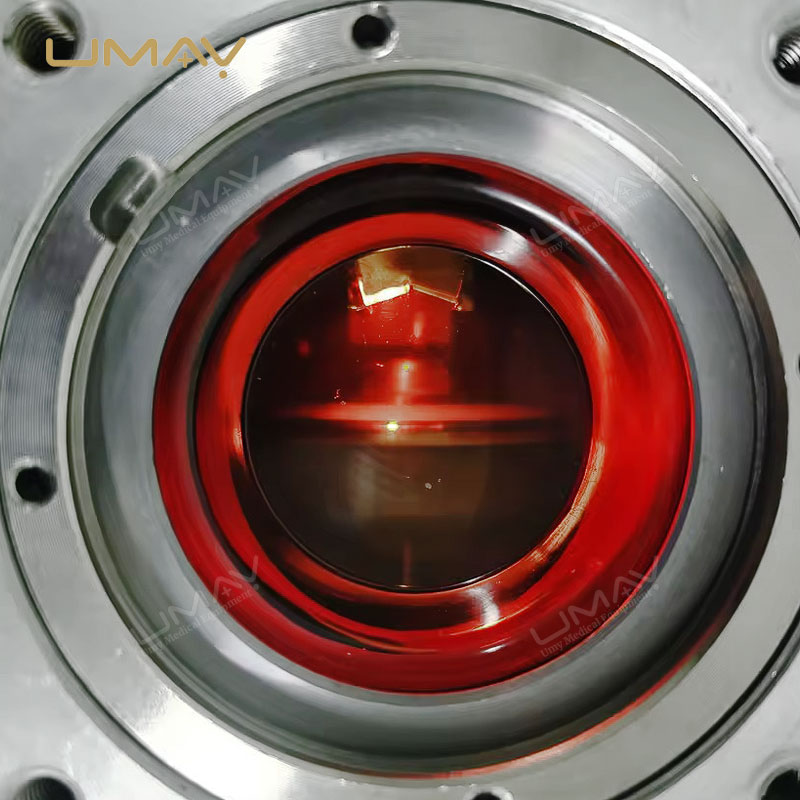

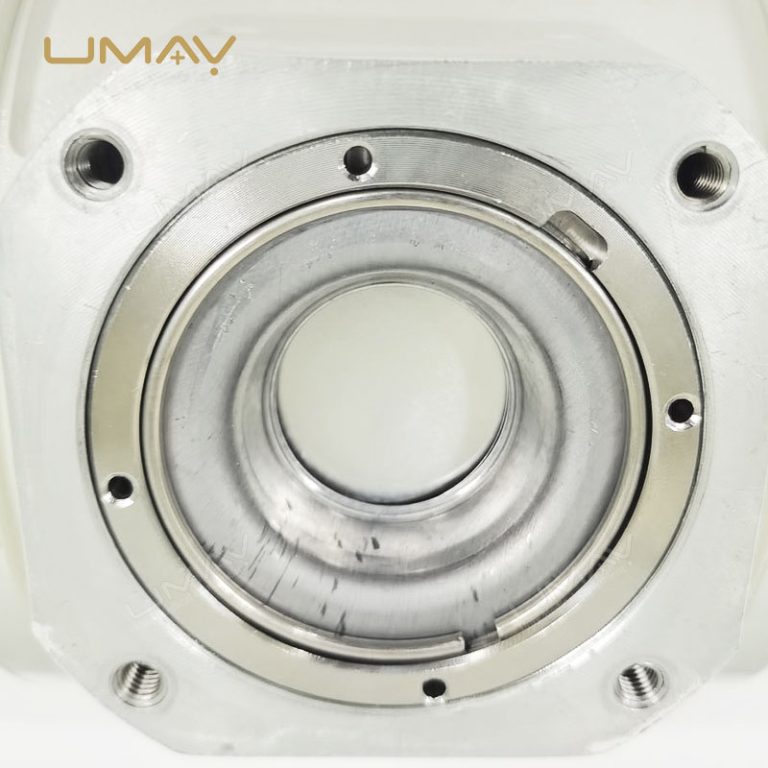

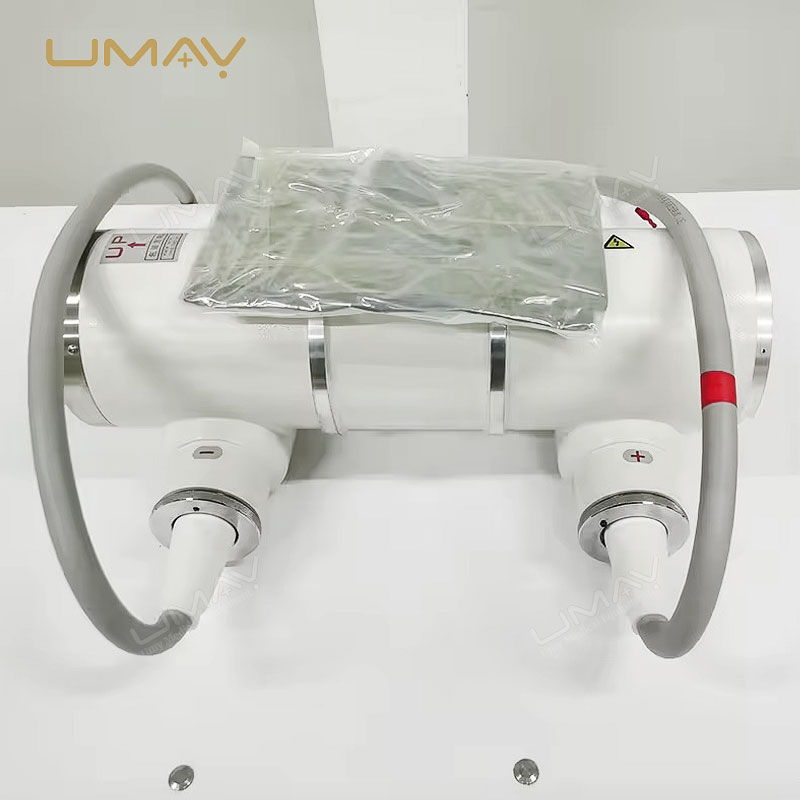

Medical X-ray Tube Assembly 50kw Insert Unit for Digital Radiographic Systems
SKU: UMY-XM-074
Brand: Umy
MOQ: 1
Origin: China
Quick Info.
- SKU NO.: UMY-XM-074
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton or Wooden Cases
- Origin: China
- Material: Aluminum & Magnesium Alloys and Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 2000 Sets/Year
This 50kW rotating anode X ray tube insert is engineered for general radiographic use in modern digital X ray systems. Built with a 73mm rhenium-tungsten target and dual focal spots (0.6mm and 1.2mm), it delivers high clarity for chest, spine, and abdominal imaging. The unit operates up to 150kV and integrates seamlessly with IEC 60526 cable standards. To enhance system compatibility, you can explore pairing it with a digital 50kW X ray radiography system for optimized workflow and image quality. Its robust housing ensures safe thermal dissipation under extended use, making it suitable for hospitals and diagnostic centers.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Electrical Parameters | |
| High Voltage Generator | Constant Potential High-Voltage Generator |
| Grounding | Center-grounded |
| Nominal X-ray Tube Voltage (Radiographic) | 150kV |
| Nominal X-ray Tube Voltage (Fluoroscopic) | 125kV |
| Nominal Focal Spot Value – Large Focus | 1.2 mm |
| Nominal Focal Spot Value – Small Focus | 0.6 mm |
| Nominal Anode Input Power (Large Focus 50Hz/60Hz) | 50KW / 54KW |
| Nominal Anode Input Power (Small Focus 50Hz/60Hz) | 20KW / 22KW |
| Motor Ratings | |
| Power Source Frequency | 50/60Hz |
| Starting Voltage | 160V |
| Running Voltage | 60V |
| Starting Current | 3.5~5.5A |
| Running Current | 1.0~1.5A |
| Minimum Speed-Up Time | 1~1.2s |
| Capacitor | 43/30 μF |
| Motor Speed | |
| Anode Speed at 50Hz | 2800 rpm |
| Anode Speed at 60Hz | 3200 rpm |
| Stator Impedance | |
| Common Main Winding | 20.0Ω |
| Common Auxiliary Winding | 50.0Ω |
| Other Electrical Specs | |
| Resistance Between Housing and Low Voltage Terminals | ≥2MΩ |
| Operating Housing Temperature Range | 16–75℃ |
| Physical Parameters | |
| Overall Length | 480 mm |
| Maximum Diameter | 152.4 mm |
| Target | |
| Angle | 12° |
| Diameter | 73 mm |
| Construction | Rhenium-Tungsten faced Molybdenum |
| Filtration | |
| Inherent Filtration | 1.0 mm AL |
| Additional Filtration | 1.5 mm AL (3×0.5 mm AL) |
| Safety & Coverage | |
| Leakage Technique Factor | 150kV, 3.4mA |
| X-ray Coverage | 420mm × 420mm at SID 1000mm |
| Weight | Approx. 17 kg |

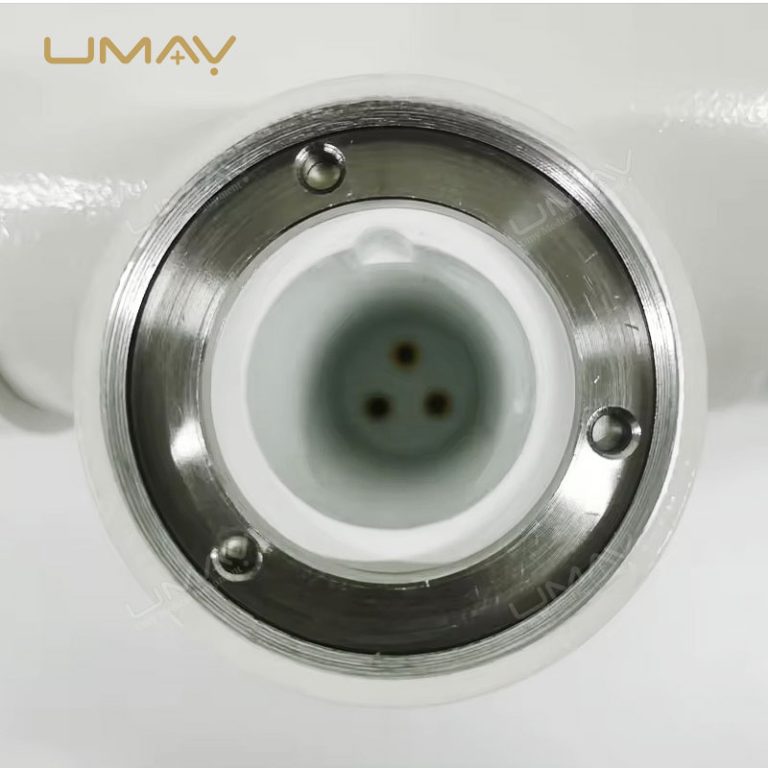

| High Voltage Receptacle | Complies with IEC 60526 |
| Cooling Method | Natural or Forced Air |
| Absolute Maximum and Minimum Ratings | |
| Maximum Tube Voltage (Radiographic) | 150 kV |
| Maximum Tube Voltage (Fluoroscopic) | 125 kV |
| Voltage Between Anode and Ground | 78 kV |
| Minimum Tube Voltage | 40 kV |
| Maximum Filament Current (Large Focus) | 5.3A |
| Maximum Filament Current (Small Focus) | 5.3A |
| Filament Voltage (Large Focus) | 13.5±1V |
| Filament Voltage (Small Focus) | 8.5±1V |
| Filament Frequency Limits | 0~25 kHz |
| Thermal Characteristics | |
| Anode Heat Content | 212kJ (300 kHU) |
| Maximum Anode Heat Dissipation | 750W (1056kHU/s) |
| Continuous Anode Input Power | 145W (200HU/s) |
| X-ray Tube Assembly Heat Content | 1000kJ (1410kHU) |
| Nominal Continuous Input Power Without Air-Circulator | 275W (23kHU/min) |
| Nominal Continuous Input Power With Air-Circulator | 450W (37kHU/min) |
