High-quality 14×17 a-Si Flat Panel Detector UMY-XM-FP05
SKU: UMY-XM-FP05
Brand: Umy
MOQ: 1
Origin: China
Quick Info.
- SKU NO.: UMY-XM-FP05
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton or Wooden Cases
- Origin: China
- Material: Aluminum and magnesium alloys
- After-Sale Service: Online Technical Support
- Production Capacity: 500 Sets/Year

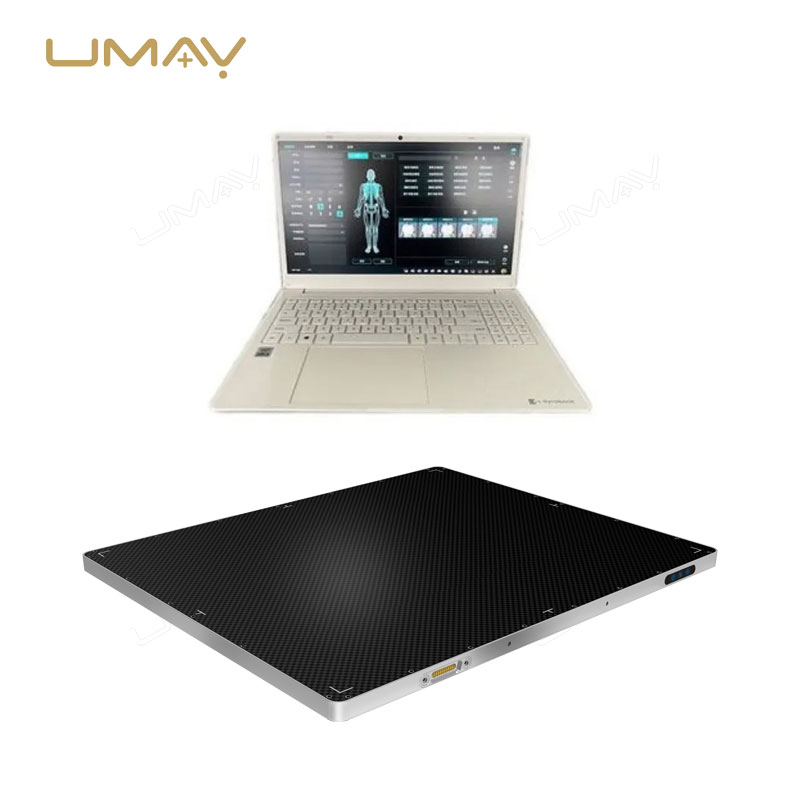

The UMY-XM-FP05 is a 14×17-inch a-Si flat panel detector (FPD), designed for radiographic imaging. It offers a fast workflow, making it an optimal choice for both retrofitting existing systems and new digital radiography (DR) system installations.
This lightweight, portable, and affordable detector enhances flexibility for busy radiology departments, supporting table, free positioning, and tabletop exams. Its advanced imaging capabilities ensure high performance and reliability, making it a cost-effective solution for optimizing any X-ray room.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Electricals and interface | |
| A/D Conversion | 16 bits |
| Data Interface | Gigabit Ethernet |
| FPS | 1×1 5fps/2×2 15fps/3×3 25fps |
| Exposure Control | Sync/Freerun |
| Mechanical | |
| Dimension | 384× 460 × 15 mm |
| Weight | 3.4kg |
| Material | Aluminum and magnesium alloys |
| Front Panel | Carbon fiber |
| Environmental | |
| Temperature | 5-35°C (operating); -10~50°C (storage) |
| Humidity | 30-70% RH (non-condensing) |
| Ingress Protection | IP51 (Customized to IP67) |
| Sensor | |
| Receptor Type | a-Si |
| Scintillator | Gos / CsI:TI |
| Active Area | 350 x 430 mm |
| Resolution | 2560 x 3072 |
| Pixel Pitch | 139 μm |
| Power Supply & Battery | |
| Adapter In | AC 100-240V,50-60Hz |
| Adapter Out | DC 24V,2.7A |
| Power Dissipation | <20 W |
| Image Quality | |
| Limiting Resolution | 3.5 LP/mm |
| Energy Range | 40-160 KV |
| Dynamic Range | ≥84 Db |
| Sensitivity | ≥0.54 LSB/nGy |
| Ghos | <1% 1st frame |
| DQE | 42% @(1 LP/mm) |
| 28% @(2 LP/mm) | |
| MTF | 68% @(1 LP/mm) |
| 38% @(2 LP/mm) | |
| 20% @(3 LP/mm) | |
