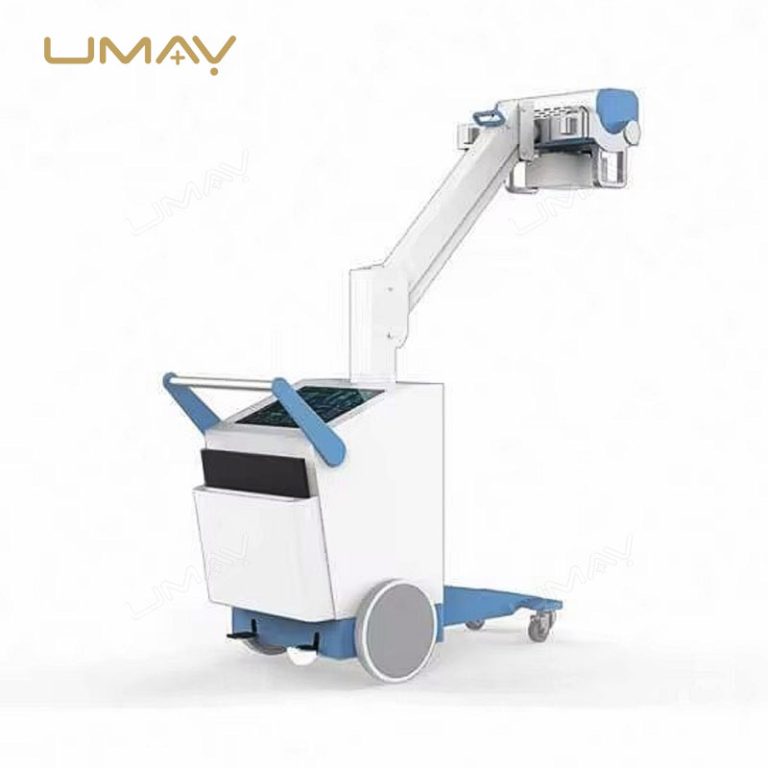

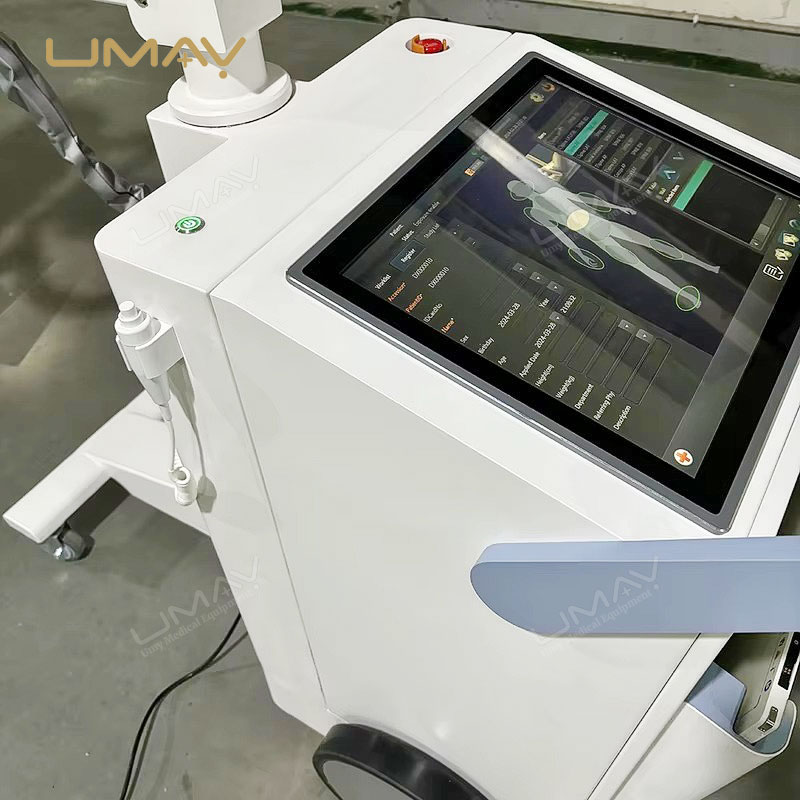

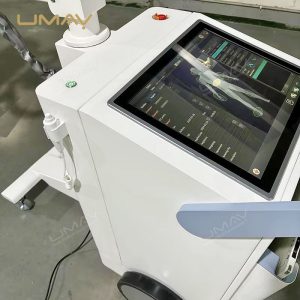

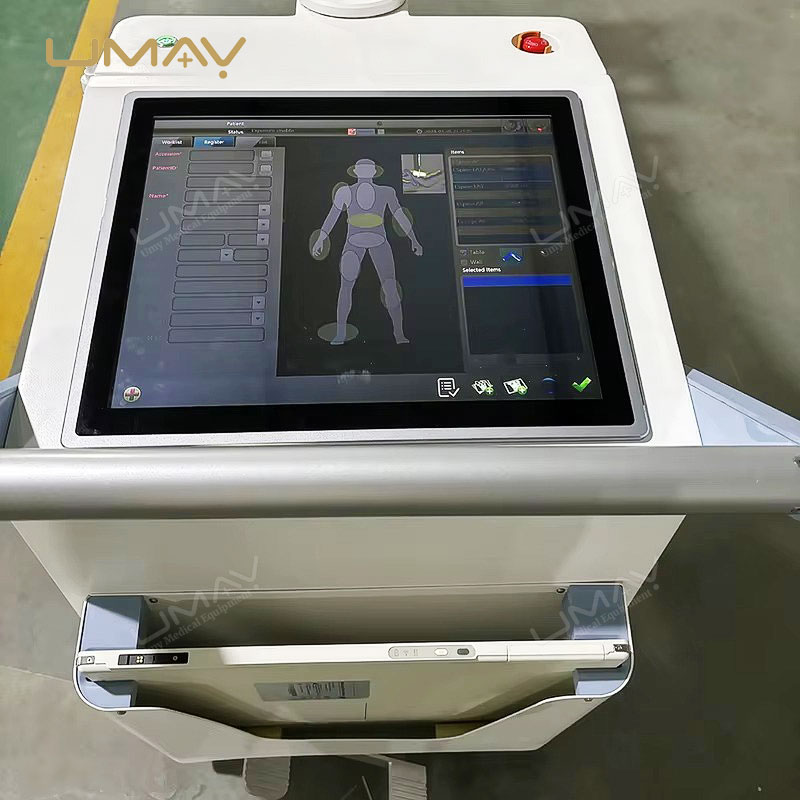

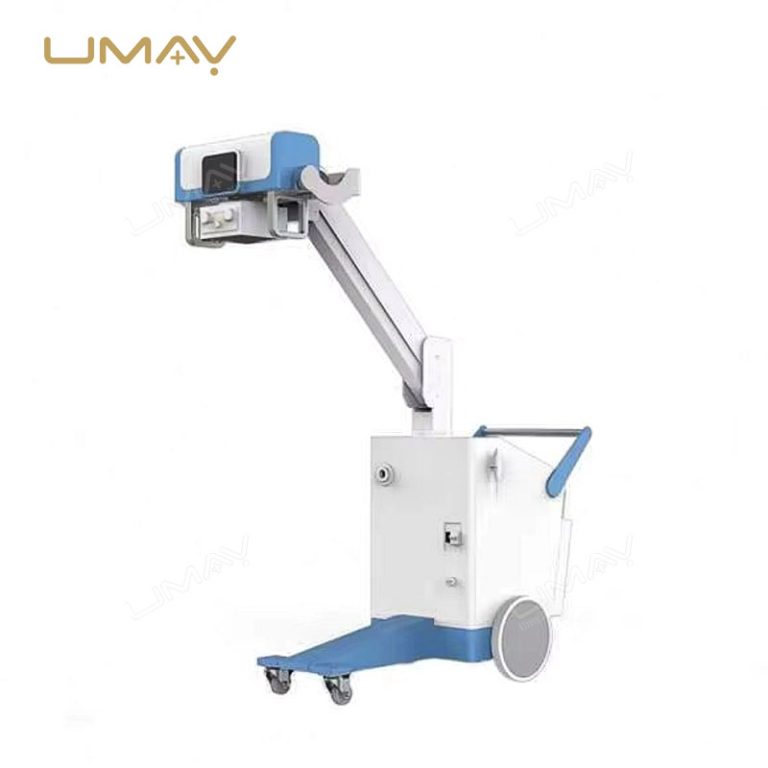

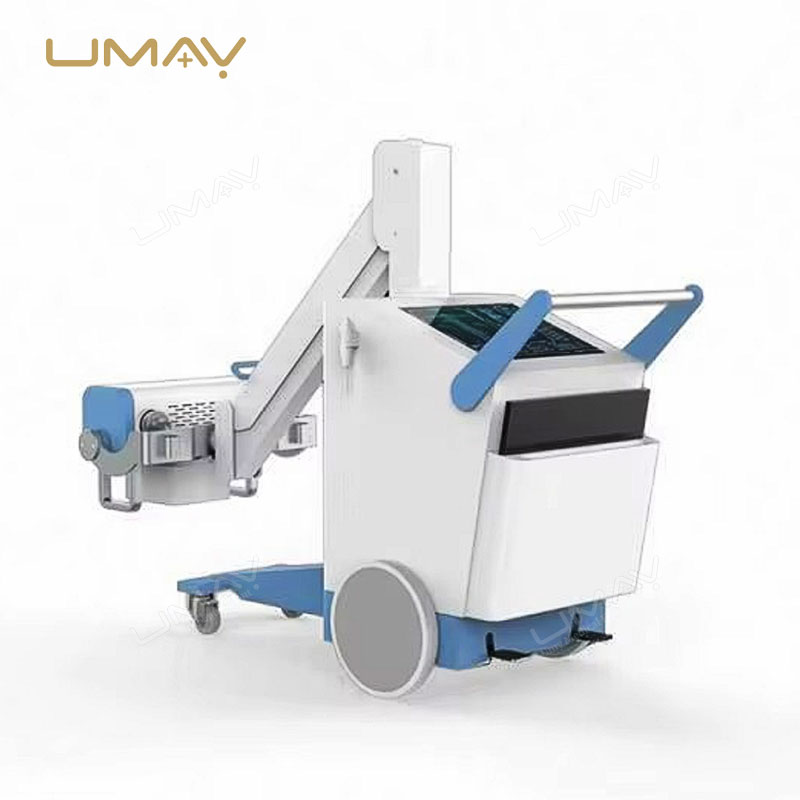

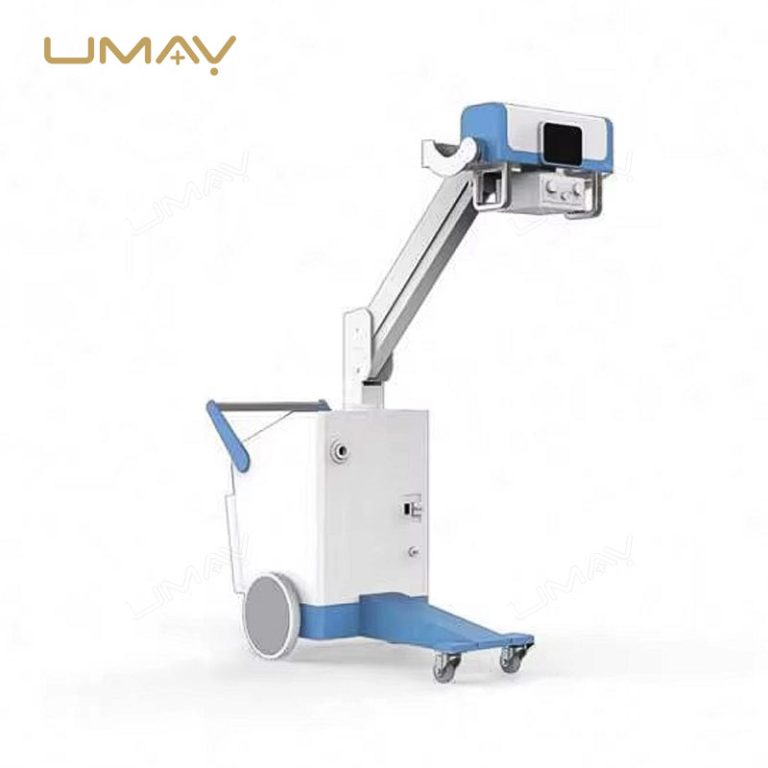

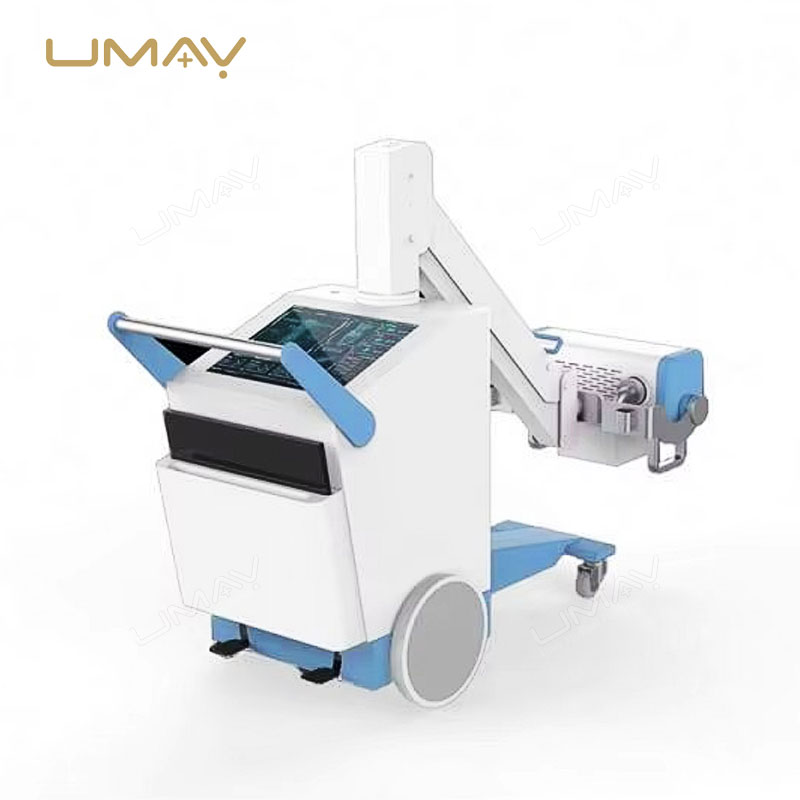

Fairly Priced 25 kW Mobile Digital X‑Ray System for Hospital Radiography

SKU: UMY-XM-073

Brand: Umy

MOQ: 1

Origin: China

Quick Info.

This 25 kW mobile digital X‑ray machine offers a robust yet flexible imaging solution ideal for hospital and bedside diagnostics. With high-powered output, it delivers crisp visualization of thoracic, abdominal, and skeletal structures—helping detect conditions like pneumonia, bone fractures, and joint degeneration. Its wheeled design allows rapid deployment in emergency rooms or patient wards, minimizing patient movement and speeding up diagnosis. Fairly priced and optimized for clinical efficiency, it meets the demands of modern medical facilities.

The Specific Parameters

ITEMS	PARAMETERS
Flat Panel Detector
Detector Type	TFT full-plate amorphous silicon flat panel detector
Panel Size	430 mm × 430 mm
Effective Imaging Size	17 × 17 inches
Pixel Matrix	3072 × 3072
Pixel Pitch	146 μm
Spatial Resolution	3.4 LP/mm
Pixel Gray Scale	16 Bit
Image Acquisition & Transmission Time	3 seconds

High-Frequency High Voltage Generator
Maximum Output Power	32 kW
Input Power	220V AC, Single Phase
Output Voltage	40 – 150 kV
Tube Current Range	10 – 320 mA
Exposure Time Range	1 ms – 10000 ms
mAs Range	0.1 mAs – 250 mAs
Support Functions	AEC, APR automatic exposure
Features	Fault self-diagnosis and display

X-ray Tube Component
Focal Spot Design	0.6 mm / 1.2 mm
Nominal Electrical Power	21 kW / 46 kW (50Hz)
Maximum kV	150 kV
Anode Target Angle	12°

Column
Column Rotation Angle	±90°, error ±2°
Vertical Travel of Focal Spot	1259 cm, error ±2 cm
Horizontal Rotation of Tube & Collimator	> ±90°, error ±2 cm

Grid and Collimator
Grid Material	Aluminum-based grid
Grid Dimensions	18 × 18 inches (48 × 48 cm)
Grid Ratio	10:1
Lines per Inch	215C
Grid Focal Distance	1000 mm
Features	Light field included, multi-leaf DR dedicated collimator
