DR 17×17 Cassette-sized Flat Panel Detector UMY-XM-FP04

SKU: UMY-XM-FP04
Brand: Umy
MOQ: 1
Origin: China

OR

Quick Info.

This 17″x17″ cassette-sized flat panel detector is designed for seamless integration into standard bucky tray cabinets, making it ideal for general radiography applications. It features a lightweight, slim design with a built-in foldable handle for easy portability and convenience.

Equipped with Automatic Exposure Detection (AED) technology, the detector operates without the need for wiring to the generator, simplifying the setup process. Compared to image intensifiers, flat panel detectors provide higher-resolution images, offering superior diagnostic clarity and precision, making it a perfect choice for practices requiring high-resolution imaging.

The Specific Parameters

ITEMSPARAMETERS
Electricals and interface
A/D Conversion16 bits
Data InterfaceGigabit Ethernet
Acquire Timewired: 1s
Exposure ControlSoftware/Sync/AED
Mechanical

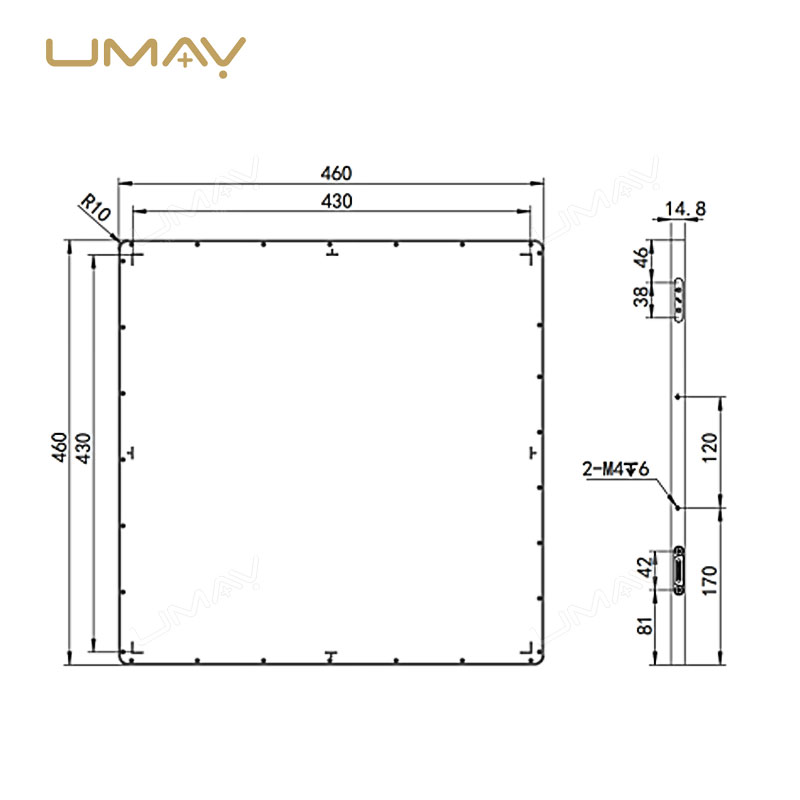

Dimension460× 460 × 15 mm
Weight3.8kg (Without battery)
MaterialAluminum and magnesium alloys
Front PanelCarbon fiber
Environmental
Temperature10-35°C (operating);-10~50°C (storage)
Humidity30-70% RH (non-condensing)
Ingress ProtectionIP51 (Customized to IP67)
Sensor
Receptor Typea-Si
ScintillatorGos / CsI:TI
Active Area430 x 430 mm
Resolution 3072 x 3072
Pixel Pitch100 μm
Power Supply & Battery
Adapter InAC 100-240V,50-60Hz
Adapter OutDC 24V,2.7A
Power Dissipation<20 W
Image Quality
Limiting Resolution5 LP/mm
Energy Range40-160 KV
Dynamic Range≥76 dB
Sensitivity≥0.36 LSB/nGy
Ghos<1% 1st frame
DQE42% @(1 LP/mm)
28% @(2 LP/mm)
MTF68% @(1 LP/mm)
38% @(2 LP/mm)
20% @(3 LP/mm)
