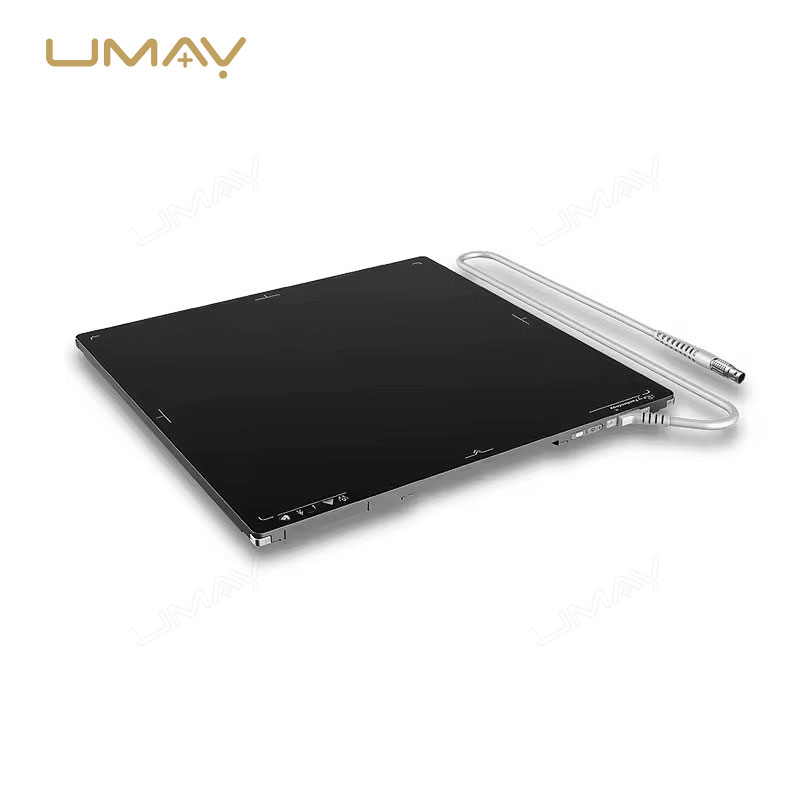

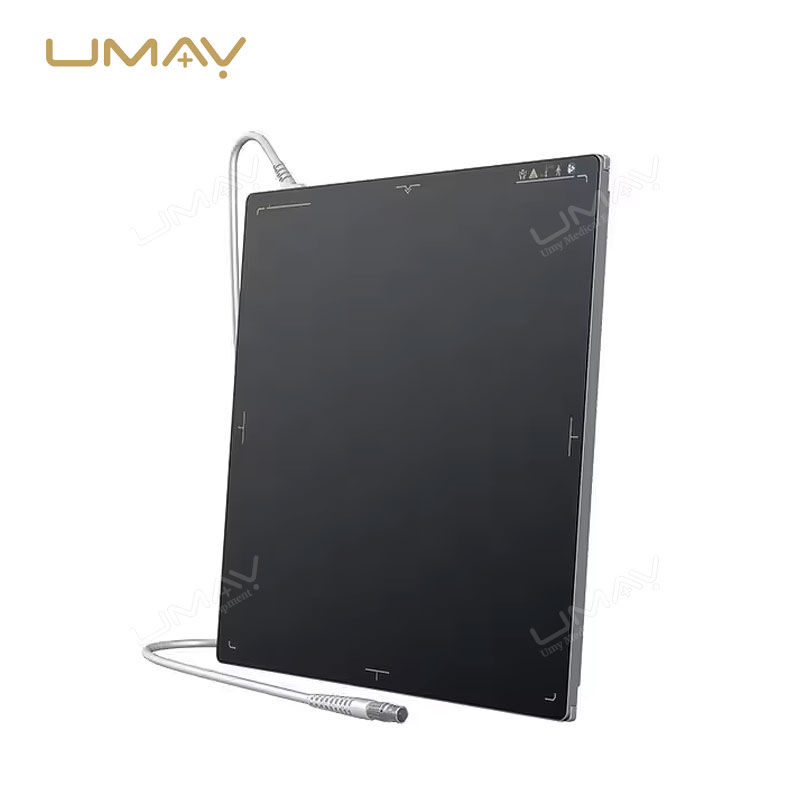

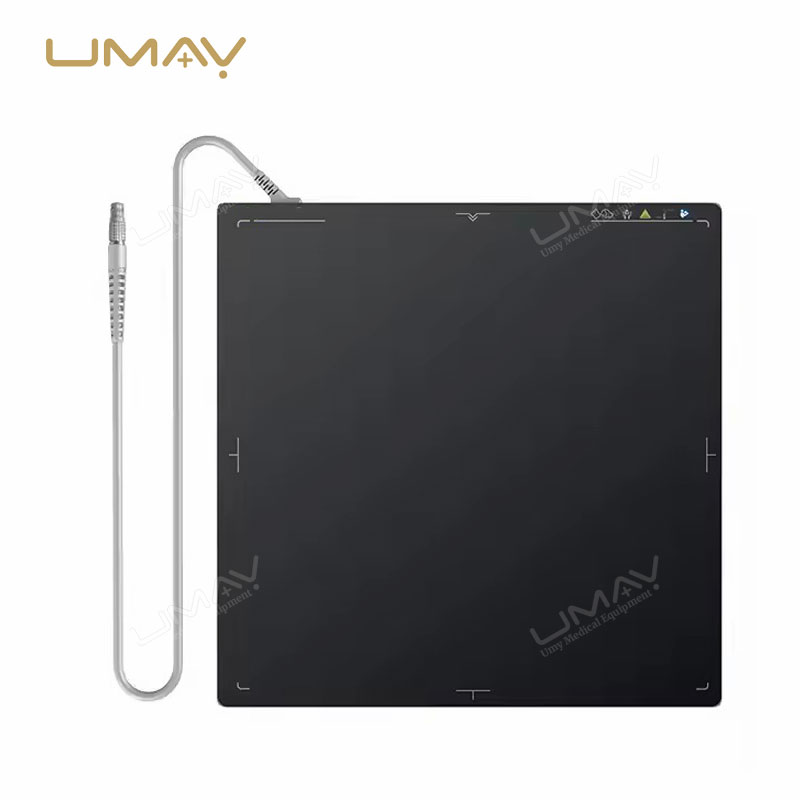

Digital Dynamic Flat Panel Detector 1717 for Fluoroscopy and CBCT X Ray Imaging Systems
SKU: UMY-XM-078
Brand: Umy
MOQ: 1
Origin: China
Quick Info.
- SKU NO.: UMY-XM-078
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton or Wooden Cases
- Origin: China
- Material: Aluminum & Magnesium Alloys and Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 2000 Sets/Year
Designed for real-time imaging, the 1717 flat panel detector features a 17 by 17 inch active area and a direct-deposition CsI scintillator for high DQE and low clinical dose. With frame rates up to 30 fps in 3×3 binning mode, it supports dynamic studies including gastrointestinal fluoroscopy, CBCT for urology, and general radiography. The 139 µm pixel pitch and 16-bit ADC enhance image detail across variable gain settings. Optimized for high-speed diagnostics, this FPD integrates well into advanced DR systems. For complete system integration, see our 50kW hospital stationary DR X ray machine.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Detector Specifications | |
| Detector Technology | Amorphous Silicon |
| Scintillator | Csl |
| Active Area (inch) | 17 × 17 |
| Pixel Matrix | 3072 × 3072 |
| Pixel Pitch (µm) | 139 |
| Spatial Resolution (lp/mm) | 3.6 |
| AD Conversion (bit) | 16 |
| Frame Rate (fps) | 5 (1×1), 20 (2×2), 30 (3×3) |
| Data Interface | GigE |
| Physical Specifications | |
| Dimensions (mm³) | 460 × 460 × 16 |
| Weight (kg) | ≈ 4 |
| Power Dissipation (W) | ≤ 25 |
| Environmental Conditions | |
| Operating Temperature (°C) | 10 ~ 40 |
| Storage & Transport Temperature with Package (°C) | -10 ~ 55 |
| Operating Humidity (% RH) | 20 ~ 90 |
| Storage & Transport Humidity with Package (% RH) (Non-Condensing) | 10 ~ 95 |
