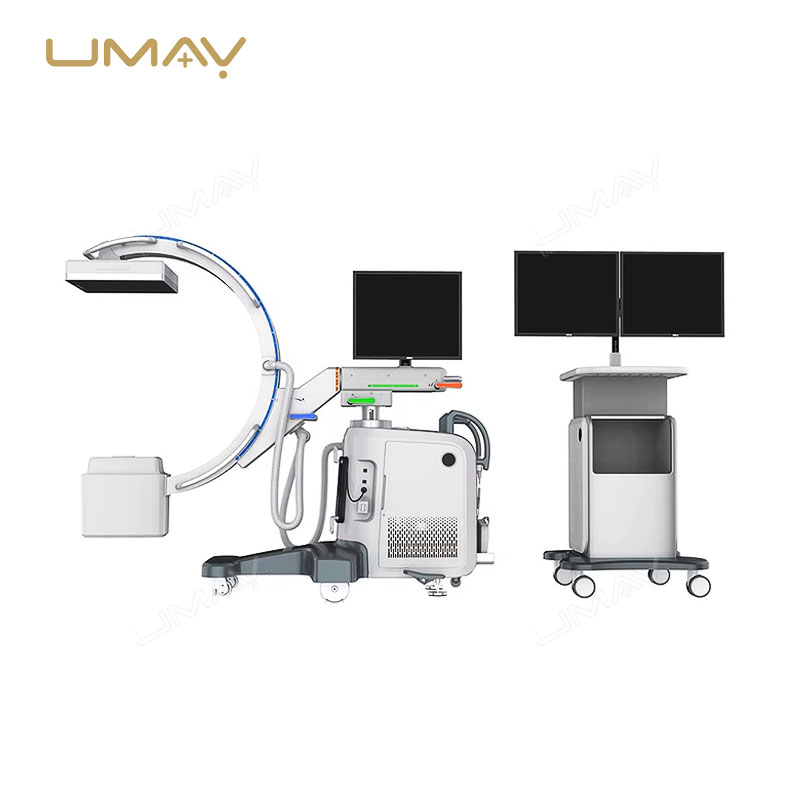

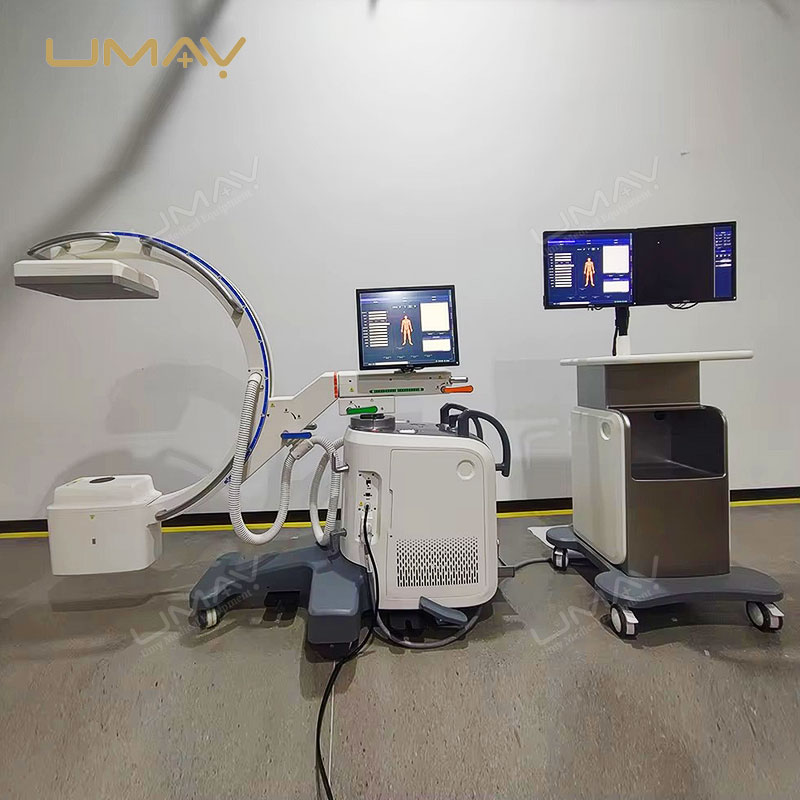

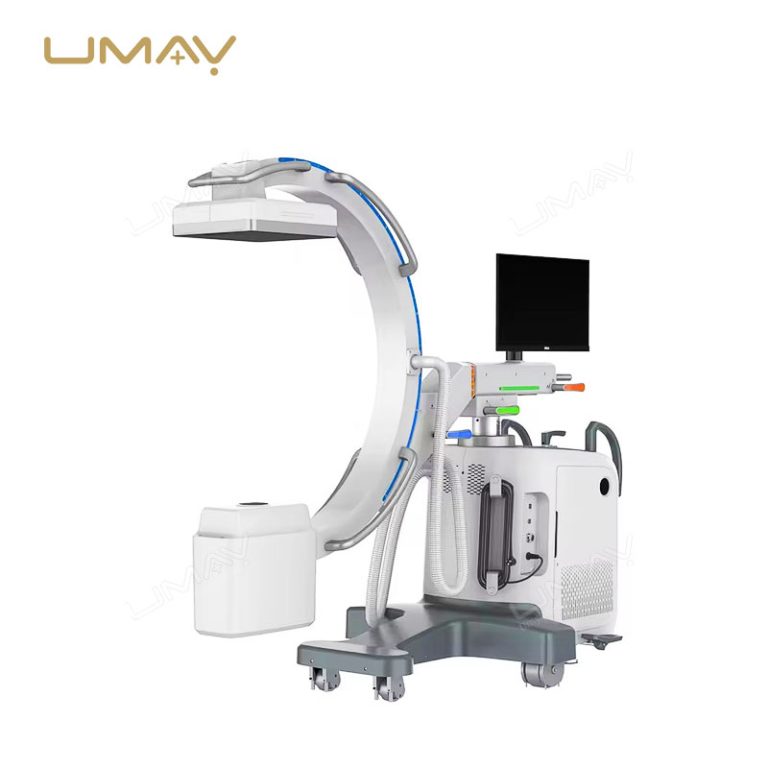

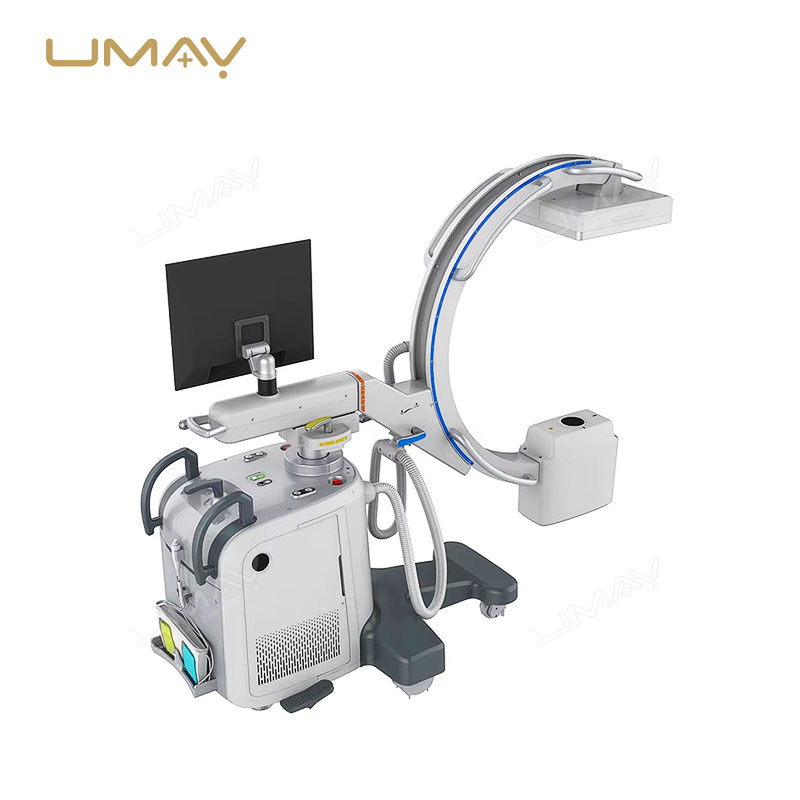

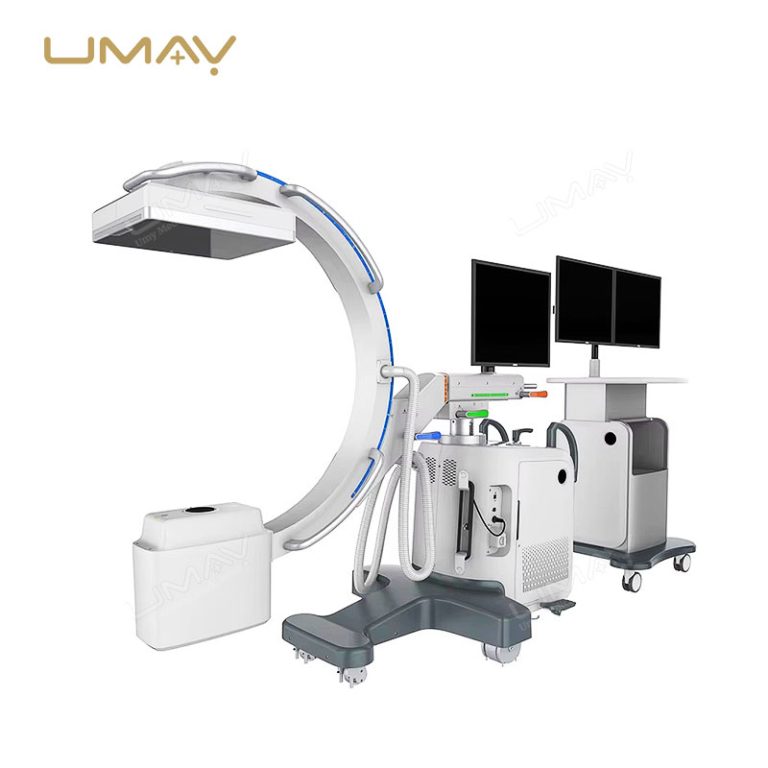

5kW High-Frequency C-Arm X-ray Machine with Touch LCD for Mobile Digital Imaging
SKU: UMY-XM-005
Brand: Umy
MOQ: 1
Origin: China
Quick Info.
- SKU NO.: UMY-XM-005
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton or Wooden Cases
- Origin: China
- Material: Aluminum and magnesium alloys
- After-Sale Service: Online Technical Support
- Production Capacity: 500 Sets/Year
The Mobile C Arm X Ray Machine provides high-resolution real-time fluoroscopy with its 5kW rotating anode X-ray tube and digital flat panel detector. Designed for orthopedic surgery, angiography, and intraoperative imaging, it ensures precise diagnosis with up to 150° orbital rotation and 3.3 lp/mm spatial resolution. Its intuitive control panel and 10G Ethernet image interface streamline workflow for fast procedures. Built with flexibility in mind, this compact system offers ±180° lateral rotation and a 640mm arc depth. To complement this mobile unit, our digital X ray machine with radiography C arm for comprehensive patient care offers integrated surgical guidance.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| High-Frequency Inverter Power Supply and Tube | |
| Inverter Power Supply | High-frequency inverter power supply with combined tube |
| Power | 5kW |
| Focus Size | 0.6mm (small focus) / 1.2mm (large focus) |
| Tube Cover Heat Capacity | 480kJ (648kHU) |
| Anode Heat Capacity | 60kJ (81kHU) |
| Inverter Frequency | ≥200kHz |
| System Specifications | |
| Display | System includes a color human body graphic LCD touch screen with real-time adjustment of exposure parameters |
| Tube Voltage | 40-120kV |
| Maximum Tube Current | 10mA (continuous perspective); 50mA (pulse perspective) |
| Maximum Pulse Acquisition Rate | 25 f/s |
| Maximum Photographic Current | 80mA |
| Image Collection and Processing | |
| Collection Size | ≥1024 × 1024 |
| Pixel Size | ≤205um |
| Spatial Resolution | ≥2.0 LP/mm |
| Dynamic Adjustment Range | ≥16-bit |
| Filter Grid Density | ≥80L/cm, pluggable |
| Positioning System | Intelligent multi-dimensional laser positioning system with integrated support design |
