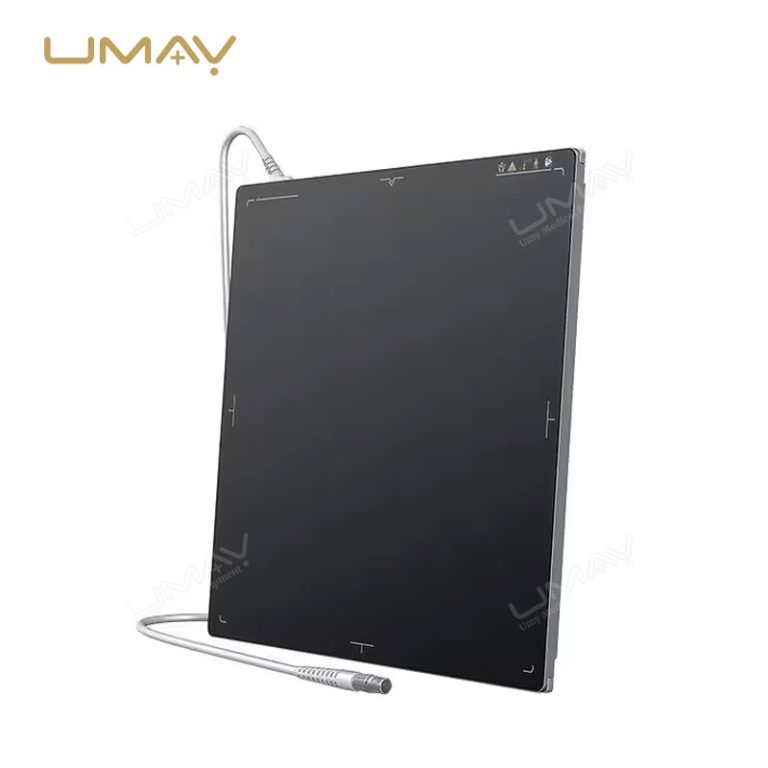

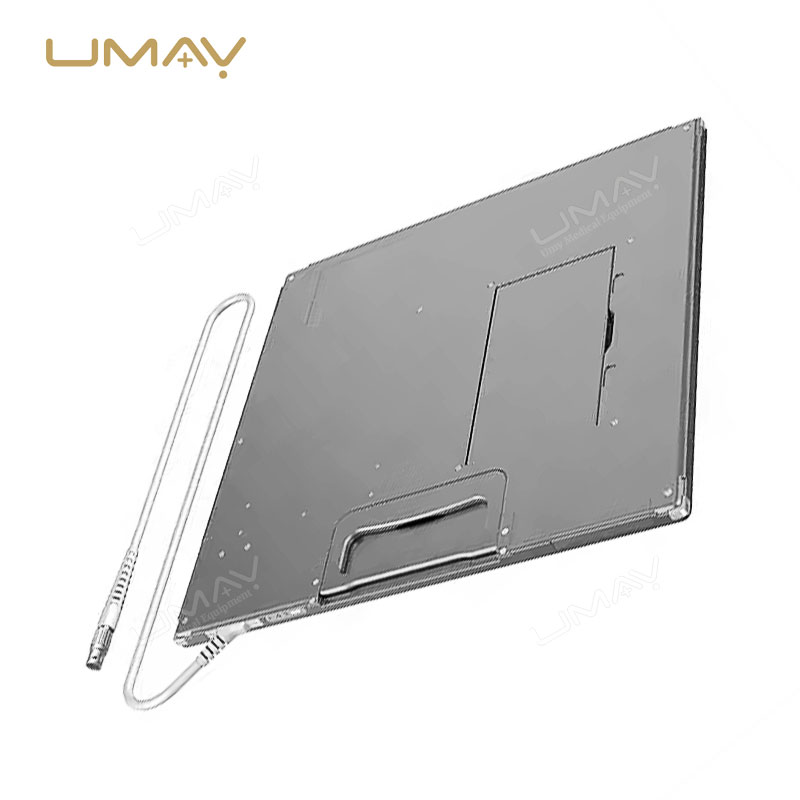

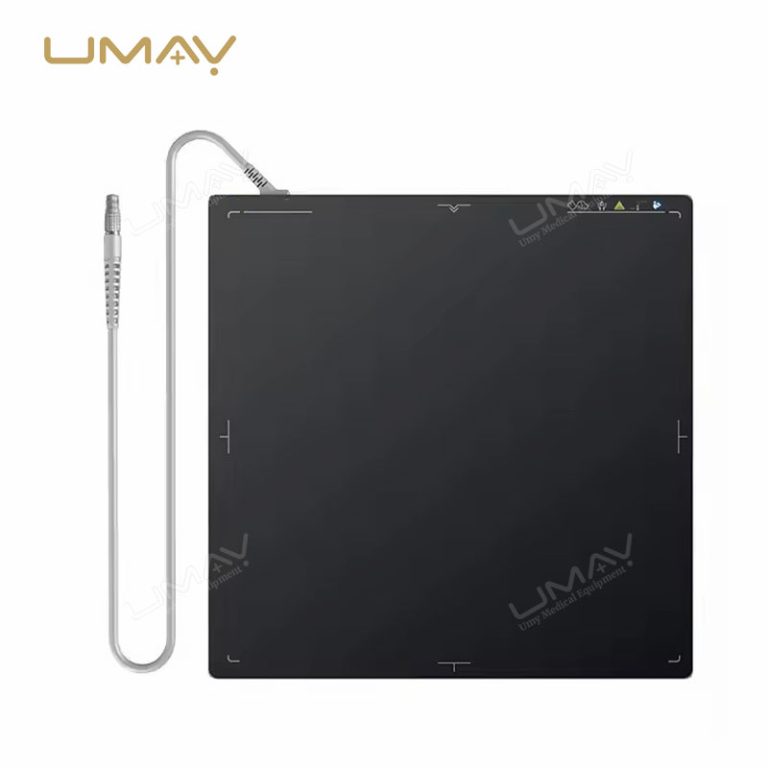

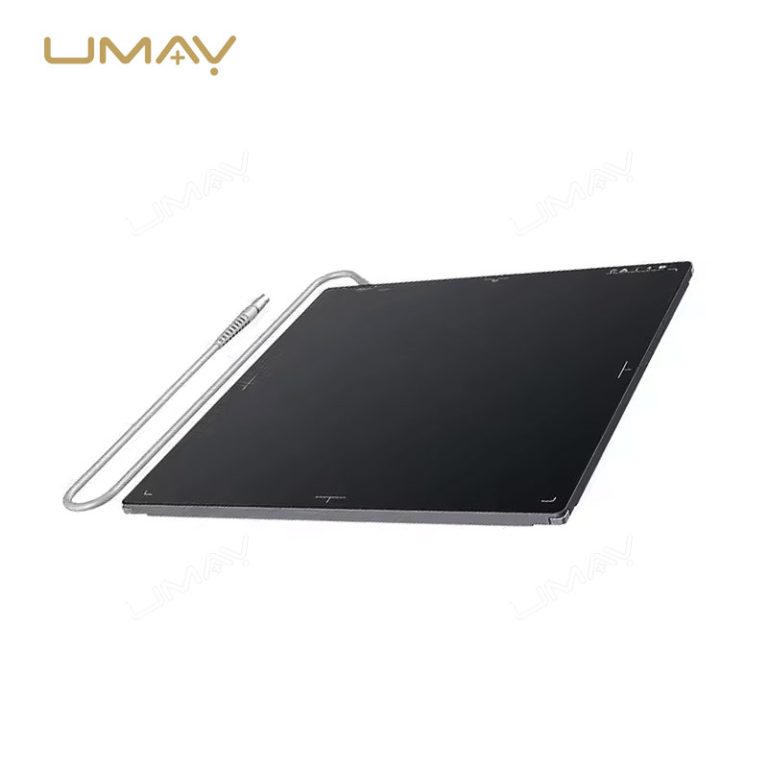

1717X Wired Flat Panel Detector for Veterinary and Human Radiographic Imaging
SKU: UMY-XM-071
Brand: Umy
MOQ: 1
Origin: China
Quick Info.
- SKU NO.: UMY-XM-071
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric

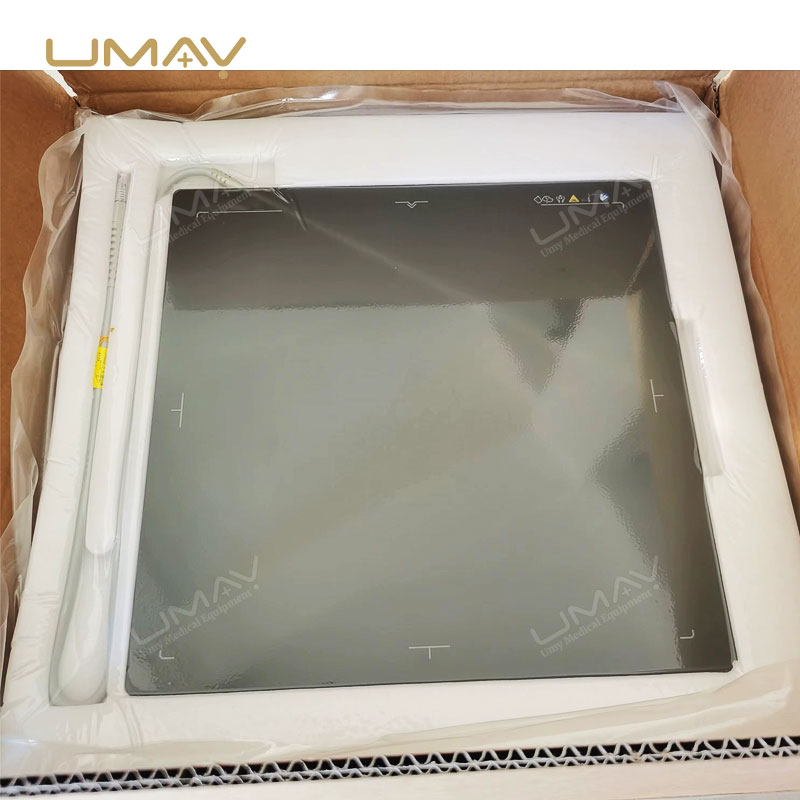

- Transport Package: Carton or Wooden Cases
- Origin: China
- Material: Aluminum & Magnesium Alloys and Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 2000 Sets/Year

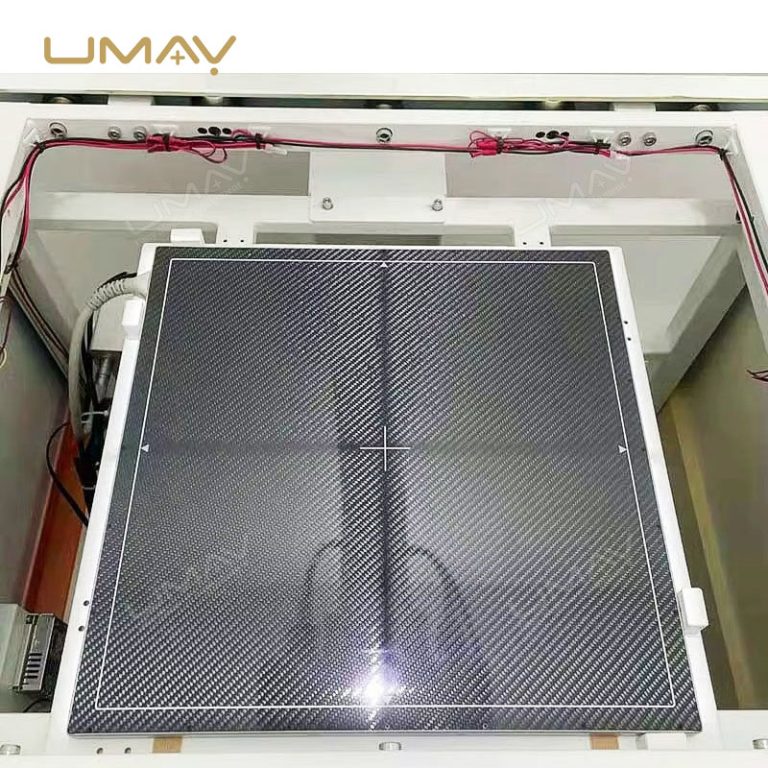

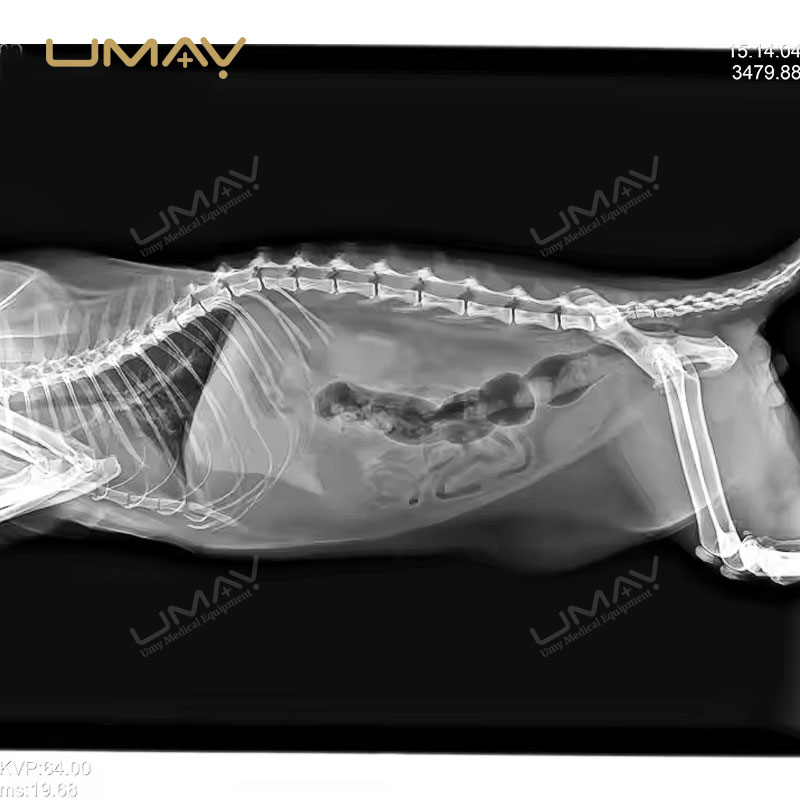

The 1717X is a 17×17-inch cassette-sized flat panel detector designed for high-resolution radiographic imaging in both veterinary and human applications. With a 139 μm pixel pitch and 16-bit ADC, it delivers exceptional image clarity and fine anatomical detail. Its direct deposition CSI technology combined with stable iSync+ Automatic Exposure Detection (AED) supports seamless integration into high-end DR systems. Compatible with ISO 4090 bucky trays, it ensures efficiency and flexibility in clinical workflows.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Detector Specifications | |
| Detector Technology | Amorphous Silicon |
| Scintillator | Csl |
| Active Area | 17 × 17 inch |
| Pixel Matrix | 3072 × 3072 |
| Pixel Pitch | 139 μm |
| Spatial Resolution | 3.4 lp/mm |
| AD Conversion | 16 bit |
| Data Transmission | GigE |
| Trigger & Imaging | |
| Trigger Mode | AED (Optional) / Software / Prep |
| Preview Image Time | 3 seconds |
| Full Image Time | 5 seconds |
| Physical Specifications | |
| Dimensions | 460 × 460 × 15 mm |
| Weight | 4 kg |
| Power Dissipation | 30 W |
| Environmental Conditions | |
| Operating Temperature | 5 ~ 35 °C |
| Storage & Transport Temperature with Package | -20 ~ 55 °C |
| Operating Humidity | 30 ~ 80% (Non-Condensing) |
| Storage & Transport Humidity with Package | 5 ~ 95% (Non-Condensing) |
