1717 Wireless Flat Panel Detector Cassette Size for DR System Integration
SKU: UMY-XM-070
Brand: Umy
MOQ: 1
Origin: China
Quick Info.
- SKU NO.: UMY-XM-070
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric

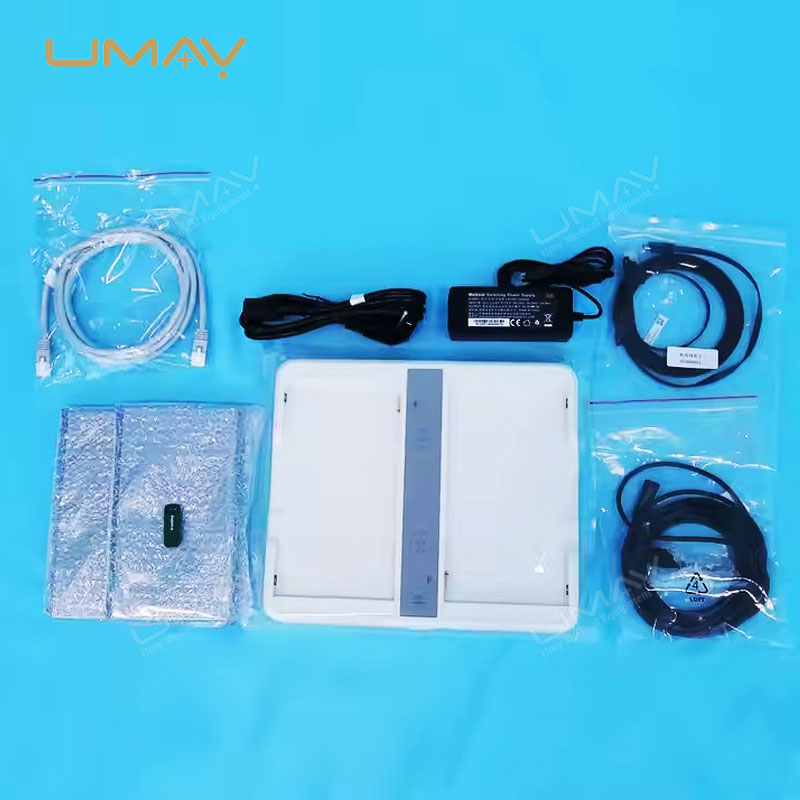

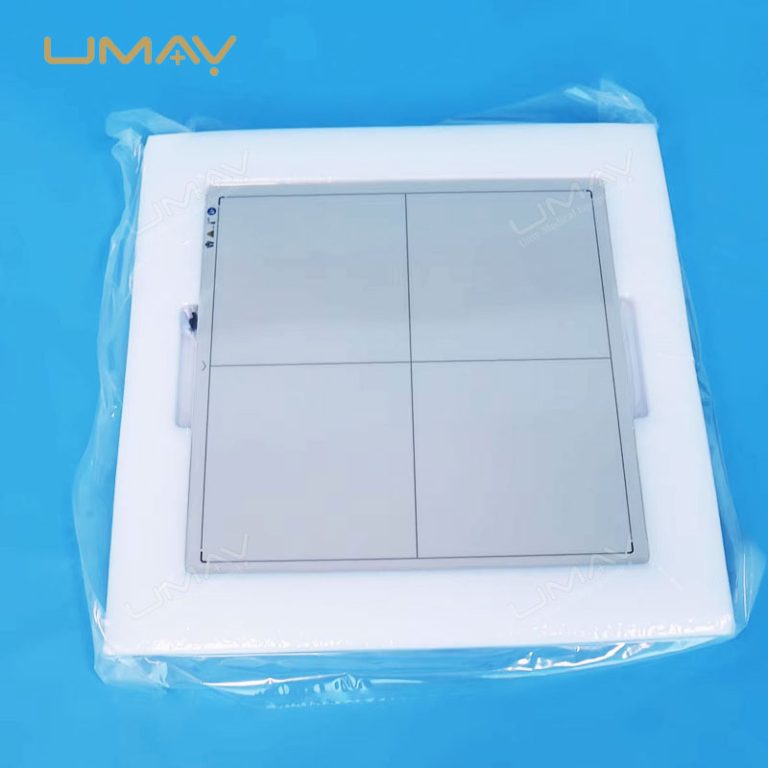

- Transport Package: Carton or Wooden Cases
- Origin: China
- Material: Aluminum & Magnesium Alloys and Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 2000 Sets/Year

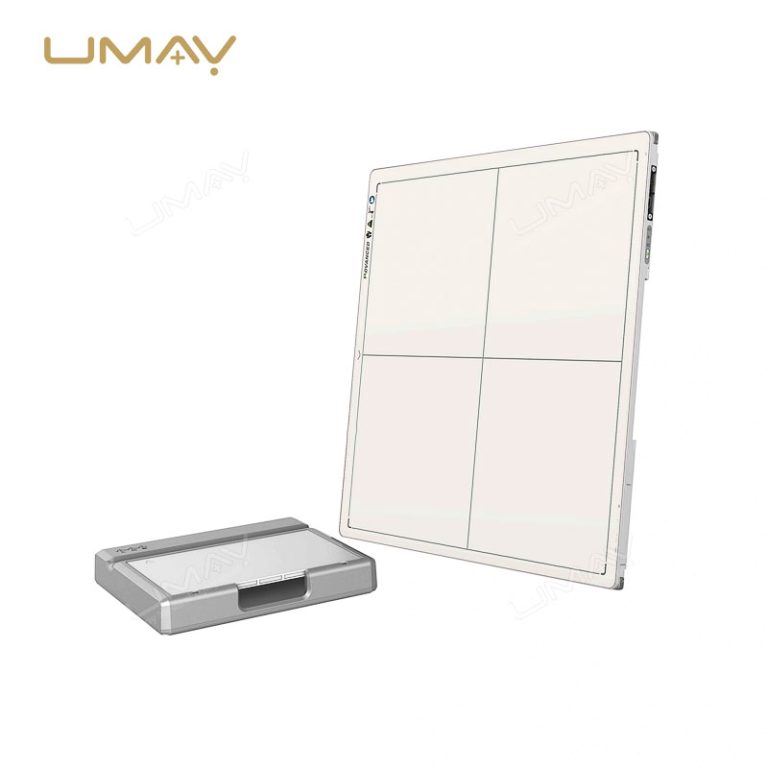

The 1717 is a smart 17×17-inch wireless flat panel detector designed for seamless integration into both retrofit and new digital radiography systems. With a 139 μm pixel pitch and 16-bit ADC, it ensures high-definition image quality essential for detailed diagnostics. The cassette-size format fits ISO 4090 bucky trays and features stable iSync+ Automatic Exposure Detection (AED) for consistent imaging. Built for performance, it offers dependable wireless connectivity and long battery life, supporting a fast and efficient workflow in clinical and veterinary settings.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Detector Specifications | |
| Detector Technology | Amorphous Silicon |
| Scintillator | Csl |
| Active Area | 17 × 17 inch |
| Pixel Matrix | 3072 × 3072 |
| Pixel Pitch | 139 μm |
| Spatial Resolution | 3.6 lp/mm |
| AD Conversion | 16 bit |
| Connectivity & Interface | |
| WiFi | 2.4G and 5G, IEEE802.11 a/b/g/n/ac |
| Trigger Mode | AED (Optional) / Software |
| Power & Battery | |
| Battery Autonomy | 8 hours |
| Imaging Performance | |
| Full Image Time | 5 seconds |
| Physical Specifications | |
| Dimensions | 460 × 460 × 15 mm |
| Weight | 4.3 kg |
| Static Loading | 150 kg Uniformly |
| Ingress Protection | IPX1 |
| Environmental Conditions | |
| Operating Temperature | 5 ~ 35 °C |
| Storage & Transport Temperature with Package | -20 ~ 55 °C |
| Operating Humidity | 10 ~ 90% (Non-Condensing) |
| Storage & Transport Humidity with Package | 5 ~ 95% (Non-Condensing) |
