17″ Wireless Flat Panel Detector UMY-XM-FP03 for Medical Radiology Imaging
Quick Info.
- SKU NO.: UMY-XM-FP03
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton or Wooden Cases
- Origin: China
- Material: Metal, Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 500 Sets/Year
The 17″ Portable Wireless Flat-Panel Detector is designed for maximum portability and performance. It features a lightweight, rubber-insulated frame and a high-strength aluminum-alloy case, ensuring stability even on uneven terrain.
With patented Full-Field Automatic Exposure Detection (F2AED) technology, this detector operates independently from the generator, simplifying use in various environments.
The high-capacity battery allows for hundreds of X-ray shots on a single charge, while low-power operation ensures efficiency.
Supporting wireless communication (IEEE 802.11a/b/g/n) and dual frequency (2.4GHz/5GHz), it seamlessly fits into standard bucky tray cabinets, making it ideal for upgrading older systems or integrating with modern general radiography systems.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Electricals and interface | |
| A/D Conversion | 16 bits |
| Data Interface | Gigabit Ethernet/802.11ac (only 5G) |
| Acquire Time | wired: 1s; wireless: 35 |
| Exposure Control | Software/Sync/AED |
| Memory | 4 GB DDR4, 8 GB SD card |
| Wireless transmission distance | 50m(optional 500m) |
| Mechanical | |

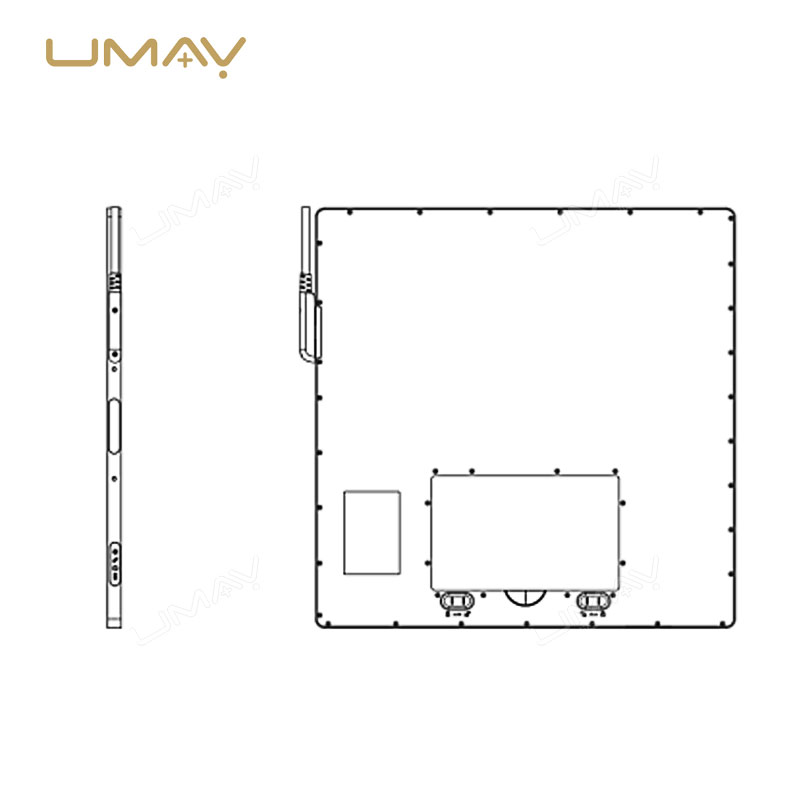

| Dimension | 460× 460 × 15 mm |
| Weight | 3.8kg (Without battery) |
| Material | Aluminum and magnesium alloys |
| Front Panel | Carbon fiber |
| Environmental | |
| Temperature | 10-35°C (operating);-10~50°C (storage) |
| Humidity | 30-70% RH (non-condensing) |
| Ingress Protection | IP51 (Customized to IP67) |
| Sensor | |
| Receptor Type | a-Si |
| Scintillator | Gos / CsI:TI |
| Active Area | 430 x 430 mm |
| Resolution | 4304 x 4304 |
| Pixel Pitch | 100 μm |
| Power Supply & Battery | |
| Adapter In | AC 100-240V,50-60Hz |
| Adapter Out | DC 24V,2.7A |
| Power Dissipation | <20 W |
| standby time | 4.5h |
| recharge time | 4.5h |
| Image Quality | |
| Limiting Resolution | 5 LP/mm |
| Energy Range | 40-160 KV |
| Dynamic Range | ≥76 dB |
| Sensitivity | ≥0.36 LSB/nGy |
| Ghos | <1% 1st frame |
| DQE | 42% @(1 LP/mm) |
| 28% @(2 LP/mm) | |
| MTF | 68% @(1 LP/mm) |
| 38% @(2 LP/mm) | |
| 20% @(3 LP/mm) | |
