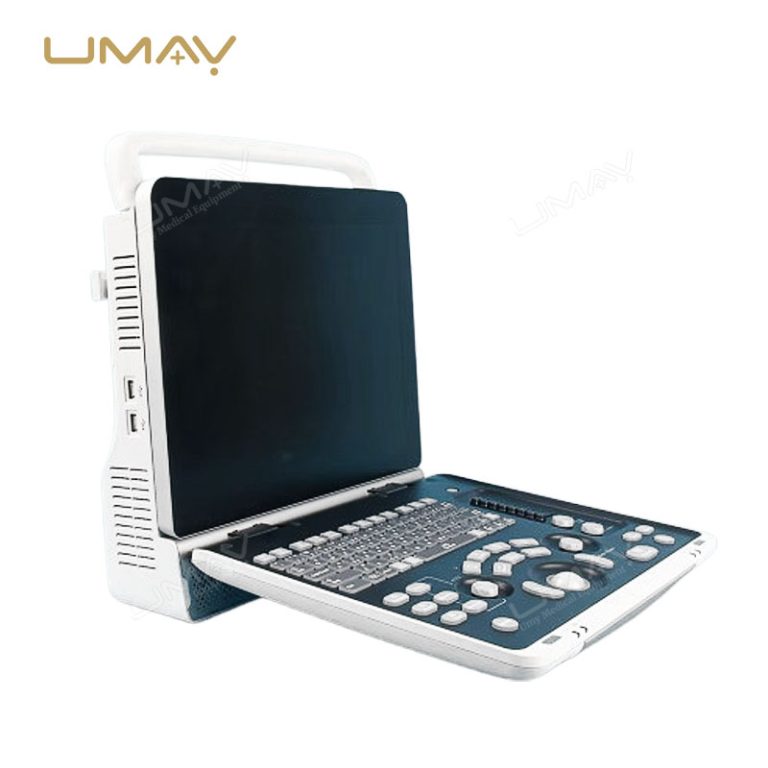

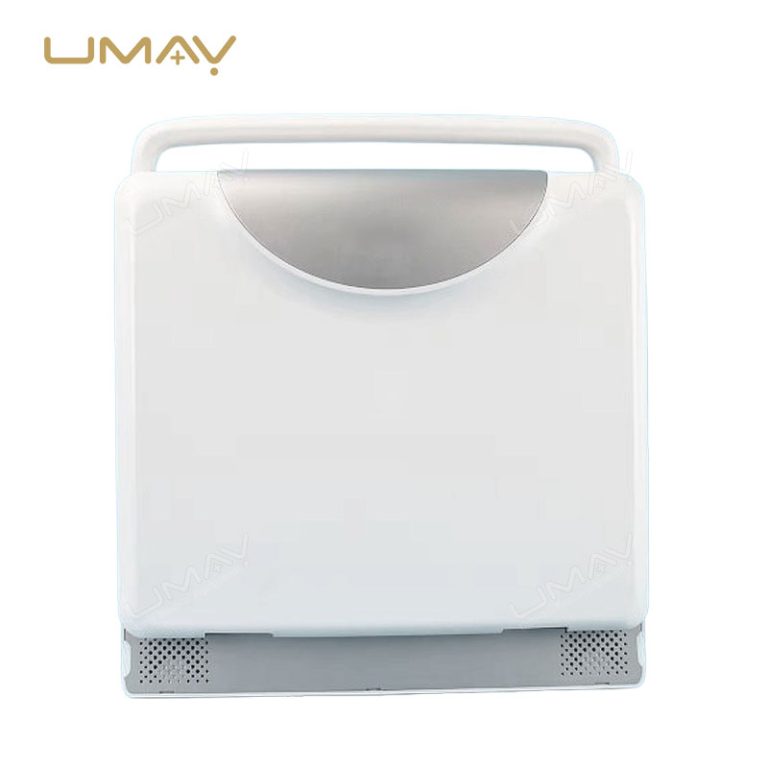

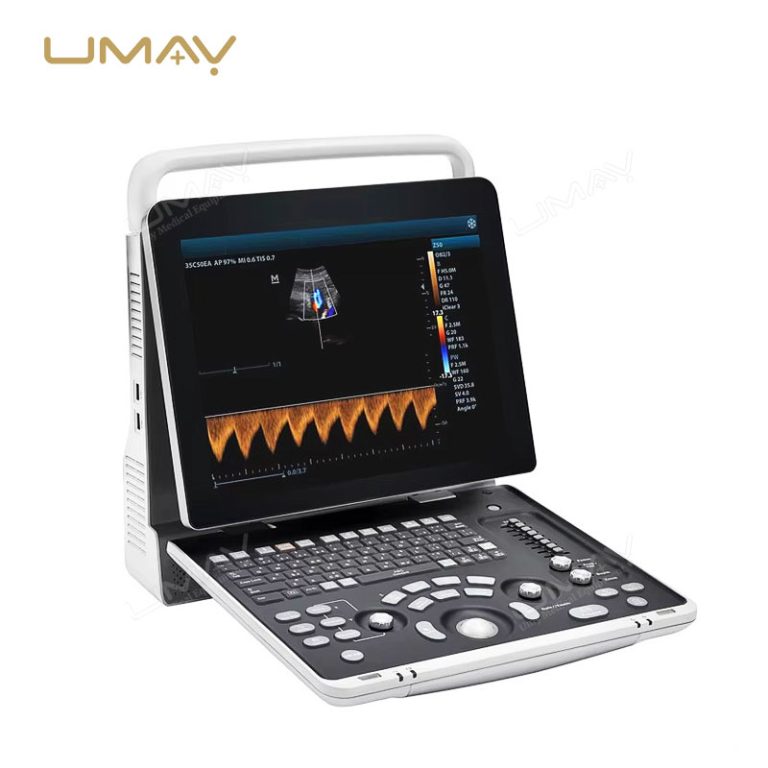

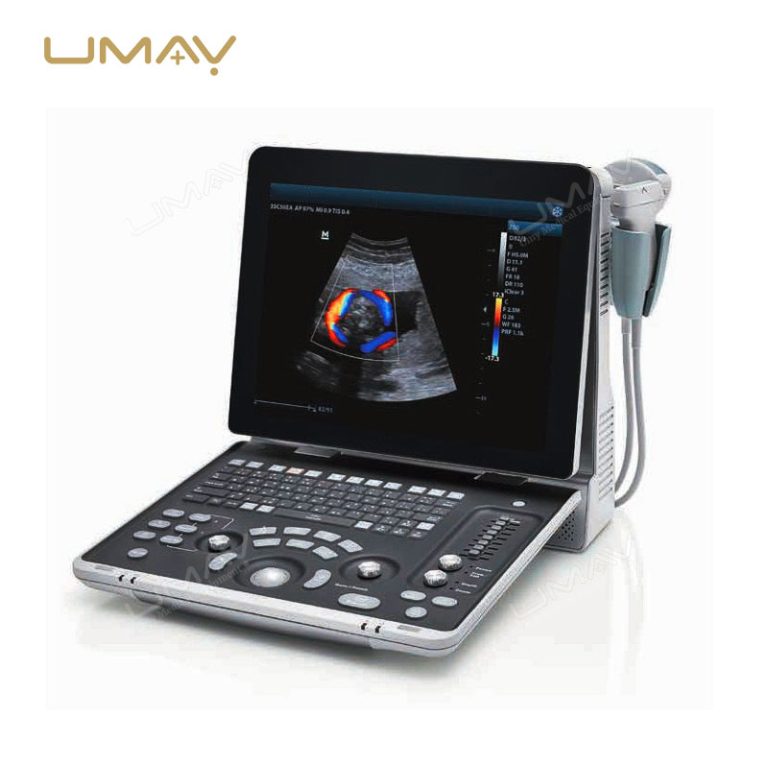

Z50BW Portable Color Doppler Ultrasound Machine for Obstetric and General Imaging

SKU: UMY-US-118

Brand: Umy

MOQ: 1

Origin: China

Quick Info.

This portable ultrasound system features a 15-inch full screen, 3 universal transducer connectors, and a 500GB hard disk for reliable data storage. With advanced tools like Smart Face, iLive, and iScape View, it supports detailed fetal imaging and general diagnostics in OB, GYN, MSK, and more. Its 3D and 4D imaging capabilities provide enhanced clinical confidence, especially in prenatal examinations. The system’s long battery life and hand-carry design suit mobile healthcare needs.

The Specific Parameters

ITEMS	PARAMETERS
Host and Imaging System

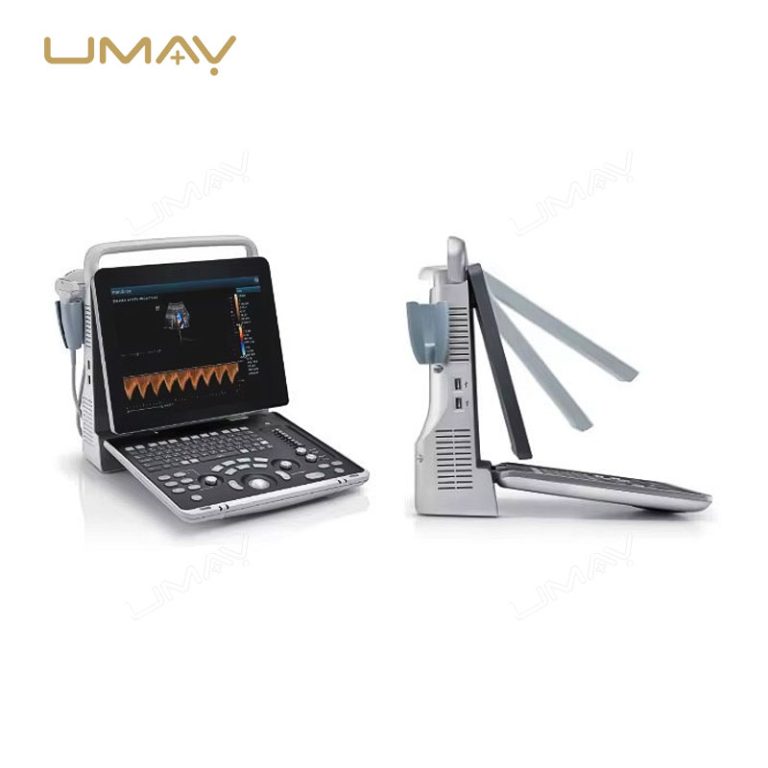

Display Size and Angle	≥15 inches, adjustable display angle ≥35°
Console Probe Interfaces	≥2
Expandable Probe Interfaces	Up to 3 external probe interfaces supported
Gray-order Imaging	Two-dimensional gray-order imaging
Duple Display System	Spectrum Duple Display and Analysis System
Energy Map	Dorodel energy map
4D Imaging	Optional four-dimensional imaging
Offline Analysis	Echo signal analysis with dynamic scope, baseline, effects, etc.
Space Composite Imaging	Supported
Dual Real-time Color Mode	Double-dimensional color Doppler dual real-time display mode
Real-Time Wide View Imaging	Optional, supports image proof
Organ Imaging Modes	Muscle, conventional, fat, liquid imaging (with picture proof)
Automatic Workflow Protocol	Optional for blood vessels, small organs, hearts, gynecology
Machine Size Design	Compact footprint when folded
System Integration	No additional adapter required
Boot Time	<30 seconds; Standby mode transfer <5 seconds

Two-Dimensional Gray-Level Imaging Unit
Digital Focus & Pores	Digitalized dynamic focus and variable pores
Sound Beam Focus	≥8 segment emission
Max Display Depth	≥30cm
TGC & LGC	TGC: ≥8, LGC:* ≥4*
Dynamic Range	≥200, visually adjustable (picture proof supported)

Color Doppler
Doppler Frequency	≥2 segments, independently adjustable
Display Mode	B/Color dual real-time display
Speed Fixed-Point Measurement	Supports ≥6 test points, deep display (picture proof)

Measurement and Analysis
Conventional Measurement	Distance, ellipse, trace area, volume
Peripheral Vessels Analysis	Special measurement supported
OB/GYN Measurement	Double tire measurement, fetal scores, obstetrics
Doppler Analysis	Supported
Auto Spectrum Description	Supported in real-time and frozen modes (picture proof)

Image Transmission and Storage Unit
Storage Unit	Supports synchronous storage, DCM, TIFF, CIN, AVI, etc.
Output Formats	Composite video, S-video, VGA
Wireless Transmission	Supported
USB Interfaces	4 USB 2.0 ports with one-click operation
Built-in Storage	500GB built-in hard disk
