Veterinary Ultrasound Laptop Scanner with Rectal Probe for Cattle Horse Dog and Cat Imaging
SKU: UMY-US-114
Brand: Umy
MOQ: 1
Origin: China
Quick Info.
- SKU NO.: UMY-US-114
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton or Wooden Box
- Origin: China
- Material: Metal, Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 3000 Sets/Year

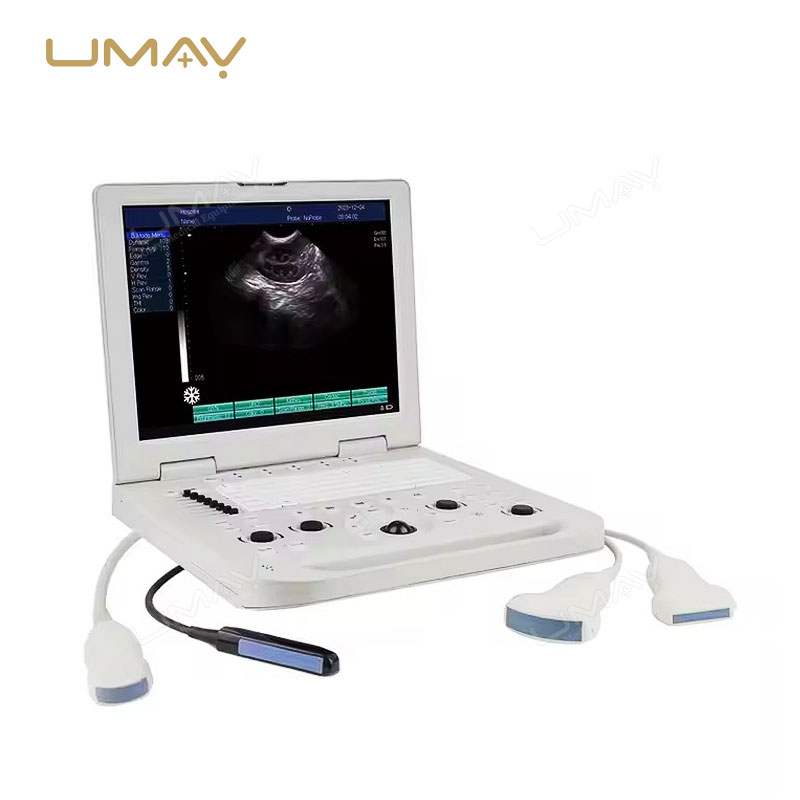

This full digital ultrasound scanner delivers precise and reliable imaging for large and small animal diagnostics, including bovine pregnancy checks and equine tendon evaluations. Its dual probe socket and rectal probe are ideal for both abdominal and reproductive applications in cattle, horses, dogs, and cats. With support for convex, linear, and micro-convex probes, it ensures flexibility across veterinary practices. Battery-powered portability and multilingual UI make it a strong fit for field and clinical use. For those seeking an efficient handheld alternative, explore the handheld veterinary ultrasound diagnostic instrument for animal health for quick scans on the go.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Technical Specifications | |
| Display Screen | 15-inch LCD medical display screen |
| Display Modes | B, 2B, 4B, M, B/M |
| Probe Elements | 128-element high-definition probe |
| Electronic Focusing | Four-stage electronic focusing |
| Frequency Conversion | All probes support five-stage frequency conversion |
| Cine Loop | 256 frames, supports frame-by-frame playback and pause |
| Body Marks | ≥98 types |
| Gray Scale | 256 levels |
| Dynamic Range | 0-135dB |
| Gain Range | 0-100dB |
| Maximum Display Depth | 300mm |
| Geometric Accuracy | Lateral ≤5%, Longitudinal ≤5% |
| Resolution | Lateral ≤2mm, Axial ≤1mm |
| Display Magnification | 16 display modes, depth display enhancement |
| Pre-processing | Variable aperture, dynamic apodization, dynamic digital filtering, etc. |
| Post-processing | 8 types of gamma correction, row correlation, 16-level frame correlation, point-line correlation, linear interpolation, digital spatio-temporal filtering, digital edge enhancement, 8 types of pseudo-color processing |
| Blind Zone | ≤4 |
| Power | |
| Battery Type | Removable lithium battery |
| Battery Capacity | 6000mAh |
| Battery Life | 4.5 hours |
| Application Scene | |
| Specialized Measurement Packages | Gynecology, urology, kidney, cardiology, thyroid |
| Configuration | |
| Operation Interface | Chinese/English |
| Character Display | Date, clock, name, gender, age, doctor, hospital, annotations |
| Puncture Guide | Adjustable puncture line position |
| Lithotripsy Positioning | Included with dynamic target tracking |
| Permanent Storage | Built-in 16GB, supports external U-disk storage |
| Interfaces | Video interface, 2× USB, DICOM, SVGA, power interface |
| Physical Specifications | |
| Main Unit Dimensions | 360mm (L) × 355mm (W) × 65mm (H) |
| Outer Packaging Dimensions | 500mm × 500mm × 230mm |
| Net Weight | 4.2kg |
| Gross Weight | 7.5kg |
