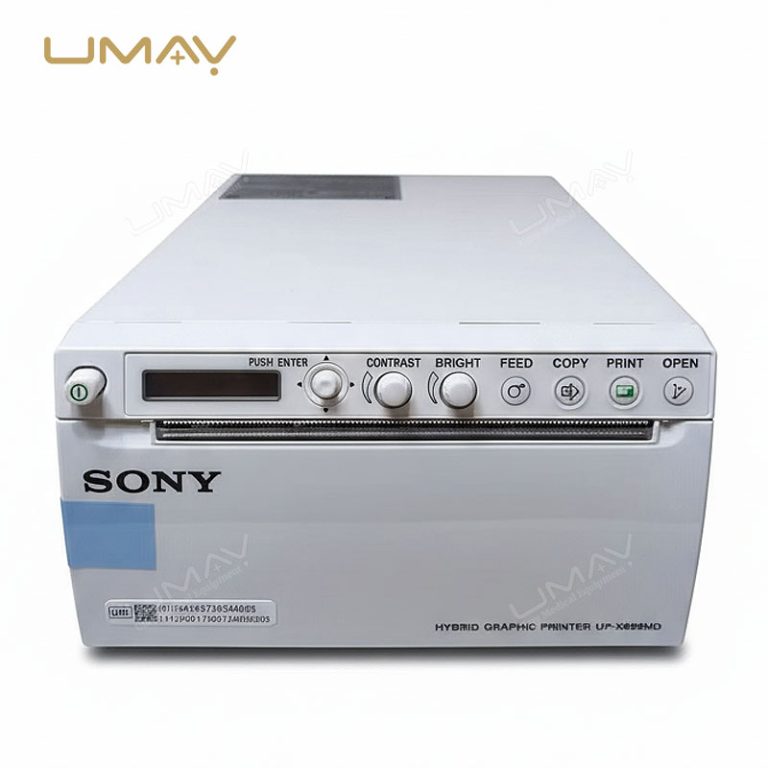

UP-X898MD Medical Thermal Printer With 325 DPI Resolution and Dual Input Connectivity
Quick Info.
- SKU NO.: UMY-US-017
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton or Wooden Box
- Origin: Guangzhou City, Guangdong, China
- Material: Metal, Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 3000 Sets/Year
This medical thermal printer delivers sharp still image output for ultrasound and clinical imaging systems. Direct thermal printing at 325 DPI and 256 gradation levels ensures accurate diagnostic image quality. USB and analog video inputs connect to a broad range of clinical imaging devices.
Fast output, built for clinical pace:
Each print completes in 1.9 seconds, keeping clinical workflows moving efficiently. Built-in NTSC/PAL image capture with auto signal discrimination eases analog setup.
Trusted across hospital and clinic imaging environments:
Ultrasound image printing supports WIDE, STD, and SIDE scan modes for full diagnostic flexibility. UL, CSA, ANSI/AAMI, and FCC Class A certification confirms clinical compliance.
Pair this printer with our Full HD Medical Endoscope Camera With Built-In LED Cold Light Source to complete your imaging documentation setup. Fast and compliant, this medical thermal printer is built for clinical imaging output.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Print Information | |
| Print technology | Direct Thermal Printing |
| Resolution | 325 DPI |
| Gradations | 8 bits (256 levels) |
| Picture size (Digital) | 4096 × 1280 dots |
| Picture size (Analog) | 720 × 504 (NTSC), 720 × 604 (PAL) |
| Picture area | 12 5/8 × 3 7/8in (Max), 320 × 100mm |
| SCAN mode | WIDE1 |
| STD (NTSC) | 94 × 73mm |
| STD (PAL) | 94 × 71mm |
| SIDE (NTSC) | 124 × 96mm |
| SIDE (PAL) | 127 × 96mm |
| Print time (approx.) | 1.9 seconds |
| Memory (Digital) | 4096 × 1280 × 8 bit |
| Memory (Analog) | 10 frames (850k x 8 bits for one frame) |
| Printer driver | Windows XP, Vista, 7, 8 (32/64 bit) |

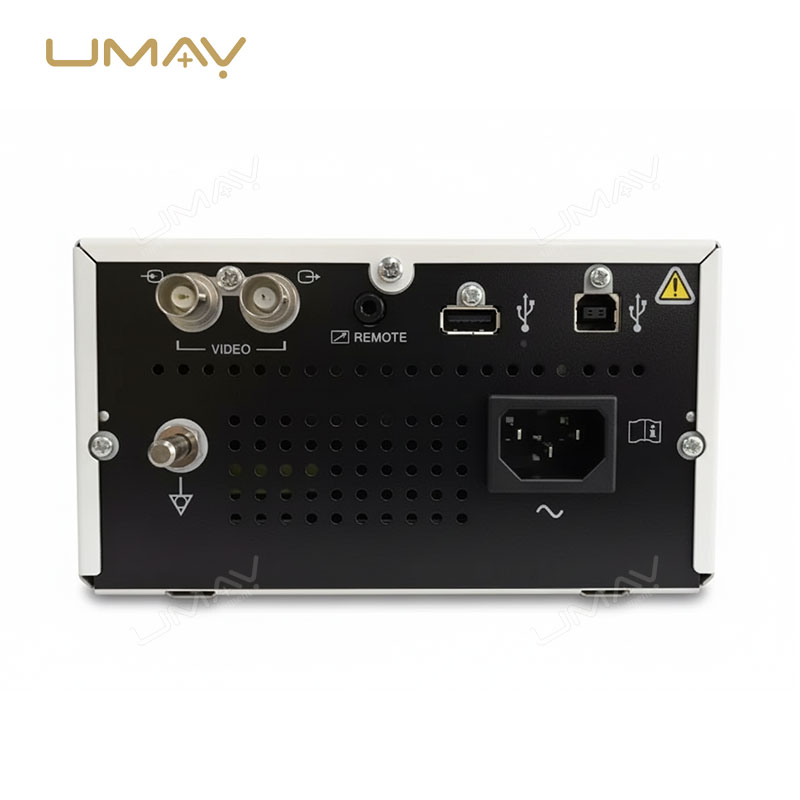

| Interface | |
| Interface type | USB 2.0** |
| Built-in image capture | Yes |
| Input connector | VIDEO IN (BNC type) |
| Output connector | VIDEO OUT (BNC type, loop-through) |
| Remote connector | Stereo mini jack |
| Power Information | |
| Power requirements | 100 to 240V AC, 50/60Hz |
| Input current | 1.3A to 0.6A |
| Standby current | 0.10A to 0.05A |
| Operating Conditions | |
| Temperature | 5°C to 40°C (41°F to 104°F) |
| Humidity | 20% to 80% (noncondensing) |
| Storage and Transport | |
| Temperature | -20°C to +60°C (-4°F to +140°F) |
| Humidity | 20% to 80% |
| Standards | |
| Safety | UL 60950-1, 60601-1, ANSI/AAMI ES60601-1, CSA C22.2 No.60950-1, No.601.1, No.60601-1 |
| EMC | FCC Part 15 Subpart-B Digital Device Class A |
| Supplied Accessories | |
| Contents | (1) Thermal head cleaning sheet, (1) CD-ROM (Operating instructions, Printer driver), (1) “Before using this printer” sheet, (1) Service contact list, (1) USB Flash Drive cable, (1) Starter pack media (HG), (1) US power cord |
| Dimensions and Weight | |
| Dimensions (W x H x D) | 154mm × 88mm × 240mm |
| Weight | 2.6kg (5lb 8oz) |
Feature list for UMY-US-017
* 325 DPI Direct Thermal Printing With 256 Gradation Levels
* 1.9-Second Print Time for Fast Clinical Workflow
* USB 2.0 Digital and BNC Analog Dual Input Connectivity
* Built-In NTSC/PAL Image Capture With Automatic Signal Discrimination
* UL, CSA, ANSI/AAMI, and FCC Class A Safety and EMC Compliance
Application
Ideal for hospital ultrasound departments, endoscopy suites, radiology clinics, and specialist imaging centers. Used by sonographers, gastroenterologists, and clinical imaging teams requiring fast, high-quality hardcopy output directly from digital or analog imaging systems. Suitable for both high-volume hospital environments and smaller diagnostic clinics.
Q1: Can the UP-X898MD connect to imaging systems from multiple manufacturers without additional adapters?
A1: The USB 2.0 and BNC analog inputs are standard interface types recognized across most clinical ultrasound and endoscopy platforms without proprietary adapters.
Q2: What materials and design considerations make the UP-X898MD suitable for continuous use in a clinical environment?
A2: The unit is constructed for reliable, sustained operation in clinical settings, with electrical safety and electromagnetic compatibility validated to hospital-grade standards.
Q3: Where can procurement teams find additional medical imaging output options to evaluate alongside the UP-X898MD?
A3: Teams sourcing imaging documentation solutions can review our value-priced medical image printer for CR, DR, MRI, and CT scans for broader imaging printer options.
